Please HELP!! what is this

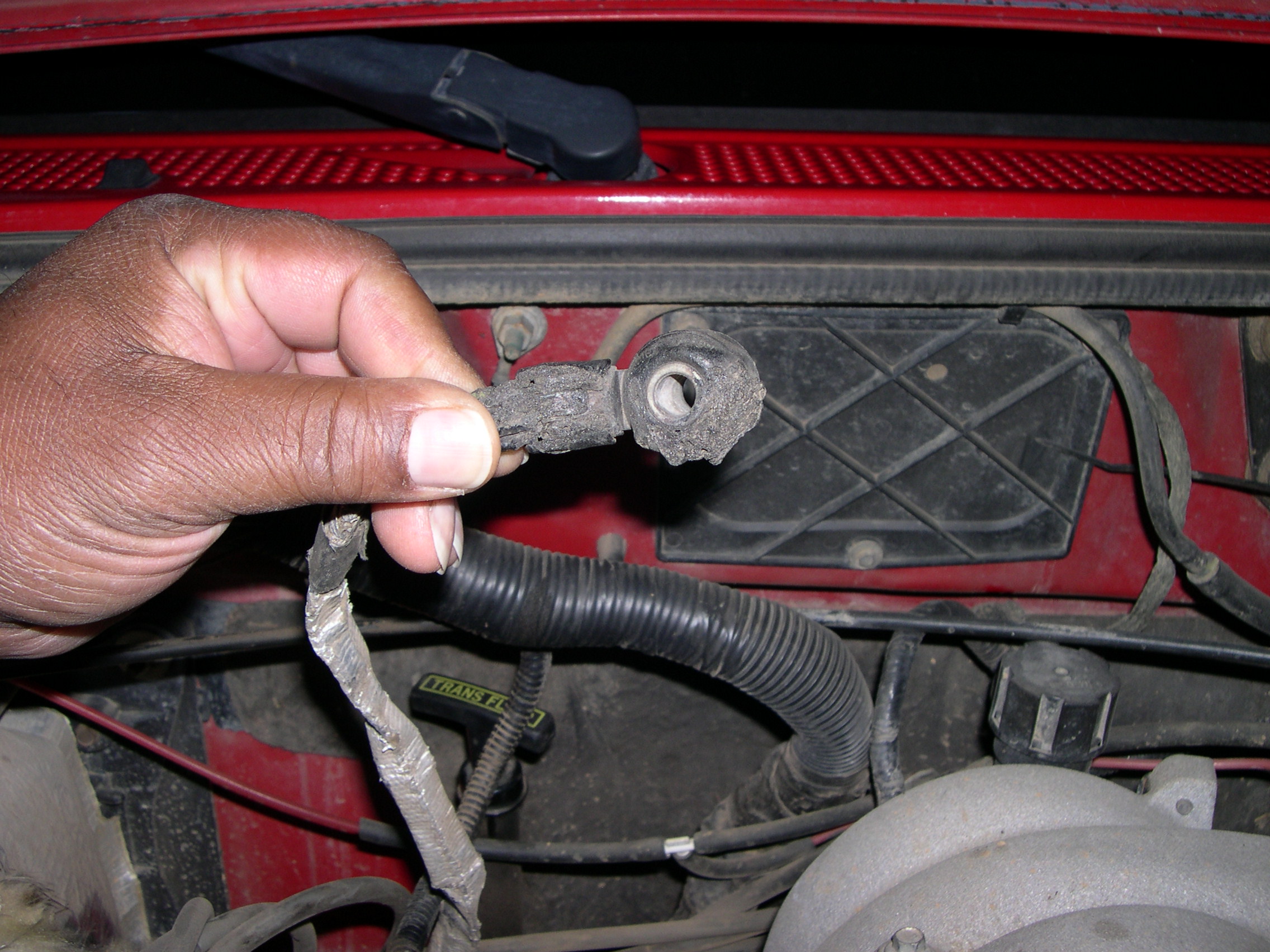

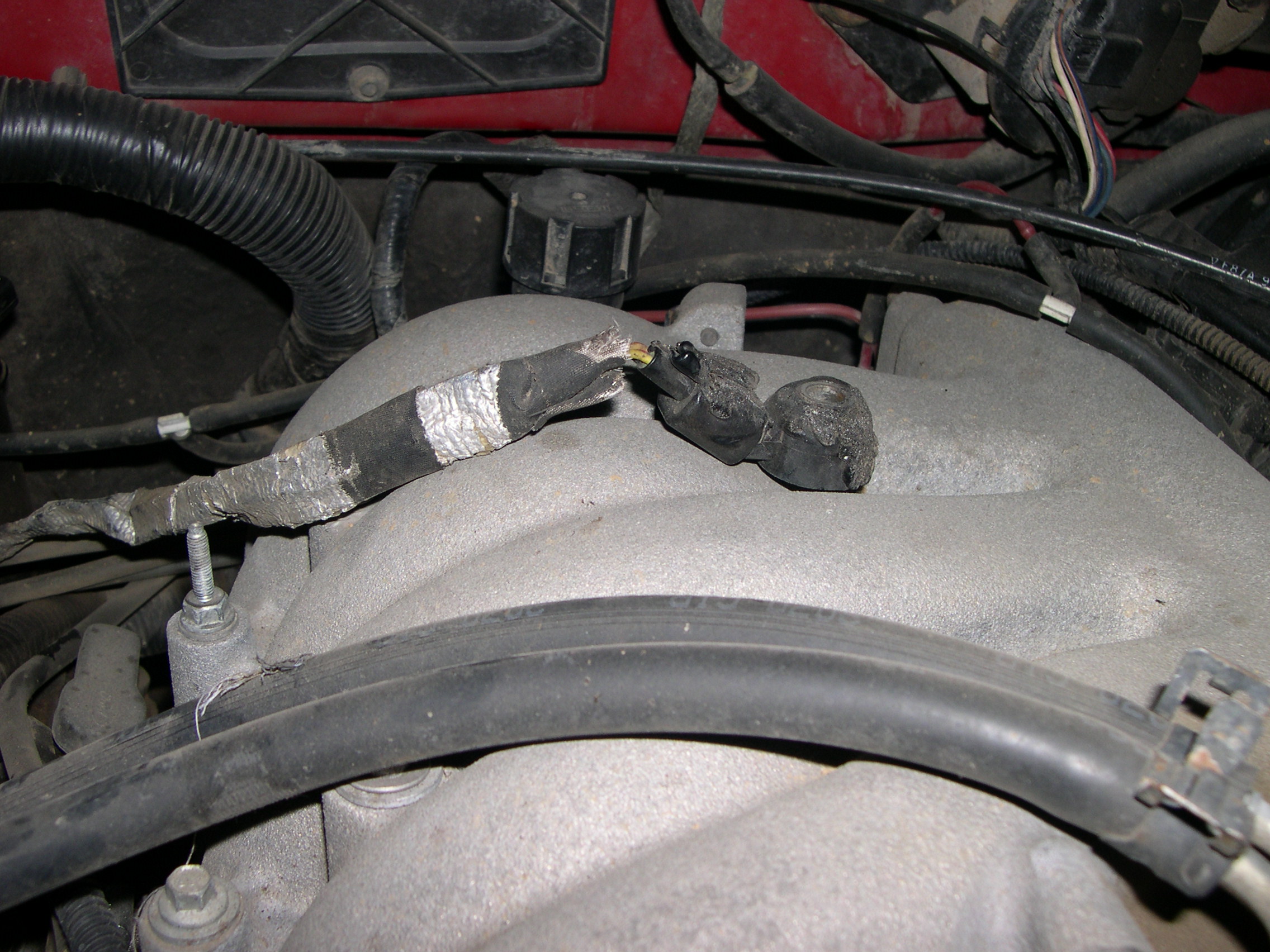

I just purchased this 2001 ranver 3.0 V6. This was sitting on top of the EGR pipe, melted. What is it and where is it supposed to go? Thanks a lot.
Attached Thumbnails
Please HELP!! what is this-dscn0795.jpg   Please HELP!! what is this-dscn0796.jpg   Please HELP!! what is this-dscn0797.jpg
Reply With Quote
+ 0 -
Old 11-04-2010
Toreador4x4's Avatar
Level III Supporter
iTrader: (6)
I am: Justin Higgs
Join Date: Apr 2007
Location: Livonia, MI
Vehicle: 1998 Ford Ranger
Posts: 3,958
Total Props: 15
that is the knock sensor, it bolts to the back of one of the heads i beleive
Reply With Quote
+ 0 -
Old 11-05-2010
rwenzing's Avatar
RF Veteran
iTrader: (4)
I am: Bob .
Join Date: Nov 2004
Location: Michigan
Vehicle: 2003 Ford Ranger
Drive Type: 4x4
Engine: 5.0
Posts: 7,773
Total Props: 19
Affirmative - knock sensor.

The drawing in my 2002 factory Shop Manual is not that clear but it looks like the KS for that year should be bolted to the side of the 3.0 block. However, the 2001 Ranger Wiring Manual shows no knock sensor at all on the 3.0 Ranger and a quick Google search seems to support that. Research! 3.0L owners with Knock Sensors!!

I'm not sure what this all means but you could have a truck with a non-original engine and/or non-original harness.
Reply With Quote
+ 0 -
Old 11-09-2010
mrmrrck's Avatar
iTrader: (1)
I am: Craig Pearson
Join Date: Feb 2008
Location: Dover, TN
Vehicle: 2001 Ford Ranger
Posts: 115
Total Props: 0
Yes, I have an '01 with a 3.0L and it doesn't have that sensor on it.
