help with voltage meter

I have a Tsunami RDS9100 Voltage system and Something happened to it and it is fried. Does anyone know where i can get this thing at? I have looked everywhere for another one to replace it with. It was in my Ranger when i bought the truck and It is for audio voltage but was being used to measure the voltage on my Compressors for my air ride. It worked great and I think a wire crossed something under the carpet in the truck and shorted it out. any help here guys?
Attached Thumbnails
help with voltage meter-41tauavy98l._sx300_.jpg   help with voltage meter-download-1-.jpg

Last edited by lowlife; 04-17-2014 at 08:48 PM. Reason: more pix
Reply With Quote
+ 0 -
Old 04-18-2014
buggman's Avatar
iTrader: (38)
I am: on the internet
Join Date: Apr 2007
Location: Dougal County
Vehicle: 96 X Ragner
Drive Type: 4x4
Engine: 4.0
Posts: 1,631
Total Props: 12

Never seen or used one myself, but that seems excessively high for a simple voltmeter.

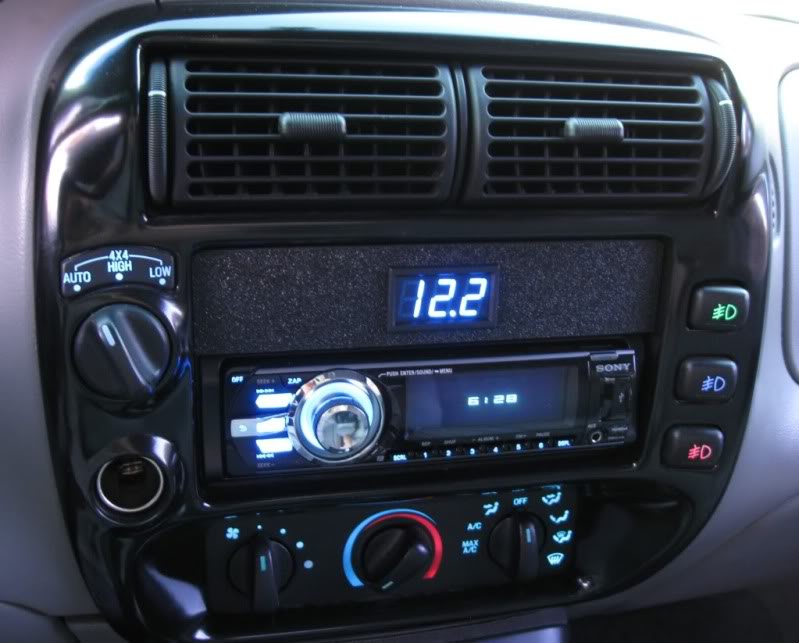

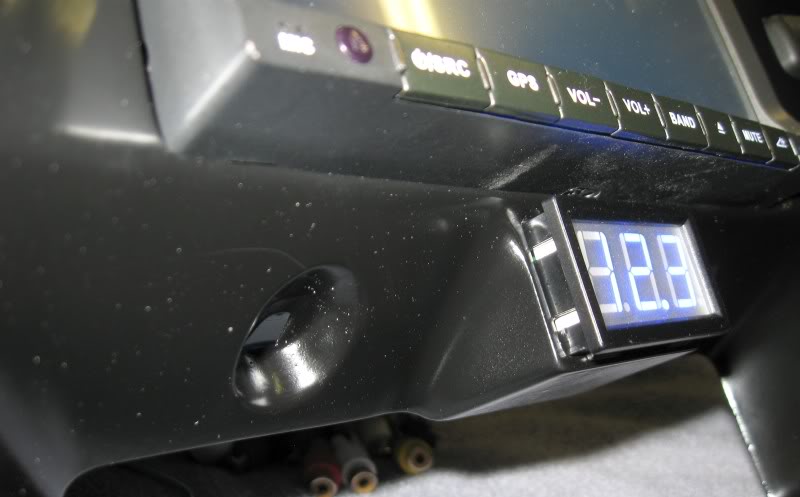

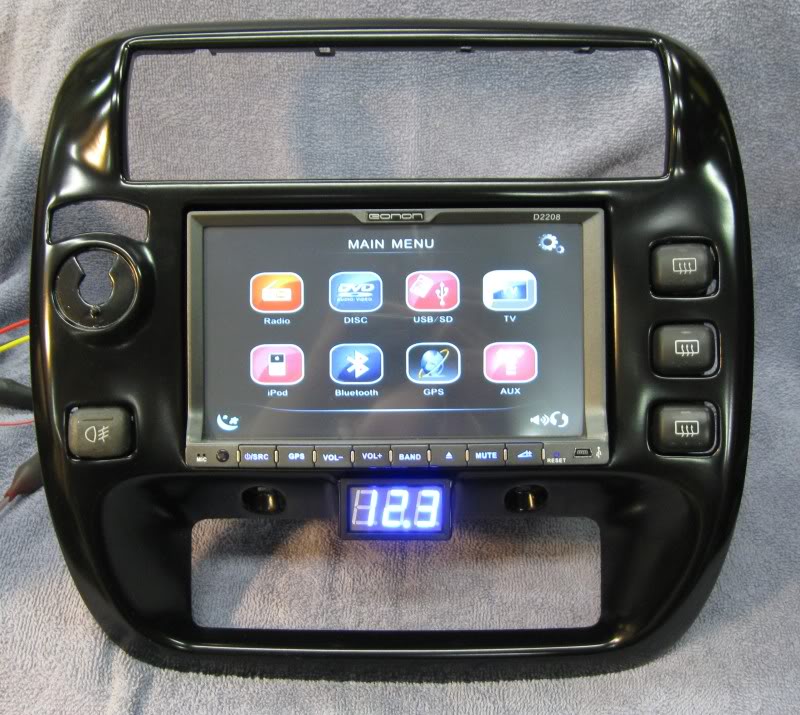

Not sure if it came with all the dash panels, etc, but you might be able to swap out the dead meter with another one that fits the location... I could probably make something that would work just as nicely...

'96 XLT, 4.0L, 4x4 Auto, Super Cab, Dual Exhaust, 200 amp Alternator, Clear Corners, BUGGMAN LED's, Explorer Power Seats & Console
Reply With Quote
+ 0 -
Old 04-18-2014
ianyboy's Avatar
I am: Ian Berube
Join Date: Mar 2013
Location: Quebec City, QC, Canada
Vehicle: 2011 Ford Ranger Sport4x4
Posts: 302
Total Props: 0
I like that meter!
How do you make one?
Reply With Quote
+ 0 -
Old 09-23-2014
lane29's Avatar
I am: lane wells
Join Date: Sep 2014
Location: talladegga alabama
Vehicle: 2000 mazda b2500
Drive Type: 4x2
Engine: 2.5
Posts: 16
Total Props: 0
they sell the meters all over the internet, as for the mount i would love to see how he made it.
