driveline issue

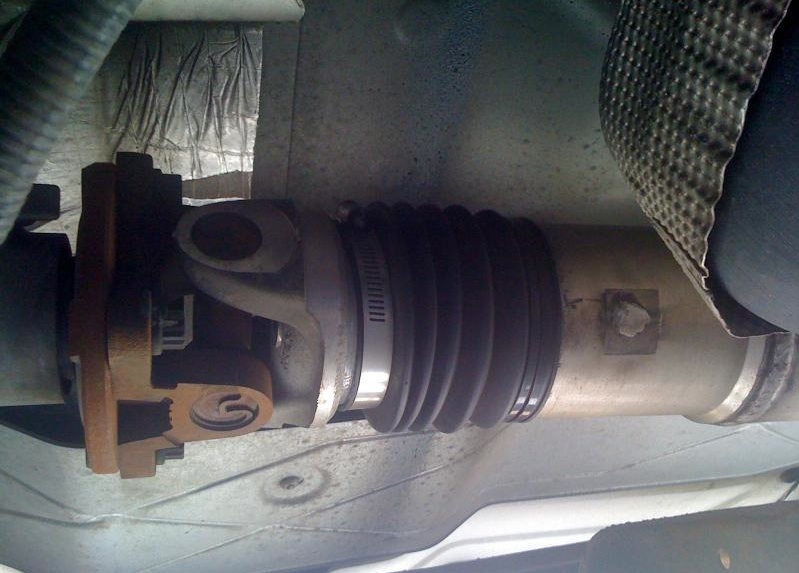

i recently replaced my rear u joint which was really worn out and causing a bad vibration. drove the truck for 2 weeks and the vibrations came back. i assumed that the u joint went again due to having the same vibration and humming noise in the rear end. brought the truck in the garage today and the u joints are solid but the drive shaft has up and down play at the boot. not something that was noticable when i replaced the u joint. is the driveshaft no good? or is there a bearing inside that can be replaced?
Attached Thumbnails
driveline issue-00000.jpg
Reply With Quote
+ 0 -
Old 12-09-2014
IN2 FX4's Avatar
I am: Gary Wam
Join Date: Feb 2005
Location: Costa Mesa, CA
Vehicle: 2002 Ford Ranger FX4
Posts: 772
Total Props: 3
That should be your slip joint. It has a spline drive in it. If it has up and down movement, I don't think there is any repair for it. You will need a need driveshaft.
Reply With Quote
+ 0 -
Old 12-10-2014
I am: scott
Join Date: Oct 2014
Location: yarmouth mass
Vehicle: 2002 xlt 4 door
Drive Type: 4x4
Engine: 4.0
Posts: 231
Total Props: 2
drive line

Take off boot clamp and stuff slip joint with a lot of good grease, these are know to run bone dry ,I would try that before buying drive shaft
