How To: Change U-Joints

How to: Change U-joints on the drive shaft.

First off, make sure you have about 1 foot space in front and back of the truck for rolling purposes so you can roll the truck to access all bolts on the drive shaft.

Step 1: Spray penetrating oil on all bolts and clips and mark a line from the drive shaft yoke to where it connects to the diff so you put it back on the exact way you took it off (so it stays balanced)

Step 2: Place chuck behind wheel so it doesn’t move

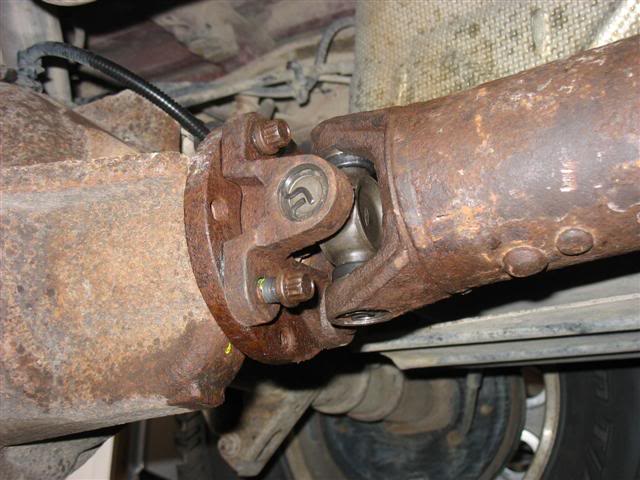

Step 3: Loosen the rear bolts on the drive shaft, and remove 3 of the 4 bolts


Step 4: Remove all 4 bolts from the front of the driveshaft


Step 5: Remove last bolt from rear, and take drive shaft out. Place it on work area. Flat ground or table is best.


Step 6: Remove clips from the u-joint. Needle noise pliers work best for this part. Clip is most likely going to break, but using a small flat head screwdriver, you should be able to pop it out of the grove.


If you get a part stuck in the grove, I find it best to fill the hole with penetrating oil and let it sit for a few minutes.


Step 7: Once clips are removed, its time to press out the u-joint caps. I found it best to place a small socket in the hole on one side and a larger socket on the other side. The larger socket must be large enough so the u-joint will fit in it, other wise it will hold it in place. I set this up in a vise, and slowly cranked on the vise until it poped out. Penetrating oil helps with this part as well.


Another method would be to set up the same way, but not in a vise. You would hit the smaller socket with a hammer pushing the u-joint out.

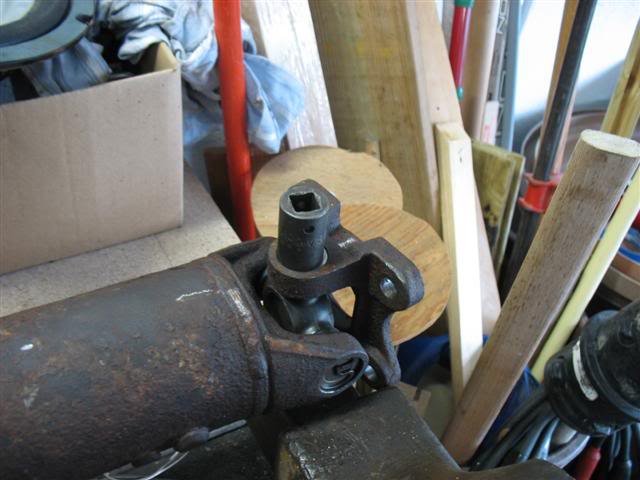

Step 8: Once you push out the one cap, you have to switch the larger socket and smaller socket and press the u-joint back through to the other side to remove the other cap like so.


Removing this cap can be tricky. One way to do it is to place the cap in a vise and try to pull up on the shaft, or hit the shaft with a hammer. Be careful not to bend the shaft while doing this. Penetrating oil is your friend.

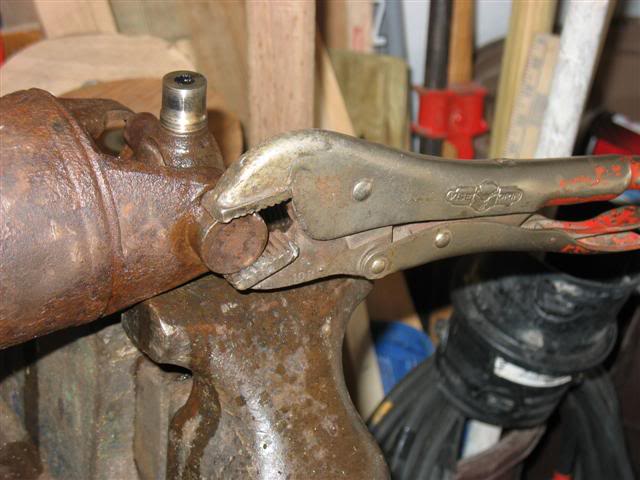

Another possibility is to get a pair of locking pliers, clamp it around the cap, and try to work it off by twisting it.

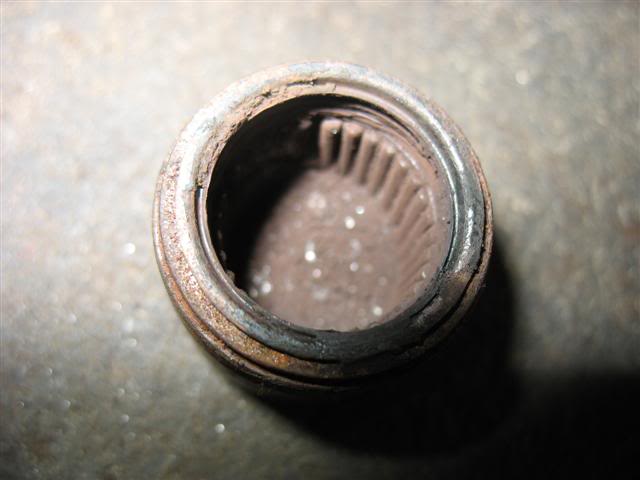

Although it may be hard to see, this is what a bad cap looks like. All the pins which are supposed to roll freely are froze up, and there is no lube on the cap at all.


Step 9: Follow this process for the other set of caps to

Step 10: Once everything is removed, clean all the surfaces and groves where the caps sit.

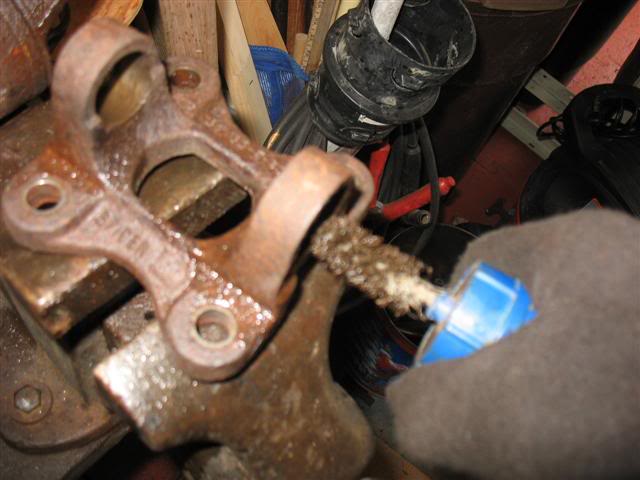

Wire brush used to clean the inside.

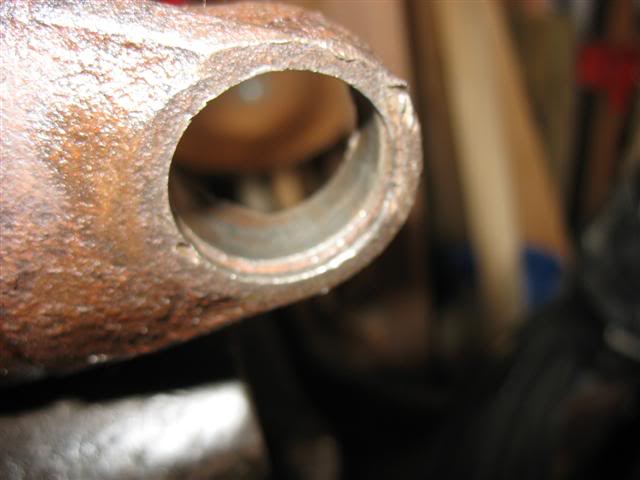

Make sure to clean in the grove as well

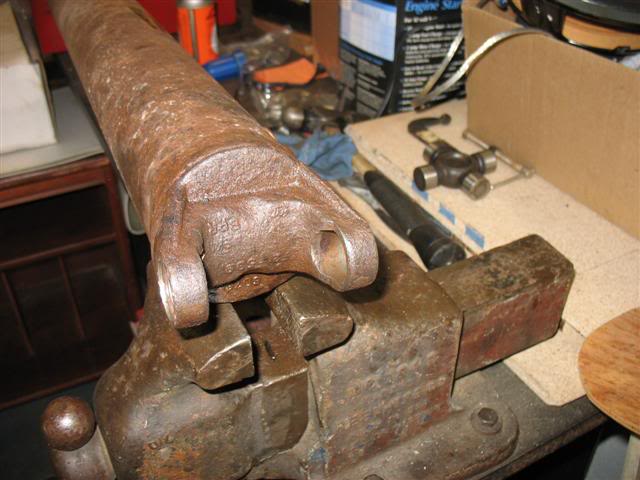

Step 11: Ready to place the new u-joint in place

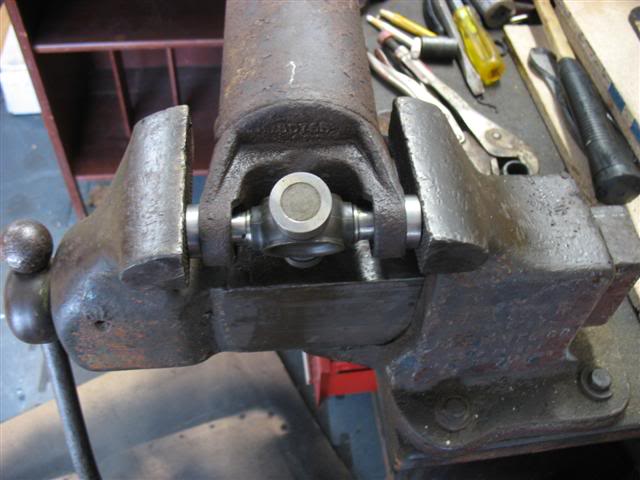

Step 12: Remove both caps from the new u-joint, place the caps in the hole from the outside in, and place u-joint in the holes. They are ready to be pressed into place. I used a vise and slowly pressed them in.

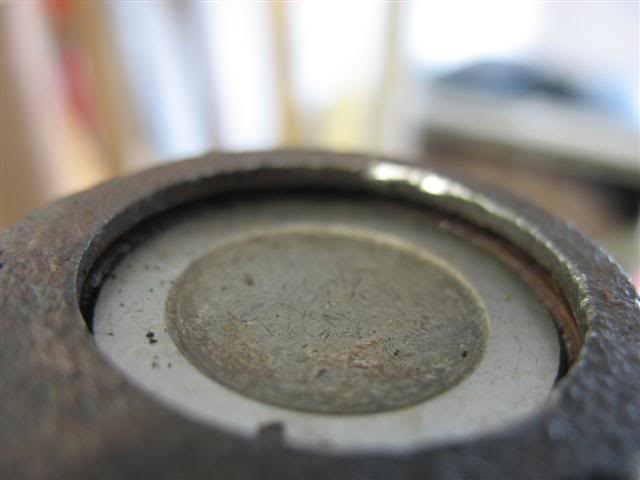

The caps still need to be pressed in further if you use a vise instead of a hammer. Place small socket over cap and tap it till you clear the grove.



Be careful not to bend the drive shaft when hitting the cap. Make sure the drive shaft is not supporting the weight, you want the flange to support it as you hit with hammer (sorry it is blurry).


Step 13: Set clips in grove. Use a needle nose pair of pliers to compress the clip, and release in grove. Make sure the clip is all the way set into the grove, you may have to hit the cap in a little more if it does not set in place, but be careful not to push it to far in, otherwise you will push the other cap outward




Step 14: Put the drive shaft back into place under the truck. Start all screws, and then tighten to 70- 95 lb/ft


Last edited by 98liftedranger; 12-02-2011 at 11:43 AM.
Reply With Quote
  #2
Old 10-20-2006
RockysFord's Avatar
Member

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
^ 12 point 14mm i beleive


im in the process of doing mine right now, i just hit my thumb with the hammer and im pissed.....


I f'ed the new joint up by not putting it back in right...so i have to go buy another one...

Nice how to by the way.

Rocky
Reply With Quote
  #3
Old 10-20-2006
n3elz's Avatar
RF Veteran

Join Date: Jun 2004
Location: Kennett Square, PA
Posts: 10,620
The best way to do that is with a 12-point 12 mm open end wrench. Those are a funny 12.5 mm head, but a 12 mm 12 point socket or open end fits that well. That's how I got mine off when I swapped in my 31 spline axle.

Nice how-to and very well illustrated other than the omission on the bolt removal and tools required! I will be using it myself soon, thanks!!!
Reply With Quote
  #4
Old 09-24-2015
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 523
Really dumb question, but what size ujoints are needed?

I'm looking on Rock auto and they have a WIDE range for the ranger. I can't seem to source anything for a 2001 2.3L XLT? Everything appears to be for a 4x4 and not a 2x4?

Great thread, this will come in handy in the next couple weeks.

-Nigel
Reply With Quote
  #5
Old 09-24-2015
bravetitan24's Avatar
Strokin'
iTrader: (3)

Join Date: Jun 2010
Location: Haughton, LA
Posts: 2,087
Quote:
Originally Posted by NewShockerGuy View Post
Really dumb question, but what size ujoints are needed?

I'm looking on Rock auto and they have a WIDE range for the ranger. I can't seem to source anything for a 2001 2.3L XLT? Everything appears to be for a 4x4 and not a 2x4?

Great thread, this will come in handy in the next couple weeks.

-Nigel
Try starting a new thread instead of bumping ones that are approaching 10 years old.
Reply With Quote
  #6
Old 09-24-2015
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,289
Quote:
Originally Posted by bravetitan24 View Post
Try starting a new thread instead of bumping ones that are approaching 10 years old.
****** Nigel lol
Reply With Quote
  #7
Old 09-25-2015
NewShockerGuy's Avatar
Member

Join Date: Sep 2011
Location: NOVA
Posts: 523
Icon2

Quote:
Originally Posted by bravetitan24 View Post
Try starting a new thread instead of bumping ones that are approaching 10 years old.
I did and it got zero replies.

10 year thread isn't that bad, it's still relevant..lol This is the only forum that doesn't seem to want people to use the search feature and then post on that topic, they'd rather you make a new topic, so then there are 20+ of the same topics being asked on the same thing.

Oh well, back to searching.

-Nigel
Reply With Quote
  #8
Old 09-26-2015
Dewey's Avatar
REAL MEN USE PAINT
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 1,928
I find it fairly amusing. There's nothing wrong with bumping an old thread, but it's kinda pointless to ask a previous poster a specific question when they haven't been online in years. At least most of your questions aren't ignorant.
Reply With Quote
  #9
Old 09-09-2016
StrangerRanger99's Avatar
Member

Join Date: Apr 2016
Location: Albuquerque new mexico
Posts: 108
Old thread I know, it's a good write up tho. Although there is mention of "rolling the truck" to get to the bolts. Uh, I always put the trans in neutral & spin the shaft with my hand. That's much safer & smarter IMO.
Reply With Quote
  #10
Old 09-10-2016
Member

Join Date: Oct 2013
Location: gardiner, me
Posts: 22
one thing not mentioned. if new u joint has a grease fitting, install it in the direction that you can get to it
