Panel Repair

Alright well once it warms up here in michigan I have a bunch of body work to do on my truck b/c its old and rusts, so I decided to try and fix a small hole in the bed of my truck. I found the hole when I applying bed liner and my finger went through.

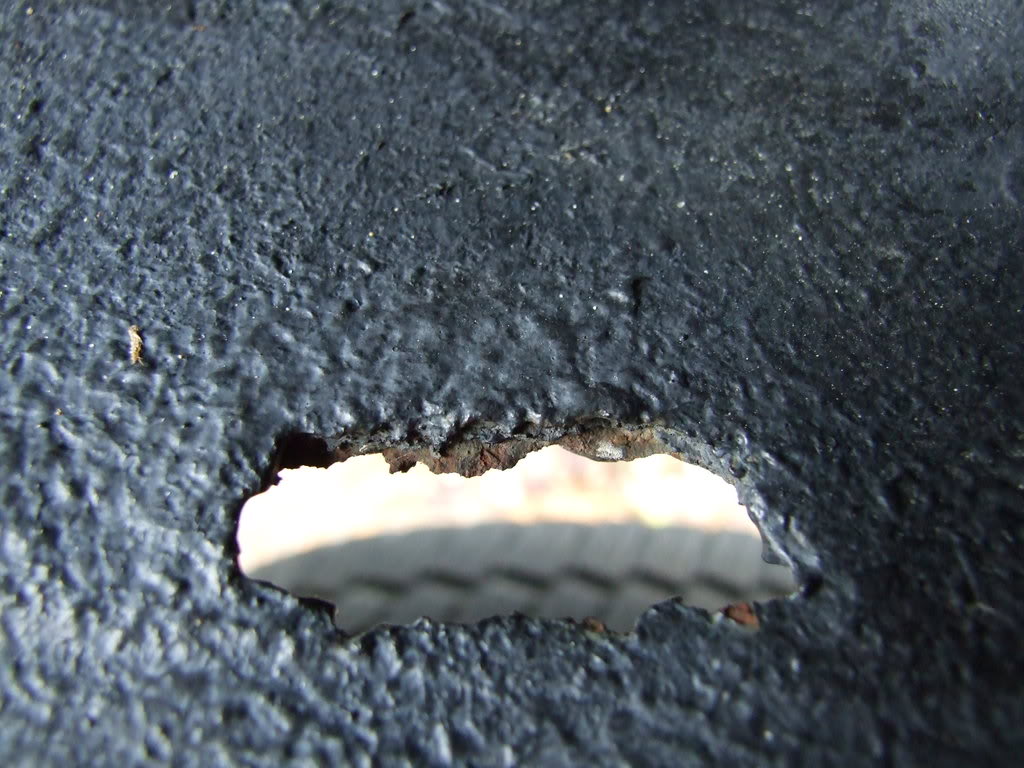

Here is the hole before I started

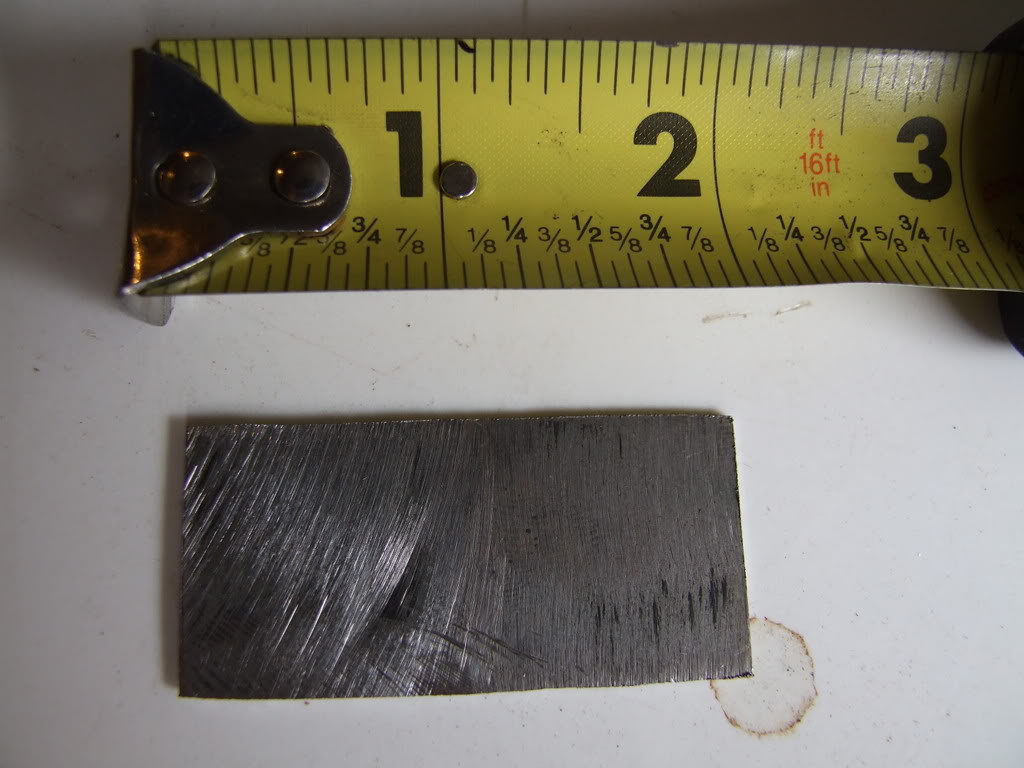

This is a piece I cut off of my radiator support a while ago that I cut to size

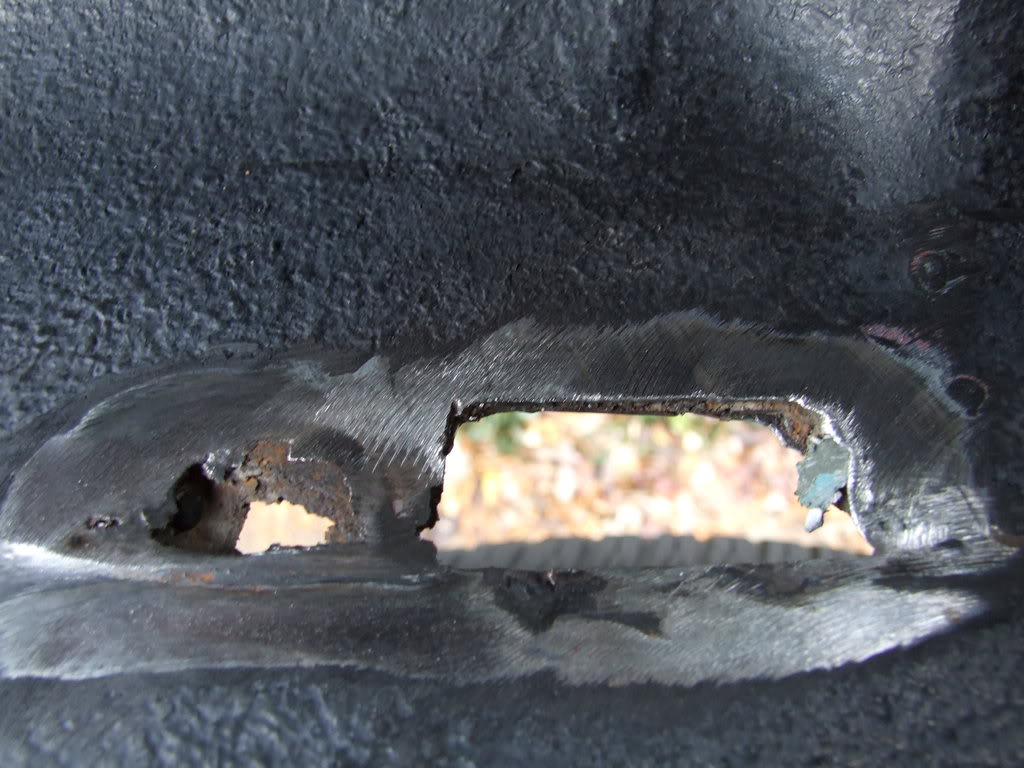

Once I started I found the hole was a little larger than I expected so I ended up making two more pieces to weld in

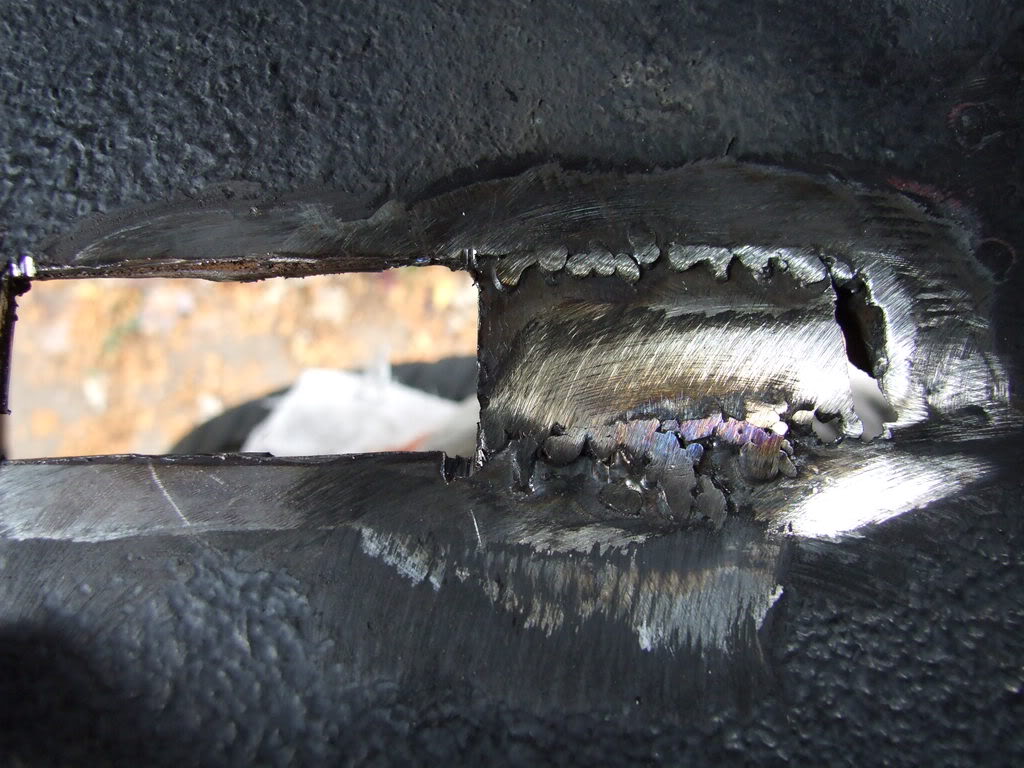

After the first panel was welded in and the second hole cut

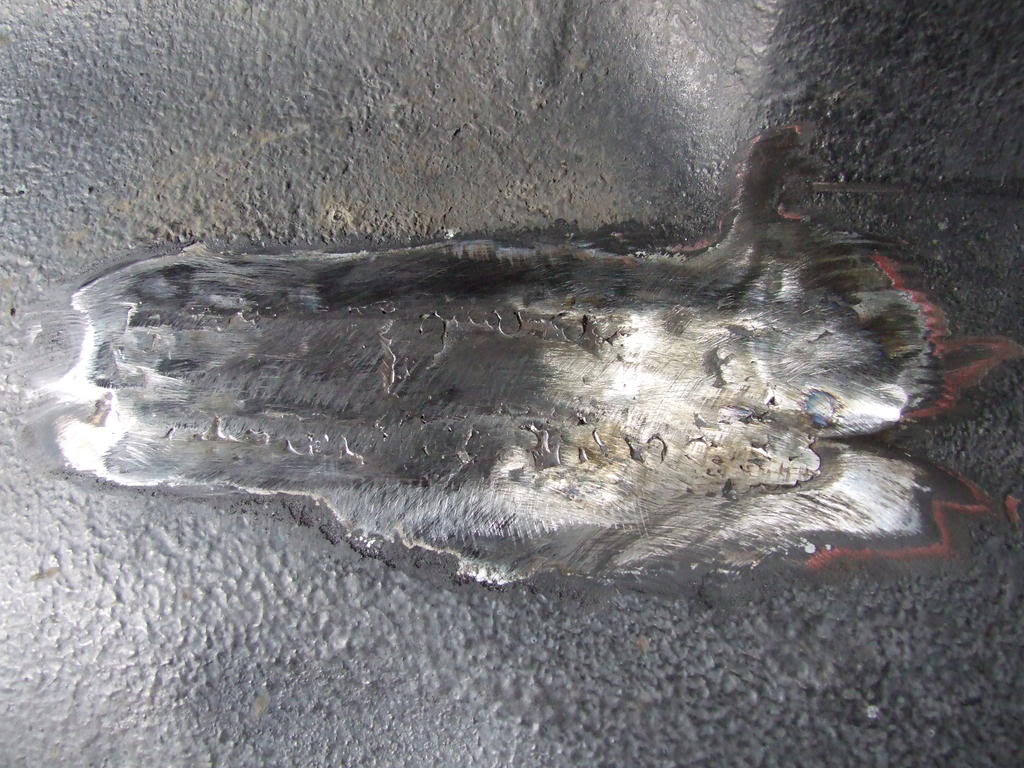

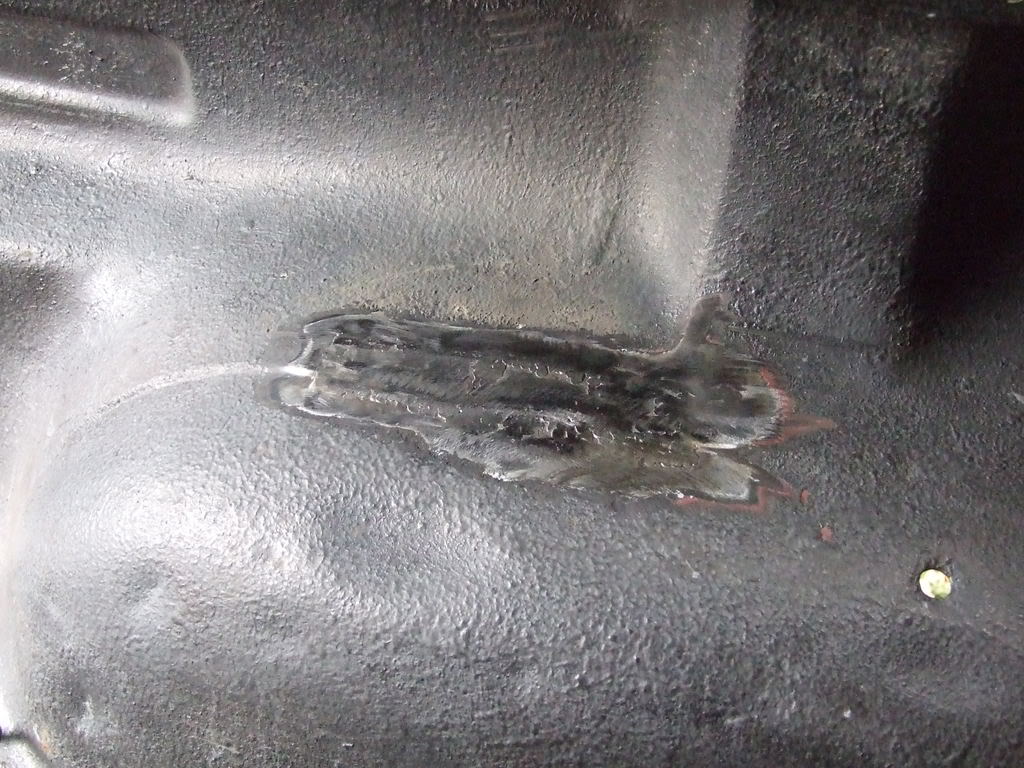

And these last 2 pics are of it almost finished up

Once i smoothed it out the best I could I coated it in primer and once it warms up i'll bedliner and undercoat the section. Its not quite as rough as it looks in the pictures, but it's not bad for my first time, and it's only the bed.

Questions and Comments appreciated, especially ne tips you might have!
Reply With Quote
+ 0 -
Old 01-06-2008
zabeard's Avatar
iTrader: (8)
I am: Zach Beard
Join Date: Nov 2004
Location: IN
Vehicle: 2003 Ford Ranger
Drive Type: 4wd
Engine: 5.4
Posts: 26,042
Total Props: 4
looks pretty good. i hate rust.
Reply With Quote
+ 0 -
Old 01-07-2008
NicksterSVT's Avatar
I am: Nick B
Join Date: Apr 2005
Location: NC
Vehicle: 01 4x4 4.0sohc edge?
Posts: 1,955
Total Props: 0
i would definitely use a self etching primer on it asap. this will keep it from rusting until you can get some bedliner on it! not too shabby!
Reply With Quote
+ 0 -
Old 01-18-2008
I am: Jason MacNeil
Join Date: Aug 2007
Location: Canada
Vehicle: 1991 Ford Ranger XLT
Posts: 13
Total Props: 0
hey nice job on the patch , i myself have a 91 and it was mega rusty (canadian winters, lots of salt=lots of rust) lol so we replaced a few chunks of the frame and some crossmembers and the gas tank skid plate, a bunch of sections on the box, amazingly the cab was in decent shape only one rust hole in the floor so ill give you a bit of advice, where there is some rust you will find more so just do a check (thourougly) maybe pull the box off if you can and take a good look underneath, clean up and surface rust and paint it and patch any holes to make your truck last as long as it can cause theyre awesome trucks! anyway thats my 2 cents good luck with ur truck
Reply With Quote
+ 0 -
Old 01-18-2008
gatorblue92's Avatar
RF Veteran
I am: Billy Bob
Join Date: Jun 2004
Location: Delaware
Vehicle: 2002 F150
Drive Type: 4x4
Engine: 2.7
Posts: 8,238
Total Props: 0
very nice patch... better than i could have done
