Do we have any electricians?

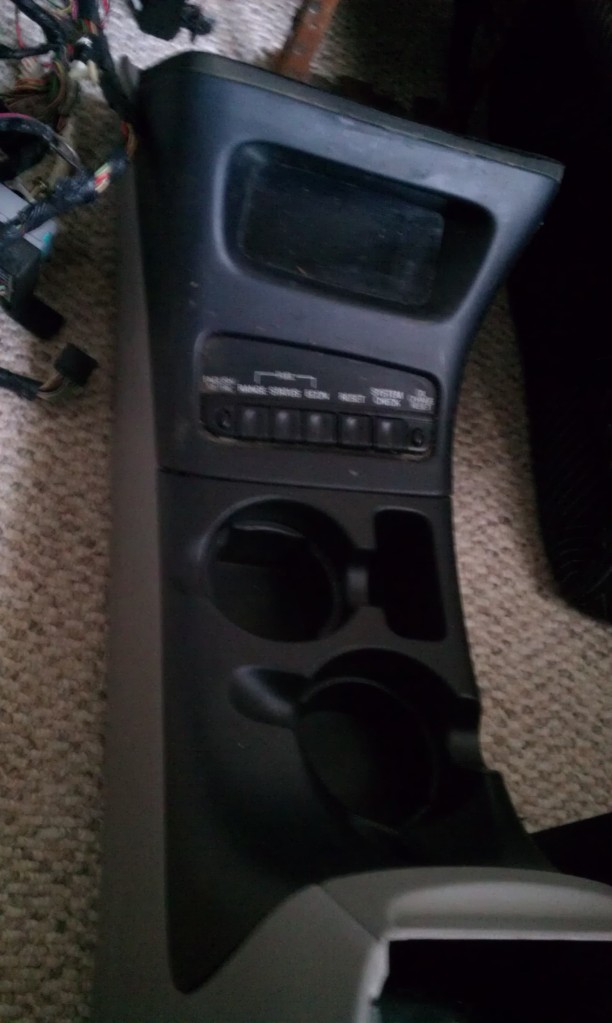

Does anyone know how to wire one of these up or how hard it is?

Attached Thumbnails
Do we have any electricians?-imag1113.jpg
Reply With Quote
+ 0 -
Old 04-28-2012
rwenzing's Avatar
RF Veteran
iTrader: (4)
I am: Bob .
Join Date: Nov 2004
Location: Michigan
Vehicle: 2003 Ford Ranger
Drive Type: 4x4
Engine: 5.0
Posts: 7,773
Total Props: 19

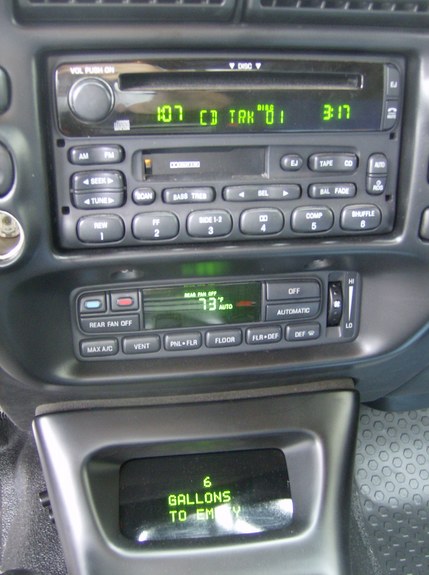

I have the Explorer Message Center installed in my Ranger. Needs wires added in several locations and some sensors as well. The FE, DTE and other fuel related calculations probably will not work with a Ranger PCM because, as far as I have been able to determine, the Fuel Flow Output for the trip computer is not there and/or not calibrated. My truck has a 5.0 Explorer PCM that was designed to work with the Ex Message Center.

Attached Thumbnails
Do we have any electricians?-727284_116_full.jpg   Do we have any electricians?-display_charge_sm.jpg   Do we have any electricians?-display_dte_sm.jpg   Do we have any electricians?-display_avg_mpg_sm.jpg   Do we have any electricians?-display_rom_level.jpg

2003 FX4 Level II, Supercharged 5.0L V8, Headers,Duals 4R70W auto, BW4406 manual T/C
Aussie Locker, Torsen L/S, 4.10's, Bilstein 7100 rezzies, Cadillac/Mustang rear discs, Duff traction bars
Keypad Entry, Lock LEDs, ABS switch, sway bar discos, Heated seats, Explorer EATC, Trip Computer and consoles

5.0L V8 swap: Click
Supercharger: Click

2003 XLT 2.3L M5OD-R1 reg cab beater, 2011 Taurus SEL, 2016 C-MAX Energi Plug-in Hybrid
Reply With Quote
+ 0 -
Old 04-28-2012
Ford04Ranger4.0's Avatar
I am: Mark .
Join Date: Dec 2008
Location: Plattsburgh, New York
Vehicle: 2004 Ford Ranger
Posts: 3,390
Total Props: 0
Wow Bob
