How to: Accessory Power Until Door Opened

Well, I finally finished up my ACC Delay mod. This is a general guide for how I went about doing this to my 2011 Regular Cab XLT. Consult your own diagrams on what colors you need to do. Attempt this mod at your own risk. Once completed, your accessories (radio, windows, wiper, etc..) will stay on after you pull your key out and will remain on until you open your driver's door. Once the door is opened, power is cut to the circuit until you put the key back in and trigger the circuit. I chose to solder my connections and use heatshrink or electrical tape to clean everything up. I know others who chose to use wire taps, but that's completely up to you.

Here are the basic parts you need:

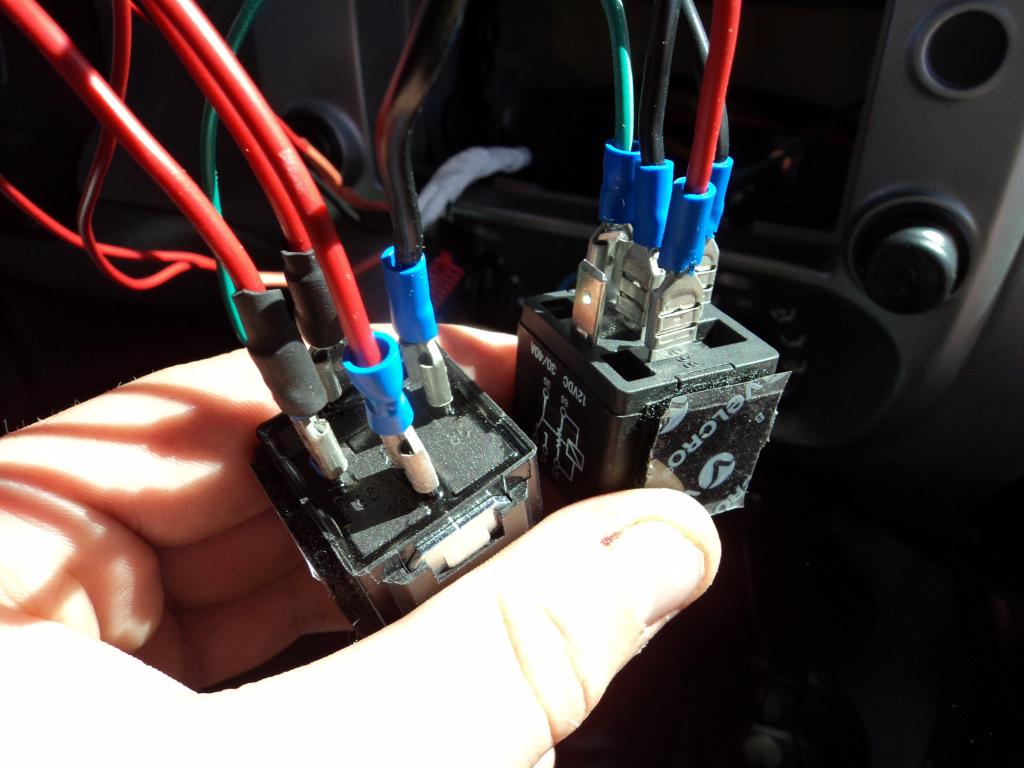

-1 4-pin relay and 1 5-pin relay (with 87 & 87A). You can also use 2 5-pin relays
-16 or 18 gauge wire
-1/4" male terminal connectors

To start, you will need to locate and test the 4 wires. 3 of these will be located on the back of your radio's wiring harness, the 4th is in the SJB. The wires are as follows:

Always Hot: Violet/Red (or another alternative power source)
Ground: Black/Yellow (or other alternative ground source)
Hot in ACC/Run: White/Blue (not to be confused with Blue/White unless you want this to mod to apply to your parking lights, and not your accessories)
Door Ground Trigger: Green/Purple

Here is my door ajar wire spliced at the SJB.

Here is my ugly, but functional splicing job to my radio harness. Because the gauge of the new wire was significantly larger than these, I was generous with the electrical tape to ensure that I didn't tear anything apart.

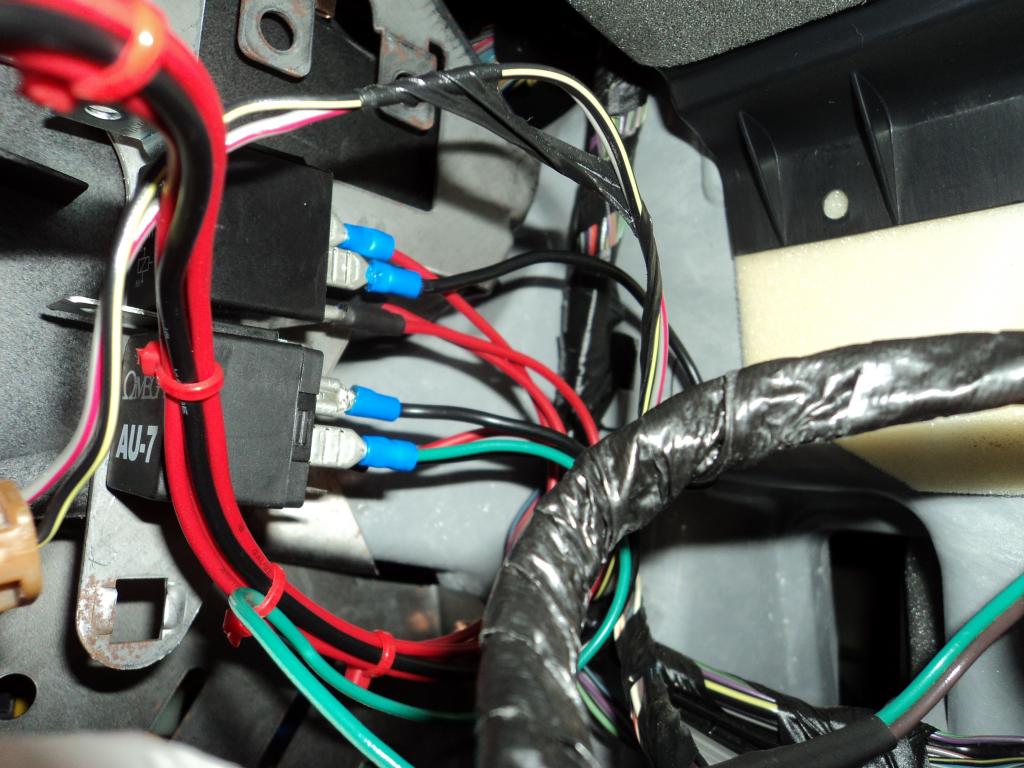

Here is the final location of my relays (left side of the radio cavity):
Attached Thumbnails
How to: Accessory Power Until Door Opened-radio_on_after_key_off_diagram_zpsda37ef07.jpg   How to: Accessory Power Until Door Opened-dsc03182_zps9d46bb09.jpg   How to: Accessory Power Until Door Opened-dsc03171_zpsb1d85188.jpg   How to: Accessory Power Until Door Opened-dsc03180_zps799b3ff2.jpg   How to: Accessory Power Until Door Opened-dsc03183_zps757590a3.jpg

Reply With Quote
+ 0 -
Old 04-19-2013
03DualSport's Avatar
I am: Robert Rowland
Join Date: Jul 2005
Location: Wimberley, Tx
Vehicle: 2006 Mazda B4000 4x4
Posts: 260
Total Props: 0
Love this mod. Did it to my '03 and one of the first things I did to my '06.
Reply With Quote
+ 0 -
Old 04-20-2013
06RangerXLT's Avatar
iTrader: (2)
I am: Nate C
Join Date: Feb 2011
Location: Halton Hills, Ont
Vehicle: 2006 Ford Ranger XLT
Posts: 1,685
Total Props: -4
hmm, might have to do this! looks like a nice feature to have.
