Bored so I fixed my power window

Have had the problem for about a year, power window stopped about half inch from top. Know the problem was a worn out regulator, had been to the local junk yards searched the internet but didn't want to spend the money to buy one so I fixed mine.

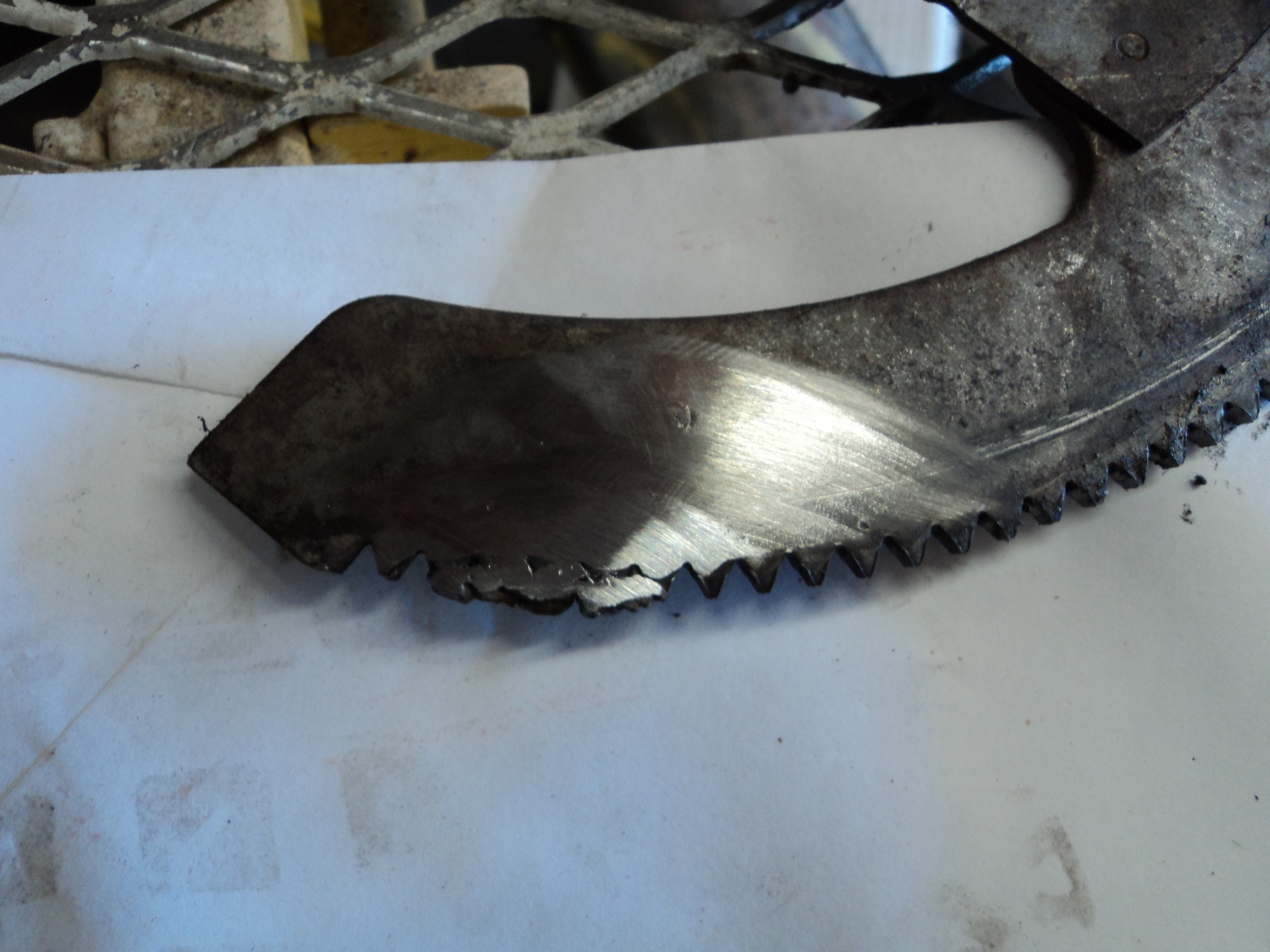

Heres what I did. After pulling out the power regulator and pulling the motor and gear box off I found The quadrant gear missing four teeth. (first picture) welded where the teeth were missing (second picture) cut new teeth with a file (third picture).
Works great window is like brand new. I don't know if it was worth the time, about 2 hours but like I said I was bored.
Attached Thumbnails
Bored so I fixed my power window-small-quadrant1.jpg   Bored so I fixed my power window-dsc00123.jpg   Bored so I fixed my power window-dsc00125.jpg

2001 Edge Chrome Yellow ORP 3" body lift 4.0L 5 speed auto
Kenwood DDX6019 with NAV and Bluetooth
Two Kenwood KAC-7203 powering Four Polk Audio Momo MM571 5" X 7"
Kenwood KAC-8103D driving two Polk Audio Momo 10" MM1040 DVC
200 amp alternator and a Boss Audio 3.5 farad cap to keep things bumping.

1994 Mazda MX5 (Miata) Turbo 274 hp 232 ft lbs torque
2005 Honda R12X Aquatrax stock
2007 Honda TRX450R lots of mods
Reply With Quote
+ 0 -
Old 01-23-2011
I am: c s
Join Date: Nov 2010
Location: SD
Vehicle: 2004 FX4 Stepside
Posts: 191
Total Props: 0
looks pretty darn good to me.
Reply With Quote
+ 0 -
Old 01-23-2011
87xlt's Avatar
I am: Shawn S
Join Date: Jun 2008
Location: In my truck!
Vehicle: 1987 Ford Ranger 2.3L
Posts: 875
Total Props: 0
Damn good job!
Reply With Quote
+ 0 -
Old 01-23-2011
steveo1271's Avatar
I am: stephen weaver
Join Date: Oct 2009
Location: lexington,sc
Vehicle: 2001 4x4 xlt ranger 4.0
Posts: 780
Total Props: 0
nice work
Reply With Quote
+ 0 -
Old 02-01-2011
iTrader: (1)
Join Date: Nov 2009
Posts: 111
Total Props: 1
Impressive repair. I would have never thought of doing it that way.
