Seat swapping?

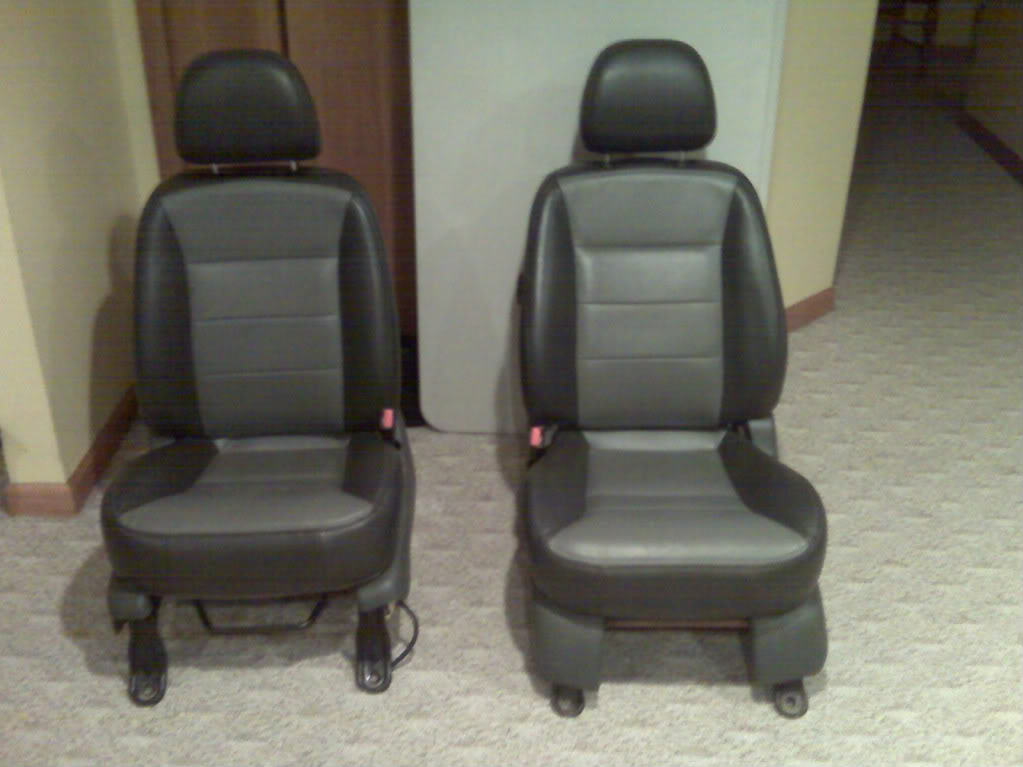

I'm getting my hands on a pair of bucket seats from a 2001 Ford Escape that are in great shape and I wanted to swap them out with the 60/40 bench in my 2003 Ranger. Will there be any major difficulties?
Most of my research says that the bolts should line up, as the 60 side has 6. Any thoughts?

Reply With Quote
+ 0 -
Old 04-02-2011
drppdyllwrngr's Avatar
iTrader: (4)
I am: Troy Stevenson
Join Date: Sep 2007
Location: wilmington, nc
Vehicle: 95 ford ranger, 93/98/03
Posts: 2,096
Total Props: -1
i doubt they will be bolt in. the only ones i've seen that are really bolt in are explorers and that is for ext cab only. haven't seen anything that are bolt in for reg cabs (98+). 97 and older is a different story. best thing you can do is measure the stock mounting points and the mounting points on the escape. both ranger seats should only have 4 bolts that mount the seats to the floor.
Reply With Quote
+ 0 -
Old 04-02-2011
Level III Supporter
iTrader: (2)
I am: A car modding addict
Join Date: Nov 2010
Location: Maine
Vehicle: 2000 Ranger Stepside 4x4
Posts: 1,206
Total Props: 6
The Escape seats have tall bases compared with the Explorer/Ranger seats. If you can do it, it would be if you can get them off the base and put them on your tracks.
Reply With Quote
+ 0 -
Old 04-03-2011
99offroadrngr's Avatar
iTrader: (37)
I am: JD M
Join Date: Jul 2007
Location: Massachusetts
Vehicle: 2004 Ford Ranger
Drive Type: 4x4
Engine: 4.0
Posts: 11,719
Total Props: 39
someone on here has already done it but it is NOT bolt on. Welding required.

Last edited by 99offroadrngr; 04-03-2011 at 09:34 PM.
Reply With Quote
+ 0 -
Old 04-04-2011
Scrambler82's Avatar
Old Guy Userů ltr

iTrader: (12)
I am: Grev B
Join Date: Jul 2009
Location: SoCal
Vehicle: 2003 Ford Ranger
Drive Type: 4x4
Engine: 3.0
Posts: 6,627
Total Props: 10
Your seat tracks unbolt, if the Escape's do then it will be easier.

Take a look at the Escape Seats first...
