My Inexpensive Bed Box

A few weeks ago, I ordered a new SnugTop tonneau cover ($1200) for my '08 Ford Ranger and a bed extender ($295). I week after the order was placed, I was notified that the manufacturer does not make the most popular model I wanted for my truck. I called the manufacturer in Tustin and they explained that particular model when flipped 180 on the tailgate tends to partially block the view of the tail lights. The manufacturer objected to the ruling by some government body, but decided to drop that model.

Rather than blow it off, I studied the desired model (above) and visualized an inexpensive (OK, cheap) solution that would sit under the tonneau cover and keep stuff (mainly groceries) from sliding around in the bed of the truck. (No, it doesn't flip over and lay on the tailgate.)

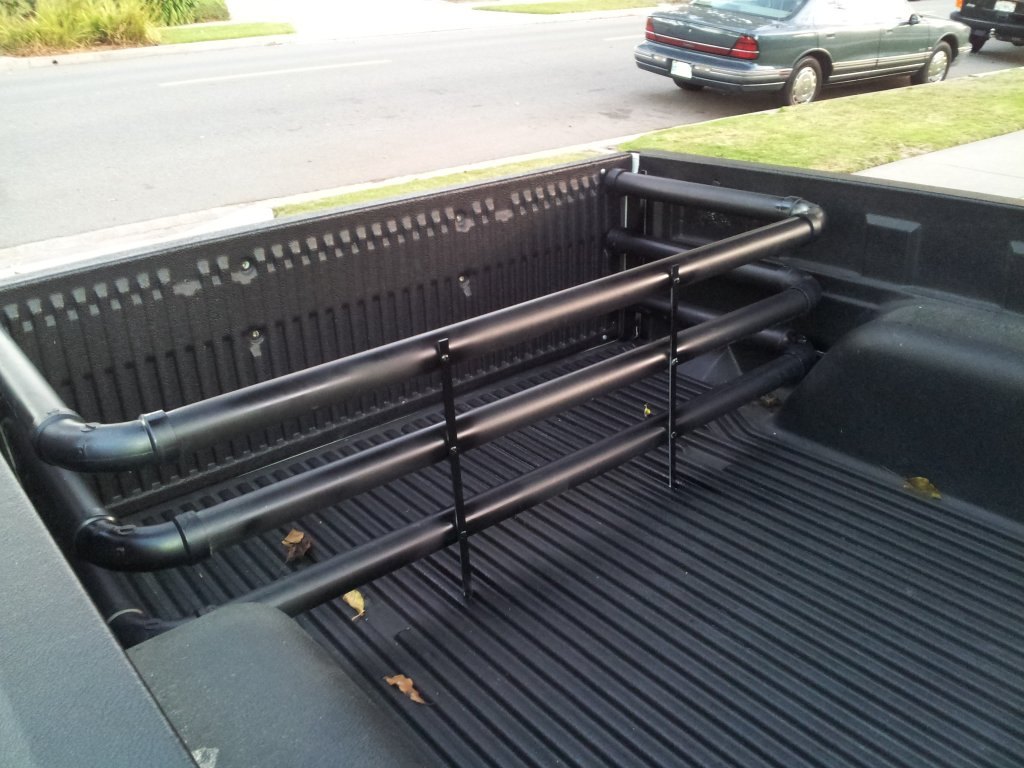

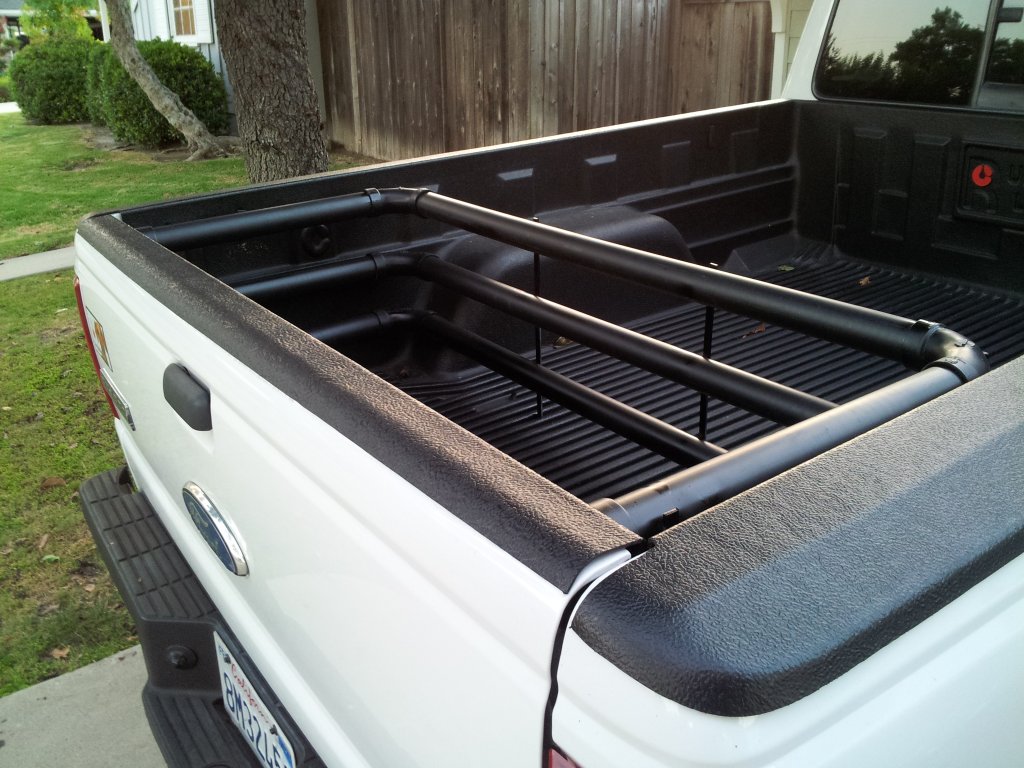

I took a few measurements and headed off to Lowe's to see what they had. As luck would have it, I found some 2" ABS pipe (1.5" ID), elbows and caps ($50) plus two 3' strips of 1/2" aluminum ($7). I secured the 'extender' to the bedliner sides to make it stable and removable (2 screws). It's only a $50 solution, but I'm pleased with it. Hope you like it.
Attached Thumbnails
My Inexpensive Bed Box-20130822_192301_50.jpg   My Inexpensive Bed Box-20130822_192142_51.jpg
Reply With Quote
+ 0 -
Old 09-05-2013
I am: Karl Durell
Join Date: Jun 2013
Location: FL
Vehicle: Ford Ranger
Posts: 140
Total Props: -2
Great job! I might do the same thing. Thanks for the idea.
Reply With Quote
+ 0 -
Old 09-05-2013
zabeard's Avatar
iTrader: (8)
I am: Zach Beard
Join Date: Nov 2004
Location: IN
Vehicle: 2003 Ford Ranger
Drive Type: 4wd
Engine: 5.4
Posts: 26,041
Total Props: 4
Nice work!
