Tailgate lock mechanism

I wanted to put a tonneau cover on my truck and I needed a tailgate lock. This solution works really well.

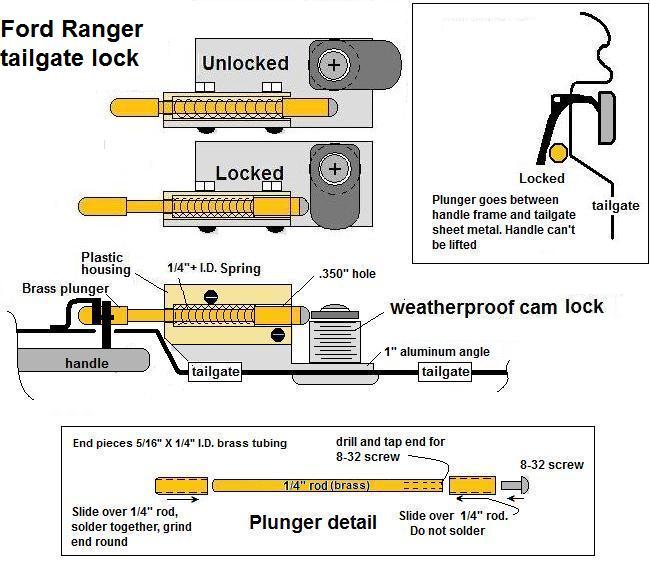

First I changed the handle to an all metal one. I used a piece of 1" aluminum angle for the frame of the locking device. The housing for the plunger is plastic to avoid corrosion or rust, and the plunger is brass for the same reason. Drill the hole in your tailgate and when you install the cam lock it attaches everything to the tailgate.
Once the plunger is between the handle and the sheet metal on the tailgate the handle will not open the tailgate. The tailgate can be locked or left unlocked by the simple turn of a key.
I also put a matching lock, keyed alike, on my gas door.
Attached Thumbnails
Tailgate lock mechanism-lock-system.jpg   Tailgate lock mechanism-img_0116.jpg
Reply With Quote
+ 0 -
Old 04-03-2014
iTrader: (1)
I am: Ron Dean
Join Date: Jan 2014
Location: Vancouver, BC
Vehicle: 1994 Ford Ranger
Drive Type: 4x4
Engine: 4.0
Posts: 4,740
Total Props: 88
Very nice
Reply With Quote
+ 0 -
Old 04-24-2014
grunt98444's Avatar
Level III Supporter
I am: Richard M
Join Date: Feb 2010
Location: Bremerton, WA
Vehicle: '09 Ford Ranger
Drive Type: 4x2
Engine: 2.3
Posts: 110
Total Props: 0
I went the other route and had a power tailgait lock installed
Reply With Quote
+ 0 -
Old 11-25-2014
I am: Ty
Join Date: Nov 2014
Location: Central, TX
Vehicle: 2002 Ford Ranger
Drive Type: 4x2
Engine: 3.0
Posts: 49
Total Props: 0
That is a neat idea. I want to eventually get low profile hard tonnue cover for my Ranger. I would need a tailgate lock too. Do they have the lock available in black instead of chrome? That handle looks like one for a 87-96 F150.
Reply With Quote
+ 0 -
