  #626
Old 09-03-2016
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,239
Dang man! when you think about it thought it makes sense. An hp d30 in reverse is gonna be really weak. Sucks that it happened though
Reply With Quote
  #627
Old 09-04-2016
Dewey's Avatar
REAL MEN USE PAINT
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 1,846
Glad to see the truck is still drivable Justin. Really disappointed with the D30 for sure.
Reply With Quote
  #628
Old 09-04-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by 00GreenRanger View Post
Dang man! when you think about it thought it makes sense. An hp d30 in reverse is gonna be really weak. Sucks that it happened though
Yea, I never planned to keep the D30 with the 4BT, but I wanted to keep it together to sell. I'll fix it though

Quote:
Originally Posted by Dewey View Post
Glad to see the truck is still drivable Justin. Really disappointed with the D30 for sure.
I am too, but at least I can drive it
Reply With Quote
  #629
Old 09-04-2016
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,409
Be careful if you pulled the axle shafts. Those unit bearings aren't designed to be driven without the retaining nuts in place. You were running 4.88s right? The pinion is pretty small with that ratio but it's almost comical that a bush did it in. Considering what I've put mine through in the past I'd have to imagine that was one hell of a bush lol.
Reply With Quote
  #630
Old 09-04-2016
TheArcticWolf1911's Avatar
Member

Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,227
Brings to mind a quote from hank Williams Jr. "....You know they're rooted way down deep in my soul...." Only in this case I think it would be "You know they're rooted way down deep in my yard."

I couldn't resist, lol. This is one for the record books.
Reply With Quote
  #631
Old 09-04-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by RazorsEDGE View Post
Be careful if you pulled the axle shafts. Those unit bearings aren't designed to be driven without the retaining nuts in place. You were running 4.88s right? The pinion is pretty small with that ratio but it's almost comical that a bush did it in. Considering what I've put mine through in the past I'd have to imagine that was one hell of a bush lol.
Yea, I'm putting the stub shaft back in, I didn't think about the unit bearings coming apart. I got it in the garage and the wheels were cocked to hell lol.

The failure was the nut, which I believe was just a poor quality part to begin with. The pinion is junk because I drove the truck forward after the nut broke.

I figured the u-joints would fail first.

To me, this is more of a unique situation rather than overall weakness. I'm confident it will hold up anywhere I go.

But, I've decided to sell the entire setup, suspension and all. With the power I want to make with the 4BT, I'll need bigger axles anyway. Back to the drawing board
Reply With Quote
  #632
Old 09-06-2016
RazorsEDGE's Avatar
There's no lifeguard in the gene pool
iTrader: (4)

Join Date: Aug 2006
Location: New Mexico
Posts: 7,409
You gonna part it out or sell it as a package? What kinda suspension setup are you thinking for the next iteration?
Reply With Quote
  #633
Old 09-07-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by RazorsEDGE View Post
You gonna part it out or sell it as a package? What kinda suspension setup are you thinking for the next iteration?
I'm looking to sell as a package, but parting it out is an option depending on who's interested in what.

My plan is a D60 front with either the Sterling 10.25 or D60 rear. My buddy already found my a newer balljoint D60, I believe the matching rear would be the 10.25.

As far as suspension goes, I'm planning on a 4-link front and rear with the possibility of rear air bags for load assist.

The option of narrowing the full width is on the table, I'm leaning yes, but it's obviously cheaper not to.
Reply With Quote
  #634
Old 10-03-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587

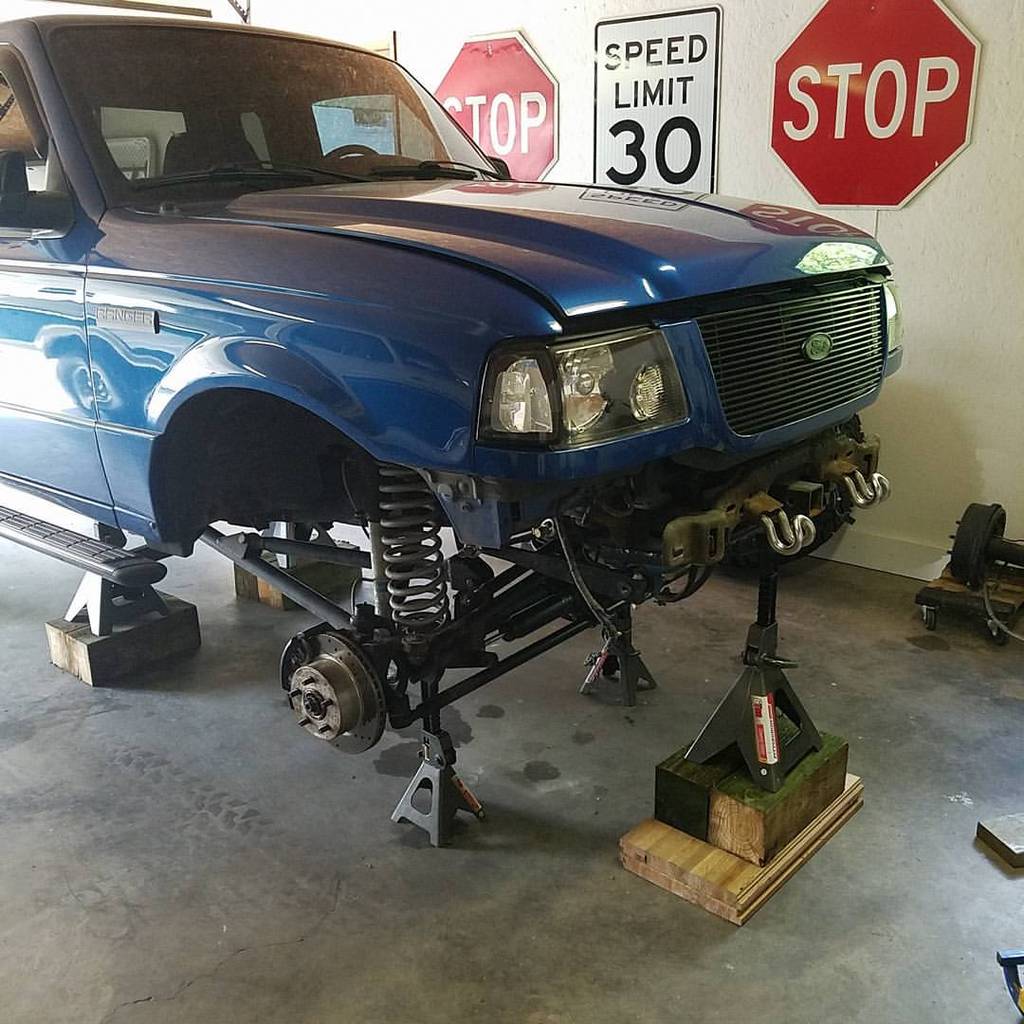

Not a ton of progress has happened, but the teardown has started.

First step, get the D30 out, rebuild it, sell it. Once it's gone the rest of the truck will come apart.

The whole suspension, drivetrain, and powertrain will be sold during the teardown and I'll start laying out the new setup.

I thought I had found D60's local, turned out way more expensive than I want, so the waiting game has started. I don't know exactly which D60's I'm getting, but I really don't want to pay the extra for the kingpin, so I may end up with the newer balljoint style.

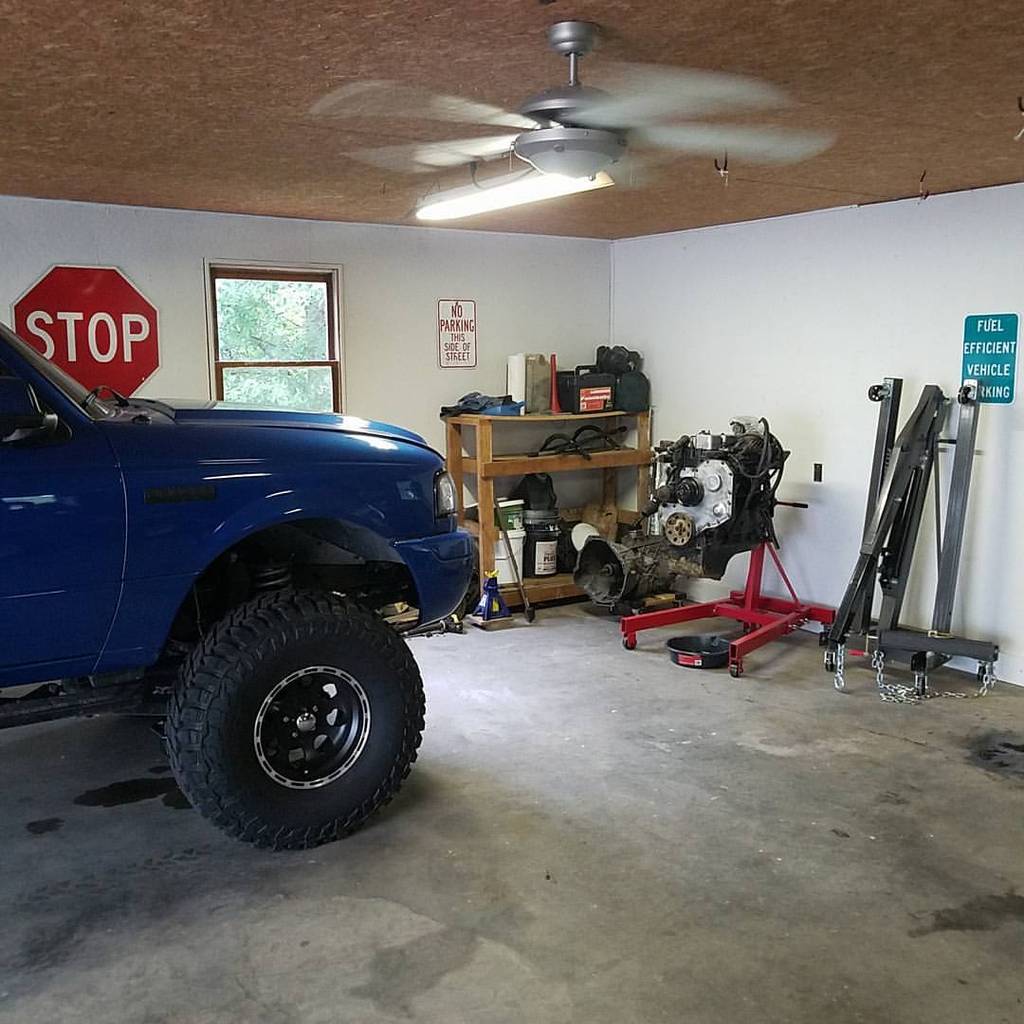

Pics!! (The shop is finally clean-ish)


Attached Thumbnails
01RangerEdge build thread-14311286_10207713335373586_1901965079679191083_o_zpsehotgdsw.jpg   01RangerEdge build thread-14409409_10207767770054419_6182118916008722664_o_zpsvmbxw4dw.jpg
Reply With Quote
  #635
Old 10-06-2016
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,239
King pin 60's are way too expensive in my opinion. A ball joint 60 would be just fine
Reply With Quote
  #636
Old 10-23-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Since my last update I've scored a few parts.

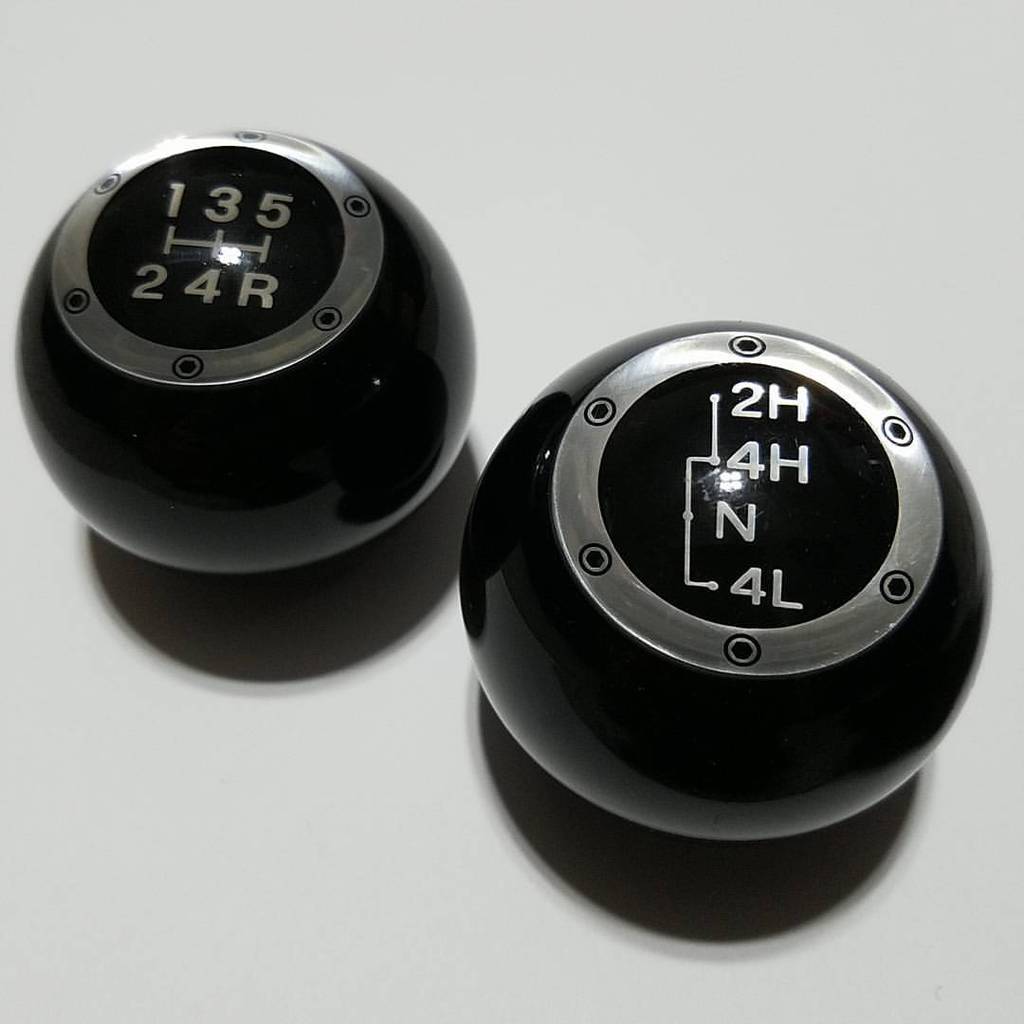

First is a perfect set of Level 2 shifter *****. One of was new in the box.

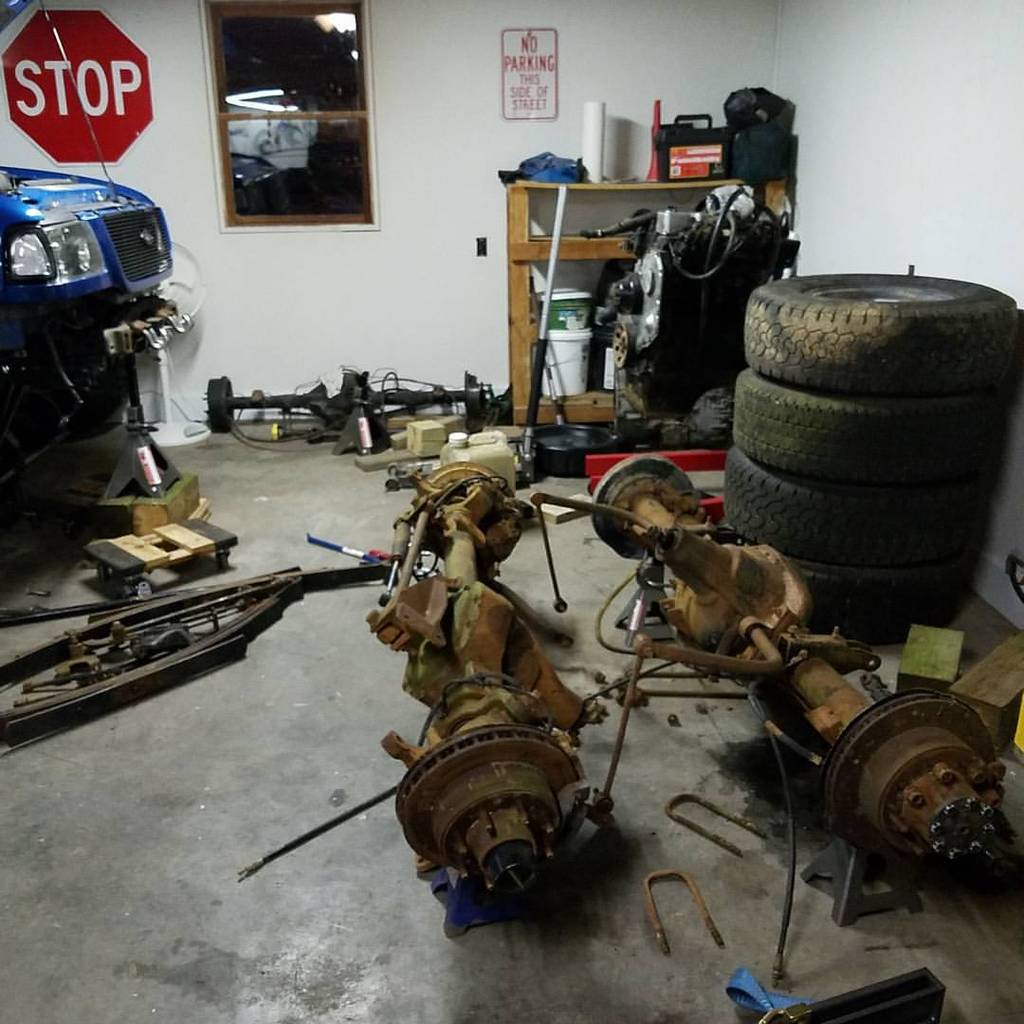

The other are 1 ton axles from an 02 F350. Got them for $500 with the wheels and tires.

Attached Thumbnails
01RangerEdge build thread-14589902_10207954754768920_6103107075818724383_o_zpsfernlu5v.jpg   01RangerEdge build thread-14853057_10208055192759807_608636639074344091_o_zpsjjkme6rc.jpg
Reply With Quote
  #637
Old 10-23-2016
TheArcticWolf1911's Avatar
Member

Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,227
Jeez, all the lug nuts. Primer and paint on those guys? Sticking with the current brake hardware or going all out on new parts, possibly new fluid?

Gonna look sweet. I'm interested to see how all this is going to be put together....
Reply With Quote
  #638
Old 10-24-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by TheArcticWolf1911 View Post
Jeez, all the lug nuts. Primer and paint on those guys? Sticking with the current brake hardware or going all out on new parts, possibly new fluid?

Gonna look sweet. I'm interested to see how all this is going to be put together....
Complete rebuild. Everything will be blasted and powdercoated.
Reply With Quote
  #639
Old 10-24-2016
TheArcticWolf1911's Avatar
Member

Join Date: Nov 2015
Location: Evansville, Indiana
Posts: 1,227
Oh that's gonna be siiiick! Can't wait to see 'em under the truck!
Reply With Quote
  #640
Old 10-24-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by TheArcticWolf1911 View Post
Oh that's gonna be siiiick! Can't wait to see 'em under the truck!
Me either, the whole suspension will be powdercoated too. It's going to look awesome
Reply With Quote
  #641
Old 10-24-2016
Dewey's Avatar
REAL MEN USE PAINT
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 1,846
#sema2017
Reply With Quote
  #642
Old 10-24-2016
black06xlt's Avatar
Member

Join Date: Oct 2016
Location: flushing, ohio
Posts: 55
awsome truck!!!!!! looking forward to seeing more on your truck
Reply With Quote
  #643
Old 10-24-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by Dewey View Post
#sema2017
Let's not get ahead of ourselves. #sema2018
Reply With Quote
  #644
Old 10-25-2016
black06xlt's Avatar
Member

Join Date: Oct 2016
Location: flushing, ohio
Posts: 55
i seen in your build that you painted your interior. as time has passed how has the held up to normal wear and tear and cleaning? i have been thinking about going with black interior is why iam asking...
Reply With Quote
  #645
Old 10-25-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by black06xlt View Post
i seen in your build that you painted your interior. as time has passed how has the held up to normal wear and tear and cleaning? i have been thinking about going with black interior is why iam asking...
It's held up good. The only part that flaked was the door panel where I'd accidently kick it. Prep is key
Reply With Quote
  #646
Old 10-25-2016
black06xlt's Avatar
Member

Join Date: Oct 2016
Location: flushing, ohio
Posts: 55
any progress on the dana 60s or bt4
Reply With Quote
  #647
Old 10-26-2016
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
done yet? :)
Reply With Quote
  #648
Old 10-26-2016
01RangerEdge's Avatar
Scrambles the DeathDealer

Thread Starter
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,587
Quote:
Originally Posted by black06xlt View Post
any progress on the dana 60s or bt4
lol. nope, just part gathering right now. I've got stuff to get done around the house before winter sets in. I plan to be more productive when I don't have a lawn to take care of

Quote:
Originally Posted by zabeard View Post
done yet? :)
Just about. Should rolling in a week or so
Reply With Quote
  #649
Old 10-27-2016
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I figured!
Reply With Quote
  #650
Old 10-31-2016
black06xlt's Avatar
Member

Join Date: Oct 2016
Location: flushing, ohio
Posts: 55
when you installed your explorer center console did you hook up the rear heater? and if so how did you do it?
