Quote:
Originally Posted by 05edge View Post
In my opinion if you already have the truck and love it then keep it. I'm not saying it's an impossible swap by any means, it's just not as simple. All 98+ 4x4 Rangers are torsion bar front ends so going to one that's not an Edge won't make a difference. And a complete doner Explorer is a must.

Another issue that you will run into is the abs module has a different plug. I took mine out so it wasn't a problem for me but your going to need the one from the Explorer. Also I never mentioned it but since your swapping the entire dashboard harness you will need the gauge cluster from the Explorer as well.

My fuel connections came in the other day this is what you will need to make 5.0 fuel rail work with the Rangers fuel line
Thanks! I may just get a donor 00-03 coil spring ranger and get the v8 swap working then swap what I like from my truck. That way I have a DD while working on the truck and make the swap easier.
Reply With Quote
  #127
Old 08-10-2015
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
It's getting there. The plug wires I ordered were for a distributor so I'll get new ones tomorrow. All that's left is make tranny cooler lines, vacuum lines, put the starter in, bolt on the headers, wire up the e-fan, and a few other little things.
Attached Thumbnails
05edge's V8 swap-20150810_212552.jpg
Reply With Quote
  #128
Old 08-15-2015
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Anyone know much about pats wiring or the pcm? Iv got a wire fault between pats module and the pcm. My scan tool will read pats but has no communication with the pcm. I'm guessing this is why I get a no crank start. Theft light flashes 1:6
Reply With Quote
  #129
Old 08-15-2015
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
Ok I got that figured out. Before I swapped harnesses I tried unpinning pats to mate it into the Rangers harness but when I realized it wouldn't work I had to put pats back into the Explorer harness and accidentally repinned two wire backwards
Reply With Quote
  #130
Old 08-16-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
Glad you got it figured out.

The more I think about it, the less I want to do the Expo 302, or any swap that involves using the Ranger harness.

I'd much rather start from scratch
Reply With Quote
  #131
Old 08-16-2015
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
I agree. If i was to do this over it would have been a 351w like I originally wanted to.

So last night was spent ripping the whole body harness out of the Explorer because the Rangers fuel pump connector is different from the Explorers. I don't have a EVTM for the Explorer so if i cant figure out how to mate the harnesses ill be dropping the tanks to swap pumps. But on the plus side once I get fuel figured out its ready to start!
Reply With Quote
  #132
Old 08-17-2015
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,628
I almost wonder if it would have been easier to just go with something like a painless harness. This makes me just want to supercharge my 4.0 vs doing a v8 swap. Are you using the shop wiring diagram manuals for each vehicle?
Reply With Quote
  #133
Old 08-18-2015
bobbywalter's Avatar
Member

Join Date: Dec 2011
Location: Prudenville
Posts: 26
damn.
Reply With Quote
  #134
Old 08-18-2015
bobbywalter's Avatar
Member

Join Date: Dec 2011
Location: Prudenville
Posts: 26
why do you want pats? i am intrigued by that.

man...i get freaked out if i go two weeks without driving my junk pile....you have some patience.
Reply With Quote
  #135
Old 08-18-2015
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,628
I don't think it's a matter of wanting or not wanting PATS.. I think it's more like if he were to try to by-pass it the truck won't start.
Reply With Quote
  #136
Old 08-18-2015
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,594
You either make PATS work or completely bypass the harness
Reply With Quote
  #137
Old 08-22-2015
00GreenRanger's Avatar
Level III Supporter

Join Date: Nov 2011
Location: North Bend, WA
Posts: 1,288
I remember seeing this thread when I was just an R-F lurker, glad to see you're still working on the truck. At least you're on the home stretch to firing this thing up
Reply With Quote
  #138
Old 05-17-2016
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901

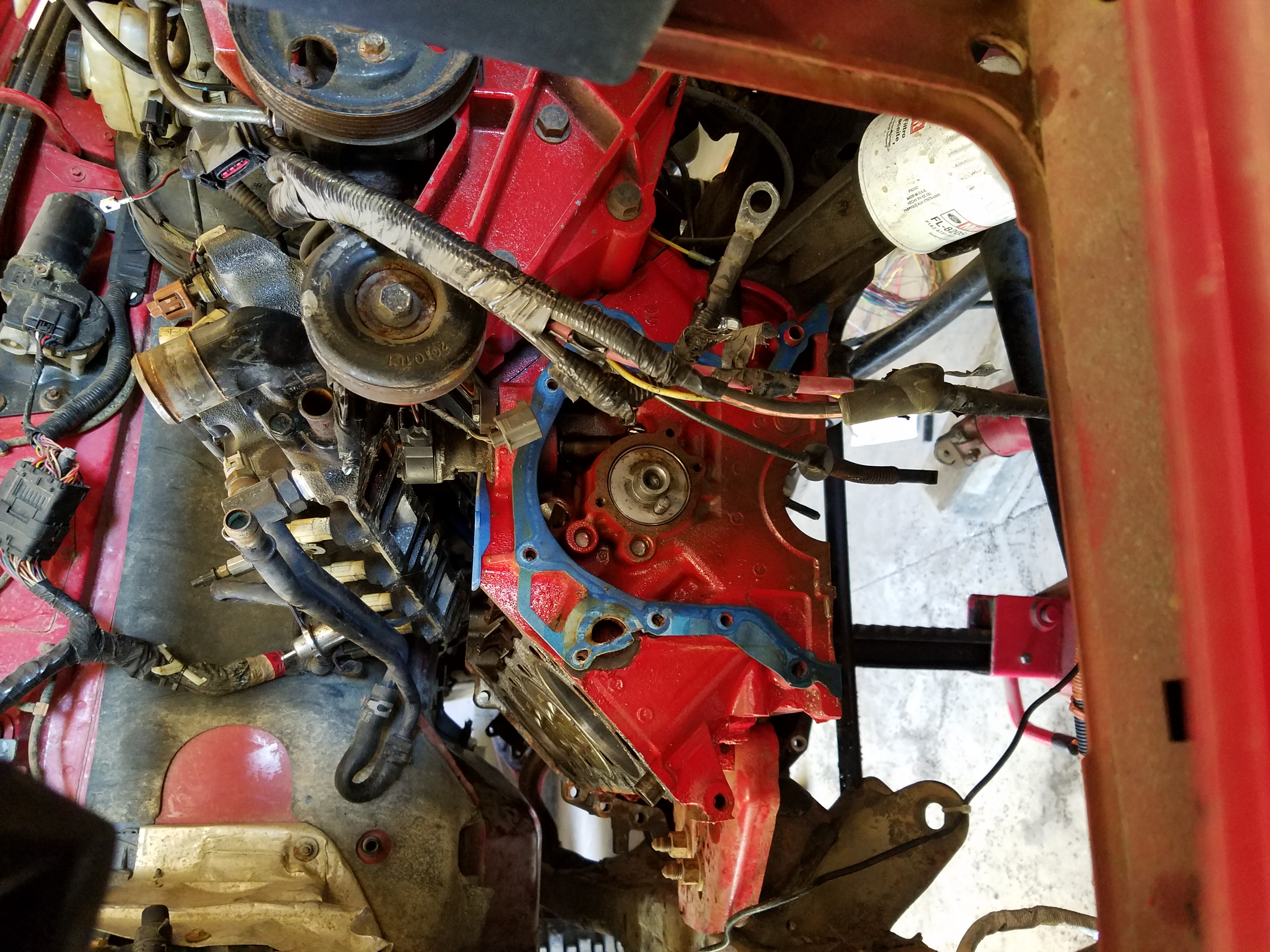

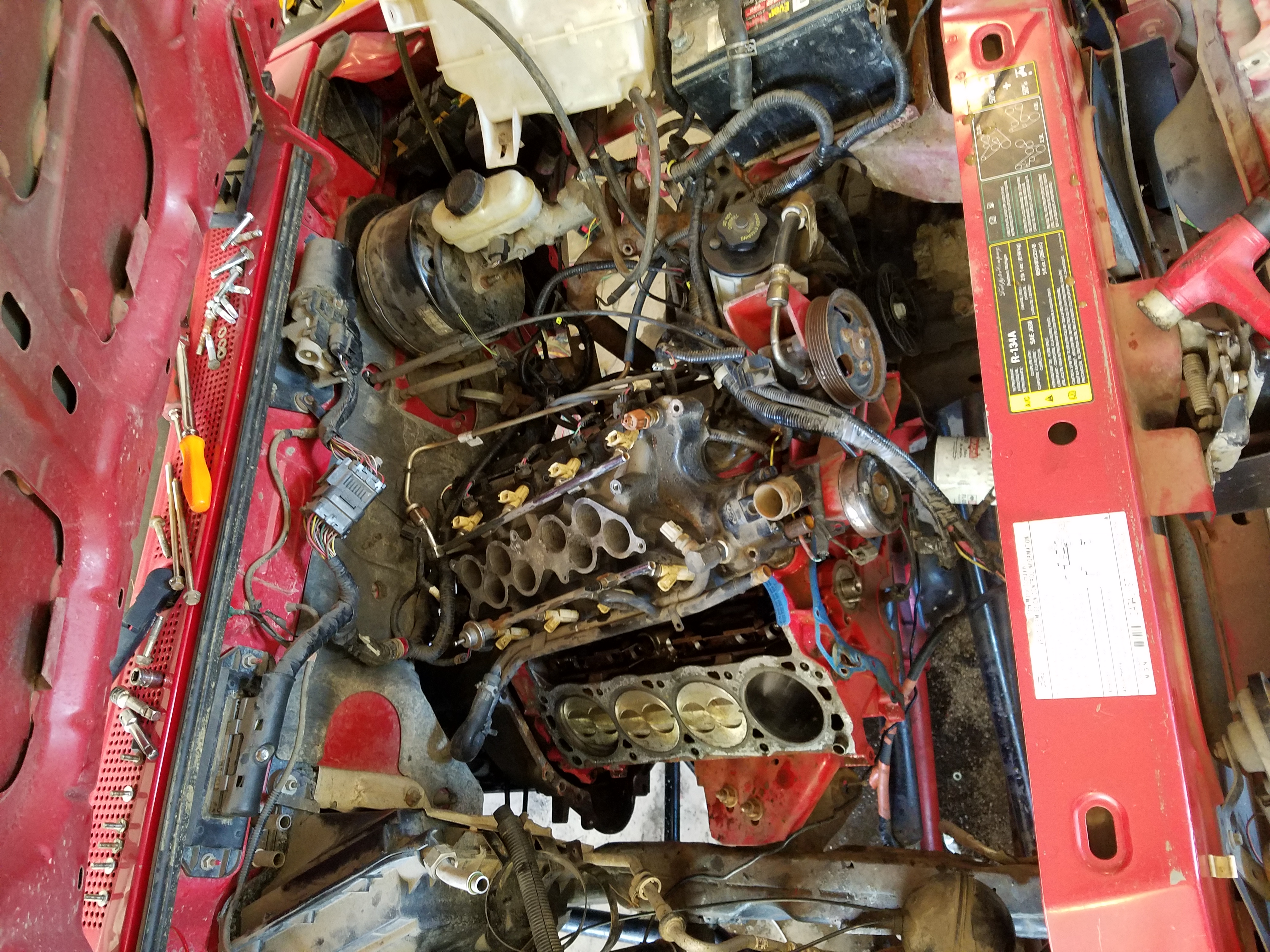

What's up everyone? Last time I was posting I got really close to get the Ranger started. Well the fuel got the best of me so I pushed it off to the side until spring. So jump forward to now it's finally running, but it didn't go easy. Long story short, lost a rod, took out a piston and the crank. I got really lucky, I didn't bend a valve or damage the cyclender walls. So a week later it was back together and running again. I'll throw up some pictures of the recent progress
Attached Thumbnails
05edge's V8 swap-20160422_125138.jpg   05edge's V8 swap-20160422_203455.jpg   05edge's V8 swap-20160504_214018.jpg   05edge's V8 swap-20160504_214715.jpg   05edge's V8 swap-20160506_112031.jpg

05edge's V8 swap-20160506_112115.jpg

Last edited by 05edge; 05-17-2016 at 08:08 PM.
Reply With Quote
  #139
Old 05-17-2016
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901
I don't know why they are all sideways
Reply With Quote
  #140
Old 05-17-2016
Dewey's Avatar
REAL MEN USE PAINT
iTrader: (6)

Join Date: Feb 2013
Location: Arcadia, Fl
Posts: 1,928
Awesome! Glad to see its moving along!
Reply With Quote
  #141
Old 05-17-2016
05edge's Avatar
Member
Thread Starter

Join Date: Sep 2005
Location: campton/milan nh
Posts: 901

This is the first time doing any kind of launch. This video was taken today
Reply With Quote
  #142
Old 05-18-2016
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,579
Hell yeah!
Reply With Quote
  #143
Old 09-11-2016
BlackRanger04's Avatar
Member
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,216
Quote:
Originally Posted by 05edge View Post
What's up everyone? Last time I was posting I got really close to get the Ranger started. Well the fuel got the best of me so I pushed it off to the side until spring. So jump forward to now it's finally running, but it didn't go easy. Long story short, lost a rod, took out a piston and the crank. I got really lucky, I didn't bend a valve or damage the cyclender walls. So a week later it was back together and running again. I'll throw up some pictures of the recent progress
Nice build, I knew you were going to have to remove your 2004 + gauge cluster because the 2004 + has completely different wiring. You must have nerves of steel to do a Explorer V8 engine swap in a 2004 + Ranger.
Why did you loose a rod and take out a piston? Didn't assemble your engine correctly?
Reply With Quote
  #144
Old 09-11-2016
BlackRanger04's Avatar
Member
iTrader: (2)

Join Date: Jun 2010
Location: Louisville,KY
Posts: 1,216
Quote:
Originally Posted by RLong31 View Post
I almost wonder if it would have been easier to just go with something like a painless harness. This makes me just want to supercharge my 4.0 vs doing a v8 swap. Are you using the shop wiring diagram manuals for each vehicle?
It's like 120 times easier just supercharging your existing 4.0 SOHC on a 2004 + Ranger VS doing a V* swap. I'm thinking about getting a MODDBOX, I hear those are pretty bad ***.
Reply With Quote
