first mod in a while

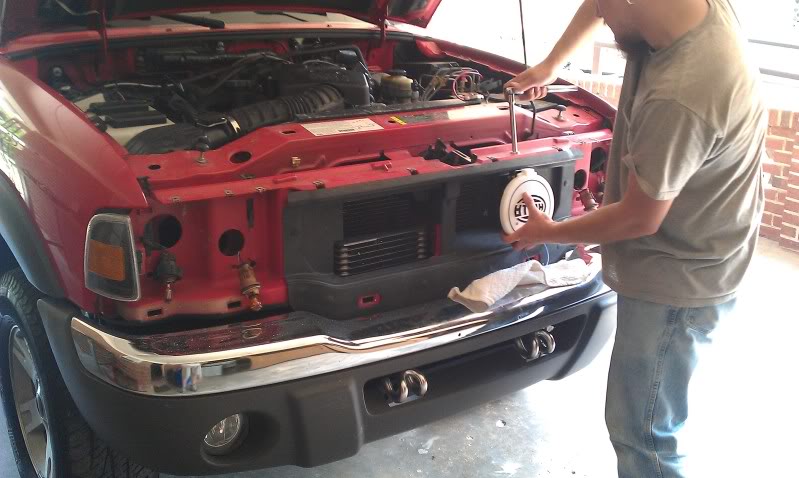

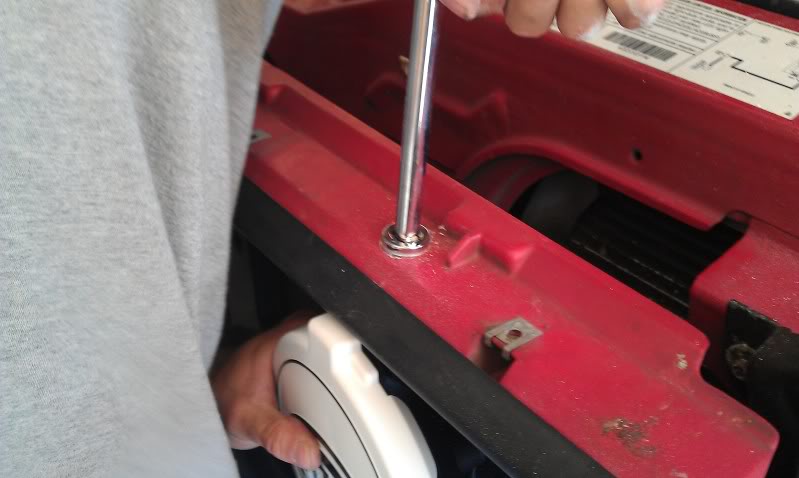

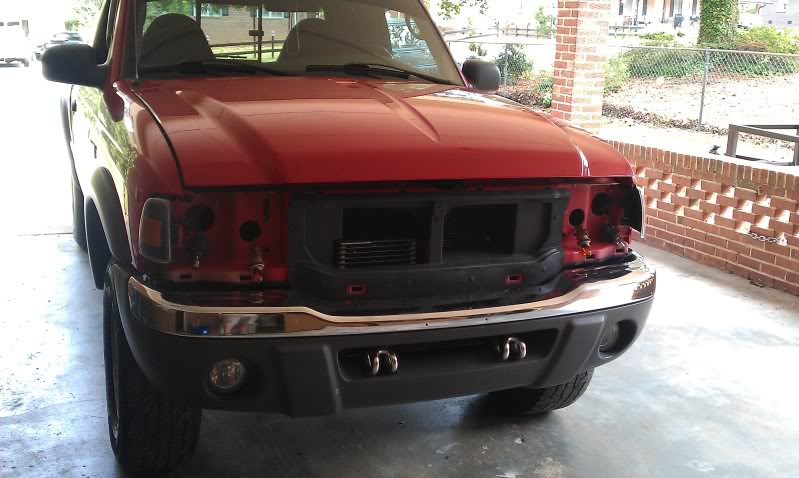

been a bit since ive done anything to the truck, but i finally got around to doing this mod.

took enough pictures to do a how-to on it, not that it was a hard mod - just frustrating and time consuming, so ill do one for those who need the help with it.

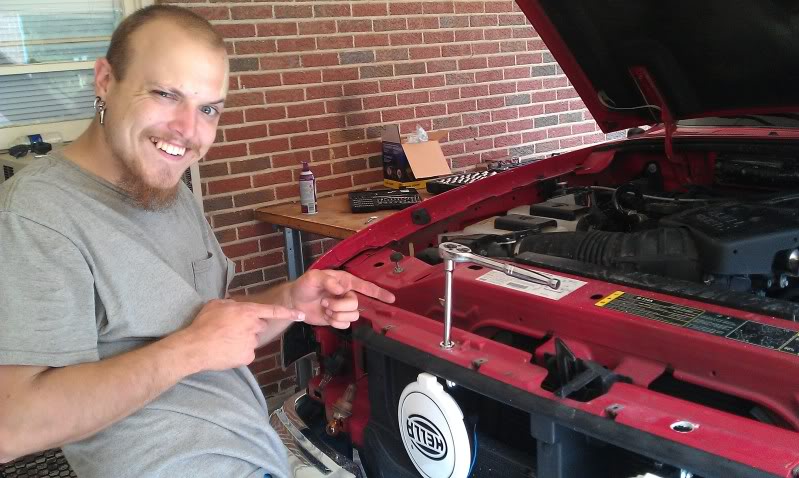

my brother saw me taking pics and decided he wanted to strike a pose lol

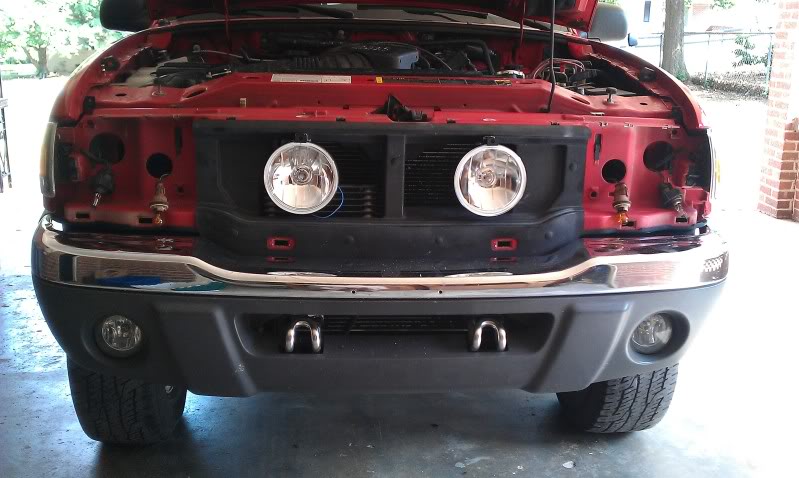

both lights on

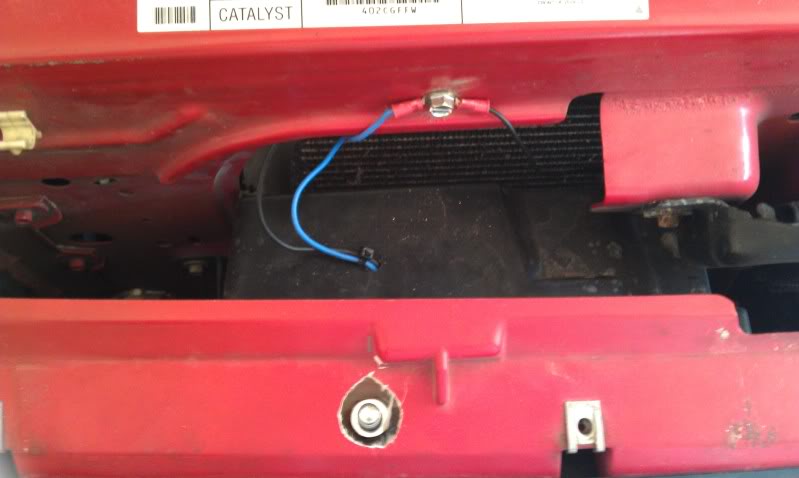

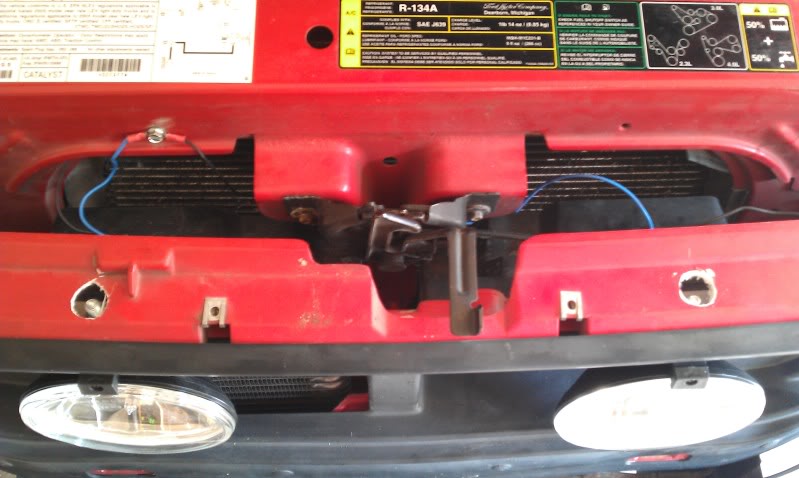

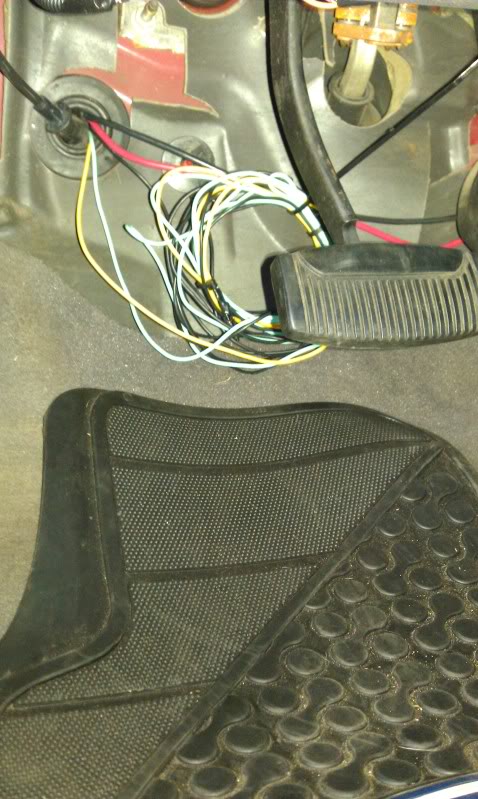

then started the wiring and running them back up to the firewall.

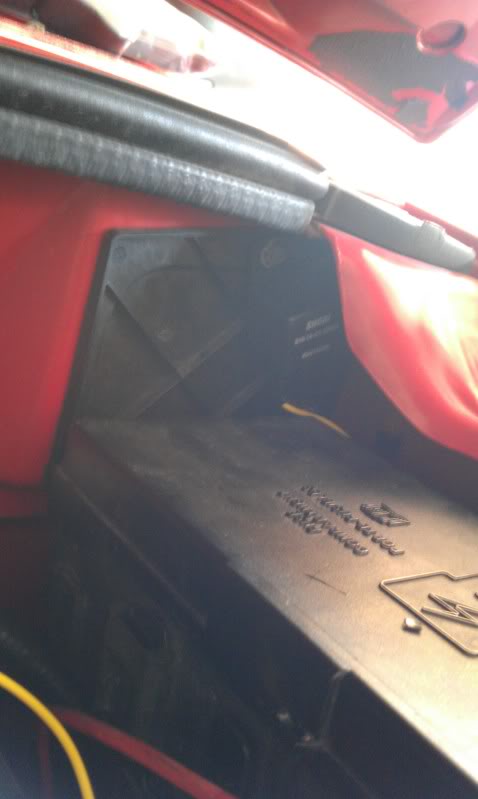

tucked the relay in behind the fuse box to be out of the way.

zip tied it to some other wires for now until next week when ill fish them through behind the radio bezel into the fog light switch i have waiting for it. everything works, just wont be using it yet.

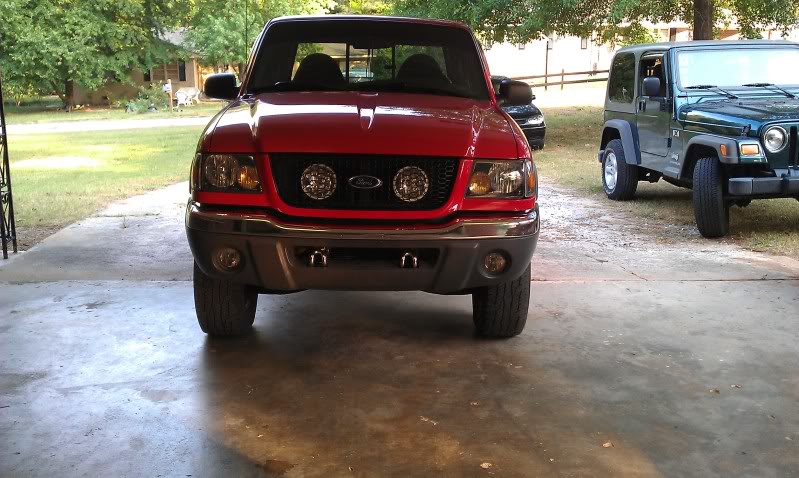

and lastly, the completed product

2003 XLT SuperCab
FX4 4.0L Auto

28-spline 8.8 L/S
hard tonneau tri-fold//torsions cranked//k&n air filter//'06 black lights and corners//20% tint//foglight mod//level II tow hooks
