'93-'96 Ranger front axles

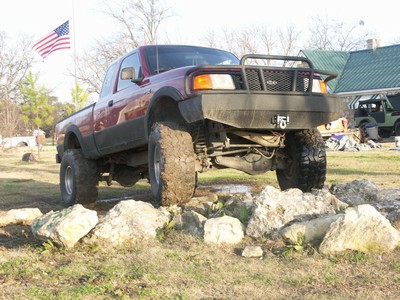

I've been looking for a 1996 or older ranger and noticed a lot of '93-'96 rangers have front axles like these:

So my question is, did they come from the facotry with those big front axles, are those SFA's (or just big), and what is the name of the axle (are they Dana's or somethin else)?
Attached Thumbnails
'93-'96 Ranger front axles-719200514922.jpg   '93-'96 Ranger front axles-5122005173656.jpg   '93-'96 Ranger front axles-6102003164426.jpg
Reply With Quote
+ 0 -
Old 01-05-2010
01_ranger_4x4's Avatar
iTrader: (4)
I am: Patrick K
Join Date: Mar 2009
Location: Muskegon, Michigan
Vehicle: 2001 Ford Ranger 4x4
Posts: 3,585
Total Props: 6
those are refered to as the TTB (twin traction beam) axle and depending on the year its either a dana 28 or dana 35. most of the late model ones are dana 35's though. its much different than the 98+ dana 35 IFS axle/ suspension
