Tire Clearance q's w/pics, need some input

I have 5.5" lift, 4.5" in rear (3"block, AAL) and am doing a BL when I get my efan and UD pulley in the mail here in next couple weeks. I thought 35"s would fit, but I'm having second thoughts now. The front will clear no prob I think except at full turn maxed supension mabye, minor though. The rear is what concerns me, I decided to test the travel and took some pics. The 32" fit almost perfect, 33"s would be perfect.

What are some opinions and thoughts on the rear and what tire size I could run with the added BL?

Here are pics:

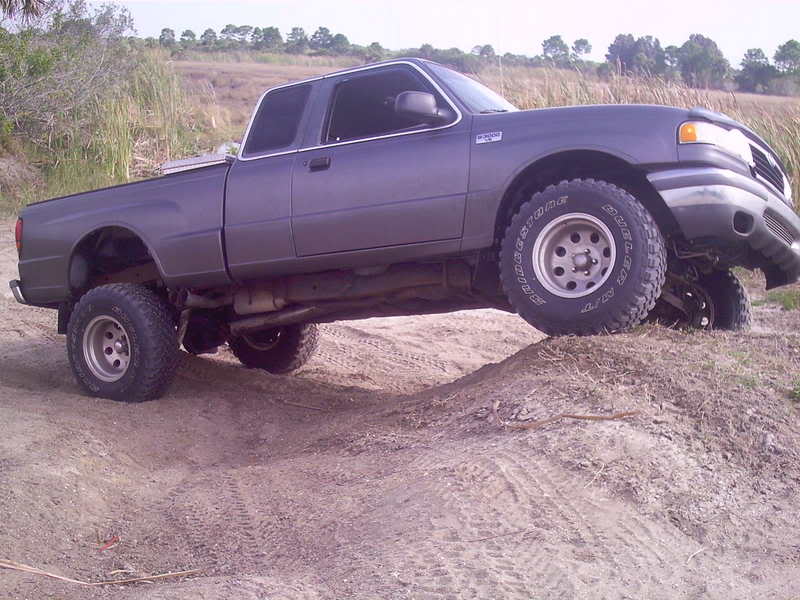

Drivers side

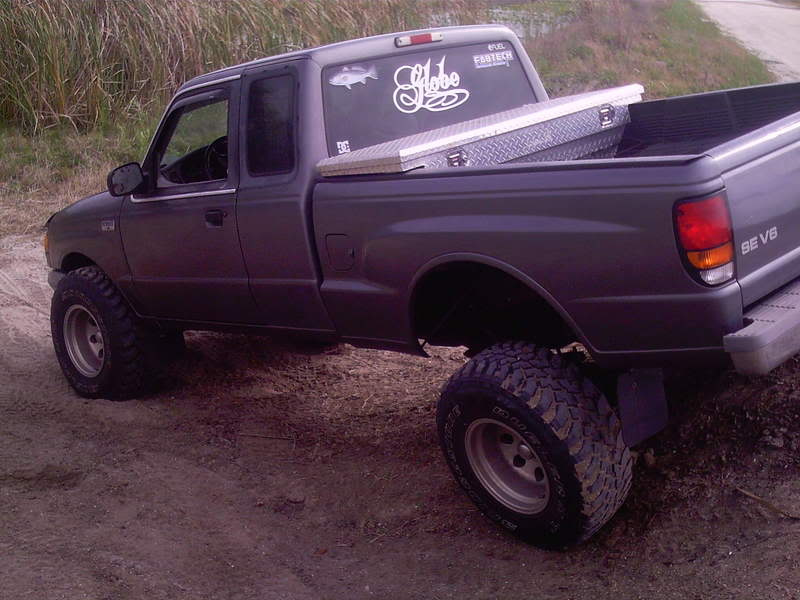

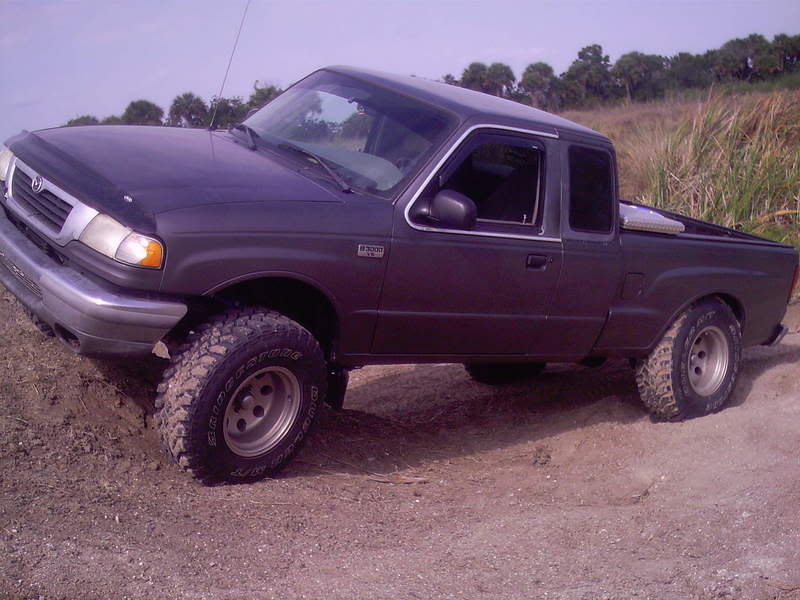

Passenger side

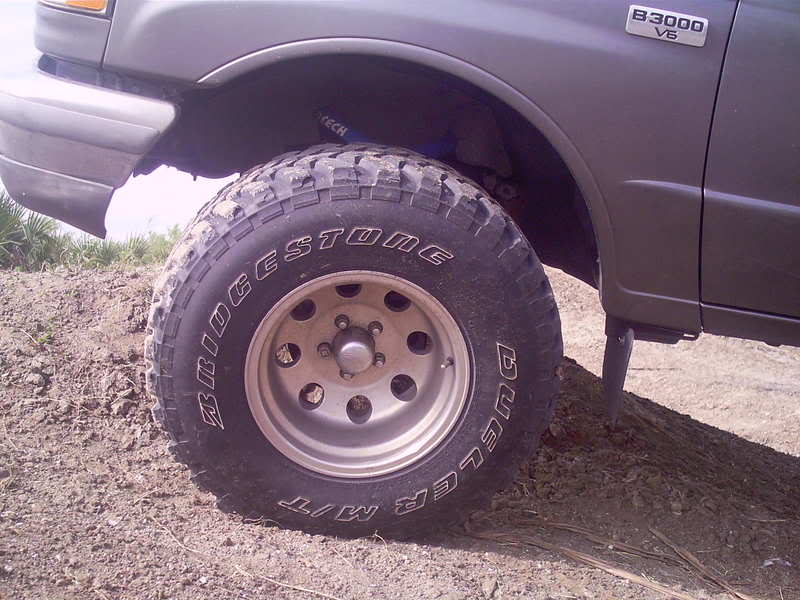

Front wheel well drivers

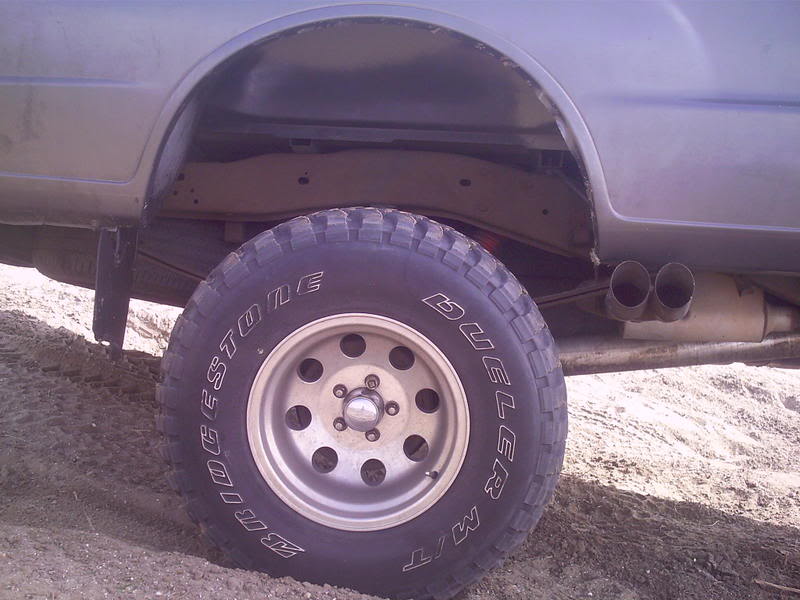

Rear close to bottomed out

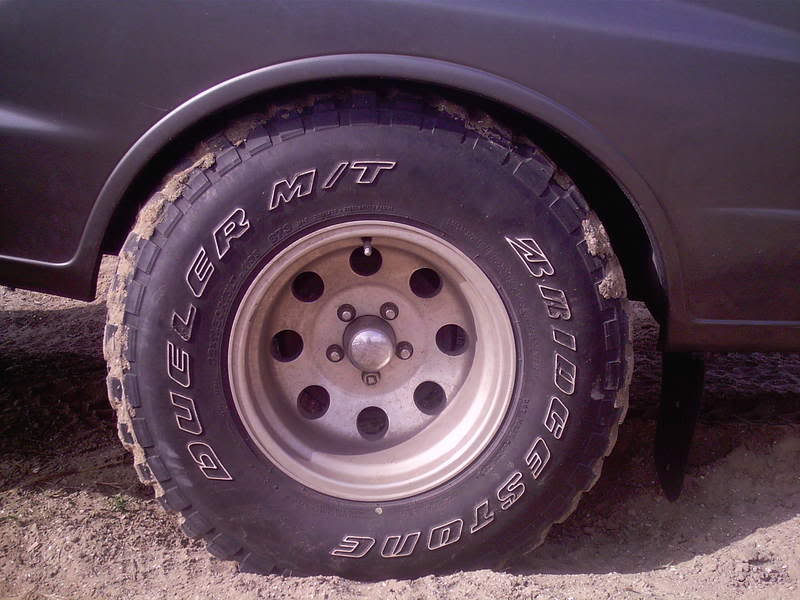

Rear fully tucked in (where the problem lies......)

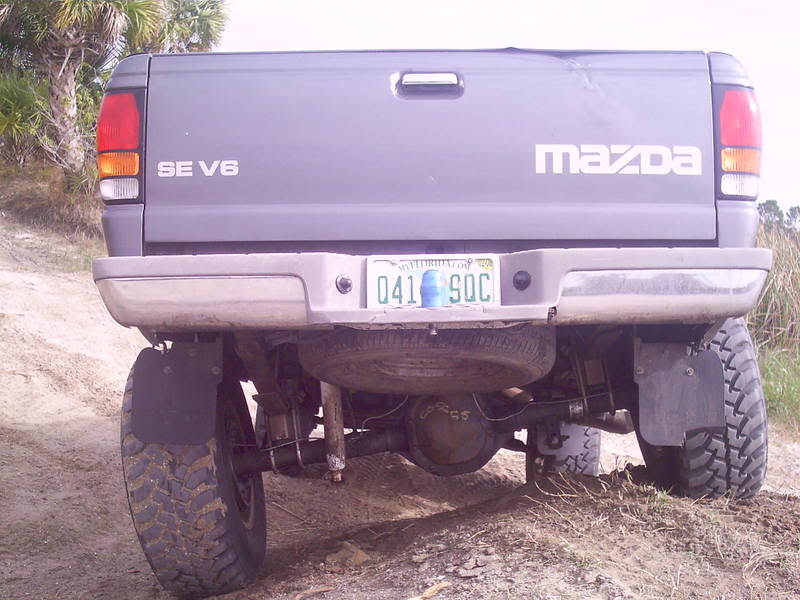

2 more pics for understanding the angle and such


NEW TRUCK>>> 1990 Ford Ranger Ex Cab, RED, 2.9L 2WD, Manual, 3" Body, 2" coils and blocks, 31" BFG AT's.....

OLD GIRL BEFORE BENT FRAME AND METAL COMPACTOR...... :( Mazda B3000, 99', Flowmaster side exit (passenger,dual tip), MAC intake, Pulleys, Efan, 3" spindle, 2.5" coils and UCA, & 3" bocks, AAL, BL, 15X10 Eagle 057 Alloys, 32X15X11.5 Bridgestone Dueler M/T, 8.8 with 4.10's, Low Profile Diamond Cut toolbox, Sound System, more, more, more here.........***MyDomain*** <------- More Truck info and pics....

Last edited by pushdeck; 02-25-2007 at 01:43 PM.
Reply With Quote
+ 0 -
Old 02-25-2007
lifted97ranger's Avatar
I am: Maurice Jones Jr.
Join Date: Nov 2005
Location: Charlestown, IN
Vehicle: 1997 Ford Ranger STX/XLT
Posts: 1
Total Props: 0
it took 9" of lift to clear 35's with no problems on my 4x4.......
Reply With Quote
+ 0 -
Old 02-25-2007
ScottG's Avatar
I am: Scott Gabriel
Join Date: May 2004
Location: Lewiston, Maine
Vehicle: 04 xlt Sport Trac
Posts: 4,925
Total Props: 0
considering you have a 2wd coils spring truck

if you do the 5.5 lift and 3inch body lfit, you WILL fit 35s

when the cab/bed is lifted 3inches, you will never get it to look like that flex again, and if you do, you're destroying your leafs
