What Torsion Bars do i have??

I know this has been covered and im sry for creating a new thread cause of it but i want to know what torsion bars i have and i cant seem to find it anywhere on my truck tellin me what they are....
Reply With Quote
+ 0 -
Old 12-28-2012
logan03CO's Avatar

iTrader: (3)
I am: E L
Join Date: Mar 2005
Location: Colorado
Vehicle: 2003 Ford Ranger Edge 4.0
Posts: 1,235
Total Props: 6
Checkout your drivers side door jam sticker.

Under the heading of 'SPR'. It will say something like 'BBKK'. The 1st pair of letters are the front torsion bar codes - the 2nd set are the rear spring codes.

Use the following for part #'s if you want to replace and/or upgrade things:

Front Torsion Bar Codes:
1 = F67A-5B326-FA (RH) & F67A-5B327-FA (LH)
B = F57A-5B326-BC (RH) & F57A-5B327-BC (LH)
F = F57A-5B326-FC (RH) & F57A-5B327-FC (LH)

Rear Spring Codes:
3 = 4L54-5560-DA
C = 3L54-5560-PB
K = 4L54-5560-EZ

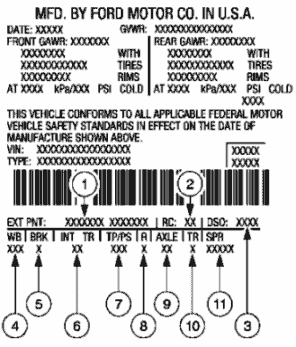

General Door Tag Information:

Not every sticker is the same layout, this is only a general idea.

1. Exterior Paint Color Code
2. Region Code
3. Special Order Code
4. Wheelbase Code
5. Brakes Code
6. Interior Trim Color Code
7. Tape/Paint Pinstripe Code
8. Radio Code
9. Axle Code
10. Transmission Code
11. Spring Code
Attached Thumbnails
What Torsion Bars do i have??-doorlabel.gif

2003 Black Extended Cab - 4x4 Ranger, Supercharged 4.0 Liter SOHC, 4.88 Yukon Gears, Torsen Front LSD, Powertrax No-Slip Rear Locker, Goodyear MT/R's w/ Kevlar (35x12.5x15's), Trailready Aluminum Beadlocks, RCD Coilover Suspension Lift, PA Body Lift, SCT XCalibrator 3, Custom HID Projector Retrofit, Black Billet Grill, Magnaflow Stainless Steel Cat-back Dual rear exit exhaust, Viper car alarm, with perimeter sensor & remote start-I'm running out of room...but many other mods!

Last edited by logan03CO; 12-28-2012 at 05:03 AM.
