Ranger 1" Body Lift Supplies?

I'm going to be embarking on a one inch body lift. I finally made up my mind and am dead set on it. I know I'm gonna need the body spacers(#?, i forgot), longer bolts. I just did the bumper mod and with a 1" body lift the bumper will have a 1 1/2" gap afterwards. Which is 1/8" more than the gaps on the sides before I lifted the bumper up. No biggie. Same deal with the rear end. I can live with it. The shifters should be fine just an inch lower, correct? I should be okay with all my hoses and lines right? I know gumby and casfz1 have done it, so it's possible. Thanks in advance for helping me with my questions.

Oh yeah, anyone wanna help? lol Maybe I'll drive out to Mich, they seem to be old pro's at bodylifting.
Reply With Quote
  #2
Old 10-01-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Chad got his one inch blocks from EBAY if I remember correctly. The longer bolts you will have to talk to him and Gumby about. There was nothing that needed to be touched with the one inch other that lifting the bed and body. Come on over to MI we will hook ya up.
Reply With Quote
  #3
Old 10-01-2006
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
yup, blocks(12) and bolts. thats it. no hose extensions, no ground extensions, no fan shroud clearencing, nuthin.
my shifter hit the factory cup holder in the 02. no issue in the 03, but i had an ex.console in there, so no cup holder to hit. chekc you shifter, and clearence as needed.

get on AIM....
Reply With Quote
  #4
Old 10-01-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
how much would a 1" bl cost
Reply With Quote
  #5
Old 10-01-2006
ScottG's Avatar
Member

Join Date: May 2004
Location: Lewiston, Maine
Posts: 4,926
sticky!
Reply With Quote
  #6
Old 10-01-2006
2WD_Ranger's Avatar
Member

Join Date: Aug 2006
Location: richmond hill ga
Posts: 133
use hockey pucks and drill holes with some longer bolts from the hardware store hole lot cheaper and the same thing


~Mitchell~
Reply With Quote
  #7
Old 10-01-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I like to do things the right way =]
Reply With Quote
  #8
Old 10-01-2006
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
since this is a sticky now, i pulled out my stock bolts and re-measured for everyone.

been a while, but i think the bolts i used were
(2) 12x1.75x90mm
(2) 12x1.75x110mm
(6) 12x1.75x130mm
(2) 12x1.75x150mm

these numbers are ~30mm longer than the stockers.
dont forget washers. i used 1/2" washers, they are cheaper. fender washers in the bed.

Last edited by gumby; 01-27-2007 at 08:59 PM. Reason: corrected bolt legnths. thanks stockranger!
Reply With Quote
  #9
Old 10-01-2006
quest51210
Unregistered User

Posts: n/a
price? estimte?
Reply With Quote
  #10
Old 10-01-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
I have about $50.00 in mine between the mounts and the bolts. you can get the body mount off of ebay for $2.00 each.
Here is the link for them on ebay:
http://cgi.ebay.com/ebaymotors/BODY-...3285QQtcZphoto

When ordering them make sure you buy the ones that are 3"s wide not 2"s. the link above is for the right ones.

as gumby said make sure you get large fender washers for the bed bolts or they will pull through the bed.

Chad
Reply With Quote
  #11
Old 10-02-2006
quest51210
Unregistered User

Posts: n/a
so these are full replacements or stacked on oem bushings?
Reply With Quote
  #12
Old 10-02-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
They stack on the oem, no different then doing a 3" body lift just smaller mounts.

Chad
Reply With Quote
  #13
Old 10-02-2006
texasbullseye89's Avatar
Member

Join Date: Jan 2006
Location: Huntsville, Tx
Posts: 827
speaking of OEM bushings. does anyone know where to get replacement ones? i've been considering swapping my bl for a suspension.
Reply With Quote
  #14
Old 10-05-2006
Member

Join Date: Aug 2005
Location: Haverhill, MA
Posts: 1,907
i was relly thinking about this also. does anyone have like before and after pics of what it looks like? and dosent need a gas fill tube extention or anything else modded?
Reply With Quote
  #15
Old 10-05-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
Quote:
Originally Posted by MonsterGuy
i was relly thinking about this also. does anyone have like before and after pics of what it looks like? and dosent need a gas fill tube extention or anything else modded?
Qouted from Gumby

"yup, blocks(12) and bolts. thats it. no hose extensions, no ground extensions, no fan shroud clearencing, nuthin."
Reply With Quote
  #16
Old 10-05-2006
redranger4.0's Avatar
Member

Join Date: Jun 2004
Location: Firey depths
Posts: 15
I just picked up a set of 1.25" aluminum pucks myself. got them for $20 off TRS.
Reply With Quote
  #17
Old 10-05-2006
Member

Join Date: Aug 2005
Location: Haverhill, MA
Posts: 1,907
i might do this i think next spring
Reply With Quote
  #18
Old 10-05-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
I want to do this too...I wonder how easy it would be though? I've never done a BL but I have plenty of extra hands!

And is there any way at all to raise the bumpers? Could I order the bumper brackets from a 3" kit and make it work somehow (modify or just use at lowest setting)?
Reply With Quote
  #19
Old 10-05-2006
Member

Join Date: Aug 2005
Location: Haverhill, MA
Posts: 1,907
Quote:
Originally Posted by jrpro130
I want to do this too...I wonder how easy it would be though? I've never done a BL but I have plenty of extra hands!

And is there any way at all to raise the bumpers? Could I order the bumper brackets from a 3" kit and make it work somehow (modify or just use at lowest setting)?
same Q here
Reply With Quote
  #20
Old 10-05-2006
gumby's Avatar
Member
iTrader: (1)

Join Date: Nov 2005
Location: indy
Posts: 1,581
these arent quite at the same angle, or even a good one, but its the best i can do.

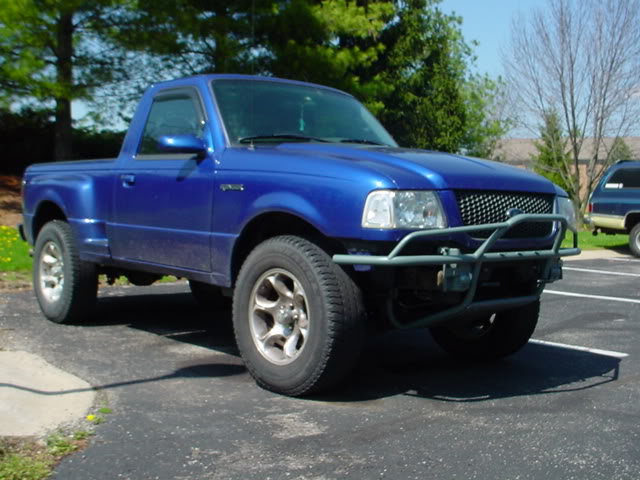

before:
Name:  DSC00010.jpg
Views: 306
Size:  62.2 KB

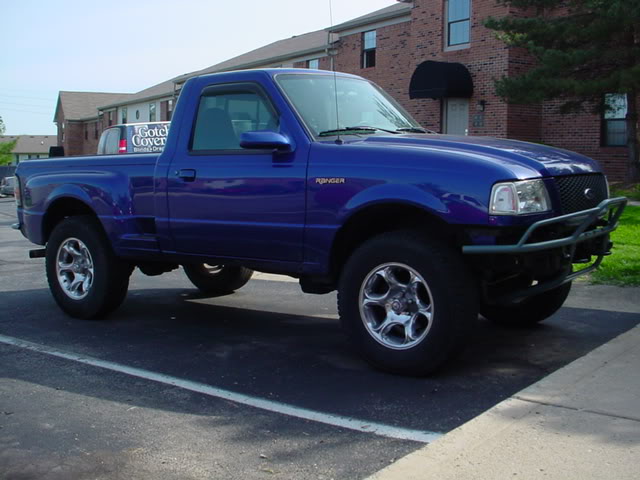

after:
Name:  DSC00017.jpg
Views: 305
Size:  52.9 KB
Reply With Quote
  #21
Old 10-05-2006
doug435's Avatar
Member

Join Date: Dec 2005
Location: San Antonio , Tx
Posts: 445
where did you get the bolts ?
Reply With Quote
  #22
Old 10-05-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by l2en
I'm going to be embarking on a one inch body lift.
If you lift your truck body even 1", you will have trouble with your transfer case shift lever hitting the bezel and the plastic stiffener inside the leather boot. I'm not saying it's impossible but you would need to make some kind of change. Install a different shift boot, cut up the stock bezel, reduce the shifter throw or do something else to keep them from interfering.
Reply With Quote
  #23
Old 10-05-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
I went to a local nut and bolt store, they cost me somewhere around $20. If you do this make sure you get large fender washers for the bed bolts and smaller wahers for the rest of the bolts.

Chad
Reply With Quote
  #24
Old 10-05-2006
Member

Join Date: Aug 2005
Location: Haverhill, MA
Posts: 1,907
is everything ok with an automatic? any lengthining of stuff i see the manual needs something done to it a little?
Reply With Quote
  #25
Old 10-05-2006
casfz1's Avatar
Member

Join Date: Aug 2005
Location: southgate, mi
Posts: 1,989
I have a auto and have no problems.

Chad
Reply With Quote
