Firewall hole

I cant find the dang firewall hole for my 2001 reg cab can someone help me out and give me some pics for me to look at

thanks
Reply With Quote
  #2
Old 05-28-2008
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
firewall hole?? theres a lot of them what might you be looking for in the firewall if your runing lights the easest thing to do is drill a new hole.
Reply With Quote
  #3
Old 05-28-2008
TrePaul86's Avatar
Member
iTrader: (8)

Join Date: Apr 2007
Location: Gresham, OR
Posts: 1,369
Shane did on his truck.. Might want to PM him on it.. He was supposed to be doing a write up on it
Reply With Quote
  #4
Old 05-28-2008
oldman_d's Avatar
Member

Join Date: Mar 2008
Location: WA
Posts: 116
Quote:
Originally Posted by Redrocket View Post
firewall hole?? the easest thing to do is drill a new hole.
Yup, remember that there are important things mounted on the interior side of that fire wall you don't want to drill through.
Reply With Quote
  #5
Old 05-28-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Its really easy, unbolt the fuse box and move it out of the way. Now you have a lot of metal behind that on the firewall with nothing behind it. Just drill a hole, stick in a grommet and your good to go.
Reply With Quote
  #6
Old 05-29-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
If your just routing a couple wires...just slice a hole in your steering shaft boot and route through there...I still have my 4ga amp wire going through there.

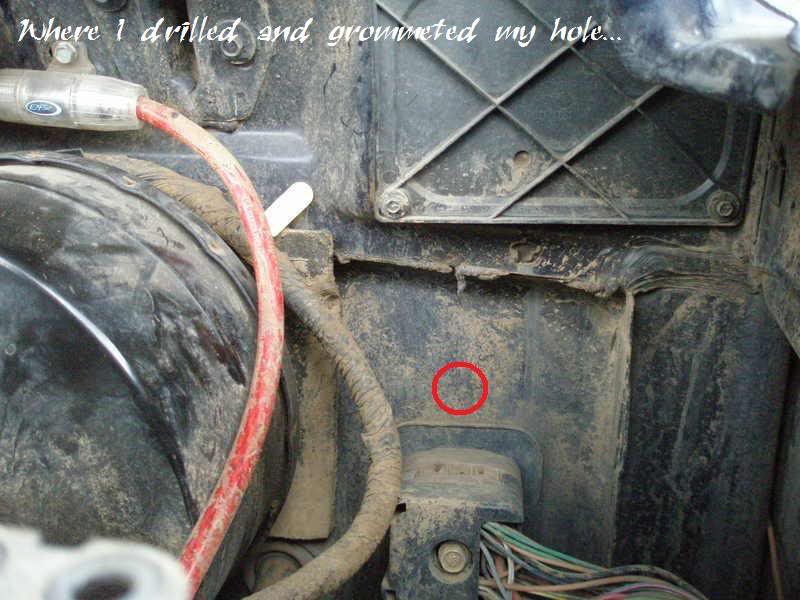

No finished pics yet....but......this is a proper way to route wiring through a firewall.....

Name:  P4240050b.jpg
Views: 20
Size:  76.2 KB
Reply With Quote
  #7
Old 05-29-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Thats exactly where I did mine as well, great location. Theres enough room to drill multiple holes right there.
Reply With Quote
  #8
Old 06-06-2008
Hillyard's Avatar
Member
iTrader: (8)

Join Date: Jul 2007
Location: Evansville, Indiana
Posts: 1,018
When I mounted the lights on my light bar I had wires running below the cab I tagged the interior wires off and ran them into the cab. There is a place that has a foam material that goes right in the driver's kick panel. I wire loomed everything and taped it so I know mine is okay.
Reply With Quote
