2.3L & 2.5L I4 Tech General discussion of 2.3L and 2.5L I4 Ford Ranger engines.

What is this wire/connector??

Thread Tools

Search this Thread

Old Jun 10, 2018
  #1
Fox's Avatar
Fox
Thread Starter
|
Member
Joined: Jun 2018
Posts: 4
Likes: 0
From: Morris, CT
Icon5 What is this wire/connector??


My 99 2.5l has recently been running very poorly. It threw a code for MAF sensor (P0102) and a cylinder 1 misfire. I cleaned the MAF, replaced the plugs, and will be looking into plug wires, replacing the MAF completely and other potential issues.

As I was diagnosing the issue I noticed a broken wire that was rubbing up against the fan belt. After looking at some pictures online it appears this was connected to a black box mounted onto the rusty bolthead marked in the picture. What is this wire and black box?

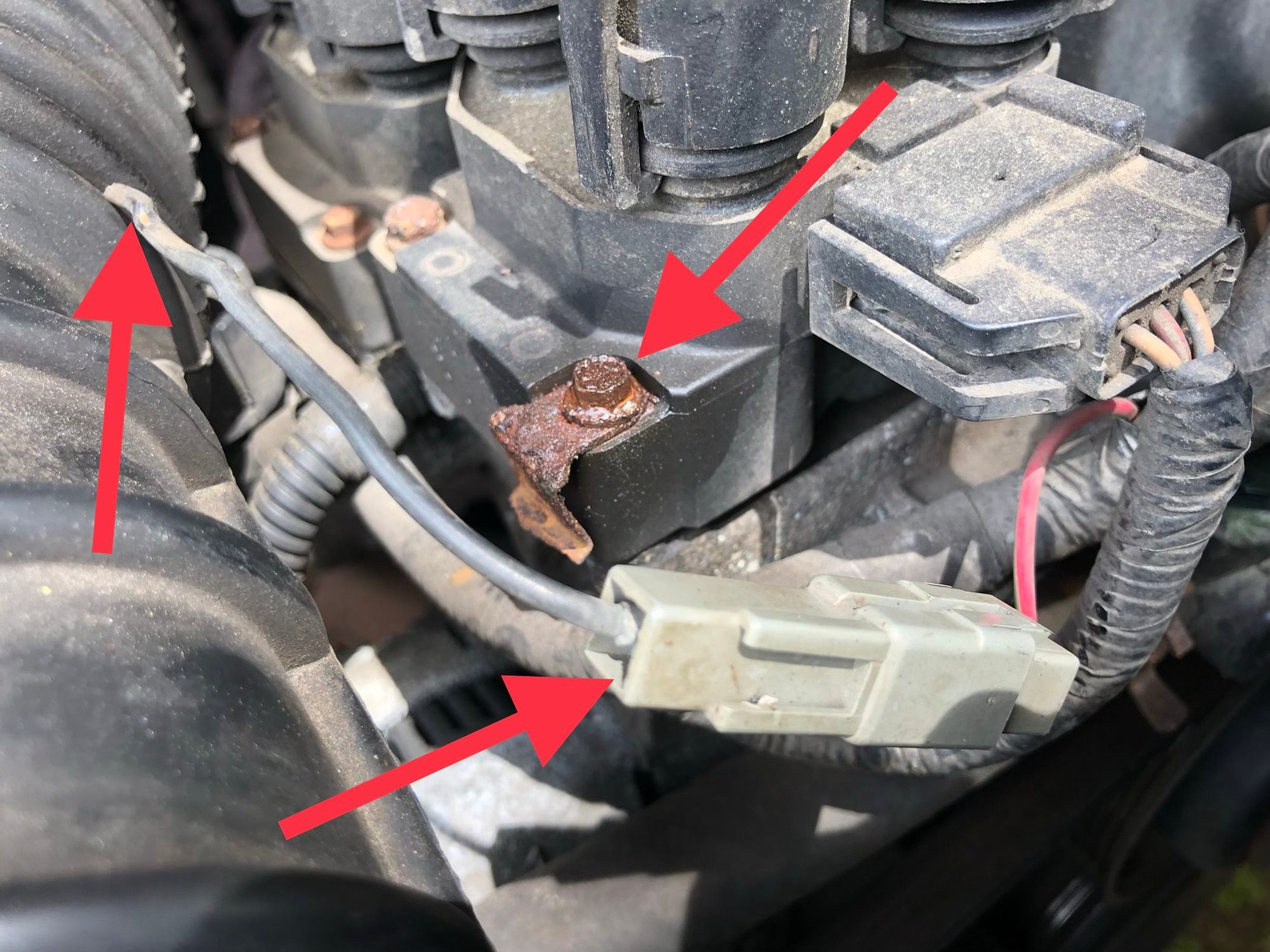

I drew arrows to the broken wire end, connector, and the rusty bolthead where I believe the wire was connected to a black box (relay?) based on pictures online. Thank you

Reply
Old Jun 10, 2018
  #2
V8 Level II's Avatar
RF Veteran
iTrader: (4)
Joined: Nov 2004
Posts: 7,910
Likes: 27
From: Michigan
The missing part is the radio noise suppression capacitor. Helps reduce ignition noise in your audio.

Reply
Old Jun 10, 2018
  #3
Fox's Avatar
Fox
Thread Starter
|
Member
Joined: Jun 2018
Posts: 4
Likes: 0
From: Morris, CT
Originally Posted by V8 Level II
The missing part is the radio noise suppression capacitor. Helps reduce ignition noise in your audio.
Thank you! So definitely nothing to do with the rough running issues I've been having. I just ordered a new MAF sensor and plug wires, hoping that resolves the issue!

Reply
Old Jun 12, 2018
  #4
RangerDave06's Avatar
Member
Joined: Jun 2018
Posts: 10
Likes: 0
From: CA
Just out of curiosity, is it only running rough while your driving or is it at idle also? Or just one of the two? Wouldn't hurt to look at the IAC valve while you're at it. Sound like you have air and spark covered after that.

Reply
