aftermarket lights behind grille

hey guys. i have a honeycomb front grille and i wanted to put some aftermarket offroad lights behind it. i met up with a few of you guys a few weeks ago and someone mentioned that the lights were called "gator" or something like that, i'm not sure but if you guys have any ideas or suggestions let me know because i'd like to put a few on my truck. thanks!!
Reply With Quote
  #3
Old 02-01-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I have Hella 500FF's behind my grill
Reply With Quote
  #4
Old 02-01-2012
fourliter dan's Avatar
Member

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
Have some piaa's behind mine. Had to do an inverted mount tho. Still a piece of cake!
Reply With Quote
  #5
Old 02-07-2012
Member
iTrader: (1)

Join Date: Jan 2011
Location: Baton Rouge,La
Posts: 32
i got some KC dayliters on mine had to make mount and stuff and move tranny cooler. might wanna go with thin offroad lights
Reply With Quote
  #6
Old 02-07-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
You guys wanna put some pictures up? I have a hard time navigating the albums and stuff.
Reply With Quote
  #7
Old 02-07-2012
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

Attached Thumbnails

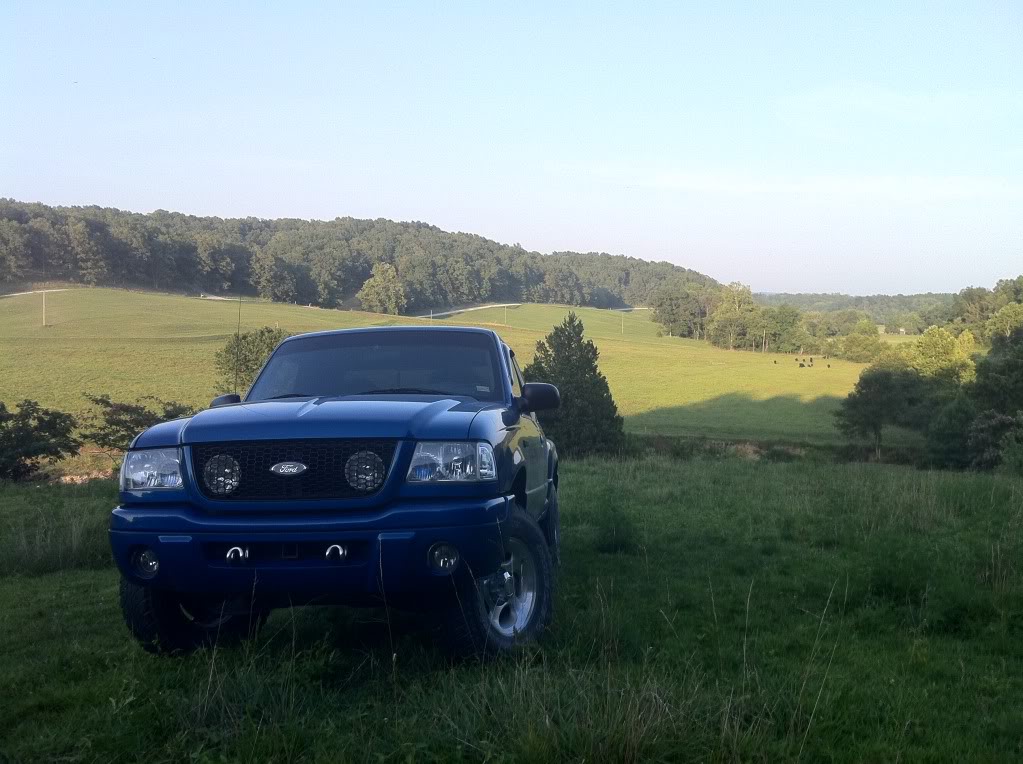

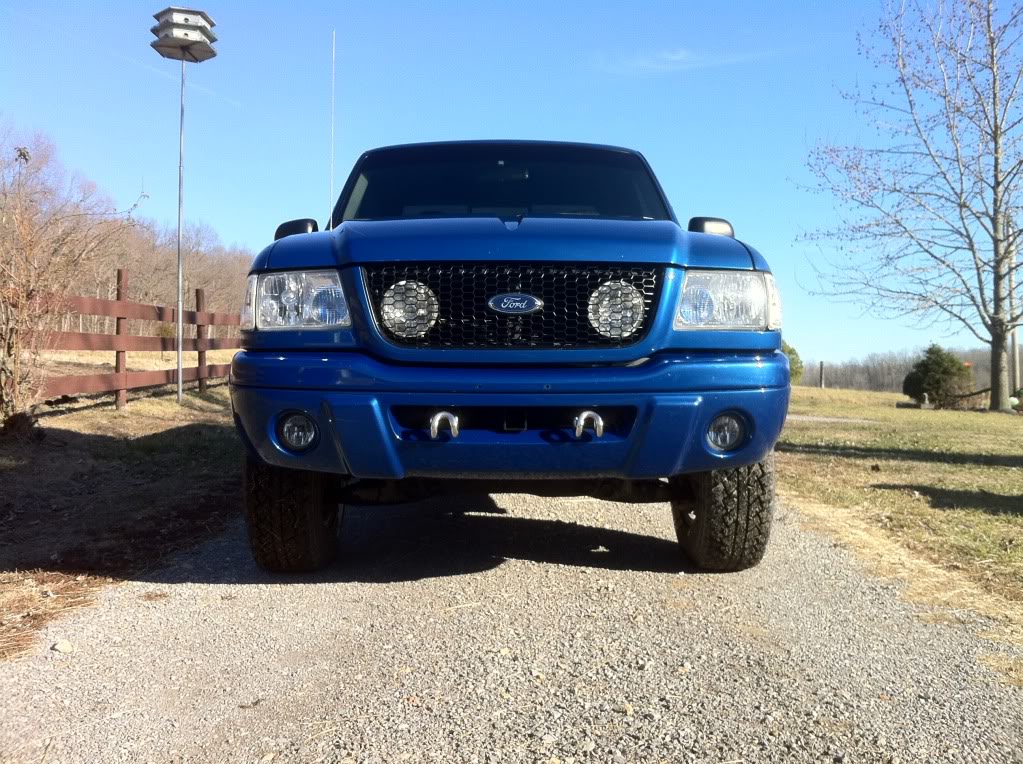

aftermarket lights behind grille-img_0259.jpg   aftermarket lights behind grille-img_1599.jpg
Reply With Quote
  #8
Old 02-07-2012
rolsmojave3's Avatar
Level III Supporter

Join Date: Jun 2006
Location: Wisconsin
Posts: 2,852
That looks great, Thanks
Reply With Quote
  #9
Old 02-09-2012
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922

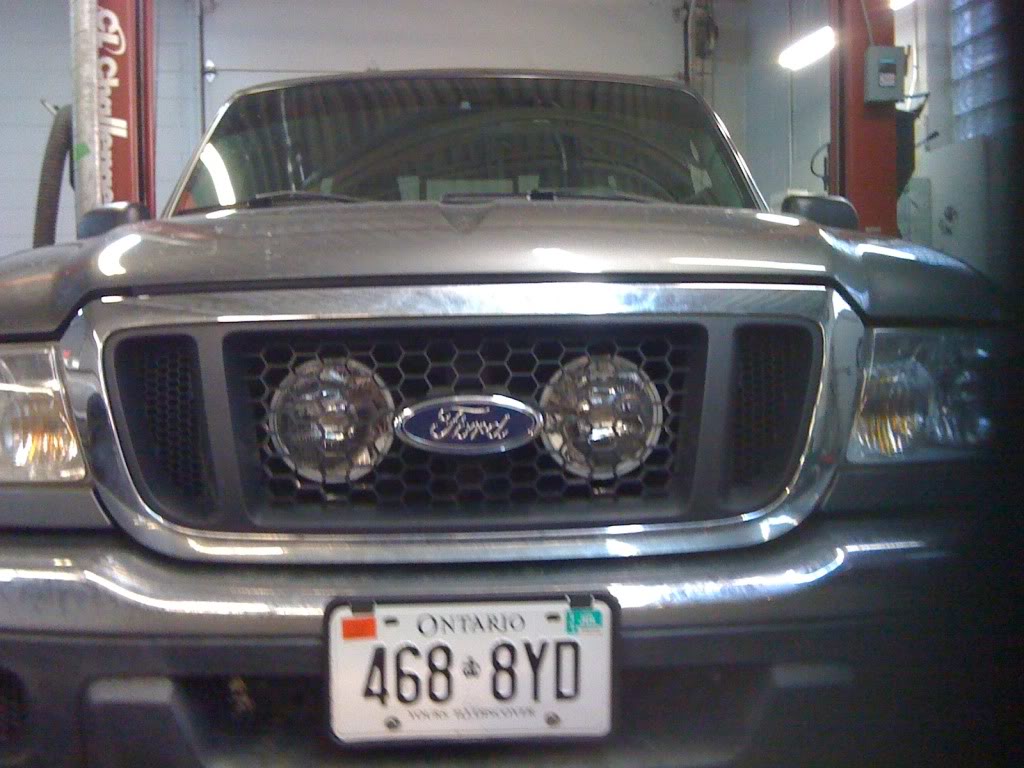

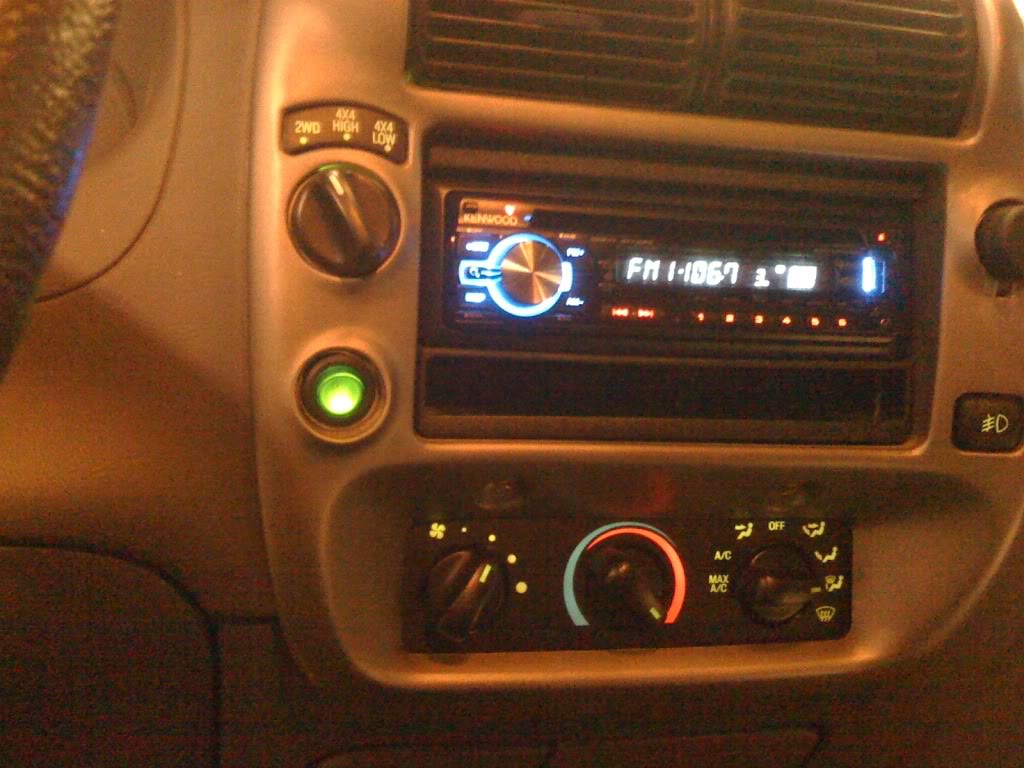

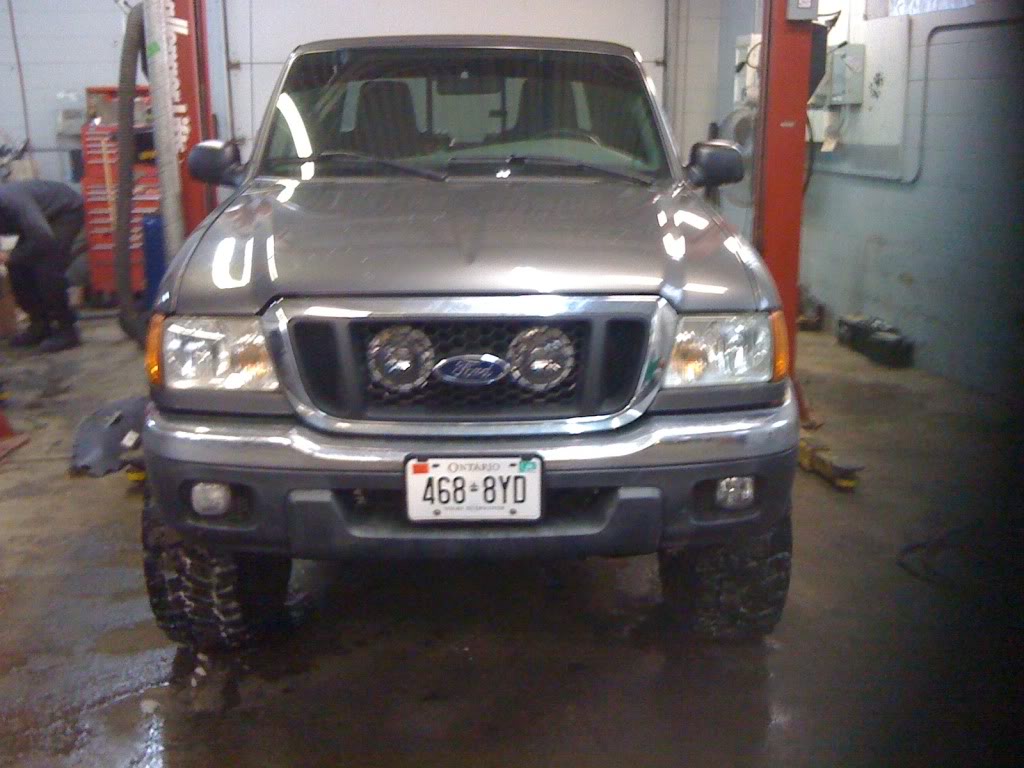

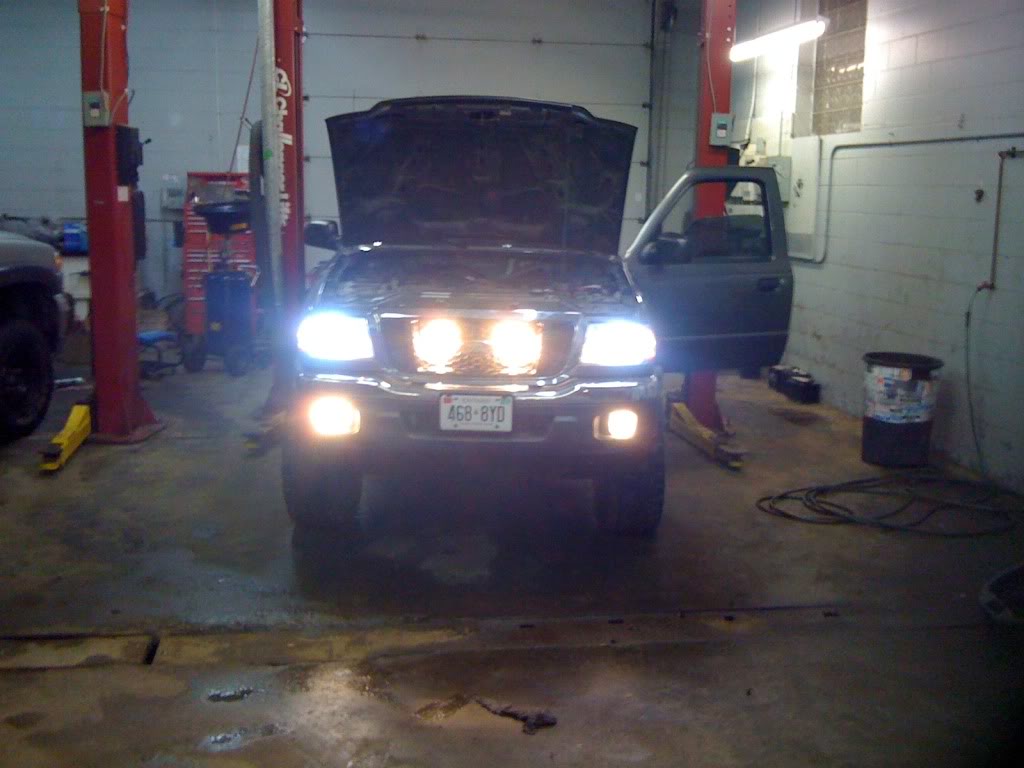

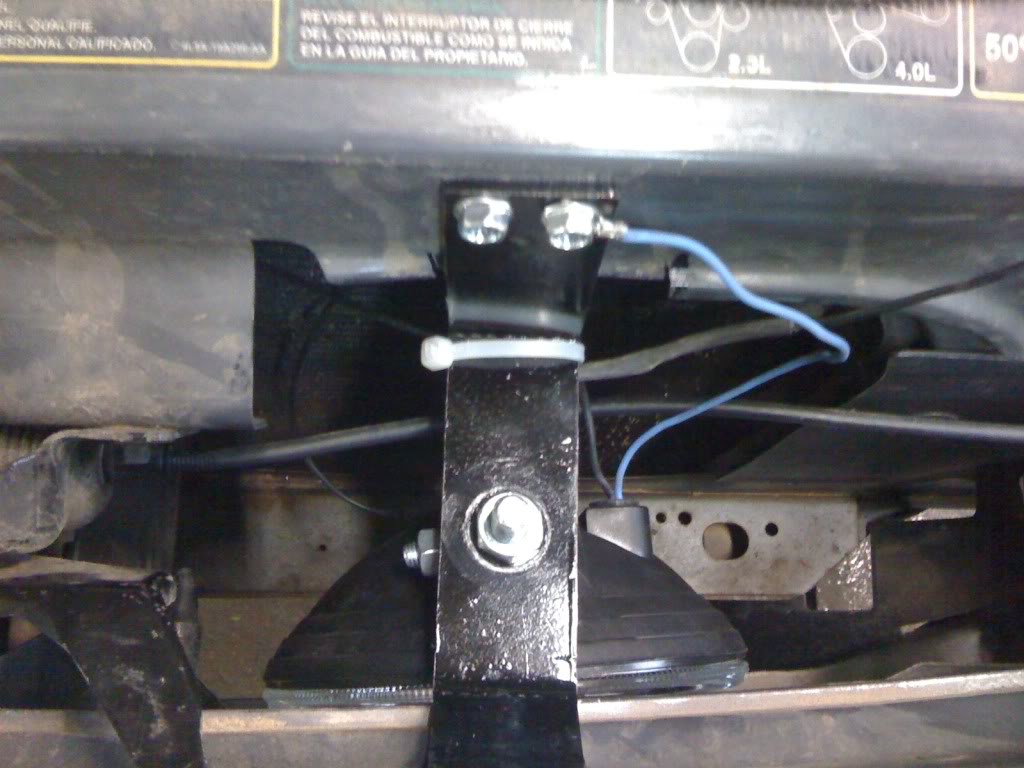

hella 500. made mounts to hang lights from the top. removed useless power outlet and installed my switch in the dash
Attached Thumbnails
aftermarket lights behind grille-463f20b3.jpg   aftermarket lights behind grille-81af8c7c.jpg   aftermarket lights behind grille-4738235c.jpg   aftermarket lights behind grille-cb842f49.jpg   aftermarket lights behind grille-1321b7cf.jpg

Reply With Quote
  #10
Old 02-09-2012
Bwanaworker's Avatar
Member
iTrader: (3)

Join Date: Sep 2009
Location: St. Paul MN
Posts: 108

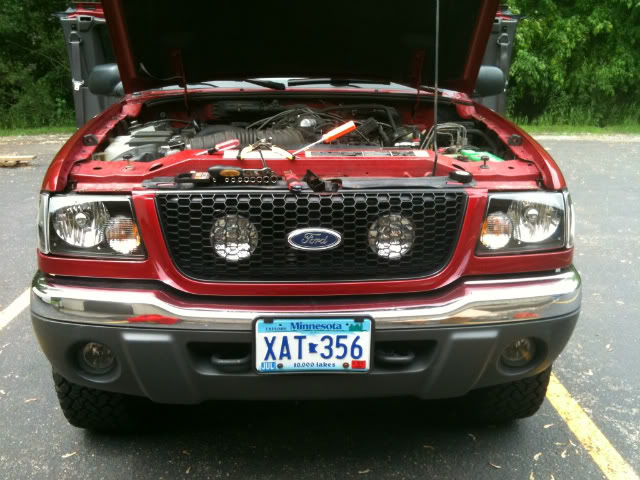

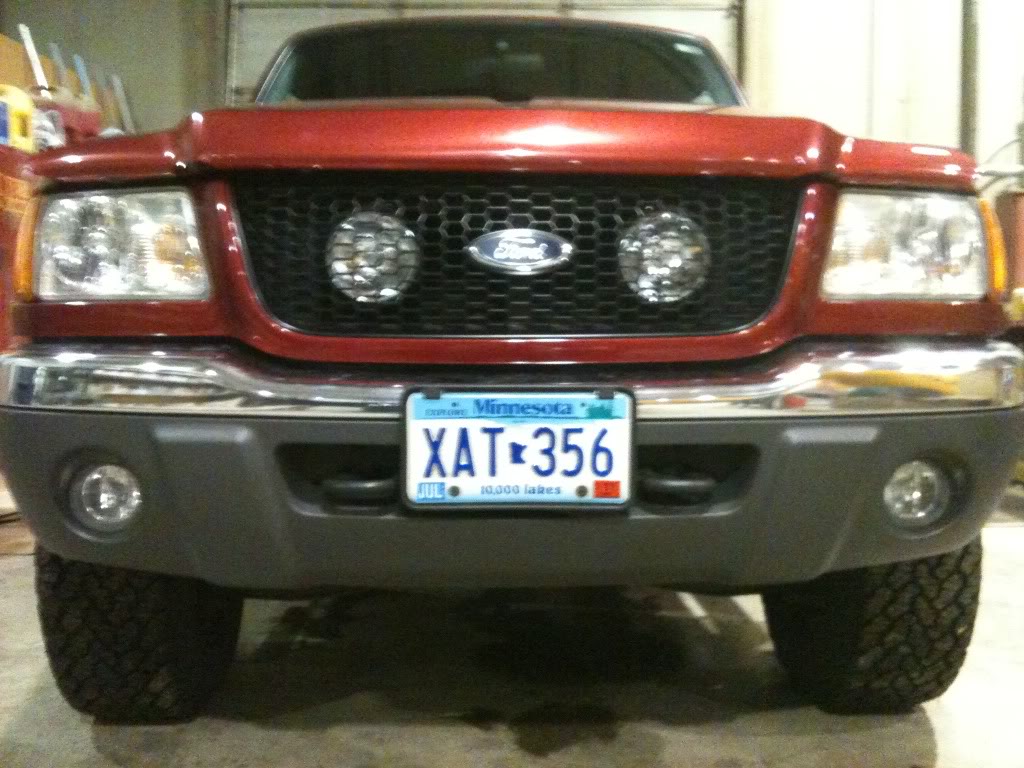

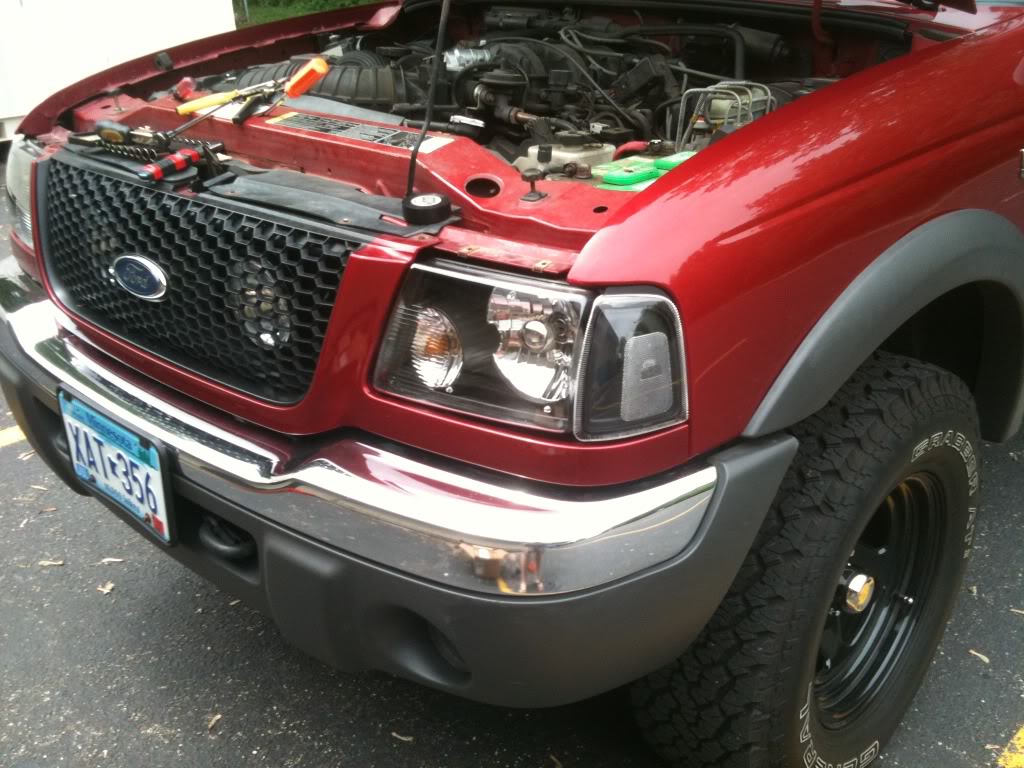

Kc Slims mounted upside down to the header panel.



Attached Thumbnails
aftermarket lights behind grille-img_0581.jpg   aftermarket lights behind grille-img_0489.jpg   aftermarket lights behind grille-img_0582.jpg
Reply With Quote
  #11
Old 01-16-2013
boyd_835's Avatar
Member

Join Date: Jan 2011
Location: lake tapps, wa
Posts: 523
What did you mount to the plastic I don't see where you actually drilled the whole
Reply With Quote
  #12
Old 01-17-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
mounted to what plastic?
Reply With Quote
  #13
Old 02-03-2015
Member

Join Date: Feb 2015
Location: San Ysidro
Posts: 2
Quote:
Originally Posted by ranger4.0 View Post





hella 500. made mounts to hang lights from the top. removed useless power outlet and installed my switch in the dash
Nice setup!

how did you mount the left light? My ranger happened to have a small radiator on the left side.. Not sure if i have to relocate it? any how to's?
Reply With Quote
  #14
Old 02-03-2015
RLong31's Avatar
The Ban Hammer
iTrader: (5)

Join Date: Jul 2009
Location: Monrovia, IN
Posts: 2,629
Last comment on this post was 2 years ago.. I doubt any of the OP's are around to answer the question. The little radiator you are talking about is the tranny cooler. You can just find a way to re-locate it.. move it out of the way enough to mount the lights.. then use some sort of custom bracket to attach it to the truck. Doubt there would be a how-to on it.
Reply With Quote
  #15
Old 02-04-2015
Member

Join Date: Feb 2015
Location: San Ysidro
Posts: 2
I realized that... thanks for the advice @Rlong31!
Reply With Quote
  #16
Old 4 Weeks Ago
MaDMaXX's Avatar
Member

Join Date: Jul 2017
Location: Oregon
Posts: 744
Dragging this one up again, anyone know the space (width) available inside the grille? (hoping all/most years are the same, mine is the honeycomb 2002)

Hoping to fit an LED light bar here, any tips?
Reply With Quote
