Project Thread - Rebuilding 4.0L OHV

Well my truck has developed a very bad miss-fire, I already know my head is cracked and I have been limping it along. its a common problem on the OHV engine's. I finally decided to go all out and rebuild the top half of the engine. The engine is finished and back in running order I can NOT believe how quiet the engine is now.

Parts list

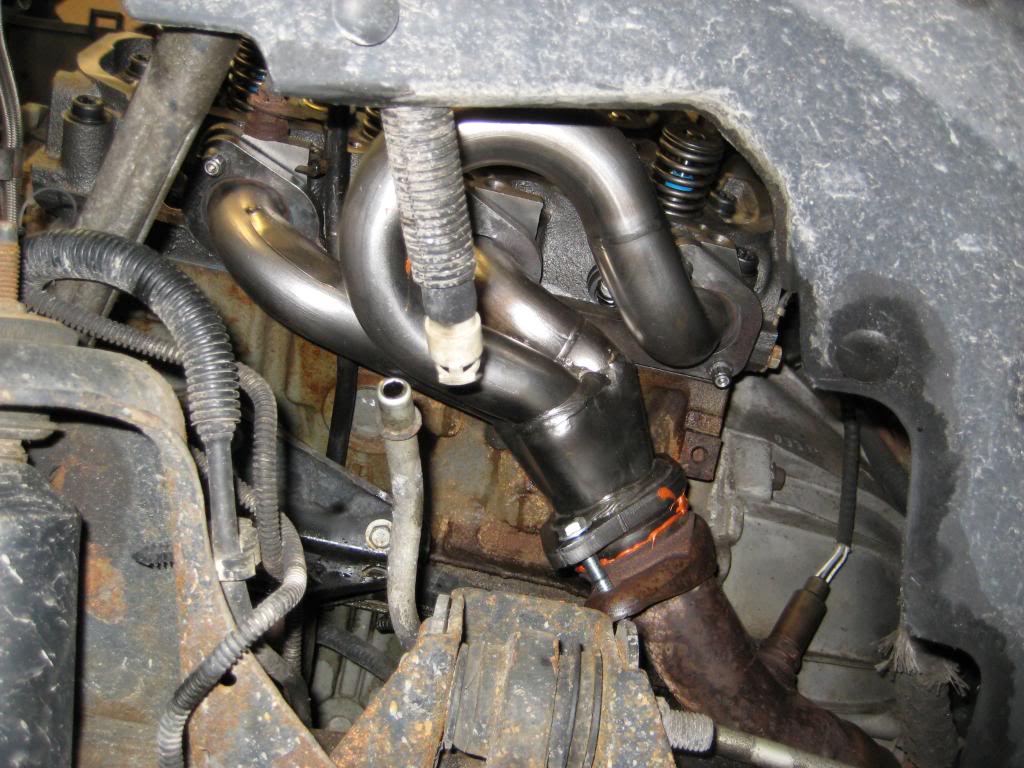

  • JBA headers

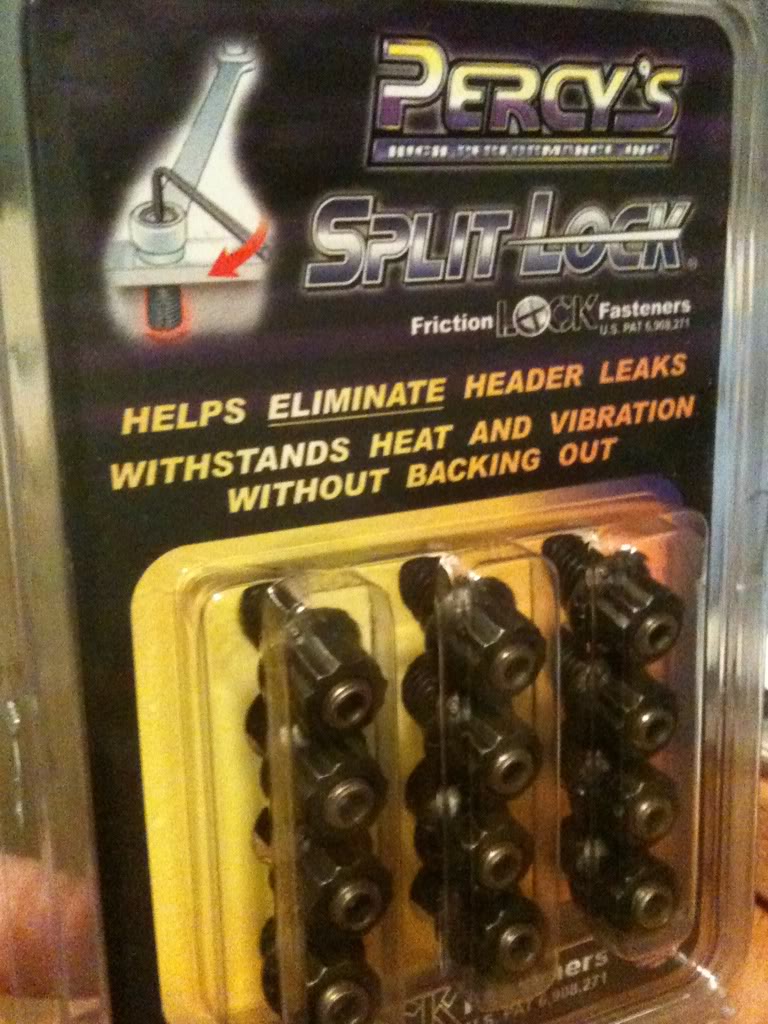

  • Percy split-lock header bolts

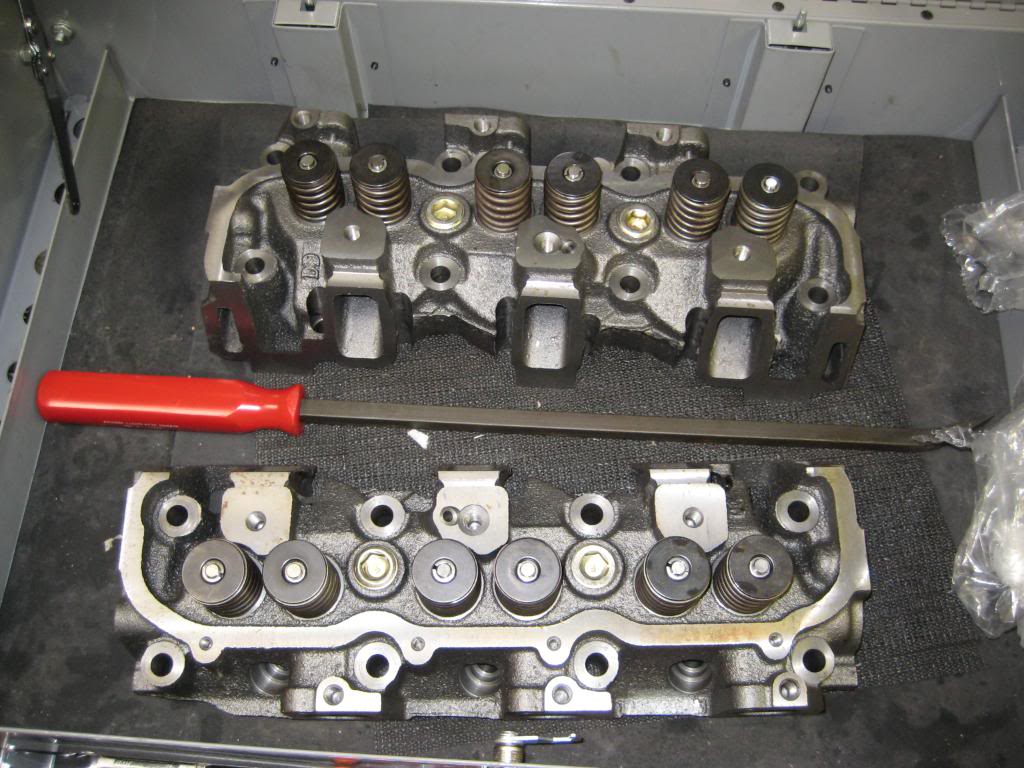

  • NEW Alabama Cylinder heads
  • Delta Cams new rockers and rails and push rods
  • Felpro gaskets
  • Felpro head bolts
  • new valve covers
  • water pump
  • t-stat
  • belt
  • spark plugs
  • Sealed power roller lifters
  • Ill edit when i remember other stuff

Name:  e7726186.jpg
Views: 375
Size:  105.1 KB
Name:  495717b6.jpg
Views: 370
Size:  119.4 KB
Name:  63d4aa60.jpg
Views: 366
Size:  142.5 KB
Name:  IMG_3613.jpg
Views: 367
Size:  124.4 KB
Name:  IMG_3614.jpg
Views: 367
Size:  107.7 KB

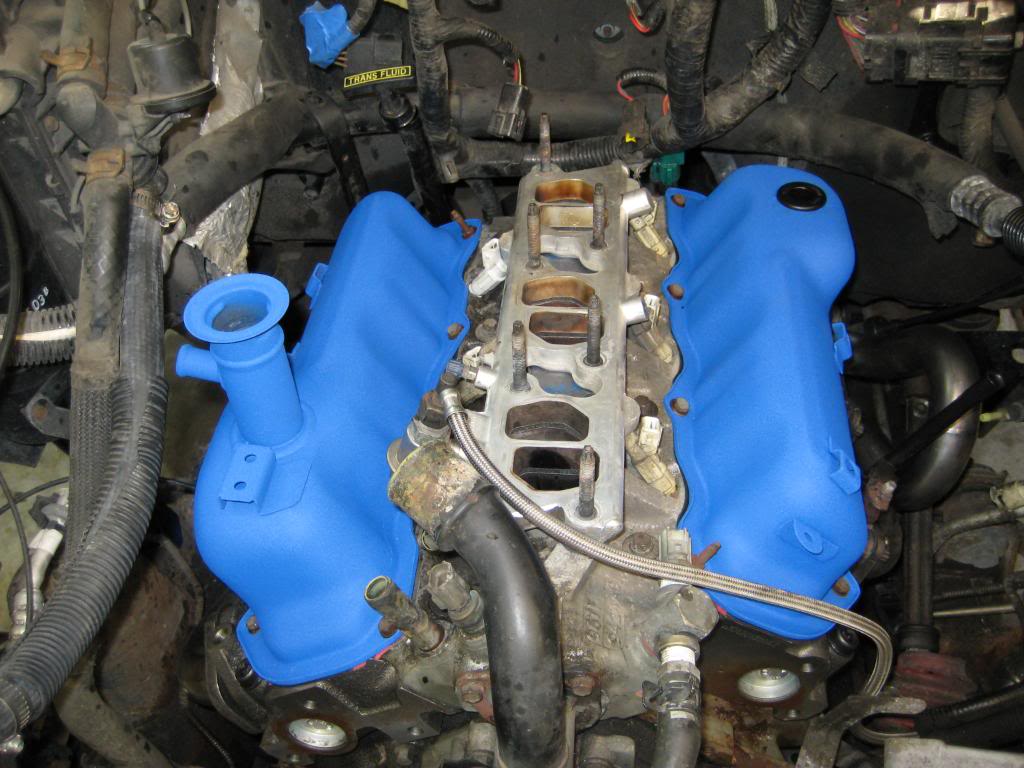

Powder coated GT40 valve cover blue

Name:  IMG_3612.jpg
Views: 397
Size:  51.5 KB


Name:  IMG_3649.jpg
Views: 367
Size:  106.5 KB
Name:  IMG_3618.jpg
Views: 367
Size:  120.7 KB

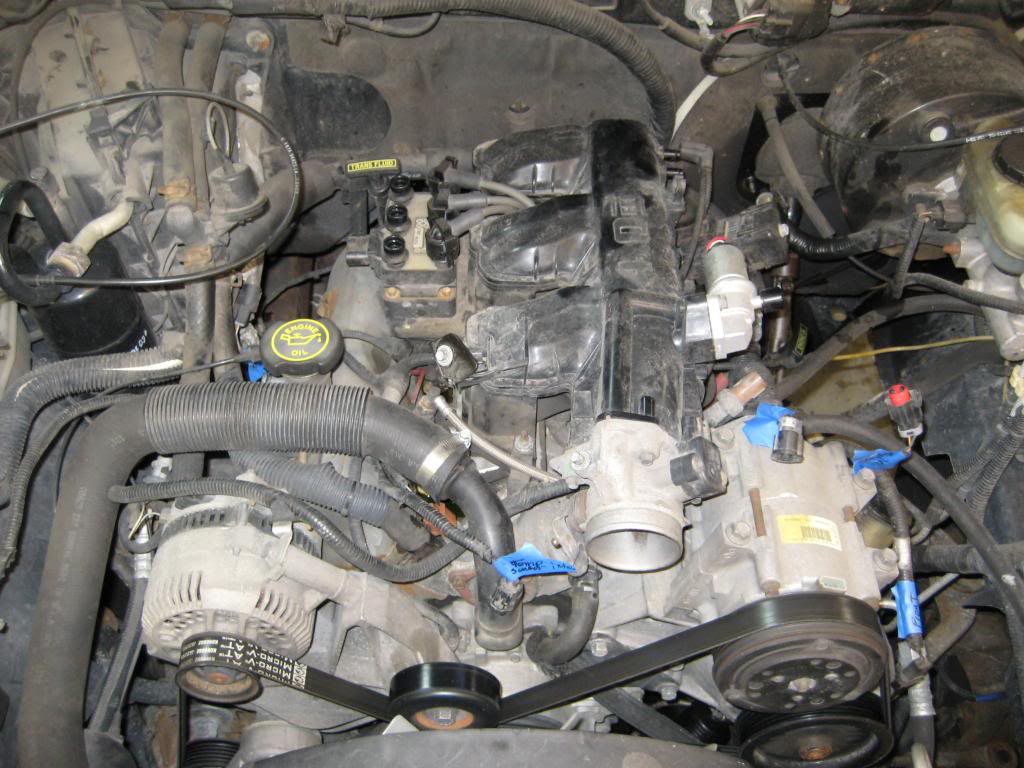

Name:  IMG_3631.jpg
Views: 364
Size:  126.4 KB
Name:  IMG_3636.jpg
Views: 377
Size:  129.4 KB
Name:  IMG_3642.jpg
Views: 365
Size:  122.2 KB
Name:  IMG_3643.jpg
Views: 369
Size:  127.8 KB
Name:  IMG_3648.jpg
Views: 364
Size:  71.2 KB
Name:  IMG_3650.jpg
Views: 379
Size:  139.0 KB

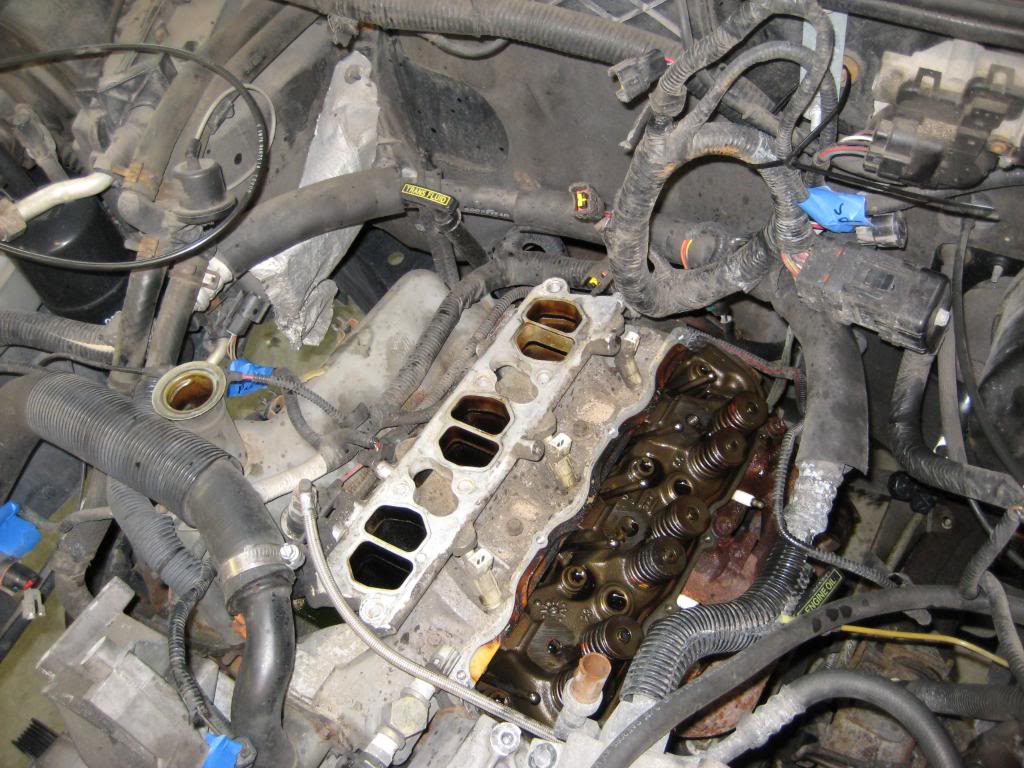

Name:  IMG_3651.jpg
Views: 368
Size:  100.9 KB



Name:  IMG_3653.jpg
Views: 370
Size:  126.2 KB
Name:  IMG_3664.jpg
Views: 853
Size:  102.4 KB
Name:  IMG_3666.jpg
Views: 633
Size:  158.1 KB
Name:  IMG_3665.jpg
Views: 368
Size:  112.2 KB
Name:  IMG_3669.jpg
Views: 374
Size:  141.0 KB

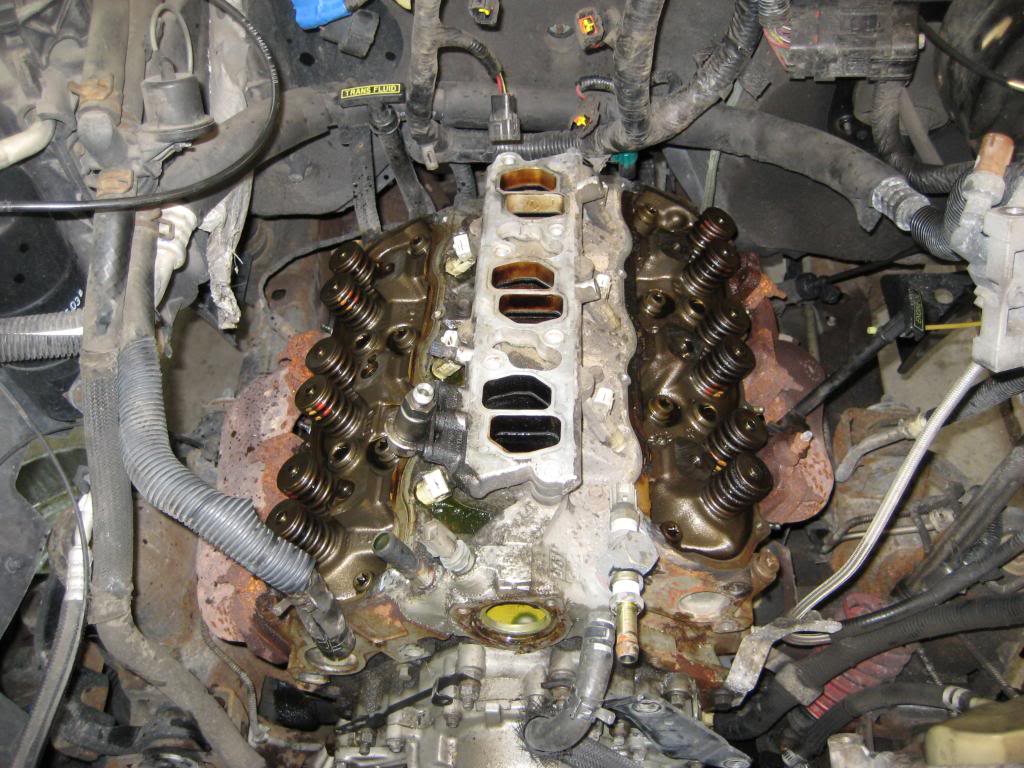

Name:  IMG_3671.jpg
Views: 369
Size:  94.0 KB
Name:  IMG_3672.jpg
Views: 368
Size:  122.7 KB
Name:  IMG_3673.jpg
Views: 400
Size:  111.9 KB

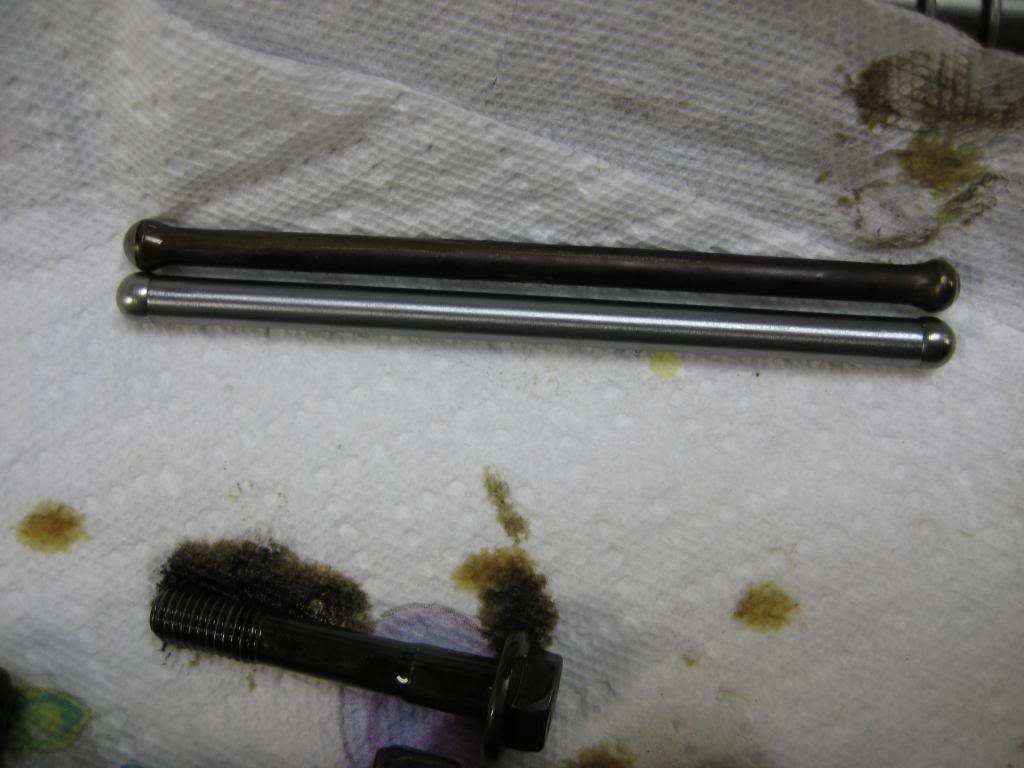

HERE you can see what happens to the push rods the end wears out causing gaps in the valve train you can see a good one and bad one


Name:  IMG_3675.jpg
Views: 370
Size:  39.4 KB



Name:  IMG_3677.jpg
Views: 784
Size:  153.6 KB
Name:  IMG_3678.jpg
Views: 369
Size:  153.9 KB




There is NO ridge on the cylinder wall, also you can still see crosshatching. The ridge you can see was carbon, after cleaning it was smooth.




Name:  IMG_3679.jpg
Views: 373
Size:  151.6 KB
Name:  IMG_3680.jpg
Views: 372
Size:  102.7 KB

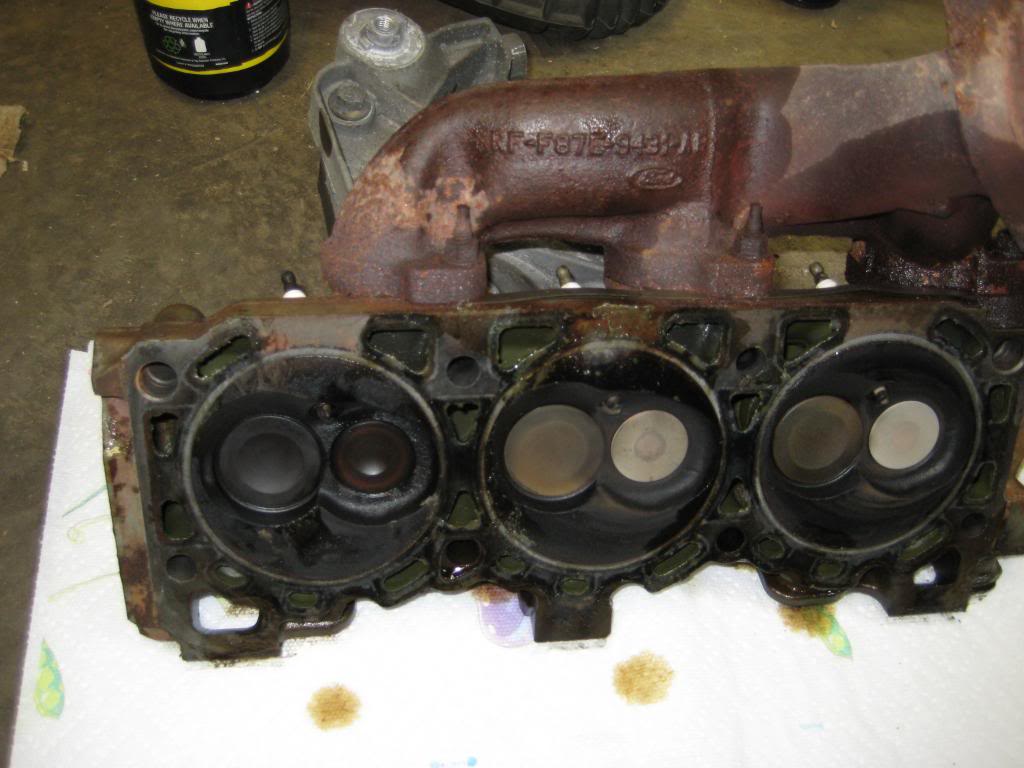

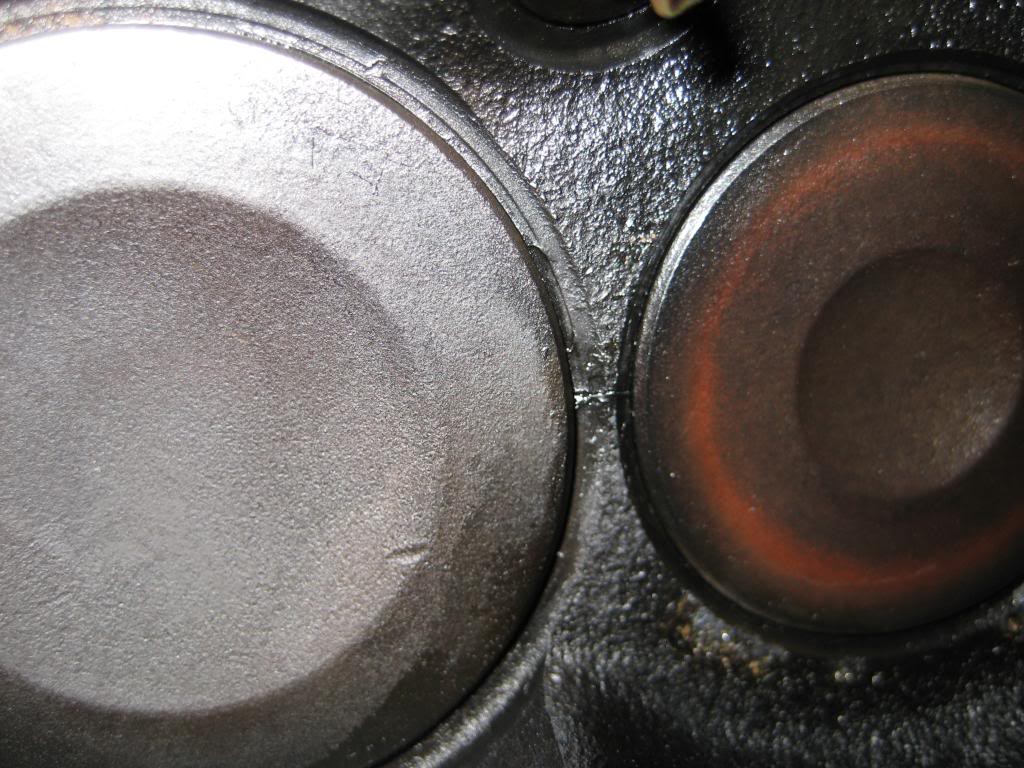

Now can you spot the bad cylinder? *hint* look for the discolored exhaust valve.






Name:  IMG_3685.jpg
Views: 371
Size:  83.2 KB
Name:  IMG_3683.jpg
Views: 365
Size:  135.8 KB






Now new hydraulic roller lifters over night in oil.





Name:  IMG_3686.jpg
Views: 369
Size:  115.6 KB







Name:  IMG_3689.jpg
Views: 367
Size:  95.9 KB
Name:  IMG_3691.jpg
Views: 385
Size:  109.6 KB
Name:  IMG_3698.jpg
Views: 365
Size:  106.7 KB
Name:  IMG_3699.jpg
Views: 368
Size:  94.6 KB
Name:  IMG_3700.jpg
Views: 369
Size:  113.4 KB

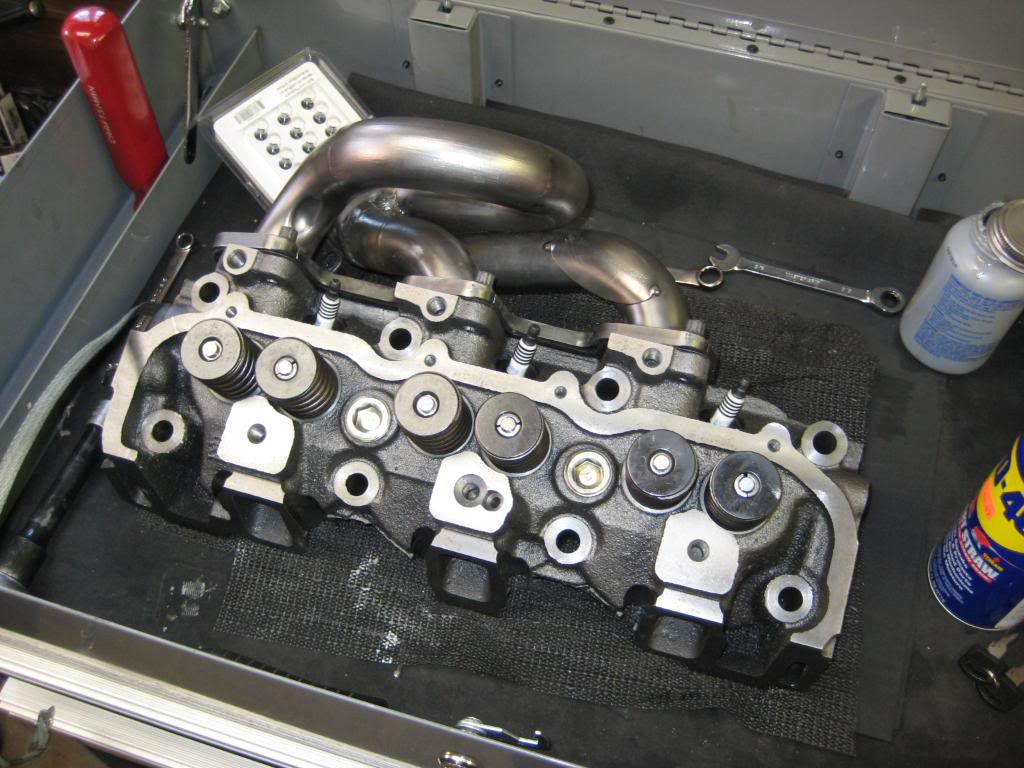

Name:  IMG_3701.jpg
Views: 368
Size:  100.0 KB

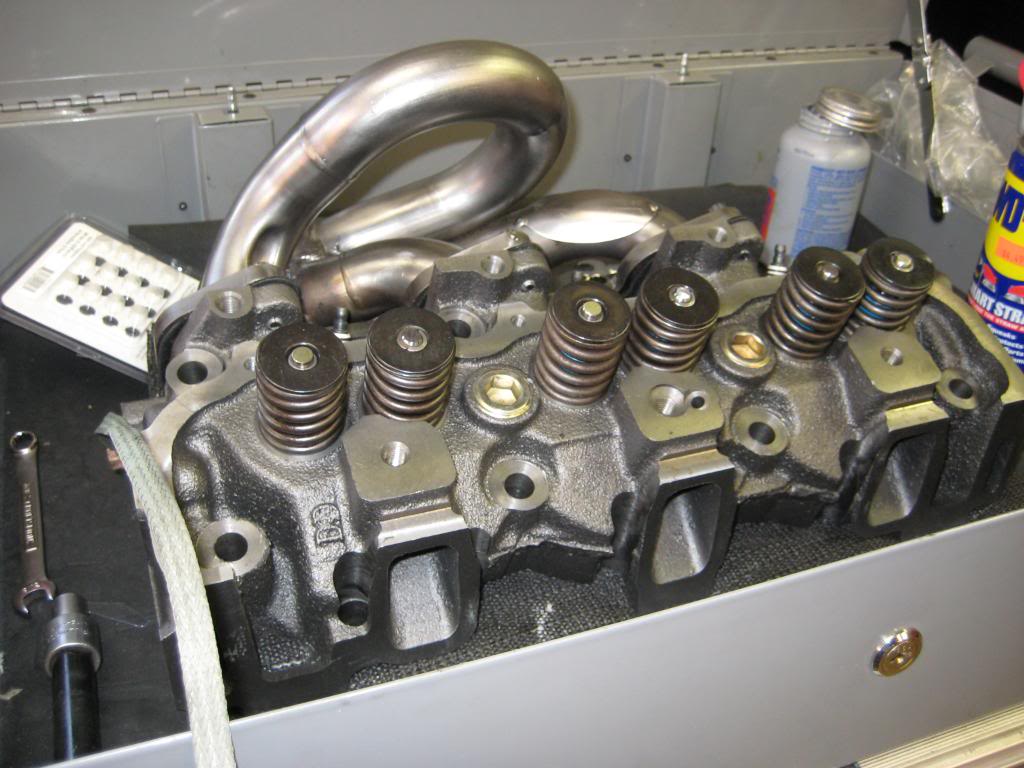

Name:  IMG_3703.jpg
Views: 380
Size:  132.2 KB

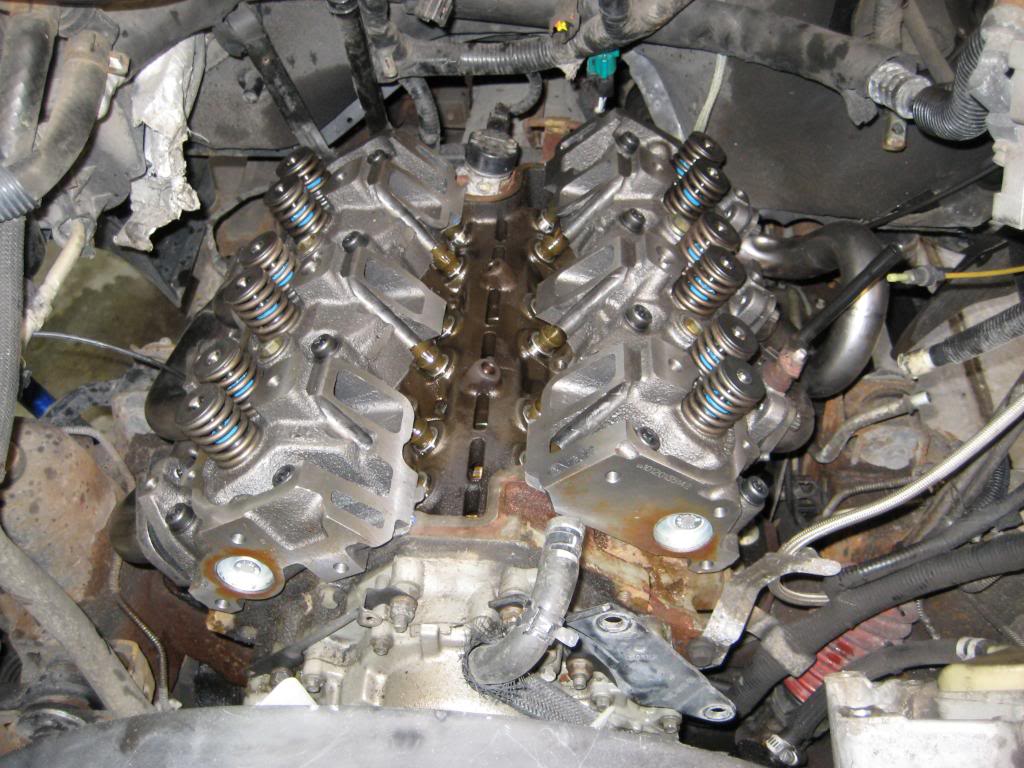

Name:  IMG_3704.jpg
Views: 368
Size:  108.9 KB
Name:  IMG_3705.jpg
Views: 368
Size:  125.9 KB
Name:  IMG_3707.jpg
Views: 368
Size:  124.2 KB
Name:  IMG_3709.jpg
Views: 367
Size:  109.2 KB
Name:  IMG_3710.jpg
Views: 365
Size:  102.3 KB
Name:  IMG_3711.jpg
Views: 367
Size:  114.7 KB
Name:  IMG_3712.jpg
Views: 365
Size:  122.4 KB
Name:  IMG_3713.jpg
Views: 370
Size:  124.1 KB
Name:  IMG_3714.jpg
Views: 373
Size:  122.1 KB
Name:  IMG_3716.jpg
Views: 371
Size:  108.5 KB
Name:  IMG_3718.jpg
Views: 369
Size:  129.0 KB
Name:  IMG_3720.jpg
Views: 367
Size:  134.1 KB
Name:  IMG_3729.jpg
Views: 364
Size:  139.4 KB

Name:  IMG_3731.jpg
Views: 374
Size:  122.0 KB
Reply With Quote
  #2
Old 04-13-2011
Redrocket's Avatar
Member
iTrader: (6)

Join Date: Jan 2007
Location: Waynesville n.c
Posts: 1,993
sweet glad ya got it fixed
Reply With Quote
  #3
Old 04-13-2011
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
WOw. good work. curious on how long it took you to do this all.
Reply With Quote
  #4
Old 04-13-2011
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
do you think you have any power gains now with the engine refreshed and the headers?
Reply With Quote
  #5
Old 04-13-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by Dangerranger01 View Post
WOw. good work. curious on how long it took you to do this all.
lets see Monday after work at 6pm I went outside and organized some tools, I just moved all my tool boxes and stuff over that weekend to my house. Installed my new 60gal upright air compressor that night. I removed my hood, intake hose and air filter, and went to bed. I stated taking it apart about 3pm on Tuesday, and finished that night at about 11pm and I could see the pistons. I worked alone on Tuesday so I was just taking my time.

Started today (Wednesday), at about 11am and finished about 10pm. I had Grant over today helping, it was nice to have another hand when installing the heads and things of that sort. Also exclude about 2-3 hours for lunch and parts running around.

so total work time I would say about 15-16 hours, I didn't rush at it and was being step by step so I didn't forget to torque anything down.
Reply With Quote
  #6
Old 04-13-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by ranger4.0 View Post
do you think you have any power gains now with the engine refreshed and the headers?
After driving it throttle response is a big improvement the engine spools up the rpm's much easier now. Being I did not port the heads or install a cam, honestly I would say its just a tad of a HP improvement. What is amazing me is how quiet the valve train is now no more push-rod and rocker clatter. Also my misfire is gone at idle and it was also so bad you couldn't drive the truck anymore. Any force on the motor and it would misfire, it was a dead dog.
Reply With Quote
  #7
Old 04-13-2011
87xlt's Avatar
Member

Join Date: Jun 2008
Location: In my truck!
Posts: 875
Good job man! Its nice when all the wrenching turns out for the better!
Reply With Quote
  #8
Old 04-14-2011
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Nice work
Reply With Quote
  #9
Old 04-14-2011
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
cute valvecovers
Reply With Quote
  #10
Old 04-14-2011
leadfoot's Avatar
Member

Join Date: Oct 2007
Location: MA
Posts: 894
Given that you had it apart and put in new lifters you should have put in a cam, that is what I regret. I think it would be cool to build up an OHV for low end torque with a 4.3L stroker kit, ported heads, matched injectors, comp cams 410, underdrive pullies, e-fan, JBA headers, low stall torque converter, 66mm throttle body, high compression forged pistons and rods. I would totally do that if I knew my rusty frame would last.

How many miles does that engine have?
Reply With Quote
  #11
Old 04-14-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
It had 153,111 at rebuild.

As much as I wanted to add a cam, I was more concerned at the time of fixing the problem. Heck only reason I ordered the Headers was because of how bad of shape my exhaust manifolds are.
Reply With Quote
  #12
Old 04-14-2011
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Quote:
Originally Posted by Redneckstone View Post
It had 153,111 at rebuild.

As much as I wanted to add a cam, I was more concerned at the time of fixing the problem. Heck only reason I ordered the Headers was because of how bad of shape my exhaust manifolds are.
Just admit it you wanted some bling! haha
Reply With Quote
  #13
Old 04-14-2011
dixie_boysles's Avatar
Member
iTrader: (1)

Join Date: Jul 2006
Location: NC
Posts: 3,778
Quote:
Originally Posted by korey89 View Post
cute valvecovers
lol
Reply With Quote
  #14
Old 04-14-2011
ranger024x4's Avatar
RF Veteran
iTrader: (6)

Join Date: Aug 2004
Location: nova
Posts: 5,061
looks good zach. glad you got it fixed up!
Reply With Quote
  #15
Old 04-14-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good! bet it feels good to be driving it again
Reply With Quote
  #16
Old 04-14-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by zabeard View Post
looks good! bet it feels good to be driving it again
It does! l admit it feels weird driving it, it has been over a month since i parked it.

I am glad to get rid of dads f-150 I am sick of driving it, I cant stand that truck.
Reply With Quote
  #17
Old 04-14-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
I hear ya! I always prefered my Ranger over a 97-03 F150.

Glad to hear its running. Dunes?
Reply With Quote
  #18
Old 04-14-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
ya his 1998 is a horrible ride.

idk about the dunes we have to go out to Cali in Nov and I have to go out passed chicago in june, I think it might be the weekend of the dunes too idk
Reply With Quote
  #19
Old 04-14-2011
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looks intense. Nice work!
Reply With Quote
  #20
Old 04-14-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by Redneckstone View Post
ya his 1998 is a horrible ride.

idk about the dunes we have to go out to Cali in Nov and I have to go out passed chicago in june, I think it might be the weekend of the dunes too idk
Alright I wasnt sure since I hadn't heard from you in a while. Hopefuy u can but I Understand if you can't make it.
Reply With Quote
  #21
Old 04-14-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
I just checked the thread I know why I am not going, its on the weekend of my sisters Grad party from HS, she would murder me if I didnt go.


first weekend of June I have to be in I think its Yorkville Illinois for a family thing. This year is busy as heck for my family.


Its even up in the air if I am going to TN this year.
Reply With Quote
  #22
Old 04-15-2011
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
alright sounds good. figured i would ask.
Reply With Quote
  #23
Old 04-15-2011
Level III Supporter
Thread Starter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Ya no problem I want to go! I love the sand madness besides the fact my lower intake had like 5 cups of sand on top of it!!!
Reply With Quote
  #24
Old 09-02-2011
Rivvin's Avatar
Member

Join Date: Aug 2011
Location: Midlothian, Texas
Posts: 18
this helped alot. this winter my investment is going to come through and im getting a motorcycle to get back and forth to work and im sadly parking the ranger to begin the much needed rebuild. this will be my first big wrenching job on the actual engine (i know the suspension and cooling system front and back) so im a bit nervous. and the fact that its not a ranger motor but an explorer 4.0 its harder to get proper parts as easy as i would with just saying i need 2001 xlt parts.

ill be doing this alone none of the crew has another ranger to bounce ideas off of but ive had this baby 10 years and im not about to see it die. loving this forum more and more!
Reply With Quote
  #25
Old 09-03-2011
EDGE9203's Avatar
Member

Join Date: Jul 2008
Location: Orlando
Posts: 78
Good stuff man, I love that color
Reply With Quote
