Side outlet exhaust needed..

So i want to redo my exhaust and have one tip coming out each side behind the mudflap....basically just need a 90degree pipe and new tips.. weld it on... but i need help, i need pictures of how you got your pips mounted by the tips...

So anyone with side exit dual exhaust POST YOUR PICTURES...

Rocky
Reply With Quote
  #2
Old 07-26-2007
RockysFord's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
I guess my main thing is i need to see how close it is to the leaf springs... i wont have a problem cutting / welding in my pipes, i just dont know how close i can get to the leaf springs
Reply With Quote
  #3
Old 07-26-2007
RockysFord's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
TTT no one has side exit exhaust?
Reply With Quote
  #4
Old 07-26-2007
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
maybe they just aren't on.. not too many people have 90* tips on here...
Reply With Quote
  #5
Old 07-29-2007
crawly1025's Avatar
Member

Join Date: Jul 2005
Location: Steubenville Ohio
Posts: 1,361
Rocky, Mine aren't bent 90 degrees, but here's some shots of the setup. Hope they help!
Name:  DSC04796.jpg
Views: 3
Size:  51.4 KB
Name:  DSC04795.jpg
Views: 3
Size:  53.1 KB
Name:  56.jpg
Views: 3
Size:  36.5 KB

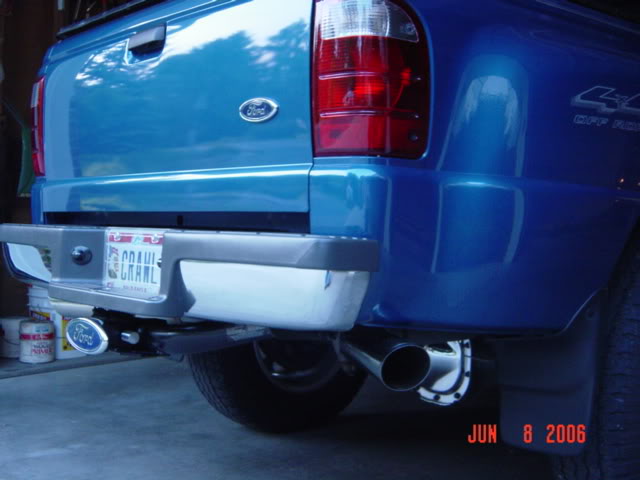

Name:  51.jpg
Views: 3
Size:  39.1 KB

Let me know if you need some more of a specific spot. I'll get them for ya.
Reply With Quote
  #6
Old 07-30-2007
GearBoxKevin's Avatar
Member

Join Date: Jul 2007
Location: North Georgia
Posts: 89
Iam running the flowmaster 40 singel in duel out with all 2 1/2" pipe. I have the muffler under the cab and both rear pipes exit infront of the right rear tire. The only problem that i have encountered was when putting it on certain lifts that the arms couldnt be placed on the rear leaf spring shackle because the two 90* pipes from the muffler were in the way, and you will get a lot of interior noise.
Reply With Quote
  #7
Old 07-30-2007
RockysFord's Avatar
Member
Thread Starter

Join Date: May 2005
Location: Columbus Ohio
Posts: 2,782
Yeah i figured if i ever need to do anything with my leaf springs or whatever it will bei n the way... i actually got under it just earlier to see how i can do it...

I need to be off work for a day so i can go to the store and get new tips and 2- 90 degree bends.... and weld it up...

Rocky
