Results of plug change on the ol' Black Beast

I finally broke down and got the stupid import loving NGK Type R plugs out of my 5.0 and put in some new Autolite Platinums. The NGK's all had burn marks on the ceramic near the electrode, so I guess they were too "hot" for the engine. Of course it could also have something to do with my complete lack of O2 sensors and the air/fuel ration being off, but I'm going to fix that as soon as I figure out how to use the existing wiring and original O2 sensors properly (only two upstream, all four, or only two down stream?).

Running without O2 sensors didn't feel any different than running with all 4 O2's connected and zip-tied to the frame, but I'm sure that created a lean condition.

Any ideas on which O2's I am supposed to use to get the ECU to determine A/F ratio correctly without Catalytic converters in place. I speculate the rear or down stream O2 sensors simply confirm function of the catalytic converter and don't effect timing or a/f. Is this correct?
Reply With Quote
  #2
Old 03-10-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
I guess while I wait for a reply I will go take some pics to spice this thread up a bit...
Reply With Quote
  #3
Old 03-10-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836

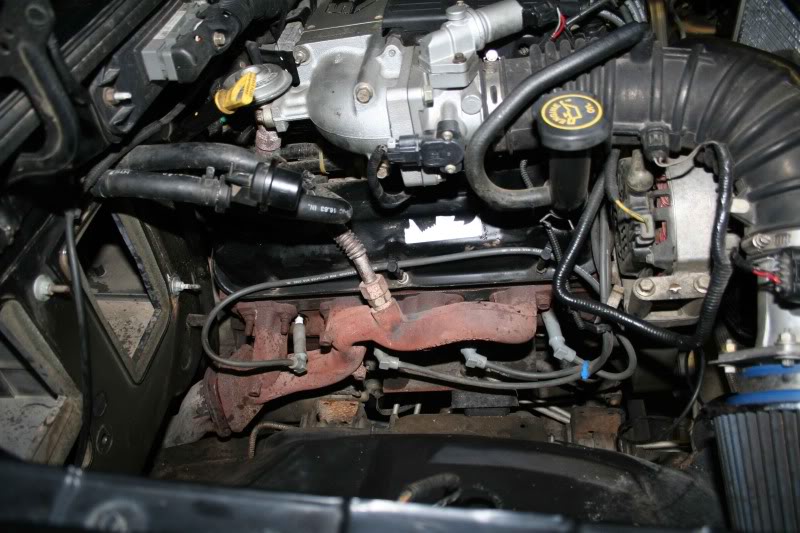

Passenger's side. No I didn't remove the air box, coolant/washer tanks just for access, but it sure made this process MUCH EASIER! I am in the middle of eliminating A/C altogether. I've got the compressor off and shorter belt on, no condenser or accumulator, no hoses or anything....just gotta cover that big hole in the firewall with a blower motor! The stock air box is not easy to "modify" for these purposes.
I also had a leak at the manifold where the bell connector is, so I had a good shot at tightening that guy up and have a clean sounding idle now!
Name:  passenger-side-full-view.jpg
Views: 1
Size:  85.6 KB

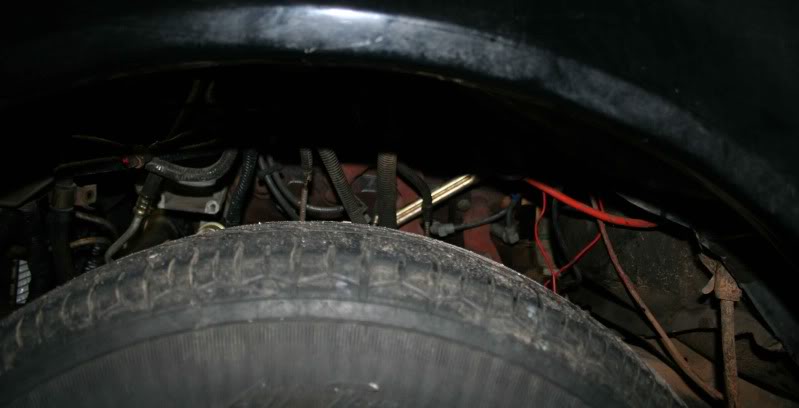

The driver's side was nearly impossible to reach from up top thanks to fuel lines, brake lines, brake booster assembly, and so forth. It was much easier to remove the inner fender well with 6 bolts and a few screws. Here you can clearly see all 4 plugs, and I honestly used every extension...about 2' (yes...24 inches) to remove and install the plugs on this side, which brought the wrench all the way about past the tire and fender, giving me maximum room to turn the wrench. I used a little more anti-seize on the new plugs because the old were very hard to break free until I got the extension thing figured out!
Name:  drivers-side-full-view.jpg
Views: 1
Size:  33.3 KB

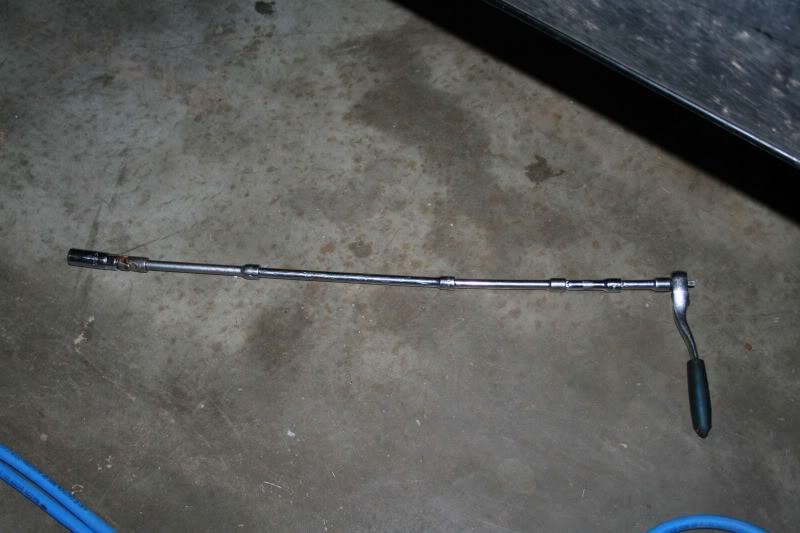

Extensions, anyone?
Name:  extensions.jpg
Views: 1
Size:  55.8 KB

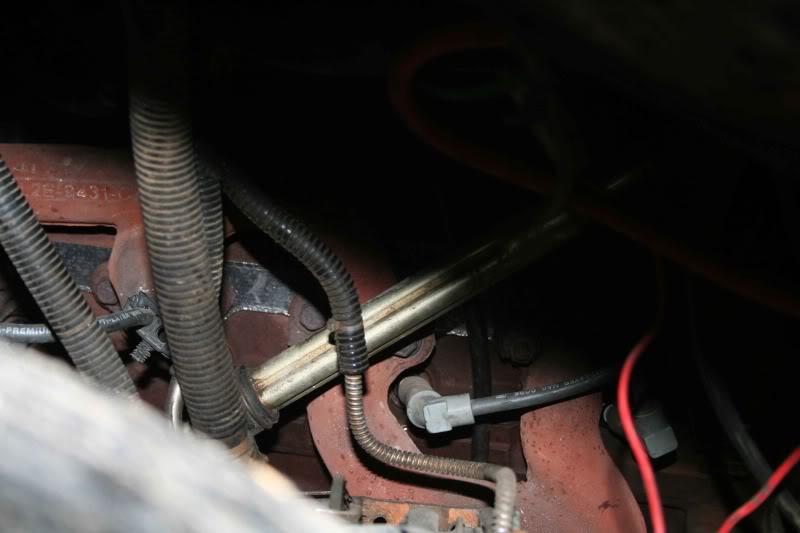

The only plug that required a universal joint was the 3rd one on the driver's side, thanks to the steering arm. This was also a good chance to check and tighten any crucial bolts like the steering arm and others.
Name:  IMG_0010-1.jpg
Views: 1
Size:  42.5 KB

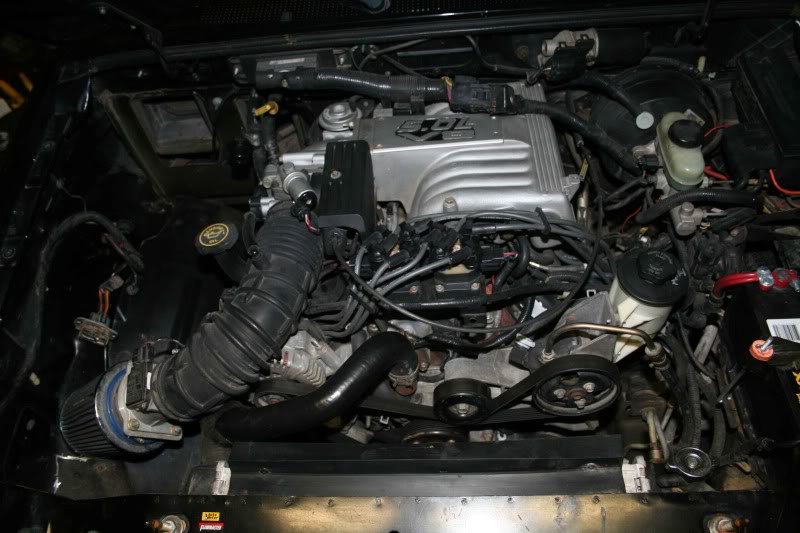

And finally, the bird's eye view of the Beast.
Name:  top-view.jpg
Views: 2
Size:  74.9 KB
Reply With Quote
  #4
Old 03-10-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
you should run all 4 o2s to keep the CEL off with MIL eliminators in the downstream ones
Reply With Quote
  #5
Old 03-10-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
I cannot for the life of me find those MIL eliminators, or O2 simulators. I heard today from my exhaust guy they're not legal in the US so you have to buy them somewhere overseas!

And are you saying
put all 4 o2's in even though I have no CATS?
or put two UP STREAM o2's in and two MIL's in the rear connectors?

Keep in mind I have a true-dual set up all the way to the rear, with no crossover anywhere, so location is important as well, I assume?
Both banks run to the passenger side individually, without connecting together but in stock location.
Name:  IMG_5416.jpg
Views: 0
Size:  52.4 KB

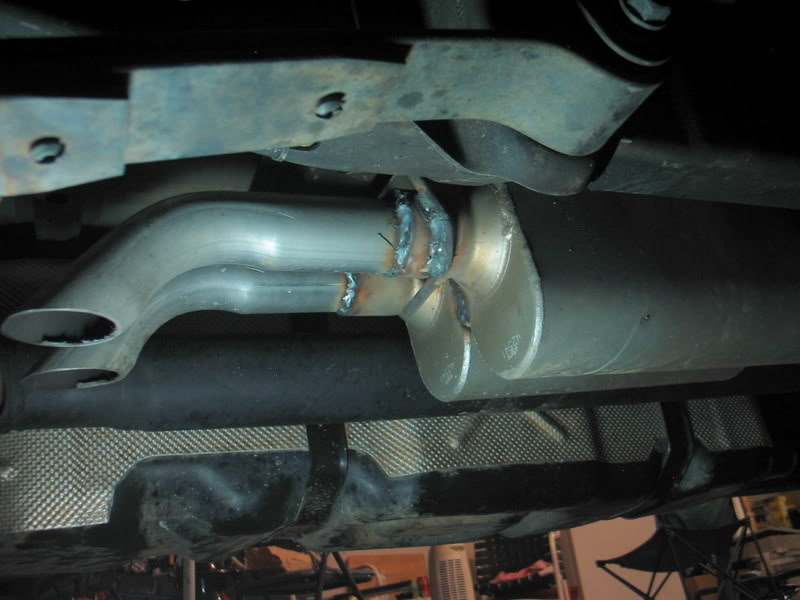

Dump at rear with two Flow 40's.
Name:  IMG_5414.jpg
Views: 0
Size:  56.5 KB

Last edited by Needforspeed3685; 03-10-2010 at 10:55 PM.
Reply With Quote
  #6
Old 03-10-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
you will still need to use the rear sensors because the MIL eliminators go inline with them...ill get you a link for them...hold
Reply With Quote
  #7
Old 03-10-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
Reply With Quote
  #8
Old 03-10-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Oh I can totally make those without spending $20 at Radio Shack! Thanks for the links!
Reply With Quote
  #9
Old 03-11-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
put the front ones pretty close to the collector and the rears anywhere in range of where the wiring will reach
Reply With Quote
  #10
Old 03-11-2010
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
you only need the front 2 for A/F mixture.. the rear 2 do not have any input. they only monitor if the cat is working. and since you dont have cats. you would be wasitng money on 2 extra 02 sensors and mil eliminators.
Reply With Quote
  #11
Old 03-11-2010
Toreador4x4's Avatar
Member
iTrader: (6)

Join Date: Apr 2007
Location: Livonia, MI
Posts: 3,958
if they are not plugged in you will get a code for them, if you have a code for them you will not go into closed loop
Reply With Quote
  #12
Old 03-11-2010
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
tru. thats why im just having mine cut off in the ECM =]
Reply With Quote
  #13
Old 03-11-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by mlw20lu View Post
tru. thats why im just having mine cut off in the ECM =]
BamaChips???
Reply With Quote
  #14
Old 03-29-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
The tracking on the plugs could be poor ceramics/insulation or poor connections at the wire and the top of the plug.
Make sure the connectors are tight and the boot is snug, also some silicone grease on the inside of the boot can help but not too much.
Reply With Quote
  #15
Old 03-29-2010
dbp02's Avatar
Member

Join Date: Feb 2010
Location: Pittsburgh
Posts: 147
Why didn't you install a crossover pipe? Just curious. Because of the way the 5.0 fires, you really should have one.
Reply With Quote
  #16
Old 03-30-2010
Needforspeed3685's Avatar
Member
Thread Starter

Join Date: Aug 2005
Location: Lowell, AR
Posts: 1,836
Quote:
Originally Posted by dbp02 View Post
Why didn't you install a crossover pipe? Just curious. Because of the way the 5.0 fires, you really should have one.
I've realized that now. I smashed the stock crossover (with first set of cats) during tear-down of the explorer, then later regretted the move. The whole undercarriage makes it hard to do.
Reply With Quote
  #17
Old 03-31-2010
Pless215's Avatar
Member

Join Date: Mar 2008
Location: Dewy Rose, GA
Posts: 473
Just have use an h-pipe. pretty much the same difference. And if I were you, since you have to have all 4 sensors anyways, I would just try to run it with the sensor and no eliminator to see if it will run correctly w/o them before you spend the money. The reason I say that is b/c I have seen some run just fine if not better than vehicles with eliminators with just no cats and sensors
Reply With Quote
  #18
Old 03-31-2010
dbp02's Avatar
Member

Join Date: Feb 2010
Location: Pittsburgh
Posts: 147
If you can get the pipes out, you can put an H on the existing pipes in about 10 minutes with a cutting wheel and a welder....then clamp them back in place. I would say do it in the vehicle, but you couldn't weld the top too good.
Reply With Quote
  #19
Old 04-26-2010
cheese_man's Avatar
Member
iTrader: (1)

Join Date: Nov 2009
Location: arthur
Posts: 2,100
those exhaust pipes at the manifolds are waaay too close to the firewall
you should invest in some high heat insulation for the exhaust pipes
and should have your manifolds ceramic coated

that high heat will eventually melt a hole right through your firewall
Reply With Quote
