Hi guys, I’m trying to wire the rear speakers but underneath the drivers sit there a bunch of cables connected to the floor that go under the truck. Do I have to splice the cable there? Also, does anyone know the wire color for the rear speakers for the 2003 single cab 2.3 ranger?

thanks in advance

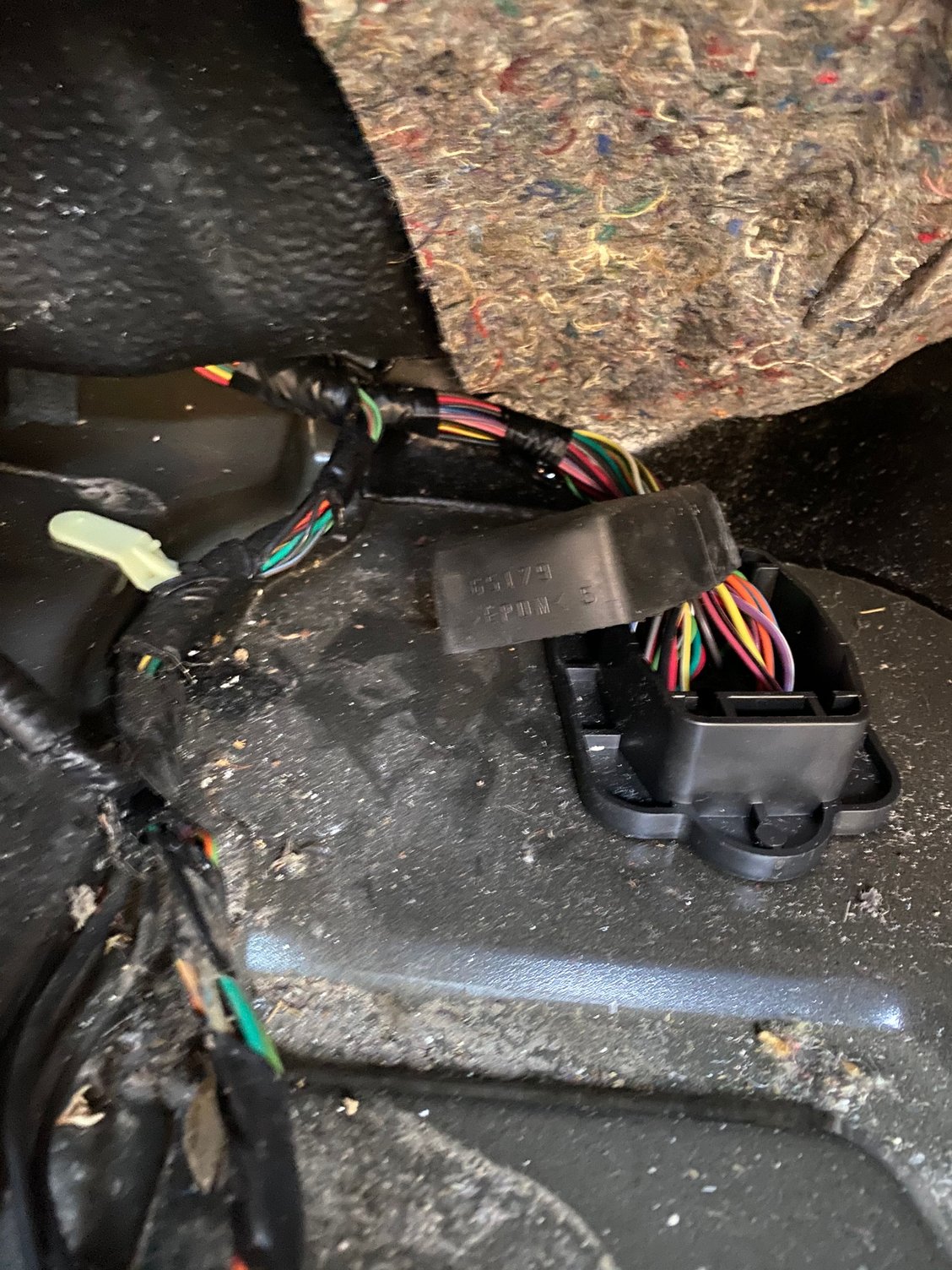

adding a pic of the wires


These wires come from behind the radio/climate control



Speakers
# LF SPEAKER: (+) = org/lt grn, (-) = lt blu/white
# RF SPEAKER: (+) = wht/lt grn, (-) = grn/org
# LR SPEAKER: (+) = gry/lt blu, (-) = tan/yel
# RR SPEAKER: (+) = org/red, (-) = brn/pnk

it was just above your post in the sticky area



I saw it but it doesn’t match the colors I have. Thanks anyways, I ended up connecting the wires directly to the stereo unit.



why make a post then???



Wow really? I though that ford could have more than 1 color configuration. I’m really sorry to have wasted 10 seconds of your precious life.
