Building a box for a 10 inch sub - tight fit - help

Yes I could get an 8 inch but something about having a sub smaller than my hand is not something I want. Anyway, I have a regular cab 06' XLT. From what I measured, the height up from the bottom behind the seat to the little protrusion back there is 10 1/4. Not high enough.

So 2 quick questions. 1) What is underneath the protrusion? I see metal, but I know it's not the very back of the cab.

2) Where it is kind of lifted up about 6 inches at the floor behind the seat, there's metal there too. What's underneath that? Road? Doesn't look like it but I'm just curious for some ideas.

I don't really want to have it angled up above that little protrusion 10 inches up.
Reply With Quote
  #2
Old 04-26-2011
stealthlife49's Avatar
Member
Thread Starter

Join Date: Aug 2010
Location: Boone, NC
Posts: 71
Picture will help yes.



So what's behind 1 and what's below 2 (at the bottom)?
Reply With Quote
  #3
Old 04-26-2011
StxDangerRanger's Avatar
RF Veteran
iTrader: (2)

Join Date: Dec 2010
Location: Flat Rock, Mi
Posts: 6,313
1. Sheet metal for the back of the cab.
2. under the carpet is sheet metal, then road.
Reply With Quote
  #4
Old 04-26-2011
stealthlife49's Avatar
Member
Thread Starter

Join Date: Aug 2010
Location: Boone, NC
Posts: 71
That's what I figured, I just wanted to make sure. I know out of the few pictures I've seen with boxes behind there, they just are slanted above that lip. Thanks.
Reply With Quote
  #5
Old 04-27-2011
<TX>TORKiT's Avatar
Member
iTrader: (1)

Join Date: Jun 2010
Location: Dallas, TX
Posts: 1,551
Just cut that crap out of your way. Dont be scared. Do you want to boom or not?

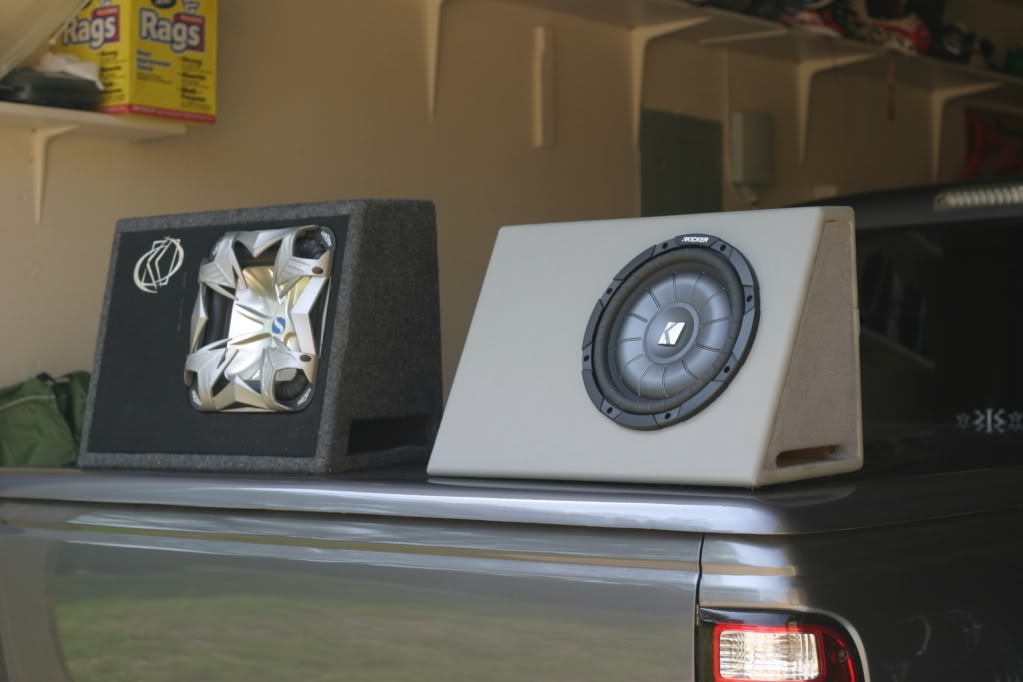

Size comparison. The new box is on the right hand side. Both are 10'' subs.
Name:  KickerSVT.jpg
Views: 9
Size:  54.4 KB

Built to fit under the ledge for an extra inch, yes I cut out the back carpet piece.
Name:  KickerSVTinstalled.jpg
Views: 10
Size:  32.5 KB

Yes the 10'' L7 is for sale in the Kicker box. Do good.
