Experienced Box Builders Help!

I'm building a box and want to port it. Is there a science to it or am I over-thinking this? I can post specs in the morning. I need help to finish this project.
Reply With Quote
  #2
Old 03-25-2006
bamaboy's Avatar
Member

Join Date: Jun 2005
Location: ALabama
Posts: 531
there is a science to a port


i has to be a certain depth and area

lets say you want 32hz tuning in a 7 cu ft box if you eanted a port like mine it would need to have 105sq inches(35"x3") and i think it was 2 or so inches deep

no your box cant be too big, and you need to figure out a tuning(28hz is more for deep bass better sound quality, start going up but i wouldnt go past 37hz for daily, higher than that start gets into competing)

i need the specs on the box as in how many cu ft and deminsions and the tuningyou want and i can get the exact port deminsions

one wa is you can use pvc pipe from homedepot/lowes, or do it like mine, or make one out of wood and do it that way
Reply With Quote
  #3
Old 03-25-2006
maine_2003fx4's Avatar
Member

Join Date: Aug 2005
Location: Northern Maine
Posts: 236
i use a few box building programs and i can try to give ya a hand . they will give you the total volume of the subs need and the port sizes...

just need the specs of the speaker and what ya are looking to make
pm me and i will see what i can do
Reply With Quote
  #4
Old 03-25-2006
bamaboy's Avatar
Member

Join Date: Jun 2005
Location: ALabama
Posts: 531
also what music do you listen this will help decide what you need for tuning


and when findind stuff like tuning for a box the speaker specs arnt really neccessary, except displacement
Reply With Quote
  #5
Old 03-25-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
www.linearteam.org download WinISD Beta it will help you tune the ports you want...

Though it's a little advanced for the average person that just wants to build a box.
Reply With Quote
  #6
Old 03-25-2006
edge05runner's Avatar
Member

Join Date: Apr 2005
Location: Peoria az
Posts: 142
Reply With Quote
  #7
Old 03-25-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521

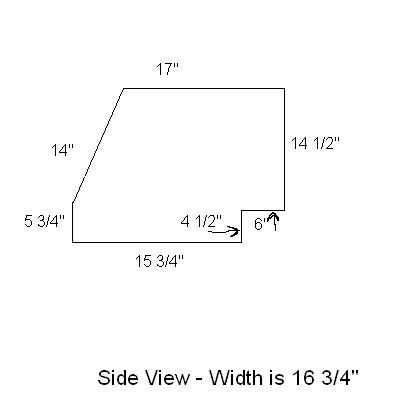

ok here's the specs. not exactly to scale (don't bust on my mad paint skillz). the sub is a 10w3v2.The angled part faces the front of the truck like in the drawing. it will be sitting on my drivers side and i want the port to face the middle, left side of box, i.e., the opposite side of the drawing. thanks for your help guys. i built a sealed box way back in the day in high school, i have no idea on the science of porting.

Name:  box.jpg
Views: 0
Size:  8.8 KB
Reply With Quote
  #8
Old 03-25-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Well, first of all, do you know what the volume of the box is?? Sure I could figure it out... but it would thinking....lol. I'm a lazy ***.

Second, I'm sure you want it to be reasonaly loud, but not too loud that you can't hear the music....

Oh, yeah and how much power are you planning for it?? RMS, not peak...
Reply With Quote
  #9
Old 03-25-2006
bamaboy's Avatar
Member

Join Date: Jun 2005
Location: ALabama
Posts: 531
PEAK POWA FTW


so many curves and angles
Reply With Quote
  #10
Old 03-25-2006
bamaboy's Avatar
Member

Join Date: Jun 2005
Location: ALabama
Posts: 531
im not even going to ry and calculate that right now, you have to take into account the thickness of the wood and find the cubic feet of eac section then add it all up then figure out how much space the port will take up ... blah lah
Reply With Quote
  #11
Old 03-25-2006
bamaboy's Avatar
Member

Join Date: Jun 2005
Location: ALabama
Posts: 531
nvm im going to try at it...

i would have to say with no sub or port, that your in the area of 2.0-2.1 cu ft
then say .5 or so cu ft for th port, and .15 cu ft for the sub and you end up with about 1.3-1.4ish cu ft for the sub which sounds about right for a 10
Reply With Quote
  #12
Old 03-26-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
All you have to do is find all the individual shapes, add up the area, multiply it by the width of the box then divide that by 1728 and that's how many ft3 you got.

duh-duh-duh!

I'm just too lazy.
Reply With Quote
  #13
Old 03-26-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
hmmm, i'm still confused

btw what does FTW mean??

edit: i know it's 3/4" mdf. I just need someone to go through this step by step in a simple manner. lol. I'm reading your replies and my head is starting to spin. Thanks though, definitely.

Last edited by l2en; 03-26-2006 at 01:04 PM.
Reply With Quote
  #14
Old 03-26-2006
bamaboy's Avatar
Member

Join Date: Jun 2005
Location: ALabama
Posts: 531
FTW for the WIn

should be about 2.1 cu ft
Reply With Quote
  #15
Old 03-26-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Ranger_Interceptor has a great box design, go hit him up.

http://memimage.cardomain.net/member...570_7_full.jpg

Aaron
Reply With Quote
  #16
Old 03-26-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I was looking at that earlier today lol. It's just too big for what I want. It's definitely nice though.
Reply With Quote
  #17
Old 04-02-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
ok, i just read all this, and im still confued on how to figure out how much space is needed, and how to figure out how much space your box has.
Im building a box for a 10 inch sub and im worried i have not made it big enough.
So far here is what i have.

its 15 inches wide. its a 13x13x18.5ish box. looks like this
Name:  817c1284.jpg
Views: 0
Size:  62.3 KB

I didnt want to make another thread about it, but im hoping some x-pierenced sub guys will take a look in here.

help please.
Reply With Quote
  #18
Old 04-02-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Damn, that's all I can say. Damn.
Reply With Quote
  #19
Old 04-02-2006
rangererv's Avatar
Member

Join Date: Mar 2005
Location: Dearborn Michigan
Posts: 4,376
Quote:
Originally Posted by l2en
Damn, that's all I can say. Damn.
lol what does that mean?
Reply With Quote
  #20
Old 04-02-2006
l2en's Avatar
Member
Thread Starter

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
I'm no expert, but man. I hope it's going to be deep enough for the entire sub. Check out the links these guys posted for me and determine the volume of your box. What type of sub are you planning on running? Dif subs need dif amounts of volume.
Reply With Quote
  #21
Old 04-03-2006
dangerranger's Avatar
Member

Join Date: Aug 2005
Location: muskego, wi
Posts: 536
thats for sure not big enough just by looking at it.
Reply With Quote
  #22
Old 04-07-2006
Member

Join Date: Mar 2006
Location: royal palm beach florida
Posts: 31
anyone have a ported 10 in a reg cab??
Reply With Quote
  #23
Old 04-12-2006
Rangerless's Avatar
Member

Join Date: Oct 2005
Location: Kennett Square, PA
Posts: 129
If you make it Wharton this week end I could give you an idea of what to do. I have a good bit of knowledge building custom fiber glass box, door panels, kick panels for speeker. I had two 10 Stuffed be hided the seat of a regular cab 94 Toyota pickup. I built totally custom interior door panel, and Kick panels for it.
Reply With Quote
  #24
Old 04-12-2006
Rangerless's Avatar
Member

Join Date: Oct 2005
Location: Kennett Square, PA
Posts: 129
I ment for the weekend of the 23rd meet sorry a little tiered
Reply With Quote
  #25
Old 04-12-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Evan,

To determine the volume of your box, measure the hieght of the inside of the box and multiply it by the front-to-back measurement then multiply it by the width of the box-- All inside measurements of course. Then multiply the entire number by 1/2 or divide it by 2. then divide that number by 1728 then that's the exact cubic feet, besides the airspace that the subwoofer takes up.

Pretty much any size sealed box will work. Go to www.linearteam.com and download WinISD Beta. It's free and it's a pretty decent program. Just make sure when you plug the numbers in, that the Qtc is not higher than 0.9 becuase that's the limit.

When you finish building the box, go to Walmart and buy a bag of pillow stuffing that could crush your whole family for like $2.00 or so. That helps "trick" the sub into "thinking" the box is bigger.

Anything else you need, pm me.
Reply With Quote
