My overhead console mod with relocated display in rearview.

Looks like my original plan to mold in a small 6.5" monitor isnt going to work due to the small size of the console, i was thinking they were a lot wider, oh well i still decided to do at least something different with it.

Right now iv already managed to open up the console, remove the display and seperate it from the circuit board, iv opened my mirror and already have some paint stripper on the back to remove the protective paint first, im off to the store to find something with nitric acid in it, it will strip the actual silver from the mirror giving me a clear window for the display to show through,

This is sort of a hit or miss operation here as far as the wiring, but i dont see why it wont all work out.

Heres what iv gotten already

What i picked up today from the junkyard
Name:  DSC00888-1.jpg
Views: 5
Size:  69.1 KB

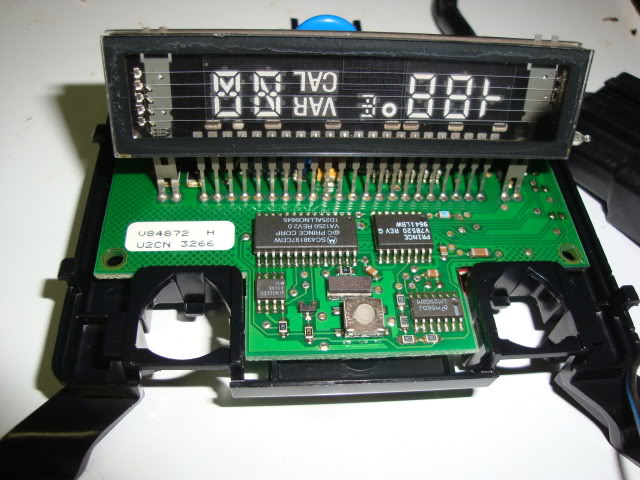

The display board
Name:  DSC00889.jpg
Views: 6
Size:  89.4 KB
Name:  DSC00890.jpg
Views: 5
Size:  86.3 KB
Name:  DSC00891.jpg
Views: 4
Size:  100.7 KB
Name:  DSC00892.jpg
Views: 4
Size:  96.4 KB

More updates later tonight.
Reply With Quote
  #2
Old 07-31-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
This is gonna be sweet
Reply With Quote
  #3
Old 07-31-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
That looks like its gonna be awesome
Reply With Quote
  #4
Old 07-31-2010
edge2k's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Daytona Beach, Florida
Posts: 296
So im sitting here waiting for a spectacular chemical reaction to blow off the silver/copper backing of the mirror, its actually really slow and not that exciting, but for anyone whos curious you can use almost anything that contains nitric or muriatic acid, in my question asking and online findings apparently you can use almost anything that cleans a toilet, specific brands like CLR, Snowbowl and chlorox toilet cleaner were said to work and i can now vouch for the CLR, after about 5 minutes its already starting to thin the backing.

Just a hint there for anyone who might want to make some custom mirror turn signals
Reply With Quote
  #5
Old 07-31-2010
ShadowRanger08's Avatar
Member
iTrader: (3)

Join Date: Jan 2008
Location: Ontario, Canada
Posts: 1,694
wow this should be pretty cool
Reply With Quote
  #6
Old 07-31-2010
Bumpncarstereo's Avatar
Member
iTrader: (3)

Join Date: Aug 2006
Location: btwn the Buff and the Roc
Posts: 1,302
sounds like a good idea. if you have parts left over from the gray ohc, let me know.
Reply With Quote
  #7
Old 07-31-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Nice! Good idea.
Reply With Quote
  #8
Old 07-31-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
Mirror turn signals eh? That would be cool
Reply With Quote
  #9
Old 07-31-2010
RangOH's Avatar
Member

Join Date: Feb 2009
Location: Madison, Ohio
Posts: 854
fyi muriatic acid is also found in tile and masonary supply sections in home improvement stores. Its used for cleaning up grout haze and cleaning off brick and mortar. might be stronger also.

Good diy project thought! we need more original mods like this.
Reply With Quote
  #10
Old 07-31-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Great idea! Since the 6.5 screen won't work... what else do you have in mind?
Reply With Quote
  #11
Old 08-01-2010
edge2k's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Jun 2010
Location: Daytona Beach, Florida
Posts: 296
smaller screen? haha not sure just yet, i ended up destroying the first mirror, the tape i used to make a straight line absolutely refuses to keep the chemical from seeping under it, so i kept getting bigger... and bigger rough edges, i ended up using another mirror i have, i think it will work out better, the only thing iv really thought of other then the lcd is to utilize the buttons in the mirror for turning on and off my pc and maybe making a plexi window or something and illiuminate it with possibly the intel inside logo or something, just not sure yet.

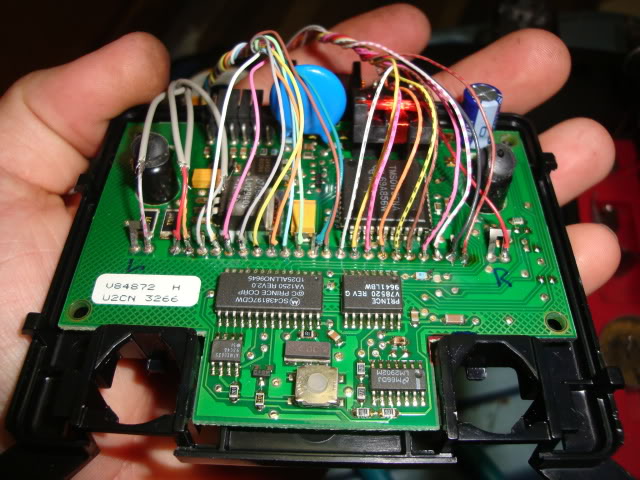

Its actually an auto dimming mirror, i dont know what voltage exactly its saaaaafe at really but iv tested it at 1.5 and 3 volts and it works just fine, i have regulators for both, but it blacks out the mirror completely and i love the look, this is what iv been able to get so far until i ran out of butane for my soldering iron.

Name:  DSC00894.jpg
Views: 4
Size:  105.1 KB

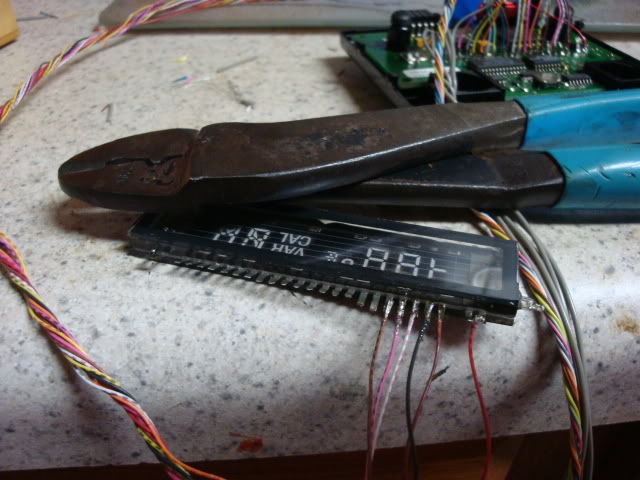

this took forever..

Name:  DSC00899.jpg
Views: 4
Size:  79.5 KB
and the solder doesnt want to stick to well to these for some reason, ill probably have to tack them down with some glue afterwards to keep the stress down on the weld.

This is with the mirror without the tint activated.
Name:  DSC00896.jpg
Views: 4
Size:  43.7 KB

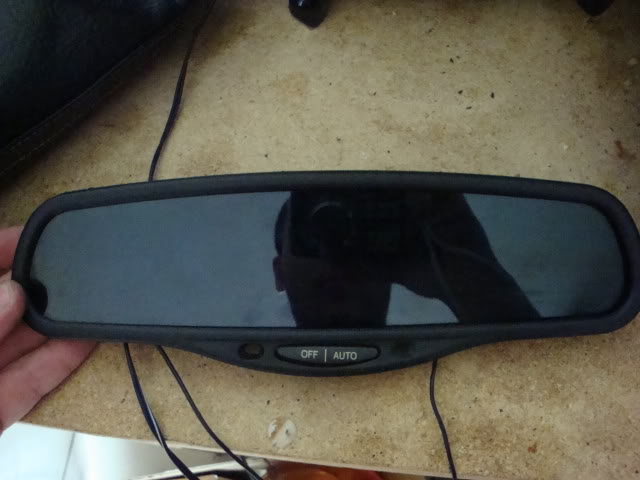

and with the same lighting, with the tint activated.
Name:  DSC00897.jpg
Views: 4
Size:  56.2 KB
Reply With Quote
  #12
Old 08-01-2010
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
thats cool
Reply With Quote
  #13
Old 08-01-2010
Jp7's Avatar
Jp7 Jp7 is offline
Member
iTrader: (9)

Join Date: Sep 2007
Location: My LED lab or on the dyno
Posts: 2,970
Kind of like my rear view mirrors with a LCD reverse screen.

Reply With Quote
  #14
Old 08-01-2010
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Can't wait to see it done. Looks good so far.
