My sub box so far

Well here are a few shots of the subwoofer box I'm building. It's designed for a 12w3v3 and is 1.25 cu. ft. sealed. I designed it to fit where the driver's side jumpseat is located. The back portion of the box will bolt in using the jumpseat bolt locations and there's a cover for the top part that should cover the bolts and make it more difficult to steal. It's a little hard to describe, but hopefully it'll make sense once I get the rest of the pieces cut and put together! Anyways, onto the pictures!

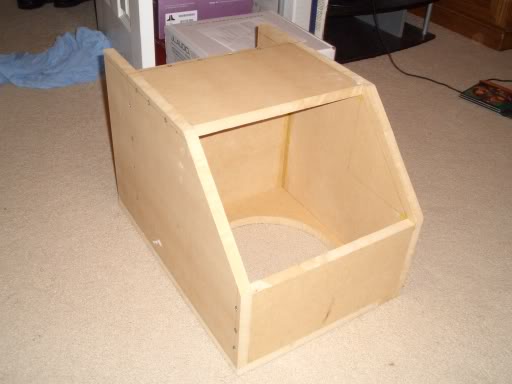

The box. The gaping hole will be covered by a board, I just haven't cut the 45* cuts yet to make them fit onto the hole.
Name:  CIMG0411.jpg
Views: 3
Size:  53.2 KB

The back of the box. This part will face the rear wall of the cab and is where the box will bolt to the jumpseat location.
Name:  CIMG0412.jpg
Views: 3
Size:  44.3 KB

I haven't secured the mounting hole yet
Name:  CIMG0413.jpg
Views: 3
Size:  57.3 KB
Reply With Quote
  #2
Old 07-29-2006
RHuckster's Avatar
Member

Join Date: Apr 2006
Location: Lake Elsinore, Ca.
Posts: 643
Looks good!!, when you get done head over to my place & build me one, I'm gettin lazy in my old age.

Rick
Reply With Quote
  #3
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Haha if only I had the time. I could send you the plans and dimensions if you want. It's built with 3/4" MDF
Reply With Quote
  #4
Old 07-29-2006
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
awesome man. i <3 you.
Reply With Quote
  #5
Old 07-29-2006
rolla_guy72's Avatar
Member

Join Date: Jul 2005
Location: Fairbanks, AK
Posts: 3,256
Is that a porno layin' on the floor in the first pic? HAHAHA!!

Lookin' good, make sure you seal up the inside real good.
Reply With Quote
  #6
Old 07-29-2006
RHuckster's Avatar
Member

Join Date: Apr 2006
Location: Lake Elsinore, Ca.
Posts: 643
That would be AWESOME!!
I built both very large boxes with 2 15's in each for my last Truck(F-150) & built a box for my show car using the spare tire space for the enclosure part of the box but I've run out of ideas, especially in this very tight space behind the seats. Are you going to build an amp rack on the other side or where are you stashing your amps?

Thanks
Rick
Reply With Quote
  #7
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Channing that is season 6 of Friends on the floor actually, haha. And I've got some silicone caulk in the garage. I'm going to get the terminals put in once they get here and secure the bottom mounting hole piece. I'll seal everything up good and then put the slanted piece on and caulk it through the mounting hole.

RHuckster, my sketches are kinda messy but I'll draw up a good one and scan it in for you. I pretty much just built the box using the dimensions I wanted for the airspace and the outer dimensions of the box fell into place by using the 3/4" MDF around the box. I haven't decided on the amps yet, because I have the computer to worry about where to put also. I'm thinking I might build a sort of box that will lay on the floor behind the seat and the amps will be inside the box. I could carpet the box with black so it would look inconspicuous and I could still put my books and bags ontop of it without worrying about my amps getting scratched up. My only worry then is the heat issue with them being in a box of sorts. I could leave one end open perhaps and maybe put some sort of fan or cooling system to keep the amps and computer from overheating. I guess I'm rambling now but that's sort of my plan.

I just found that I had an extra passenger side jumpseat in the garage from my last truck. I think there could be a way to cut the seat mounts off and use the mounting frame of the jumpseat to make a more 'bolt-in' fit for the box.

Name:  CIMG0414cut.jpg
Views: 2
Size:  137.0 KB

Imagine the parts circled in red were cut off, and the box bolted to the frame of that. The jumpseat frame would then bolt into the cab snugly and easily. The bolts would still be hidden behind the box. I think I'm going to look more into it.
Reply With Quote
  #8
Old 07-29-2006
RHuckster's Avatar
Member

Join Date: Apr 2006
Location: Lake Elsinore, Ca.
Posts: 643
Cool, I was going to go with a carputer in my show car but I've invested way to much into it already...just what I need, another computer to deal with. I deal with 3 @ home & 14 @ work & thats just in one room.
Yea, a hole in each side with a fan @ 1 end would help considerably to keep things cooler. Since I'm building or attempting to build a show truck I was considering pulling the jump seats & jack off the rear wall & hanging the amps, cap, etc. on the back wall.

Rick
Reply With Quote
  #9
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
I'd consider building an amp rack and such on the back wall, but I don't want people to know I've got a system back there. My truck isn't gonna be garaged most of the time. Granted, the crime rate is very low around here and at school, but I don't want to take any chances. If you're looking into my truck through the windows, you'll never know what's inside.
Reply With Quote
  #10
Old 07-29-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
A bottom firing box?? Not a fan of bass I take it...
Reply With Quote
  #11
Old 07-29-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
What W is that Kyle?

Aaron
Reply With Quote
  #12
Old 07-29-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Quote:
Originally Posted by Gearhead61
Well here are a few shots of the subwoofer box I'm building. It's designed for a 12w3v3 and is 1.25 cu. ft. sealed.
Read the post no0b
Reply With Quote
  #13
Old 07-29-2006
KARPE's Avatar
Member

Join Date: Apr 2005
Location: Valrico, Fl 33594
Posts: 4,748
Quote:
Originally Posted by l2en
A bottom firing box?? Not a fan of bass I take it...

Bass isn't directional....
Reply With Quote
  #14
Old 07-29-2006
quest51210
Unregistered User

Posts: n/a
Quote:
Originally Posted by KARPE
Bass isn't directional....
haha i hadnt got to this thread yet. i have had great experiences with the down fire box. on the other hand the back firing enclosure in an extended cab sounds incredible as well. good call on the omnidirestional comment though.
Reply With Quote
  #15
Old 07-29-2006
l2en's Avatar
Member

Join Date: Dec 2005
Location: The Keystone State
Posts: 4,521
Bass = free back massage =]
Reply With Quote
  #16
Old 07-29-2006
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Nice progress man!

Should sound pretty nice when done.

I've also had some pretty good experience from downfiring boxes...I just don't care for em anymore, I've got more deaf over the years, so I needed something louder
Reply With Quote
  #17
Old 07-29-2006
Red_Ak_Ranger's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2004
Posts: 17,221
Quote:
Originally Posted by l2en
Read the post no0b
Wtf. 12W3V3? That doesn't tell me anything. Sounds like "12 watt 3 volt 3"

Anyways. W7 or nothin *****es..
Reply With Quote
  #18
Old 07-29-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
looks good kyle, hopefuly the damplifier sale goes through, i think you are gonna need it!
Reply With Quote
  #19
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Aaron the 12W3V3 is the newest version of the W3. 12W3 version 3. Anyways, I listened to a W7 and W6 as well as the new W3. The new W3 is built on the same platform as the W6 and sounds, IMO, better. Not to mention the fact that it's several hundred dollars cheaper!

I don't want huge gigantic make-you-go-deaf bass. I don't listen to my music loud. I want good, clean bass that sounds clear. The down-firing box is ideal for me, and it helps protect the speaker cone also.
Reply With Quote
  #20
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
Ok here are some cleaner drawings of all the parts. Not all of the dimensions are perfect, and it's not to scale, but all my CAD programs have expired licenses so it's the best I got. Remember that it's built with 3/4" MDF so if you want to use 5/8" you'll have to fudge some of the numbers.

Name:  subbox2.jpg
Views: 2
Size:  55.5 KB

This is a side view of the box showing how the hinge works to cover up the bolts to the cab

Name:  subbox.jpg
Views: 2
Size:  49.0 KB

This is a picture of my drawings on the inside of the box to kind of explain how the slanted piece fits in better. You'll have to cut the 2 45* cuts so the piece fits in, and then cut the corners off there so that the edges of the box are flush. This allows the interior airspace measurements to be correct and still keeps the MDF 3/4" thick all around the enclosure.

Name:  CIMG0415.jpg
Views: 2
Size:  36.5 KB
Reply With Quote
  #21
Old 07-29-2006
Member

Join Date: May 2004
Location: McKinney, TX
Posts: 2,123
Looks like you've just about built the same box you almost bought from me a while back...
Reply With Quote
  #22
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
You're right! It's got a touch of my own flavor to it, but building it is half the fun!
Reply With Quote
  #23
Old 07-29-2006
Bigwill41's Avatar
Member

Join Date: Jun 2004
Location: Navasota, Texas
Posts: 4,659
Why not cut the hole bigger and put a 15 Inch Sub in it..
Reply With Quote
  #24
Old 07-29-2006
RF Veteran
Thread Starter

Join Date: May 2005
Location: College Station, TX
Posts: 5,782
The box is only 14" wide! And I don't have a 15" woofer to put in there
Reply With Quote
  #25
Old 07-29-2006
Member

Join Date: Jun 2004
Location: PUEBLO, CO
Posts: 3,753
i think it looks excellent kyle. im really diggin the work you're doin to the truck lately.

big props to you...
Reply With Quote
