Satellite Radio antenna

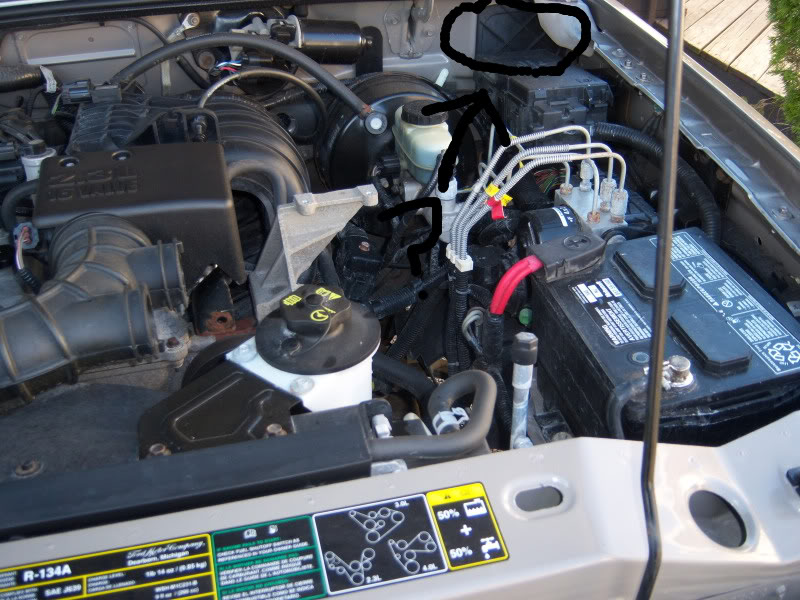

I did some searching on where people ran there antenna's for the sat radio... but i really didn't find a whole lot. i have it mounted on the part right in behind of the hood next to the windshield (cowl) and I like it there. But i have the wiring running into my door behind the plastic trim and i'm worried that i'll break the wire. So I go to looking in my engine compartment to see if there was a way to get the cable from there to the cab and I found this plastic panel looking thing right behind the fuse box that looking like it might feed into the cab...

Name:  RangerEngine2-2.jpg
Views: 13
Size:  115.6 KB

does anyone know where this door goes? Maybe Narnia? Also, where does the factory sat antenna run into the cab? That might be an option...

I saw were alot of people ran them through their 3rd brake light and if worse comes to worse I'll go that route. I know most people didn't have an issue with leaking, but I don't want to take that chance unless I have to.
Reply With Quote
  #2
Old 06-02-2009
offroadn_redneck's Avatar
Member

Join Date: Feb 2009
Location: San Antonio, TX
Posts: 776
i just drill a small hole in the firewall and run it out that way. Its how I wired my fogs. Get one of those rubber hole piece things somewhere and use that if you are worried about a leak.
Reply With Quote
  #3
Old 06-02-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by elanalvey View Post

I saw were alot of people ran them through their 3rd brake light and if worse comes to worse I'll go that route. I know most people didn't have an issue with leaking, but I don't want to take that chance unless I have to.
seal it with some silicone
Reply With Quote
  #4
Old 06-02-2009
turbo's Avatar
Member
iTrader: (2)

Join Date: Aug 2007
Location: Tallahassee, FL
Posts: 565
actually....


remove the fusebox and pull it out of the way. right below that plastic thing is a bare spot, above where the main wiring harness enters the cab. the spot is clear on the inside, as well... good place to drill a couple holes for wiring. and the "rubber hole piece things" are called grommets, and you can buy them by the bagful for pennies...
Reply With Quote
  #5
Old 06-02-2009
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
Why dont you run it throught the interior and out the third brake light opening. Its perfect for that and gets the best reception
Reply With Quote
  #6
Old 06-02-2009
Pyrofallout's Avatar
Member

Join Date: Jun 2008
Location: Houston, TX
Posts: 121
Quote:
Originally Posted by skier2880 View Post
Why dont you run it throught the interior and out the third brake light opening. Its perfect for that and gets the best reception
Yep. This works very well.
Reply With Quote
  #7
Old 06-02-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
I have tucked all my wires to my Sirius behind my dash and ran the antenna on my mirror, every so often I have to put it on the dash. Thinking of making a little bracket off the 3rd brake light to mount it outside.
Reply With Quote
  #8
Old 06-02-2009
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
Quote:
Originally Posted by Ford04Ranger4.0 View Post
I have tucked all my wires to my Sirius behind my dash and ran the antenna on my mirror, every so often I have to put it on the dash. Thinking of making a little bracket off the 3rd brake light to mount it outside.
Bracket for what? the antenna? it just sets on the roof lol
Reply With Quote
  #9
Old 06-02-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
im going to go with the 3rd brake light on this one i also have heard its best reception. Damnit now i want to get satelite radio lol
Reply With Quote
  #10
Old 06-02-2009
Ford04Ranger4.0's Avatar
Member

Join Date: Dec 2008
Location: Plattsburgh, New York
Posts: 3,390
Quote:
Originally Posted by skier2880 View Post
Bracket for what? the antenna? it just sets on the roof lol
well i dont want the paint to fade or water to trap under it, so a bracket mounted off the 3rd light screw, I thought it would be a great idea so it keeps it off my truck and not have to worry.
Reply With Quote
  #11
Old 06-02-2009
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2008
Location: Sumter, SC
Posts: 633
I never taken my brake light apart and all... so where exactly will the wire go from there? I don't like taking things apart and think "wtf am i doing next"
Reply With Quote
  #12
Old 06-02-2009
skier2880's Avatar
Member
iTrader: (2)

Join Date: Feb 2009
Location: La Grande, OR
Posts: 320
Just take the two screws off the the brake light and run the wire on top of the headliner and under the plastic then down the plastic on the a pillar peice of cake.

Quote:
Originally Posted by Ford04Ranger4.0 View Post
well i dont want the paint to fade or water to trap under it, so a bracket mounted off the 3rd light screw, I thought it would be a great idea so it keeps it off my truck and not have to worry.
I have had mine on the roof for about two years now and take it of to wash it and no problems so far.

Quote:
Originally Posted by 99offroadrngr View Post
Damnit now i want to get satelite radio lol
Sirius FTW!!!
Reply With Quote
  #13
Old 06-03-2009
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Yeah satellite radio kicks ***. I had my XM antenna ran up the passanger pillar and just under the weather stripping out the door to the roof. Since I already had my GPS antenna out the third brake light and your supposed to place them far apart thats where it ended up. I did the same thing on the 150 and it works great.
Reply With Quote
  #14
Old 06-03-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
Quote:
Originally Posted by elanalvey View Post
I never taken my brake light apart and all... so where exactly will the wire go from there? I don't like taking things apart and think "wtf am i doing next"
let me know how you want to run it and well do that when we do my ball joints.
Reply With Quote
  #15
Old 06-03-2009
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2008
Location: Sumter, SC
Posts: 633
Thanks Marcus! I'm off Sat - Tues.
Reply With Quote
  #16
Old 06-03-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
Quote:
Originally Posted by elanalvey View Post
Thanks Marcus! I'm off Sat - Tues.
parts will be here tomorrow and i have tuesday off so ill be there bright and early to wake you up. hahha. but ill ask the guy tomorrow im gettin the ball joint tool from where he mounted his.
Reply With Quote
  #17
Old 06-03-2009
Member
Thread Starter
iTrader: (2)

Join Date: Sep 2008
Location: Sumter, SC
Posts: 633
Quote:
Originally Posted by 08XLT4x4 View Post
seal it with some silicone
I've got some blue silicone gasket i bought from pepboys, is this the stuff you're talking about?
Reply With Quote
  #18
Old 06-03-2009
mossyoak03's Avatar
Member
iTrader: (1)

Join Date: Oct 2006
Location: Virginia Beach, VA
Posts: 193
you can do the blue but you might be better with the white silicone they seal windows with.
