USB Ports - Dash Mounted ?

Anyone put in a dash mounted USB Port ?
I was thinking about adding one or two and was wondering how others have done it.
Also, what parts did you use?

Thanks
Reply With Quote
  #2
Old 03-29-2013
buggman's Avatar
Member
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
I have a couple usb ports on the back of my expo console.
They're just for charging usb stuff or powering usb gadgets.

I scavenged ports from a usb hub & attached them to the panel where my 12v outlets are.... have some pics in my photobucket somewhere... too lazy to dig around for them right now

They're powered by a disassembled cig outlet to usb port adapter I had around the garage. Extended the wiring from the old port to a couple new ports, just 4 wires for each port.
It only handles about 1a, but that's more than enough for charging a phone or running a flex led light or fan or small stuff.

The same could be done on one side of the radio bezel & if you have a usb port on the back of your head unit, you could re-wire a usb cable to tie into the ports on the bezel to connect a phone or mp3 player.
Reply With Quote
  #3
Old 03-29-2013
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Are you just doing it to charge a phone or tablet or something similar?

I had one when I had my '07 just for charging.

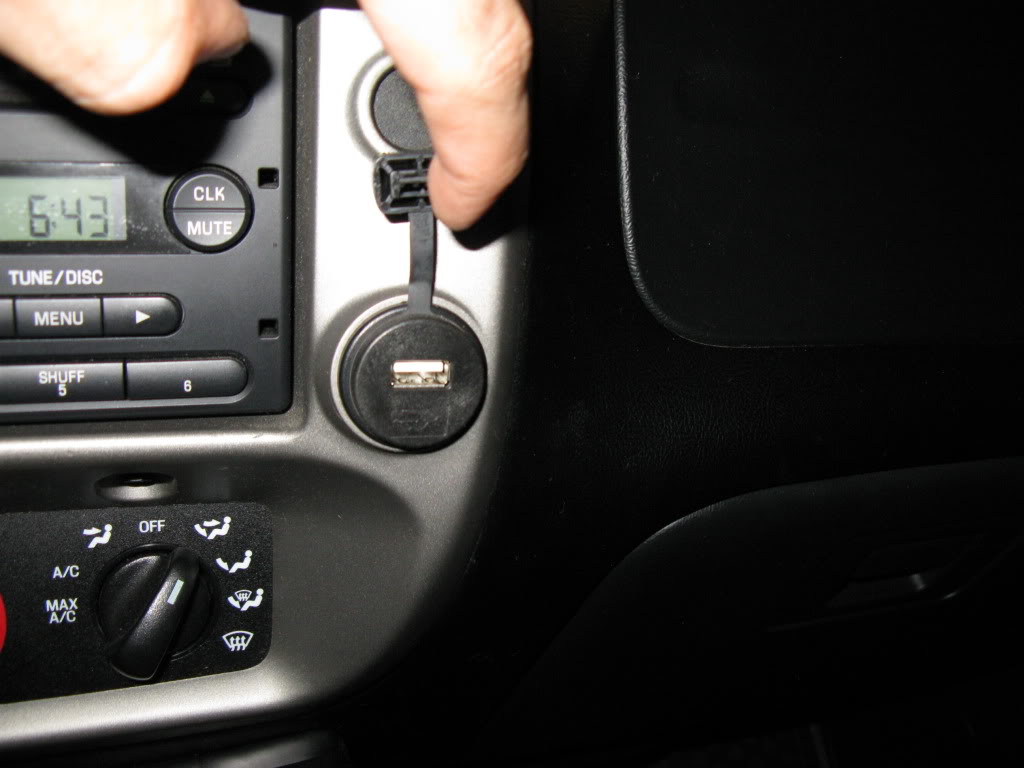

I found a plug that mounted to a dash sort of like a normal 12v adapter does, with the threaded on metal cup on the back. I had to shorten that cup to make it work and used a thick o-ring to make it fit snug in the larger dash hole.

Another option if you have an extra 12v port and just want it to charge is to use one of these flush mount ones.

Duracell 12V USB Car Charger | Canadian Tire
Attached Thumbnails
USB Ports - Dash Mounted ?-img_3478.jpg   USB Ports - Dash Mounted ?-img_3477.jpg
Reply With Quote
  #4
Old 03-29-2013
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
I bought a dollar store usb cig plug. Works good but the cord is garbage.
Reply With Quote
  #5
Old 03-29-2013
Scrambler82's Avatar
Old Guy Userů ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
First off, I am thinking complete USB port to attach my iPod too or maybe some sort of player.
Charging is good too for charging the phone.
I guess I am up in the air here, not sure.
If the port was attached to the back of the stereo for iPod attachment will,it still charge a phone ?

I was thinking of mounting a double USB in the cubby under the heater controls or one on each side of the center console, still thinking.

Last edited by Scrambler82; 03-29-2013 at 10:09 PM.
Reply With Quote
  #6
Old 03-30-2013
Mcleary316's Avatar
Member


Join Date: May 2010
Location: Lawrence, Kansas
Posts: 2,322
So with the USB cable there are multiple wires running in it. For the music you will need to isolate which are for audio. Splice these to a headphone jack cable or the AUX ( red and white) cables. Power is going to be another cable which runs on a 5.1v circuit. Data is a 4th and I have no idea if that's possible to splice into a stereo that's not designed for it.
Reply With Quote
  #7
Old 03-30-2013
Scrambler82's Avatar
Old Guy Userů ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Thanks for the info to all...

I will just add the charging port for now.
Reply With Quote
  #8
Old 03-30-2013
cvar's Avatar
Member

Join Date: Jul 2012
Location: N/A
Posts: 14
Pinouts are shown here: Universal Serial Bus - Wikipedia, the free encyclopedia

Pin 1 should be 5V (1.5 amperes max.), not 12V. So careful you don't fry your ipod or phone.

The middle 2 pins carry a digital signal, not analog. So I suspect it would not work when plugged into a typical stereo audio AUX input jack.
Reply With Quote
  #9
Old 03-30-2013
06RangerXLT's Avatar
Member
iTrader: (2)

Join Date: Feb 2011
Location: Halton Hills, Ont
Posts: 1,685
Reply With Quote
  #10
Old 03-30-2013
Scrambler82's Avatar
Old Guy Userů ltr
Thread Starter
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Quote:
Originally Posted by cvar View Post
Pinouts are shown here: Universal Serial Bus - Wikipedia, the free encyclopedia

Pin 1 should be 5V (1.5 amperes max.), not 12V. So careful you don't fry your ipod or phone.

The middle 2 pins carry a digital signal, not analog. So I suspect it would not work when plugged into a typical stereo audio AUX input jack.
Quote:
Originally Posted by 06RangerXLT View Post
Excellent, good info.
I will not have any power ports in the radio bezel but I might add one under the heater panel, not sure yet.
