want to add a trans temp gauge. Ideas? - Ranger-Forums - The Ultimate Ford Ranger Resource


Drivetrain Tech General discussion of drivetrain for the Ford Ranger.

Reply

LinkBack Thread Tools Search this Thread
  #1
Old 08-08-2008
Member
Thread Starter

Join Date: Jul 2008
Location: Kalispell, MT
Posts: 8
want to add a trans temp gauge. Ideas?

I have full add on gauges on my powerstroke and would like to add a transmission gauge to my ranger to monitor the auto tranny temps. Who makes a set-up for rangers? I would like a complete system with gauge pod options.

Thanks
Peter
Reply With Quote
  #2
Old 08-08-2008
bucky919's Avatar
Member
iTrader: (1)

Join Date: Nov 2006
Location: Minot, ND
Posts: 1,943
I use a scan gauge to monitor my tranny temp. I got mine from Wayne @ http://www.stuffforyourranger.com/st...roducts_id=212
Reply With Quote
  #3
Old 08-08-2008
mossyoak1992's Avatar
Member

Join Date: Jan 2008
Location: Bridgeton, N.J.
Posts: 383
Quote:
Originally Posted by bucky919 View Post
I use a scan gauge to monitor my tranny temp. I got mine from Wayne @ http://www.stuffforyourranger.com/st...roducts_id=212
dang didnt realize they were that cheap
Reply With Quote
  #4
Old 08-08-2008
goliath553's Avatar
Member

Join Date: Apr 2008
Location: Canada
Posts: 218
I second the scan gauge, gonna get one myself as soon as i have enough expendable income. Too many drunken bbq's, weekend trips etc... in the summer to spend my money on.
Reply With Quote
  #5
Old 08-08-2008
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
Quote:
Originally Posted by bucky919 View Post
I use a scan gauge to monitor my tranny temp. I got mine from Wayne @ http://www.stuffforyourranger.com/st...roducts_id=212


yep, same here
Reply With Quote
  #6
Old 08-08-2008
robj749840's Avatar
Member

Join Date: Dec 2006
Location: MI
Posts: 140
agreed. Scan gauge is the way to go, you can have 3 other gauges with the trans temp, that's what I like about it.
Reply With Quote
  #7
Old 08-09-2008
OmegaRanger's Avatar
Member

Join Date: Mar 2007
Location: NH
Posts: 190
i guess i dont understand how it would measure tranny temp? and what about a vehicle that has bigger tires with the speedometer already off?
Reply With Quote
  #8
Old 08-09-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320

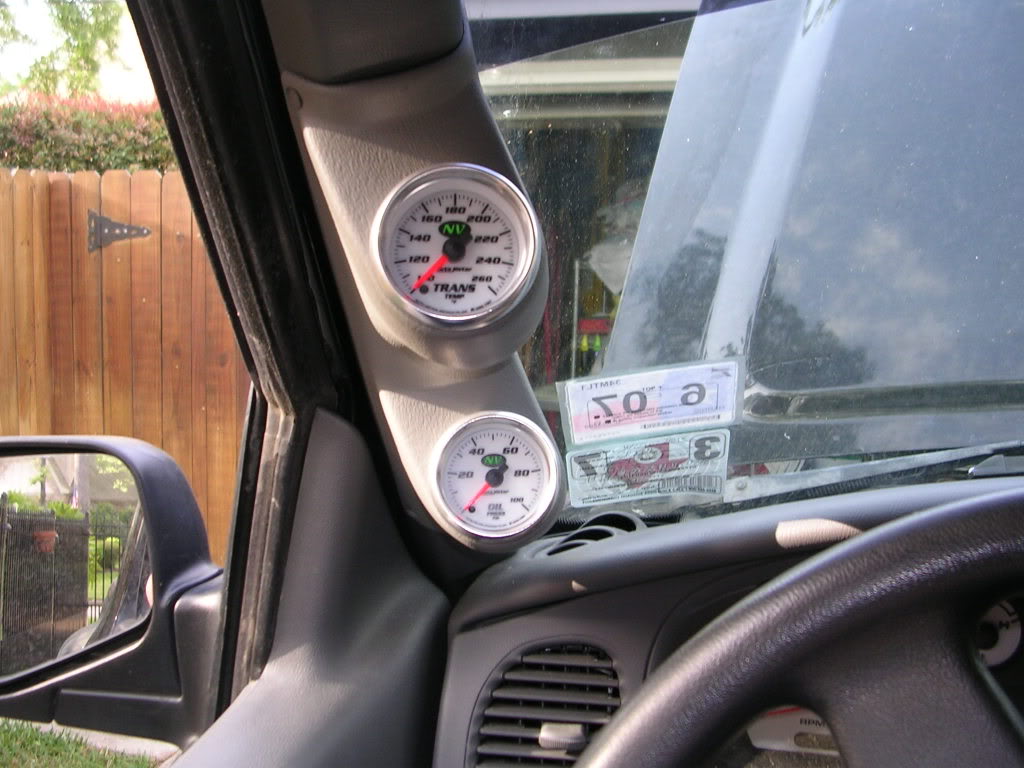

Here is another idea:

Name:  DSCN1997.jpg
Views: 11
Size:  108.7 KB
Reply With Quote
  #9
Old 08-09-2008
Member
Thread Starter

Join Date: Jul 2008
Location: Kalispell, MT
Posts: 8
The scan gauge is neat, but I agree with omega. How can it monitor the tranny? I don't believe there is a tranny temp sensor on the tranny now, but then I realy don't know. If it will work I might go that rought. How did you mount the screen?

Roach, I realy like what you have done. I have a similar set up in my supper duty and like it. Where did you get the A-pillar pod, gauges and such?

Thanks all
Peter
Reply With Quote
  #10
Old 08-09-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by Roach2004 View Post
Here is another idea:


Where did you mount the sending unit? electric or mechanical gauge? pics of the sender?

Thanks
Reply With Quote
  #11
Old 08-09-2008
Yessick's Avatar
Member

Join Date: Apr 2008
Location: mobile,Alabama
Posts: 842
ya can someone explain hot it reads the tranny temp? cuz im looking into ordering one of these myself
Reply With Quote
  #12
Old 08-10-2008
madman4049's Avatar
Member

Join Date: May 2007
Location: Surprise AZ
Posts: 351
Quote:
Originally Posted by Yessick View Post
ya can someone explain hot it reads the tranny temp? cuz im looking into ordering one of these myself
X2 on that one. I was wondering the same thing.
Reply With Quote
  #13
Old 08-10-2008
redranger_02's Avatar
Member

Join Date: Oct 2006
Location: Evansville, Indiana
Posts: 641
it reads it from the ecu. the truck already monitors it, it just doesnt show it anywhere.
Reply With Quote
  #14
Old 08-10-2008
OmegaRanger's Avatar
Member

Join Date: Mar 2007
Location: NH
Posts: 190
Quote:
Originally Posted by redranger_02 View Post
it reads it from the ecu. the truck already monitors it, it just doesnt show it anywhere.
that makes sense. But im guessing you can't calibrate your speedo with a scangauge can u? If u can im getting otherwise, if I bought that every single number would be way off correct?
Reply With Quote
  #15
Old 08-10-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
I have a trans temp gauge too. It's electrical, there is a perfect spot for it on the left side of the transmission. there is a bolt that does nothing...you unscrew that and screw in the sender...vioala...you have a trans temp reading!

IMO, oil pressure and trans temp are the two most important specs on the truck. If you heat the transmission too much, it will be a paperweight. and if you run the motor with too little oil pressure...goodnight!!!
Reply With Quote
  #16
Old 08-10-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by jrpro130 View Post
I have a trans temp gauge too. It's electrical, there is a perfect spot for it on the left side of the transmission. there is a bolt that does nothing...you unscrew that and screw in the sender...vioala...you have a trans temp reading!

IMO, oil pressure and trans temp are the two most important specs on the truck. If you heat the transmission too much, it will be a paperweight. and if you run the motor with too little oil pressure...goodnight!!!
Are you running a 5R55E? Any pictures of this 'unused' bolt location? Where does the sender pick up the temperature from? Just a random place inside the trans? I've considered just pulling my pan and taking it to get a bung welded in.
Reply With Quote
  #17
Old 08-10-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Really considering picking up one of these off eBay, brand new for $30


and running a F150 steering column gauge pod. I'll probably do it fairly soon.
Reply With Quote
  #18
Old 08-10-2008
Roach2004's Avatar
RF Veteran
iTrader: (3)

Join Date: May 2005
Location: Houston, TX
Posts: 8,320
Quote:
Originally Posted by jrpro130 View Post
I have a trans temp gauge too. It's electrical, there is a perfect spot for it on the left side of the transmission. there is a bolt that does nothing...you unscrew that and screw in the sender...vioala...you have a trans temp reading!

IMO, oil pressure and trans temp are the two most important specs on the truck. If you heat the transmission too much, it will be a paperweight. and if you run the motor with too little oil pressure...goodnight!!!
X2
Reply With Quote
  #19
Old 08-10-2008
Goodysgotacuda's Avatar
Member
iTrader: (1)

Join Date: Jul 2008
Location: Las Vegas, NV
Posts: 1,496
Quote:
Originally Posted by jrpro130 View Post
I have a trans temp gauge too. It's electrical, there is a perfect spot for it on the left side of the transmission. there is a bolt that does nothing...you unscrew that and screw in the sender...vioala...you have a trans temp reading!

IMO, oil pressure and trans temp are the two most important specs on the truck. If you heat the transmission too much, it will be a paperweight. and if you run the motor with too little oil pressure...goodnight!!!

+1 I couldn't stand the factory gauges in my car, while I don't have a trans temp. I do have a killer cooler setup with one big fin cooler, a smaller plate type cooler with an electric fan on it, also a +2 quart pan. Not quite feeling the necessity for the oil psi in my Ranger just yet, I may go that route one day.



Autometer, speedo, tach, volt, temp, oil psi, fuel level, and a fuel psi on the windsheild base.
Reply With Quote
  #20
Old 08-11-2008
Member
Thread Starter

Join Date: Jul 2008
Location: Kalispell, MT
Posts: 8
For those who have used the scan gauge, where did you mount the screen. Doesn't seem to be an obvious location on the dash of my 98.
Reply With Quote
  #21
Old 08-11-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
I will take pictures of mine. it's too easy. The oil pressure is very difficuilt though, just hard to get your hands in there!
Reply With Quote
  #22
Old 08-11-2008
jrpro130's Avatar
RF Veteran
iTrader: (1)

Join Date: Sep 2005
Location: Florida
Posts: 5,057
Actually

http://fordtruckworld.tenmagazines.c...OAF/666362.jpg

Thats ont he left side of the transmission. I believe it's a "check" bolt.
Reply With Quote
  #23
Old 08-18-2008
Jmhm17's Avatar
Member

Join Date: Oct 2007
Location: Worcester, MA
Posts: 534
where dose the oil sender go? or can you use the stock one.. if so wheres the stock sender?
also roach where did you get the pod from?
Reply With Quote
  #24
Old 08-18-2008
graniteguy's Avatar
Member
iTrader: (3)

Join Date: Jul 2005
Location: Texas
Posts: 3,221
Quote:
Originally Posted by PeterB View Post
For those who have used the scan gauge, where did you mount the screen. Doesn't seem to be an obvious location on the dash of my 98.
I just mounted mine with a kit that puts it over/under the mirror:

Reply With Quote
  #25
Old 08-18-2008
seminaryranger's Avatar
Member

Join Date: Apr 2006
Location: Ganado, TX
Posts: 356
Quote:
Originally Posted by PeterB View Post
For those who have used the scan gauge, where did you mount the screen. Doesn't seem to be an obvious location on the dash of my 98.

I actually did a little cutting and made mine fit under my aftermarket CD player. It fit perfectly!

009.jpg?t=1219108592

The lower left guage is the transmission fluid reading.
Reply With Quote
