Cb antenna with tonneau cover

Ok, I cant remember where I saw it in the past but someone had fabbed up some brackets so they could mount the cb antennas with their tonneau cover. I want to put my dual sticks up. I know it may hurt the distance of the cb but I want the dual look. I want to mount them up near the cab, not back by the tailgate. Thanks for anyone who can help. I tried searching and I could not find what I was looking for.
Reply With Quote
  #2
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Reply With Quote
  #3
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ya but I want my antennas up against the cab. Not a fan of the antenna mounted like that and to me the only look good on a rig with a topper on it.
Reply With Quote
  #4
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
My bad, I stopped reading about 1/2 way through for some reason...
Reply With Quote
  #5
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Just remembered what I had on my toolbox.
Name:  100_2767.jpg
Views: 187
Size:  81.7 KB

It's half of a mount to go on a mirror, but you can mount this piece to the bed rail then ground it.
Reply With Quote
  #6
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Quote:
Originally Posted by Trigger01 View Post
My bad, I stopped reading about 1/2 way through for some reason...
Dont worry, I do the same thing.

The only problem is that I can't mount it directly to the rail because the tonneau cover railing goes over the Ranger's rail.
Reply With Quote
  #7
Old 04-11-2009
Member
iTrader: (3)

Join Date: Nov 2007
Location: Ridgecrest, CA
Posts: 52
When I had a CB on my truck I had the Firestick stakehole mount model SS-194.
Reply With Quote
  #8
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by robert99ranger View Post
Dont worry, I do the same thing.

The only problem is that I can't mount it directly to the rail because the tonneau cover railing goes over the Ranger's rail.
Hang on. I know what you need now... off to find pictures!
Reply With Quote
  #9
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
What did you have Shea? I just see a page of different lengths of sticks.
Reply With Quote
  #10
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
This is RedneckStone's truck:
Name:  clean04-02-09010.jpg
Views: 25
Size:  118.3 KB
Name:  clean04-02-09029.jpg
Views: 31
Size:  59.4 KB

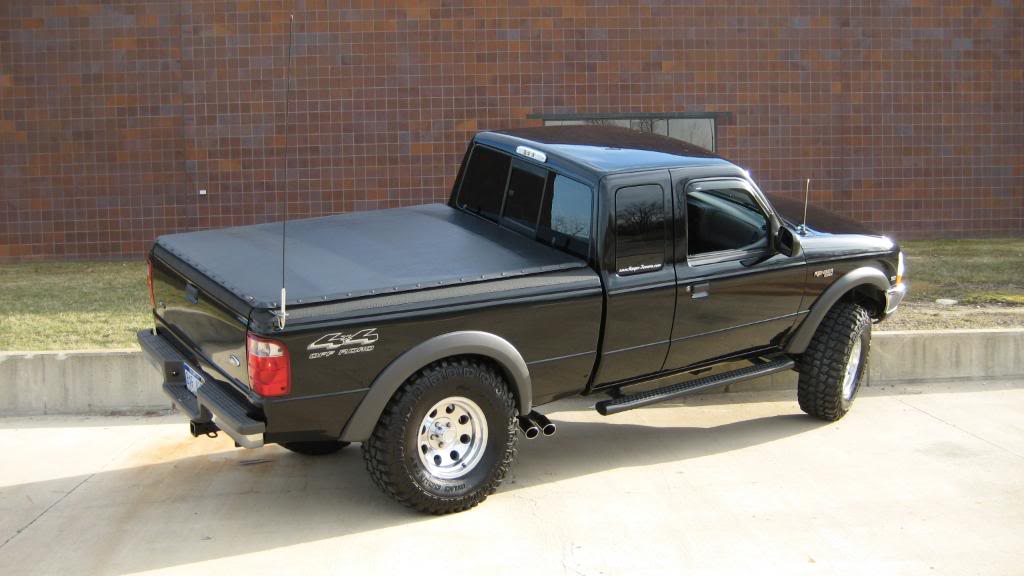

Name:  clean04-02-09030.jpg
Views: 47
Size:  70.1 KB
Reply With Quote
  #11
Old 04-11-2009
Member
iTrader: (3)

Join Date: Nov 2007
Location: Ridgecrest, CA
Posts: 52
This is how i had it set up.
Reply With Quote
  #12
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Thanks Mike. I thought Zach had something like that.

The next thing is that the flareside bed has some plastic bed caps mounted on the rails. Think I could just cut a little notch out up front to mount that plate? I would have to make something since I dont have stake holes. Will it be grounded good enough with that?

Another just cb related question. The Wilson antenna I bought for the cb had to me trimmed alittle to tune it right for the cb. How does that work with the sold sticks if there is nothing to cut off?
Reply With Quote
  #13
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Thanks Shea for the pic.

I got brackets that originally came with the sticks so I will just take the little mounting thing that you turn the stick into off and just mount it to a piece of metal stock.
Reply With Quote
  #14
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
You will need to ground it to metal somewhere, maybe inside the bed. You should just be able to screw the bracket into the bedrail.
Reply With Quote
  #15
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Thats what I figure. When I go out this evening to get a turn down for my muffler, I will pick up some metal stock to use.

What thickness do you think I should pick up?
Reply With Quote
  #16
Old 04-11-2009
Member

Join Date: Oct 2004
Location: ***
Posts: 2,099
This is how I used to roll before I got an Alon mount

Stainless brackets I bought at a cb shop



Reply With Quote
  #17
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
Quote:
Originally Posted by robert99ranger View Post
Thats what I figure. When I go out this evening to get a turn down for my muffler, I will pick up some metal stock to use.

What thickness do you think I should pick up?
It won't need to be very think, just strong enough not to bed with the weight of the antenna or the antenna blowing and wobbling while going down the road at 80mph.
Reply With Quote
  #18
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
I got some 3/16 stock so that should be plenty strong.

How are yall running your wires up into the cab? I think I read something about threw the cab bolt hole pockets or something?
Reply With Quote
  #19
Old 04-11-2009
Trigger01's Avatar
RF Veteran
iTrader: (2)

Join Date: Oct 2005
Location: Knoxville, TN
Posts: 18,788
I ran them under the carpet along the back trim, under the weather seal and out the door.
Reply With Quote
  #20
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Ok, I made some progress. I do not know what color to paint the bracket yet though. Torreador red or black?

Here is the bracket on the truck
Name:  IMG_3532.jpg
Views: 57
Size:  58.1 KB

Here is what the finish product will hopefully look like
Reply With Quote
  #21
Old 04-11-2009
Jimmeh's Avatar
Member
iTrader: (1)

Join Date: Dec 2007
Location: Columbia Falls, MT
Posts: 3,224
I like Eric's setup the best. But his truck is also one of my site favorites, lol.
Reply With Quote
  #22
Old 04-11-2009
robert99ranger's Avatar
RF Veteran
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Well dont worry. Dumb me found out that where I wanted to mount them is all fiberglass and will not be able to support the sticks. Stupid *** fiberglass. Well, guess it is back to the drawing board.
Reply With Quote
  #23
Old 04-13-2009
dirtybird819's Avatar
Member
iTrader: (1)

Join Date: Jun 2008
Location: newark, oh
Posts: 448
mount it like i did! i left it so when i get a snug or a tonnue cover i can run a peice of flat stock out the side like in your last 2 pics

Name:  100_2610.jpg
Views: 24
Size:  76.1 KB

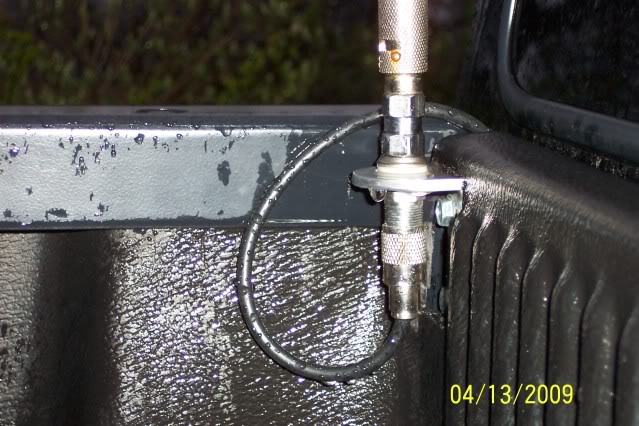

Name:  100_2612.jpg
Views: 22
Size:  72.2 KB
Name:  100_2613.jpg
Views: 28
Size:  50.9 KB
Name:  100_2614.jpg
Views: 22
Size:  35.2 KB
Name:  100_2518-1.jpg
Views: 23
Size:  55.6 KB
Name:  100_2537.jpg
Views: 23
Size:  14.0 KB
Name:  100_2541.jpg
Views: 22
Size:  11.5 KB
Name:  100_2609.jpg
Views: 23
Size:  69.6 KB
Reply With Quote
  #24
Old 04-13-2009
4x4RangerOffroad's Avatar
Member
iTrader: (1)

Join Date: Jan 2009
Location: Barrington, NH
Posts: 434
Do any of you run spring mounts?????......I have ripped off a 2 antennas so far with out it, I now have the spring and its all good...
