New Truck Rack

Just added a new truck rack to my 2011 Ranger Sport and wanted to share a picture.

Constructed of 6061 Aluminum Schedule 40 pipe it weighs on 40 lbs and has a capacity of 1200 lbs

Great addition to the functionality of the truck.
Attached Thumbnails
New Truck Rack-user34044_pic13558_1334443134.jpg   New Truck Rack-user34044_pic13559_1334443134.jpg   New Truck Rack-user34044_pic13560_1334443341.jpg
Reply With Quote
  #2
Old 04-18-2012
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Looks good!
Reply With Quote
  #3
Old 04-19-2012
fibermike's Avatar
Member

Join Date: Apr 2012
Location: gardena ca
Posts: 58
Very well done. What are you going to cover it with?
Reply With Quote
  #4
Old 04-19-2012
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Am I going to cover it?

I was toying with the idea of a 1/4 inch Aluminum diamond tread load deck with stainless tie downs, probably will stay within the 32 inch width of the top maybe a rolled edge lip lenghtwise.

Paul
Reply With Quote
  #5
Old 04-19-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
you could do a canvas cover. or use the sunbrella material or something. That would be pretty cool, lightweight, strong. Could have it removable, in sections, for putting larger things in the bed, camping, etc. or maybe just do the sides cloth, and a deck on top?

how did you get the 1200 lb rating?
Reply With Quote
  #6
Old 04-19-2012
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74

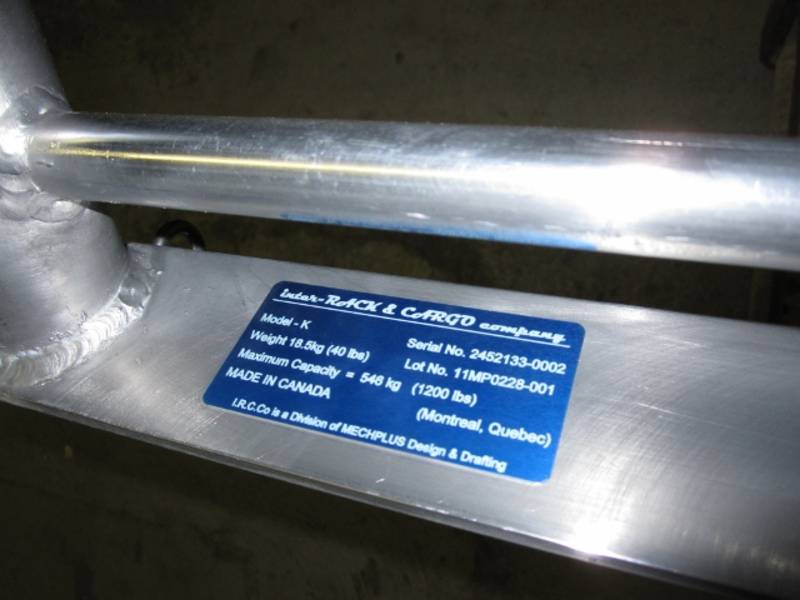

The rack was bought from a mechanical engineer and draftsman who does them as a side business. The larger tubes 1.5 inch sched 40 pipe and are mandrel bent and the smaller tubes are .5 inch and are one piece that run the full lenght of the rack. This process he explained to me provides some of the strength. I am not sure how he calculates the weight capacity but here is the tag on the rack.
Attached Thumbnails
New Truck Rack-1494hd2_20.jpeg
Reply With Quote
  #7
Old 04-19-2012
SteelDirigible's Avatar
Member
iTrader: (4)

Join Date: May 2010
Location: Lexington, KY
Posts: 3,666
oh cool thought it might've been a home made deal.
Reply With Quote
  #8
Old 04-20-2012
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Wish I had the skills to make the rack, I am an electrician, welding is something I would like to learn. It was very reasonably priced and when I compared it to commercial racks such as Thule and Tracrac and Kargomaster this rack was the clear winner when I mapped out what I wanted for the truck. Buying local is always good as well =)
Reply With Quote
  #9
Old 05-06-2012
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Mounted Truck Box this weekend

Cut the lower bar and had a local machinist make some threaded caps to tie the toolbox to the rack.Turned out nice and clean looking.
Attached Thumbnails
New Truck Rack-100_0749.jpg   New Truck Rack-100_0754.jpg   New Truck Rack-100_0751.jpg   New Truck Rack-100_0753.jpg   New Truck Rack-100_0755.jpg

Reply With Quote
  #10
Old 05-06-2012
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Nice!
Reply With Quote
  #11
Old 08-24-2012
Member

Join Date: Aug 2012
Location: Amarillo, Texas
Posts: 8
This sporty truck is perfect for a sports buff like me. I would love to own one. Good choice man! Makes me so jealous! I find your Ford Ranger Sport so stylish and tough. As for the truck rack all I can say is that it's nicely done. I can't believe it's locally done.

Last edited by kobyb; 08-26-2012 at 12:31 AM.
Reply With Quote
  #12
Old 08-25-2012
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,780
Rack is nice, looks good, covering sounds great.
Reply With Quote
  #13
Old 05-01-2013
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
Travelling back to British Columbia this month snapped this picture of the aluminum deck from the hotel room

Attached Thumbnails
New Truck Rack-aluminum-deck.jpg

Last edited by pafenton; 05-05-2013 at 08:59 PM.
Reply With Quote
  #14
Old 05-05-2013
Jake9488's Avatar
Member

Join Date: Jan 2012
Location: California
Posts: 116
Hey thats new!...looking good
Reply With Quote
  #15
Old 01-01-2014
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74

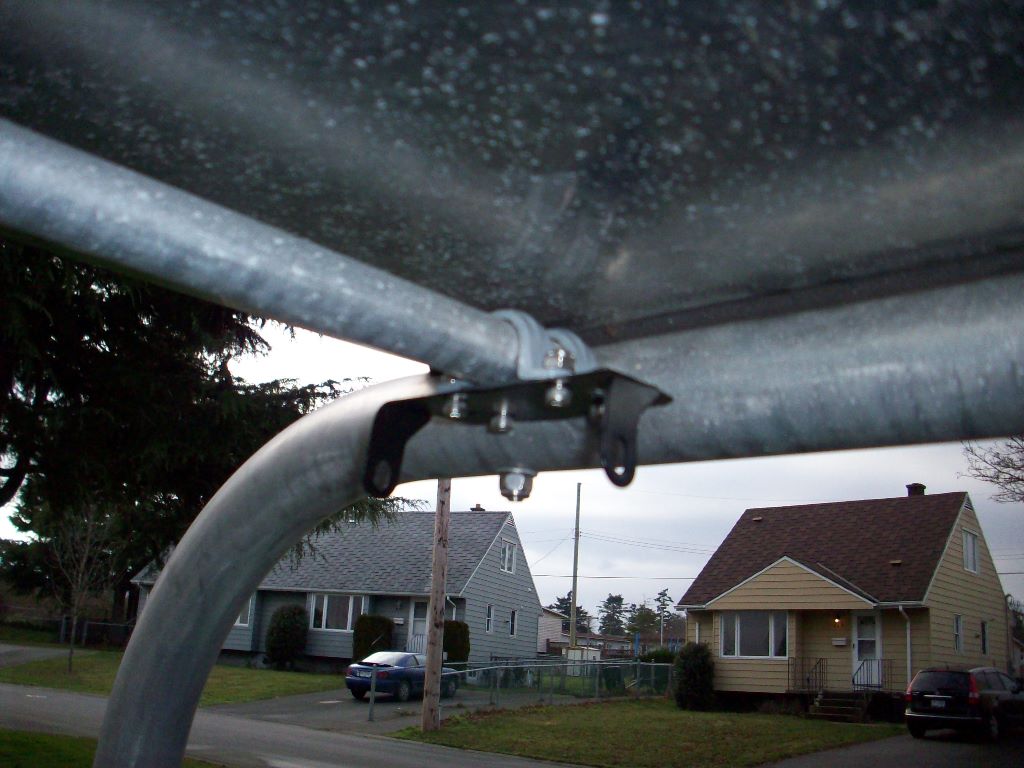

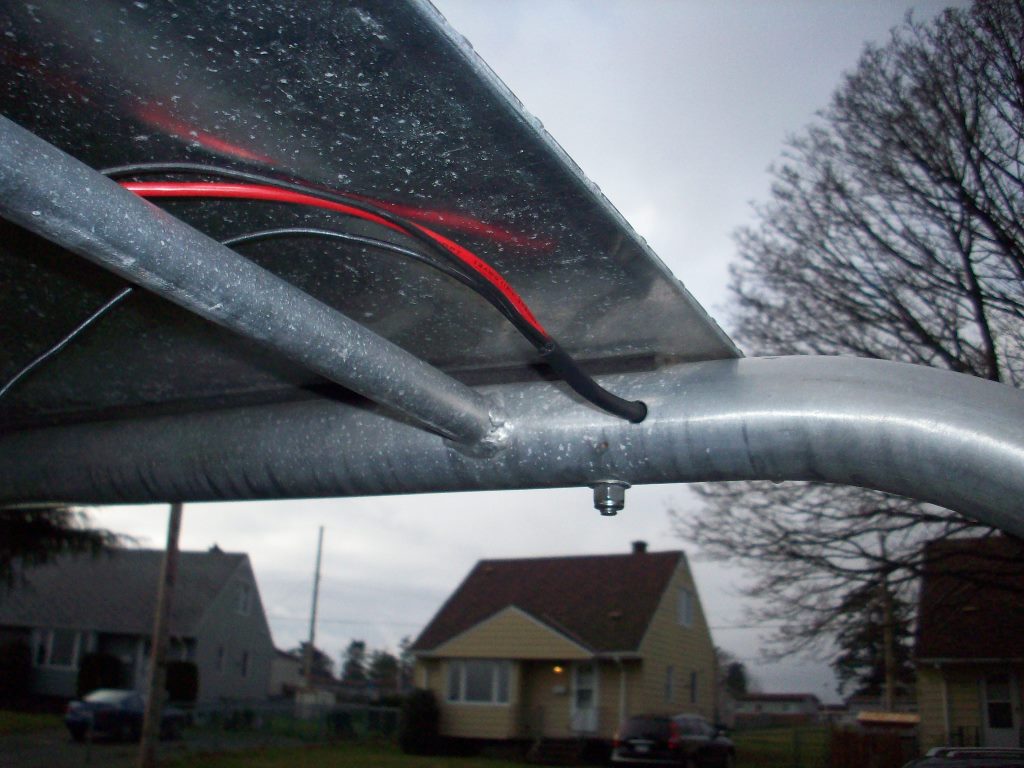

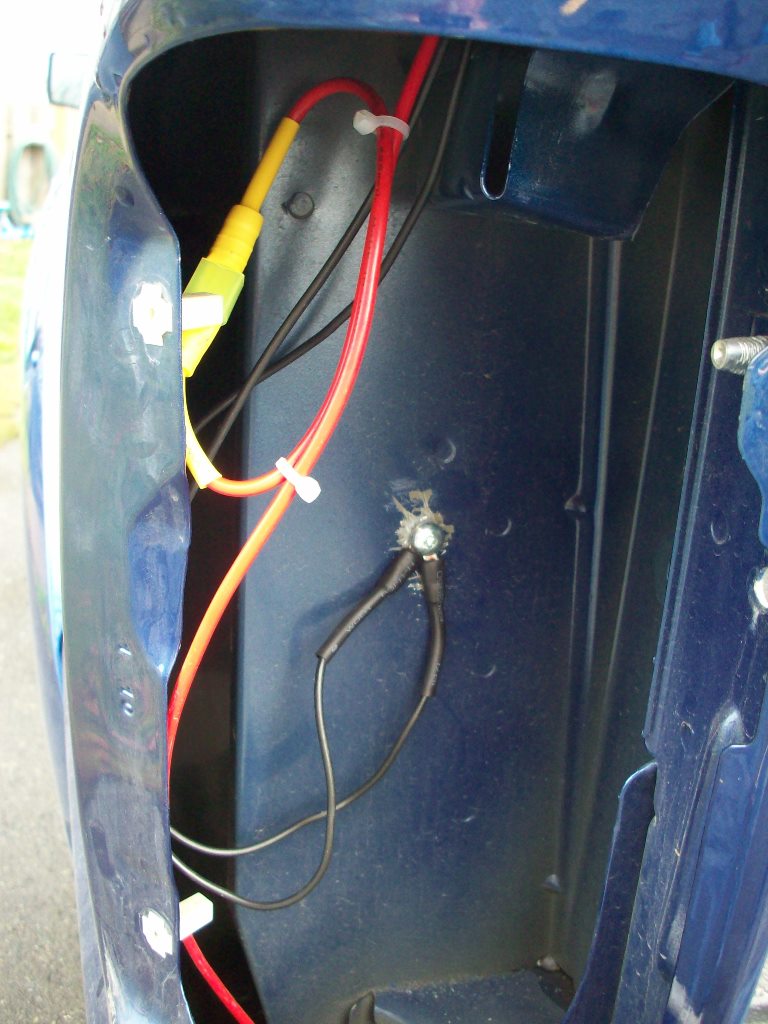

Added Work Lights to the Rack New Years Eve

So I finally got the Bully Lights I wanted for Christmas and set to work adding my Work Lights and Auxiliary Reverse Lights. Although they are not automatic with reverse a quick flip of the switch provides plenty of light to supplement the Reverse Lights.









Attached Thumbnails
New Truck Rack-100_1628.jpg   New Truck Rack-100_1629.jpg   New Truck Rack-100_1632.jpg   New Truck Rack-100_1636.jpg   New Truck Rack-100_1654.jpg

Reply With Quote
  #16
Old 01-01-2014
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74

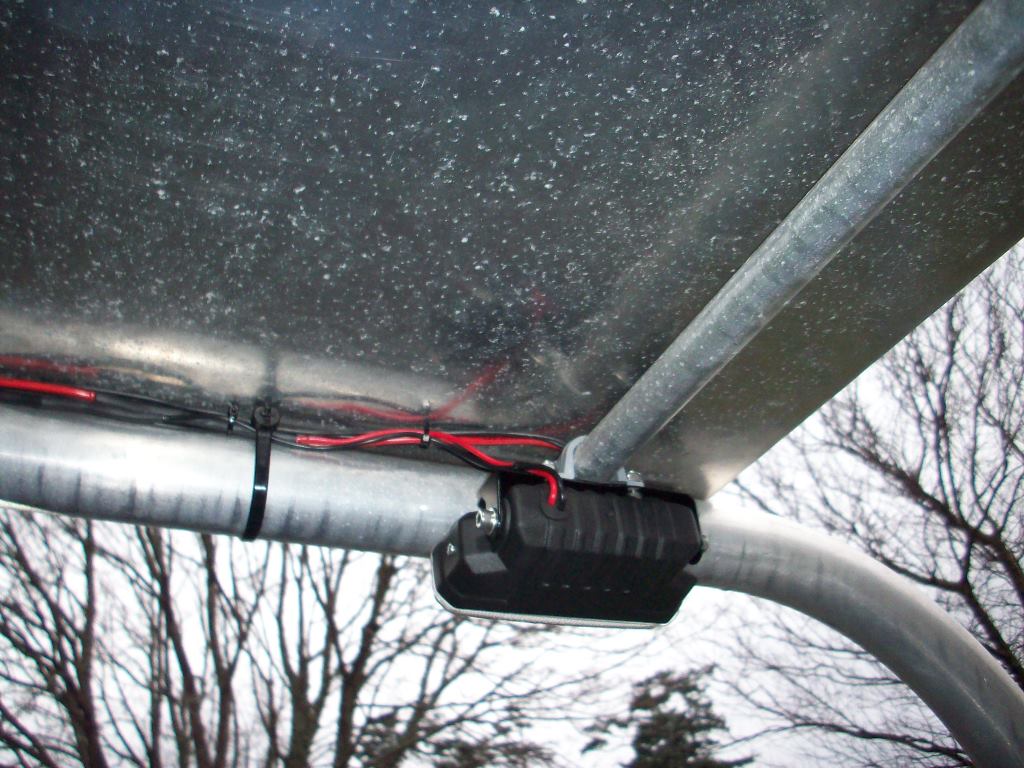

Added Work Lights to the Rack New Years Eve Pt II

More of the install...

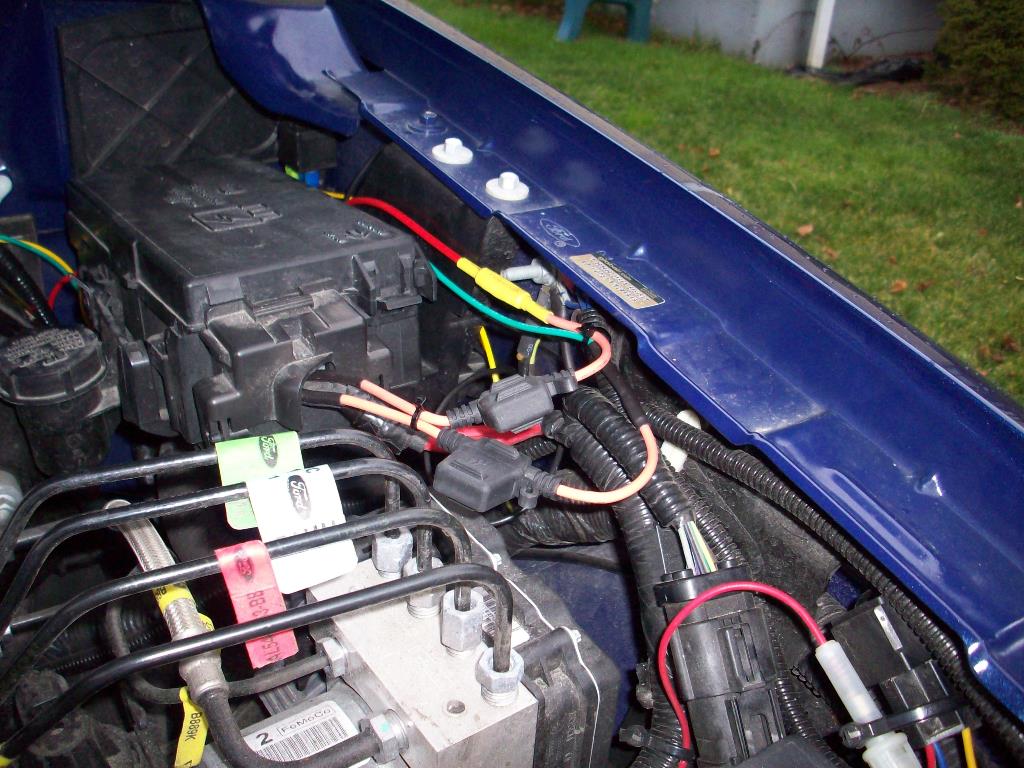

Relay is tucked up near the firewall behind the fuse box

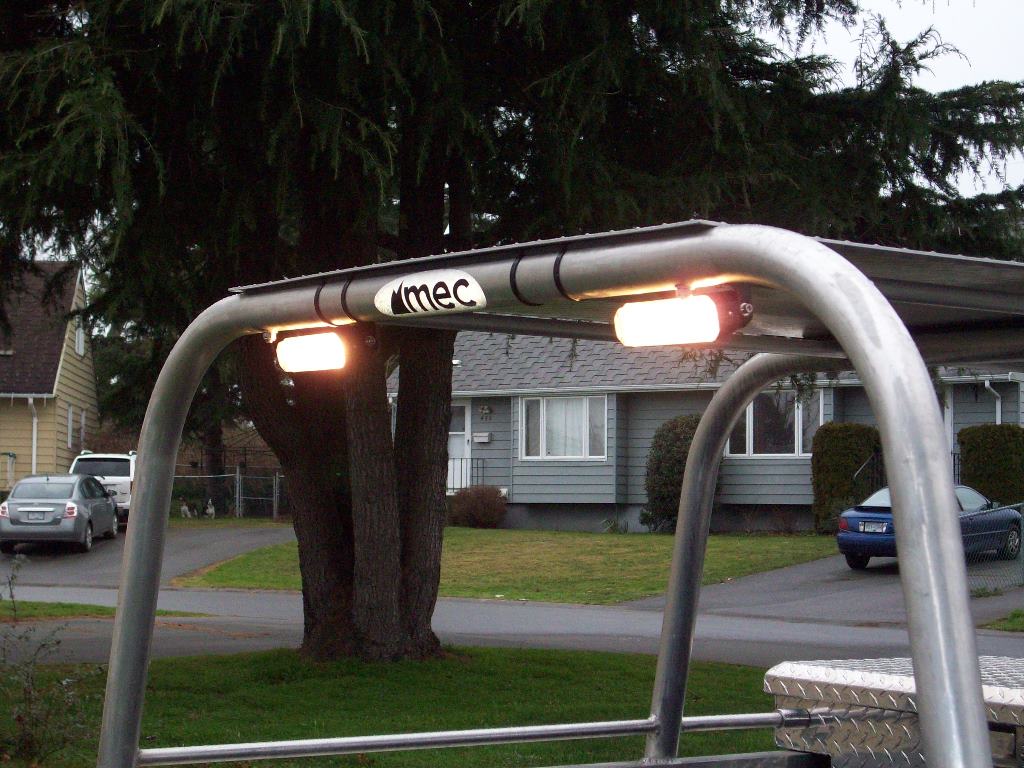

All lit up not full dark but an overcast day more dark pictures soon

Attached Thumbnails
New Truck Rack-100_1641.jpg   New Truck Rack-100_1642.jpg   New Truck Rack-100_1644.jpg   New Truck Rack-100_1647.jpg   New Truck Rack-100_1652.jpg

Reply With Quote
  #17
Old 01-07-2014
Jake9488's Avatar
Member

Join Date: Jan 2012
Location: California
Posts: 116
Are you just gonna stick with reverse lights or are you going to add side facing lights as well?
Either way it looks clean, Very cool.
Reply With Quote
  #18
Old 01-07-2014
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
I was smart this time when I ran the wiring and pre wired the engine bay to cab so I don't have to do that next project. I have thought about side lights and I have one free switch in the cab. I have been thinking about an ARB Awning and may put lights under the the deck for that or side lights at the front end of the rack pointing out at 45 degrees facing forward for lighting up the edges of the road or trail. I will probably use the same lights as they are good quality and low profile and not too expensive.
Reply With Quote
  #19
Old 01-07-2014
32vsnake's Avatar
Member

Join Date: Mar 2008
Location: Victoria, BC
Posts: 114
Rack looks good. Building something similiar myself
Reply With Quote
  #20
Old 01-07-2014
pafenton's Avatar
Member
Thread Starter

Join Date: Jun 2011
Location: Sooke, BC
Posts: 74
32vsnake tried to PM you don't know if it worked

If you want detailed info on my rack PM me

Last edited by pafenton; 01-07-2014 at 05:03 PM.
