  #51
Old 02-14-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Icon2 UPDATE

Look what showed up today.... probably NOT 56k friendly

Receiver tube:









I got the 18" long receiver tube so I can cut it up for a future front receiver.
The metal is 1/4" thick... I was worried the HF stuff would be 3/16" or less.
Reply With Quote
  #52
Old 02-14-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Icon2 UPDATE 2

More....
D-ring shackle:












The D shackle is 5/8" diameter & the bolt is 3/4" diameter. Much heavier than I was expecting (1/2").
The bolt IS removable too. It's a little snug, but it's nothing a junk screwdriver through the hole (for extra leverage) can't fix.

The tabs are parallel to each other, but they look to be a couple degrees off the back part of the tube.
Reply With Quote
  #53
Old 02-14-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Icon2 UPDATE 3

Tow Hook:









Not bad for HF.
Now, if I can just get around to getting all this stuff cut & welded....
Reply With Quote
  #54
Old 02-14-2009
monkeysteeler12's Avatar
Member

Join Date: Nov 2008
Location: vienna va
Posts: 663
nice.
Reply With Quote
  #55
Old 02-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
get some shackles that are worth a damn please, some that say WLL on the side for starters.. those just scream weak, no offense but when one comes shooting through your back window your gonna wish you had spent a little more money..

edited, its WLL not WTT my bad.

Last edited by 99ranger4x4; 02-15-2009 at 01:55 AM.
Reply With Quote
  #56
Old 02-15-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
HOLY GOD I wouldnt touch that damn shackle if my life depended on it... whats that pin 1/2" if your lucky!!! and not solid steel just plated UM NO.. return that puppy now...

personally i would use the hook either but thats me...
Reply With Quote
  #57
Old 02-15-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 99ranger4x4 View Post
get some shackles that are worth a damn please, some that say WTT on the side for starters.. those just scream weak, no offense but when one comes shooting through your back window your gonna wish you had spent a little more money..
Quote:
Originally Posted by Redneckstone View Post
HOLY GOD I wouldnt touch that damn shackle if my life depended on it... whats that pin 1/2" if your lucky!!! and not solid steel just plated UM NO.. return that puppy now...

personally i would use the hook either but thats me...
EXACTLY!!! I said this on page 1 many moons ago.

7/8" bad *** $30 ea shackle inserts from etrailer FTW!...the entire insert itsself is solid steel..heavy bastard.

Reply With Quote
  #58
Old 02-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
hell i paid like 11 for mine, I'm getting 2 more next weekend for $25 total..


I thought about getting the receiver tube at HF as well, but it looks really thin.. Idk its just a personal opinion, but I want my frame to rip off before the receiver or clevis lets go :*shrugs*


I'm not trying to rag on ya, or be "the *****" here..

here's a quick google search for ya.

http://www.shrockworks.com/3-4-Clevi...-pr-16149.html
http://www.northerntool.com/webapp/w...2797_200322797

Last edited by 99ranger4x4; 02-15-2009 at 01:55 AM.
Reply With Quote
  #59
Old 02-15-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936

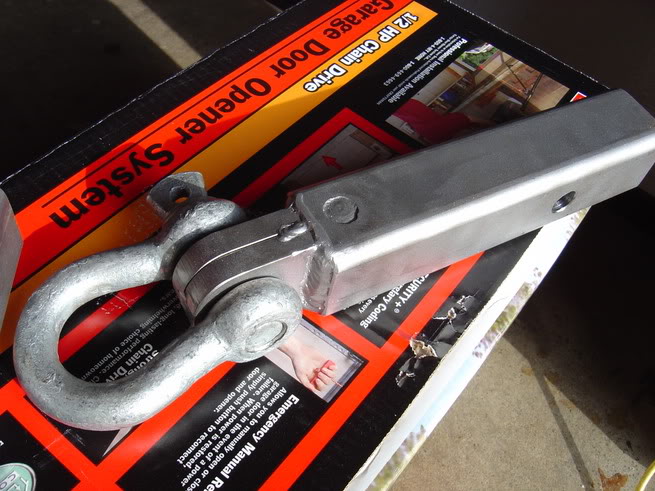

here is my Shackle, this is my SMALL by my standards 7/8" pin. I have one just like it thats 1". ok construction on this. 2" tube 2 SOLID plates machined down to slide 2" in. then machined down so there is NO wobble room between the shackle. then welded blunt and also as you can see Puddle welded from the inside out threw 4 holes drilled in the 2" tube (4 puddle holes on the 1", 2 on the 7/8")


Gonna take ALOT of force to even come to braking these


Name:  DSC02193.jpg
Views: 10
Size:  79.7 KB
Reply With Quote
  #60
Old 02-15-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by Redneckstone View Post
HOLY GOD I wouldnt touch that damn shackle if my life depended on it... whats that pin 1/2" if your lucky!!! and not solid steel just plated UM NO.. return that puppy now...

personally i would use the hook either but thats me...
The pin/bolt is 3/4" diameter, the shackle is 5/8" diameter.

I understand you guys use ultra super heavy duty stuff, but you guys are 99.99% more likely to NEED something that HD than I'll ever encounter.
I don't off-road or anything like that, I just want something to hook a strap to in case I get stuck in a bit of snow or some mud in the yard.
I'll NEVER be axle deep in a swamp or up to the doors in muck.

There's more chance in me winning $500mil the lottery than ever actually use the shackle or hook.
Reply With Quote
  #61
Old 02-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
and you will NEVER be recovering someone else?

how much did you pay for those d-shackles?
the ones i posted are hardly "ultra super heavy duty stuff" they make them for cranes too and they are much bigger

Its $16 for something better..
to each his own, I'm gonna stop trying.
Reply With Quote
  #62
Old 02-15-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by 99ranger4x4 View Post
hell i paid like 11 for mine, I'm getting 2 more next weekend for $25 total..


I thought about getting the receiver tube at HF as well, but it looks really thin.. Idk its just a personal opinion, but I want my frame to rip off before the receiver or clevis lets go :*shrugs*


I'm not trying to rag on ya, or be "the *****" here..

here's a quick google search for ya.

http://www.shrockworks.com/3-4-Clevi...-pr-16149.html
http://www.northerntool.com/webapp/w...2797_200322797
I was leery about the receiver tube too, but luckily it's 1/4" thick.

Worst case use for me would be if I get a small trailer to haul a mower or if I slide off the driveway & can't get out of the yard in 4wd & need a little tug.
Reply With Quote
  #63
Old 02-15-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Quote:
Originally Posted by 99ranger4x4 View Post
and you will NEVER be recovering someone else?

how much did you pay for those d-shackles?
the ones i posted are hardly "ultra super heavy duty stuff" they make them for cranes too and they are much bigger

Its $16 for something better..
to each his own, I'm gonna stop trying.
No recovery help for anyone else.... unless I need to pull our lawn mower out of the yard.
I can't afford to get sued if something goes wrong.

The shackle was like $10.
I know it won't handle heavy use, but the closest I get to off-roading is when I have to drive in the grass because somebody has the driveway blocked.

I do appreciate all the info & opinions from everyone... good or bad.
Reply With Quote
  #64
Old 02-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
1/4" where its over lapped?
Reply With Quote
  #65
Old 02-15-2009
boborone's Avatar
Member

Join Date: Feb 2009
Location: Grand Prairie, Tx
Posts: 51
My dad and me used to pull full size trucks and even one tons and all kinds of other stuff, trees, stumps, barns, ect, with his logging chains. After about 30 years of use one of em finally stretched, yes, stretched. We were using the backhoe to haul some piping in the field. I would trust one of those chains over any strap. I've got one of em in the cab of my truck. Not sure what they are made of or how they are made, but they ain't like normal chain.
Reply With Quote
  #66
Old 02-15-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
they're good for pulling, hauling, lifting etc.. but when it comes to YANKING to recover someone.. (you know getting a running start...) you do NOT want a chain..
Reply With Quote
  #67
Old 02-15-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
It's 1/4" thick walls, 1/2" thick on the front edge where it's doubled over.

I figured it would be 3/16" thick walls, but it was the same size as the 12" long one at Tractor Supply (even took my tape measure with me).
Reply With Quote
  #68
Old 02-15-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
i trust my hook way more...

i dont like how urs is a tube, then a hook welded on.

my whole hook is well, tthe hook lol

if my hook breaks, well my truck must be ballsy.
Reply With Quote
  #69
Old 02-16-2009
boborone's Avatar
Member

Join Date: Feb 2009
Location: Grand Prairie, Tx
Posts: 51
Quote:
Originally Posted by 99ranger4x4 View Post
they're good for pulling, hauling, lifting etc.. but when it comes to YANKING to recover someone.. (you know getting a running start...) you do NOT want a chain..
i see the difference now

but doesn't yanking on someone diamond their frame? I know when a wrecker pulls a truck (rig) out of the ditch while only hooked to one hook on the truck, he diamonds it. It's up to the driver to catch him doing it and stop him. When yall do "recover" someone by yanking on them, do you hitch up to them in the middle or on one of their points? Cause you need to do it on both if they have hooks, and the middle if not.

btw, I'm not trying to start a pissing contest like earlier in the thread

Last edited by boborone; 02-16-2009 at 07:02 PM.
Reply With Quote
  #70
Old 02-17-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
if i can go to the middle like a receiver i do.. if not then w/e, its not my truck

But I've pulled and been pulled from every corner of my truck.
Reply With Quote
  #71
Old 02-17-2009
monkeysteeler12's Avatar
Member

Join Date: Nov 2008
Location: vienna va
Posts: 663
ive allways been scared about messing up my frame.
Reply With Quote
  #72
Old 02-17-2009
DrkZide's Avatar
Member

Join Date: Jan 2009
Location: A NM
Posts: 41
So you mean I shouldn't do this anymore? :P



So here's a question, I live in Albuquerque about to move to Denver. If I have a recovery line for lets say getting normal vehicles unstuck from snow and ice or w/e. How would I hook them up seeing as they don't have a hitch with the proper shackles or hooks?

What do you guys suggest carrying around for "emergencies"? Tow rope/strap, logging chain, tree saver, recovery rope/strap and a ****** rope/strap all along with my winch?

I keep seeing these lines with loops and no hooks and I'm confused as to how the hell do you hook those up?
Reply With Quote
  #73
Old 02-17-2009
monkeysteeler12's Avatar
Member

Join Date: Nov 2008
Location: vienna va
Posts: 663
thats a crazy picture....up a car with nor visible tow point. not a truck, a car.

ad X2^

how do you hook
Reply With Quote
  #74
Old 02-17-2009
buggman's Avatar
Member
Thread Starter
iTrader: (38)

Join Date: Apr 2007
Location: Dougal County
Posts: 1,648
Slightly off topic, but I was watching American Choppers last night & Paul Sr had a bobcat stuck in the mud.
He drove up to it with a backhoe & hooked up a chain.
He slid into his pond with the backhoe & had to come back later with a bulldozer to pull out the backhoe & bobcat...with the same chain.
That must have been one [email protected]$$ chain.
Reply With Quote
  #75
Old 02-17-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
Quote:
Originally Posted by DrkZide View Post
So you mean I shouldn't do this anymore? :P


So here's a question, I live in Albuquerque about to move to Denver. If I have a recovery line for lets say getting normal vehicles unstuck from snow and ice or w/e. How would I hook them up seeing as they don't have a hitch with the proper shackles or hooks?

What do you guys suggest carrying around for "emergencies"? Tow rope/strap, logging chain, tree saver, recovery rope/strap and a ****** rope/strap all along with my winch?

I keep seeing these lines with loops and no hooks and I'm confused as to how the hell do you hook those up?
It looks like they wrapped a strap around the roll cage, then connected the 2 ends with a d-shackle and hooked the winch cable to that..
Reply With Quote
