building an arb bumper

im built my mock up out of plywood to get the design right, and im picking up the plate sometime this week.

what would be a good thickness to use? i was thinking 11 gauge for the majority and .250 for the mounts.

and ideas would be cool,
Reply With Quote
  #2
Old 10-05-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
What is an arb bumper?
Reply With Quote
  #3
Old 10-05-2008
98liftedranger's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2008
Location: California
Posts: 12,538
Reply With Quote
  #4
Old 10-05-2008
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Nice
Reply With Quote
  #5
Old 10-05-2008
ColdNapalm's Avatar
Member

Join Date: Sep 2008
Location: Jacksonville, Florida
Posts: 499
well the one in that link looks awesome! no idea how to do it but theirs a guy at my work that does all kinds of metal work i might pay him to make em one :P
Reply With Quote
  #6
Old 10-06-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I'd do at least 1/8" plate...I want to do mine in 1/8".
Reply With Quote
  #7
Old 10-06-2008
Member
Thread Starter

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
i will post a image of my mock up. so far its similar to the custom4x4fab one. now, here is another question, where can i get the parts for the shackles for the front? i want to use the kind that have the pin so i can pop them off...if that makes sense.
Reply With Quote
  #8
Old 10-06-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
get some 1" or 3/4" plate and have someone cut out triangles with holes in them, weld those to the bumper. i'm trying to find pics.
Reply With Quote
  #9
Old 10-06-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Check this link out this is exactly what you want

http://www.rockstomper.com/catalog/r...y/shackles.htm



15 each
Reply With Quote
  #10
Old 10-06-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
I gotta see this!!
Reply With Quote
  #11
Old 10-06-2008
Member
Thread Starter

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
aha, that is exactly what i need.

so here are the mock up shots. the ports that have the stock tow hooks poking through, im most likey goign to abandon that idea, but i wanted to see how it would look. (i determined- not so good, haha)

keep ideas coming, especially on mounting ideas.

Name:  a1.jpg
Views: 253
Size:  62.8 KB

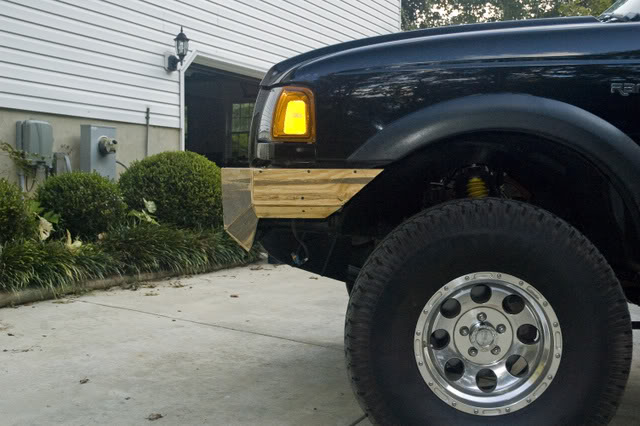

Name:  b2.jpg
Views: 59
Size:  62.0 KB
that lower corner will be plated in to tie it together too.

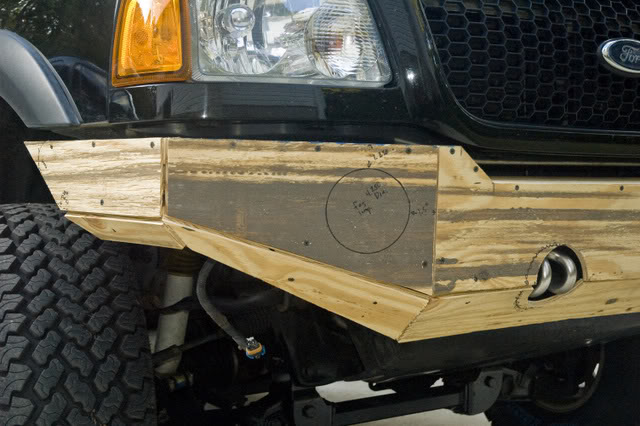

Name:  c3.jpg
Views: 62
Size:  63.1 KB

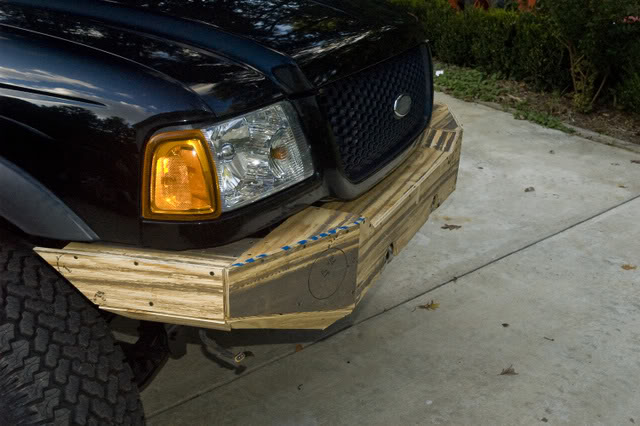

Name:  d4.jpg
Views: 147
Size:  58.7 KB
Reply With Quote
  #12
Old 10-06-2008
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Looks really good so far man. For the shackle mounts I would put them in the same location as your stock tow hooks or in that area.
Reply With Quote
  #13
Old 10-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
soooo


do you wanna build me one?
seriously lol
Reply With Quote
  #14
Old 10-06-2008
Member
Thread Starter

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
thats my thinking. i kinda want to have them tied into the mounting plates, so the pulling force is directly on the mounts/frame vs the bumper.
Reply With Quote
  #15
Old 10-06-2008
Member
Thread Starter

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
lets see how long this one takes. haha
Reply With Quote
  #16
Old 10-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
IF i do a plate bumper thats what I'm probably going to end up with.
Reply With Quote
  #17
Old 10-06-2008
Member
Thread Starter

Join Date: Jul 2007
Location: annapolis, md
Posts: 351
****, when im done i could give you all my measurements and take photos of everything i did to help ya out.
Reply With Quote
  #18
Old 10-06-2008
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
aight, that might help

i just kinda shortened up the frame so some of the measurements will be different
Reply With Quote
  #19
Old 10-06-2008
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Matt Cole....so uh.....you wanna make doubles of your pieces, put 'em on a pallet, and ship 'em to oregon?
Reply With Quote
  #20
Old 10-06-2008
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
this is looking great so far! *subscribed*
Reply With Quote
  #21
Old 10-06-2008
JoshK's Avatar
Member

Join Date: Sep 2006
Location: CC, Indiana
Posts: 3,832
Leave it plywood lol
Reply With Quote
  #22
Old 10-06-2008
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
put the mounting points on the outside of the stock hooks, put a mount for foglights between the stock hooks.
Reply With Quote
  #23
Old 10-06-2008
Ray_Welder's Avatar
Member

Join Date: Jan 2008
Location: Zephyrhills, FLorida
Posts: 1,037
Quote:
Originally Posted by firefighterjosh View Post
Leave it plywood lol
Some paint and some bondo and you wouldnt know the difference!!
Reply With Quote
  #24
Old 10-06-2008
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
looks good so far. just rock the wood. metal is too heavy with gas prices
Reply With Quote
  #25
Old 10-06-2008
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Quote:
Originally Posted by Fx4wannabe01 View Post
Matt Cole....so uh.....you wanna make doubles of your pieces, put 'em on a pallet, and ship 'em to oregon?
x2, but NC instead. lol

That's gonna look great!!
Reply With Quote
