Building traction bars.

My dad and I are building some traction bars for my truck. They are the over leaf style like the James Duff bars. One side is finished and I should have the other side welded up by tonight. We have 100% argon in the welder for when we build intercooler plumbing(aluminium) on my other truck, so it is welding like crap with steel.

Anyway, here are a few blurry pictures:

Name:  IMG_0020.jpg
Views: 59
Size:  129.4 KB
Name:  IMG_0021.jpg
Views: 53
Size:  96.0 KB
Name:  IMG_0022.jpg
Views: 44
Size:  115.2 KB
Name:  IMG_0025.jpg
Views: 42
Size:  125.0 KB
Name:  IMG_0026.jpg
Views: 50
Size:  87.2 KB
Name:  IMG_0027.jpg
Views: 41
Size:  99.3 KB
Name:  IMG_0028.jpg
Views: 39
Size:  81.8 KB

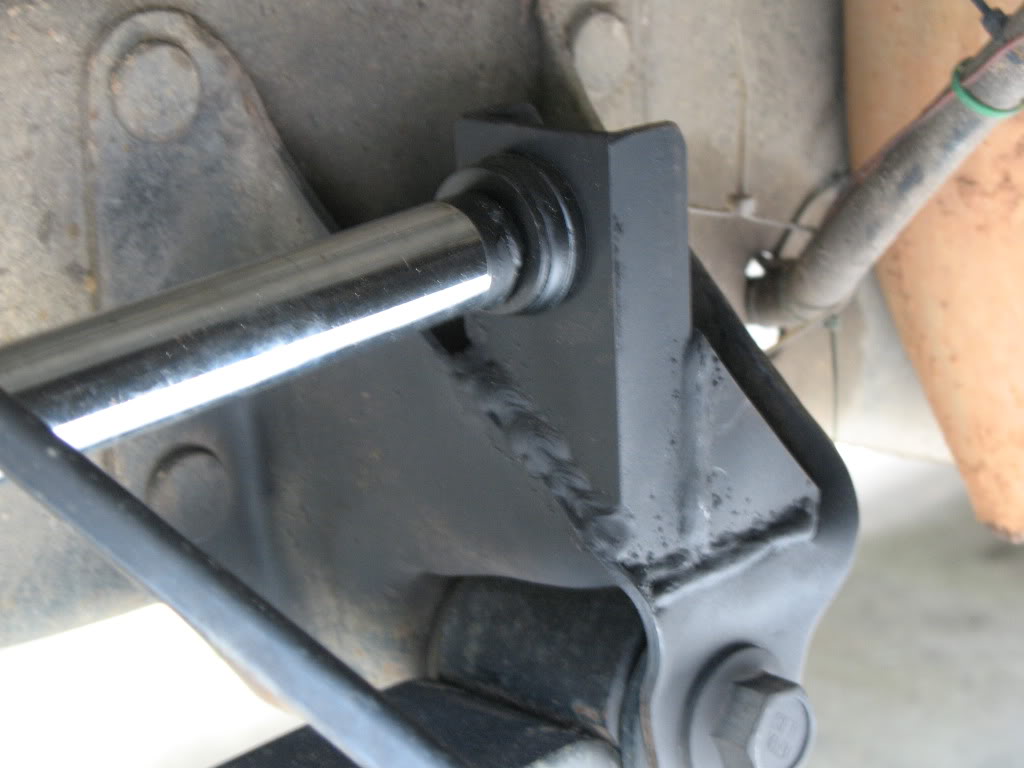

Name:  IMG_0029.jpg
Views: 38
Size:  77.0 KB
Name:  IMG_0030.jpg
Views: 39
Size:  124.9 KB
Name:  IMG_0031.jpg
Views: 45
Size:  131.4 KB

Phone:
Name:  img1252454749434.jpg
Views: 43
Size:  65.0 KB
Name:  img1252454749932.jpg
Views: 38
Size:  45.9 KB
Name:  img1252454750364.jpg
Views: 41
Size:  65.2 KB
Reply With Quote
  #2
Old 09-11-2009
Tys 4x4 FTW's Avatar
RF Veteran
iTrader: (8)

Join Date: Jul 2008
Location: Las Vegas, Nevada
Posts: 6,575
looks good man!!
Reply With Quote
  #3
Old 09-11-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
looks good, why didn't you just go the other way and build a single one that welds close to the center section?

I'm interested to see how they do when you get the suspension all twisted up.
Reply With Quote
  #4
Old 09-11-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by 99ranger4x4 View Post
looks good, why didn't you just go the other way and build a single one that welds close to the center section?

Thanks.

I was looking at building something like this:

But there was the whole welding to cast thing unless I built a truss. Not that that would be a bad Idea, this design just seems simpler.

Quote:
Originally Posted by 99ranger4x4 View Post
I'm interested to see how they do when you get the suspension all twisted up.
Me too, I am taking it out tonight when we finish to see how it does. If it can't handle the abuse we will try something different. Ha, it's not like I am out anything.
Reply With Quote
  #5
Old 09-11-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
is there any way you can make it double sheer?
Reply With Quote
  #6
Old 09-11-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
I'm not sure what you mean. My brackets are all welded on. The only bolts are through the bushings. Unless you mean having like two mounting points at one end of the bar?
Reply With Quote
  #7
Old 09-11-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
like Plate bolt Plate |-|

instead of Plate bolt |-
Reply With Quote
  #8
Old 09-11-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by 99ranger4x4 View Post

I'm interested to see how they do when you get the suspension all twisted up.
Im sure they will be just fine... theyre basically identical to the james Duff traction bars, and mine work great and no problem when my rear axle is completely flexed out.
Reply With Quote
  #9
Old 09-11-2009
comunistico's Avatar
Member

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
thats looks great.... and i was thinking of building some after my bumper but just keep thinking were i could mount em.. to much **** in the way under the axle....

i def want to here how this ones work ::)
Reply With Quote
  #10
Old 09-11-2009
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice work!
Reply With Quote
  #11
Old 09-11-2009
08XLT4x4's Avatar
Member
iTrader: (7)

Join Date: Mar 2008
Location: bomba shack
Posts: 3,257
Quote:
Originally Posted by comunistico View Post

i def want to here how this ones work ::)
they will work fine. theyre pretty much a copy of these: (which have been on the market for years... tons of people have them and theyre flawless.)

Ford Bronco II, Ranger, Traction Bars, Long Link Traction Bars
Reply With Quote
  #12
Old 09-11-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by 99ranger4x4 View Post
like Plate bolt Plate |-|

instead of Plate bolt |-
Oh, I wasn't thinking. I could always add that later, but I'm not sure that would be the weak point. I'll let you know what breaks first though, I don't plan on babying it. lol

Thanks guys!
Reply With Quote
  #13
Old 09-11-2009
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
I think that front mount is too beefy to bend and the bushings there are too thin to allow for much flex. It'll flex, but it'll take the front bushings out with it I'd think. The duff front brackets on mine are way bent...just like how they come for the 97 and older trucks.


Did a good job Chris. Beef. I plan on replacing my duff's with a ladder type bar....but not wanting to cut up my dual tailpipes.
Reply With Quote
  #14
Old 09-11-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Those front bushings are the biggest thing I am worried about. I don't think they will last long.

Thanks man. I would rather have ladder bars, but I don't want to loose my ground clearance. I'm sure I could build them without loosing a whole lot though. If these don't work out I can always try something different.
Reply With Quote
  #15
Old 09-12-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by 99ranger4x4 View Post
looks good, why didn't you just go the other way and build a single one that welds close to the center section?

I'm interested to see how they do when you get the suspension all twisted up.

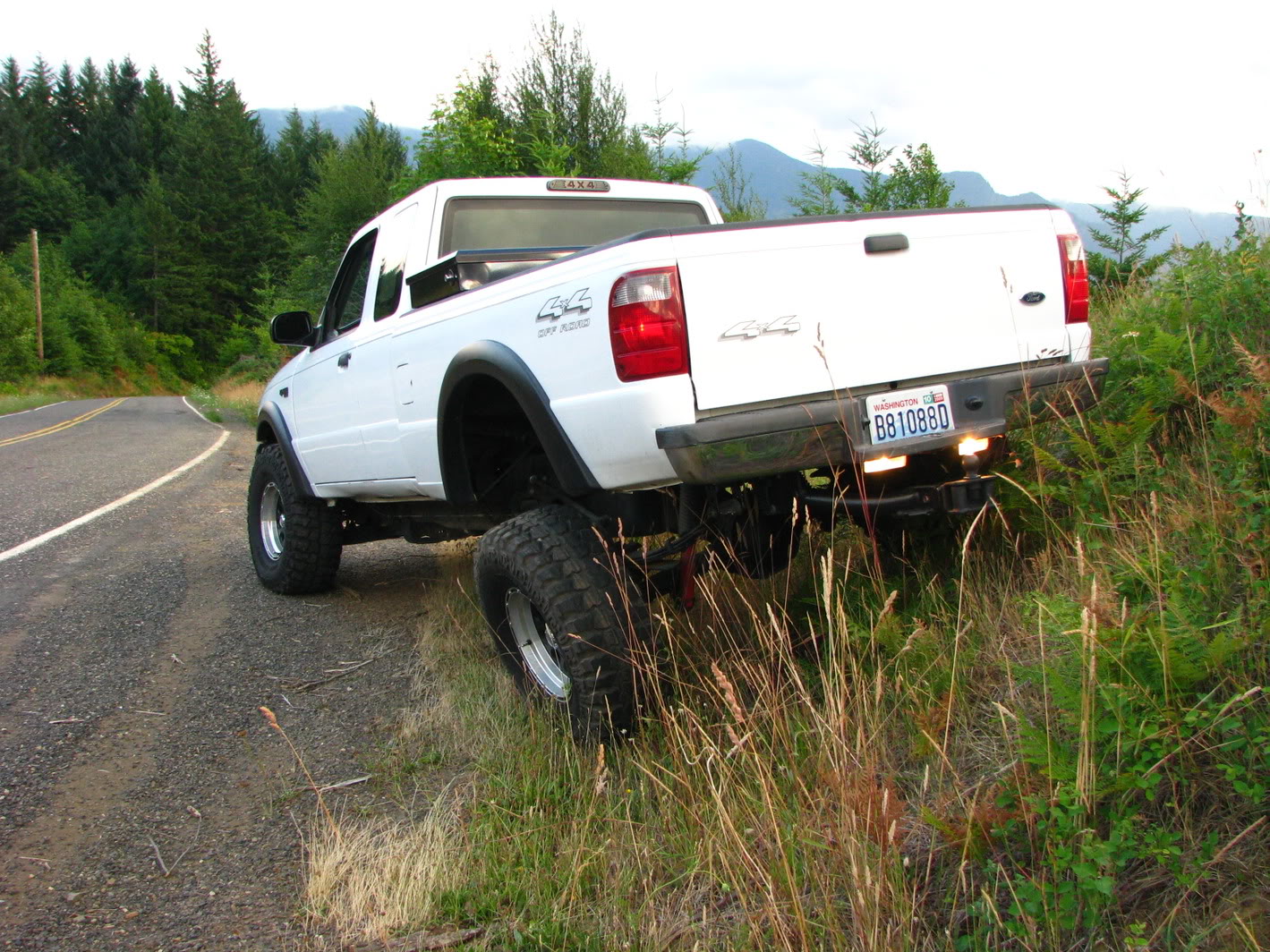

They do just fine This is me not even fully flexed out with my 33', shackles, and you can see my Traction bar there above the axle.. works just fine :-D



Name:  Picture015.jpg
Views: 70
Size:  405.0 KB
Reply With Quote
  #16
Old 09-12-2009
rstangboi's Avatar
Member

Join Date: Jan 2008
Location: Davis, Ca
Posts: 2,583
those are SICK.
i soooo cant wait till i get my hands on a welder at school this year now.....lol
Reply With Quote
  #17
Old 09-12-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Thanks.

Name:  img1252741432783.jpg
Views: 38
Size:  61.3 KB
Name:  img1252741432359.jpg
Views: 38
Size:  52.1 KB
Name:  img1252741431889.jpg
Views: 36
Size:  42.8 KB

Sorry no pictures of the truck, it was dark and I only had my phone. I had to unbolt the bedside braces so they didn't get mangled by the bar at full bump. I just need to remount it somewhere else.

Everything worked good so far, handles great and nothing broke. I will through the BFGs back on tomorrow and see how it handles on the road.
Reply With Quote
  #18
Old 09-12-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Hey Chris...

On this area:

Name:  img1252741432359.jpg
Views: 43
Size:  52.1 KB



Put a washer on the bolt on the outside of the bushing there - will help to compress it and keep it in a godo angle - looks like yoru bolt will tear through the bushing in a heartbeat if you do a few sets of flexes on the bumps - They look great man..

Oh, also - use a grade 8 bolt - if I'm right.. that one is only a Grade 5 with the 3 hashes - Probably be alot safer to use for that section of the trac bar :-D

Any idea what the end cost was on materials? I know that paying $99 for the JD Trac Bars is a most excellent price
Reply With Quote
  #19
Old 09-12-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
I plan on it. I just didn't have the right size because I used them on the other side. After seeing that picture I will do it today.

I was going to use grade 8, but again, I didn't have one at the time. The front bolt is grade 8.

Freeeeeeee!!!!! I have a lot of scrap metal from other projects and such. I wouldn't have used the chrome tubing for the bar, but it was all I had that size besides stainless and I didn't want to use my stainless.

I wouldn't mind paying the $100 if I couldn't make them for free. lol

Thanks man.
Reply With Quote
  #20
Old 11-13-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,775
Your use of Angle Stock and Channel is nice idea, saves a lot of welding of the corners and it is stronger; Nice work.

The pics appear to show bushing/bar movement, is that going to be a problem in the future ?

Did the washer idea help ?
Reply With Quote
  #21
Old 11-13-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Thanks.

The washer helped with it trying to pull the bushing over the bolt, but imo the bushings are too soft. I still have some axle wrap and the only movement is in the bushings compressing.
Reply With Quote
  #22
Old 11-13-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,775
Quote:
Originally Posted by elementsenjoi View Post
Thanks.

The washer helped with it trying to pull the bushing over the bolt, but imo the bushings are too soft. I still have some axle wrap and the only movement is in the bushings compressing.
Adding a another side to the axle mount could help out in the bushing area, not only in twist but the extra brkt will hold the bushings together and let then work as a pair.
If you are still getting axle wrap then there has to be another problem, like the tubing wall thickness is too small allowing the tube to flex otherwise the design should work.
Reply With Quote
  #23
Old 11-13-2009
mlw20lu's Avatar
Member
iTrader: (2)

Join Date: Aug 2008
Location: Loxahatchee, FL
Posts: 1,825
I like it... PM me got a question
Reply With Quote
  #24
Old 11-13-2009
elementsenjoi's Avatar
Member
Thread Starter
iTrader: (2)

Join Date: Aug 2007
Location: 352 Florida
Posts: 1,301
Quote:
Originally Posted by Scrambler82 View Post
Adding a another side to the axle mount could help out in the bushing area, not only in twist but the extra brkt will hold the bushings together and let then work as a pair.
If you are still getting axle wrap then there has to be another problem, like the tubing wall thickness is too small allowing the tube to flex otherwise the design should work.
Good idea. The tubing is plenty thick, and I have watched it do it. Some of the twist was in the bushings and some was in my blocks not seating on the spring perch right. That is fixed now. They have helped tremendously, but haven't eliminated the problem totally.
Reply With Quote
  #25
Old 11-13-2009
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,775
How about using a longer bolt for the diff end and add a nut/washer inside of the bushing ?
Not sure of the distance you have to play with but by sort of tightening the bolt/nut to the bracket, then adding a large washer, the shock w/ bushings, another washer and a locking nut (which you can get in a grade 8, metal nut, not the fiber ones and no split lock washers).

The locking nut will allow you to tighten the shock without squashing the bushings and stopping when you think it is tight and not worrying if it will loosen up.
And get a bolt that is long enough to handle the whole package.

Sorry if this seems like I am pushing you to do something that you don’t think is correct but I tend to speak my mind.

Luck,
