How do i make a front hitch

Im looking at putting a front hitch on my truck when i get my sl done. can someone show me how to do this and what parts i will need or if there is a link to someone who has a how to on how to do it it would be greatly appreciated.

Last edited by 03ranger; 02-14-2010 at 08:51 PM.
Reply With Quote
  #2
Old 02-14-2010
--weezl--'s Avatar
Member
iTrader: (1)

Join Date: Sep 2009
Location: Calgary AB, Canada
Posts: 3,139
not too sure how, but you should change the title (advanced edit post) to "how do i..." you will get more views from people who know your answer
Reply With Quote
  #3
Old 02-14-2010
03ranger's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Irwin, Pa
Posts: 519
yea i guess i should thanks for the input
Reply With Quote
  #4
Old 02-14-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Cool you're welcome. Talk about having to jump through hoops with that link. holy crap. is it really ridiculous.
Reply With Quote
  #5
Old 02-14-2010
03ranger's Avatar
Member
Thread Starter

Join Date: Jul 2009
Location: Irwin, Pa
Posts: 519
haha i know what you mean. i really appreciate it though just looking to get some new things done to my truck since im getting the superlift this weekend and im gonna be getting a bodylift and some new wheels.
Reply With Quote
  #6
Old 02-15-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Get yourself a cheap used rear hitch of any kind of junk. Can be off anything pretty much, what it came off of is no concern, just make sure it's bigger than 30" wide and the main tube is straight, not bent like alot of stock rear ranger hitches are.

If not bodylifted: I prefer one with the insert hole in-line with the rest of the hitch. If bodylifted: I prefer one with the insert offset(lowered) from the rest of the hitch.....that is, if it's not offset more than 3". Those offset ones are a little iffy on front hitch applications.


Get some 3/16-3/8 pieces of angle iron cut to about 6" lengths or so. Clamp those to the frame. Then cut your hitch to fill the gap between the angle irons. Tack into place or clamp into place then install bumper to verify hole clearences. Get it right, final tack it, test fit again, then fully weld it. Either weld to frame or have fun using bolts.

Bodylifted is a little iffy on what needs to be done. It depends on what hitch you're starting out with. Either way, for a bodylift on a torsion bar truck, that front crossmember needs to be cut a little more than half way up it. You can weld it to the hitch if you're good with a cut off wheel too....would strengthen up that dinky crossmember. My front hitch is just too high(my own fault) and had to trim the valence to make it usable and keep a good grille/bumper gap.

Or install as below for a non-BL truck, then cut your valence.

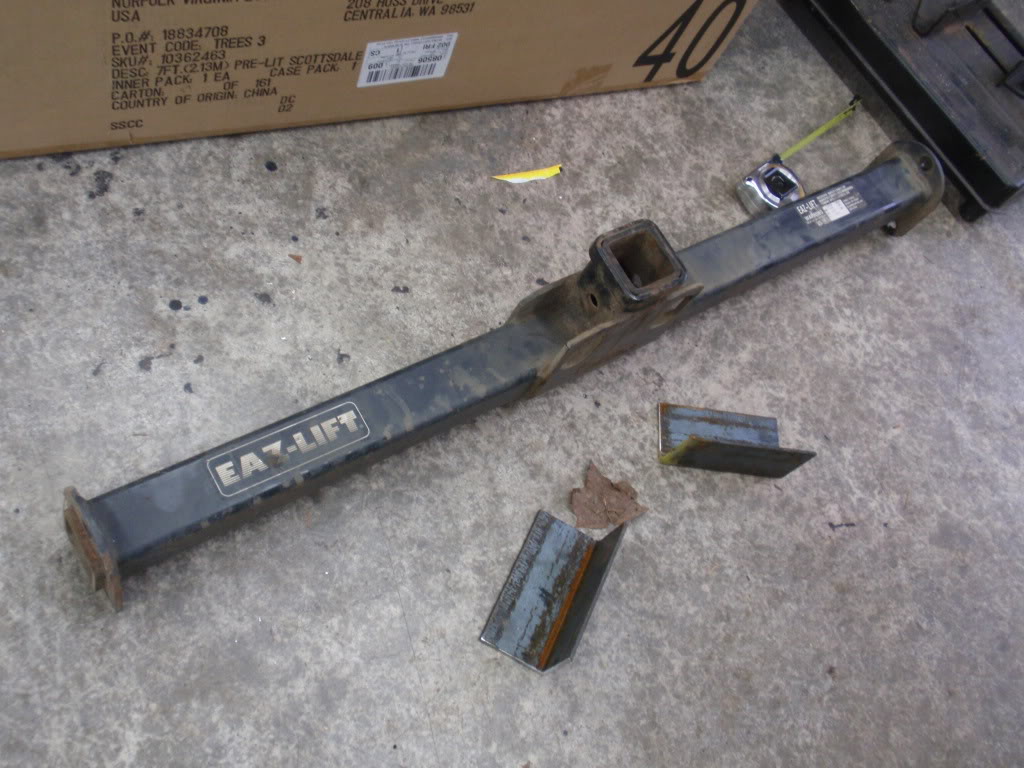

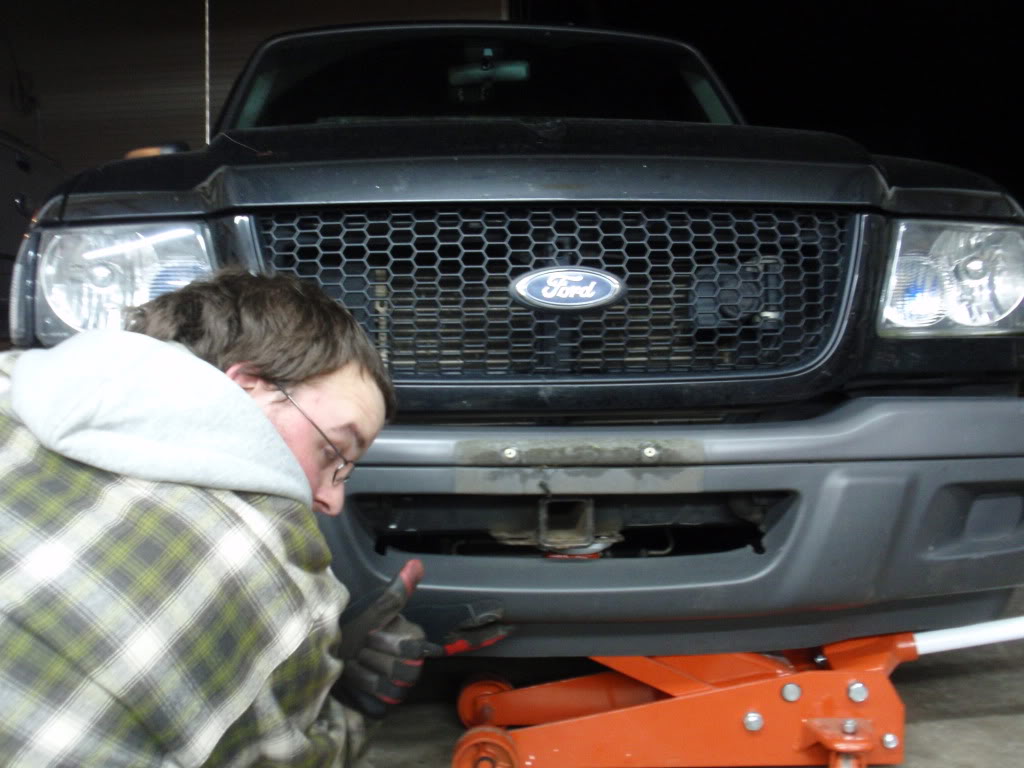

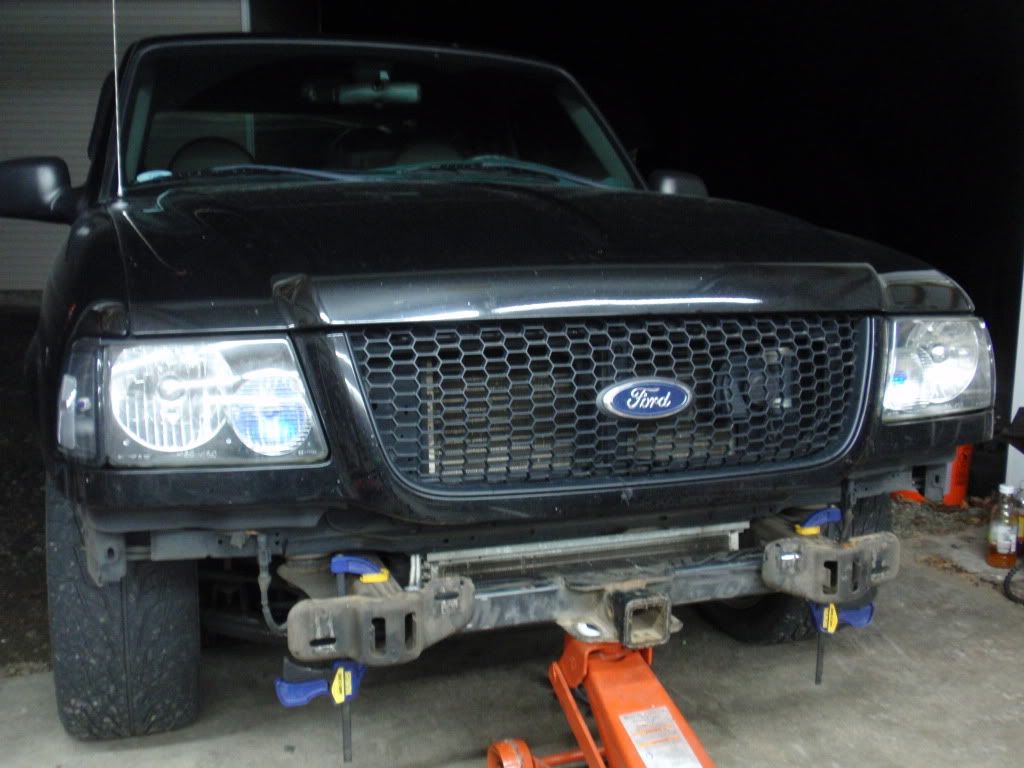

Name:  PC170073.jpg
Views: 112
Size:  142.4 KB

Name:  PC180003.jpg
Views: 192
Size:  113.4 KB

Name:  PC180006.jpg
Views: 226
Size:  111.7 KB


On my BL'd truck. Used a now out of production Hidden front hitch for 98+ Rangers...but mounted ONTOP of the frame to compensate for the BL. If I could do it all over again, I would using a junkyard hitch and making it perfect before I fully welded the thing on. Like I noted above, I had to trim my valence to actually use the hitch. The hitch reciever sits about 3/4" to 1" too high.

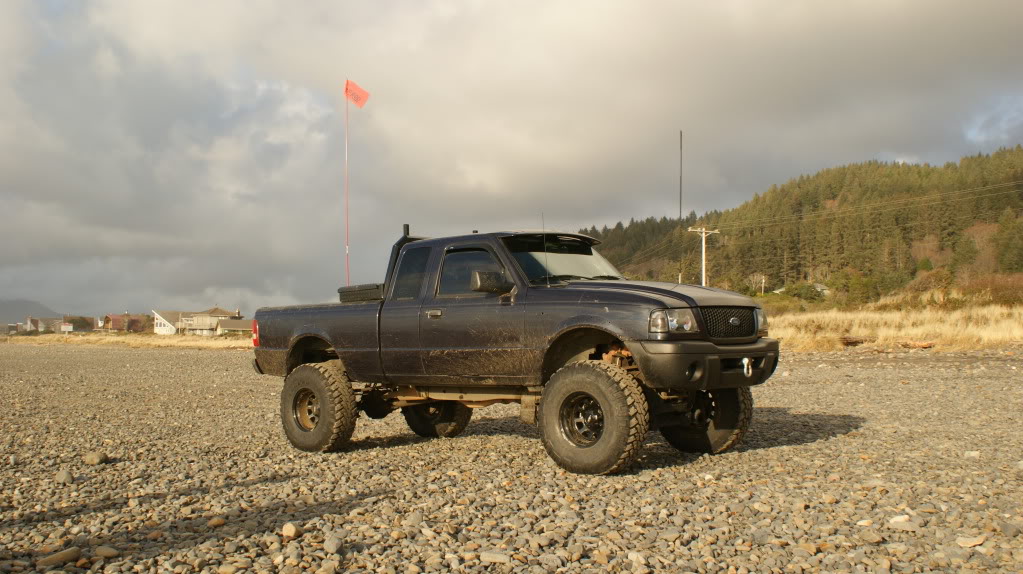

Name:  P1050062.jpg
Views: 353
Size:  104.8 KB

Name:  P1050069.jpg
Views: 102
Size:  90.8 KB



Reply With Quote
  #7
Old 02-15-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
buy a hitch that has a straight bar. (i picked up a silverado hitch for 20 bucks on craigslist) cut it to the size you need then notch the front cross member and weld the sucker on. i haven't even put mine on yet but it will be on in march

Last edited by 99offroadrngr; 02-16-2010 at 05:11 PM.
Reply With Quote
  #8
Old 02-22-2010
Member

Join Date: Nov 2009
Posts: 5
heres mine... drawtite 65017

Name:  IMG_1028.jpg
Views: 213
Size:  101.0 KB
Reply With Quote
  #9
Old 02-22-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Hey Fx4wannabe01, you mentioned cutting your valence for a non BL truck. Is there a way to mount the hitch so you don't have to cut you valence? Or while it not fit otherwise?
Reply With Quote
  #10
Old 02-22-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 01RangerEdge View Post
Hey Fx4wannabe01, you mentioned cutting your valence for a non BL truck. Is there a way to mount the hitch so you don't have to cut you valence? Or while it not fit otherwise?
He meant that if you were BL, you could install a normal hitch and cut your valance so you can use the hitch in a stock location (like some people do with the tow hooks).
Reply With Quote
  #11
Old 02-22-2010
coleary15's Avatar
Member

Join Date: Jul 2009
Location: Cincinnati, Ohio
Posts: 343
i think it looks cool with the valance cut to fit exactly around it
Reply With Quote
  #12
Old 02-22-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Ok, so I won't have to do any trimming to the valance then.

Just use a flat hitch and it will work?

EDIT: also does anyone have a profile shot of their front hitch? I'd like to see about how far they come out of the valence

Last edited by 01RangerEdge; 02-22-2010 at 06:45 PM.
Reply With Quote
  #13
Old 02-22-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 01RangerEdge View Post
Ok, so I won't have to do any trimming to the valance then.

Just use a flat hitch and it will work?

EDIT: also does anyone have a profile shot of their front hitch? I'd like to see about how far they come out of the valence
Yeah, if you're making your front hitch from another (like detailed int he above picture), you can make it come out anyway you want.

The hitch comes flat to the front of the bumper, or slightly inward. Again, if you're making it yourself, you make it how you want it, how best it works for you.

it really is that simple.
Reply With Quote
  #14
Old 02-22-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Quote:
Originally Posted by Dangerranger01 View Post
Yeah, if you're making your front hitch from another (like detailed int he above picture), you can make it come out anyway you want.

The hitch comes flat to the front of the bumper, or slightly inward. Again, if you're making it yourself, you make it how you want it, how best it works for you.

it really is that simple.
Cool, thanks for the help
Reply With Quote
  #15
Old 02-22-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
Quote:
Originally Posted by 01RangerEdge View Post
Cool, thanks for the help
No problem dude. Custom work is great becuase you do it to how you want it. lol. Good luck on the build!!!
Reply With Quote
  #16
Old 02-22-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
About how far does everyone's hitch stick out? Just for reference, I'd like to be able to put the clevis on without it hitting the bumper
Reply With Quote
  #17
Old 02-22-2010
Dangerranger01's Avatar
Member
iTrader: (6)

Join Date: Nov 2005
Location: Boring/Corvallis, Oregon
Posts: 2,011
when i built mine, i made it slightly inward (like ~.5inch). not quite flush with the front of the bumper. this is plenty of room to get your hands in there to insert the pin but it is still discrete looking.
Reply With Quote
  #18
Old 02-25-2010
Fx4wannabe01's Avatar
RF Veteran
iTrader: (23)

Join Date: May 2005
Location: Boring, Oregon
Posts: 21,721
Quote:
Originally Posted by 01RangerEdge View Post
EDIT: also does anyone have a profile shot of their front hitch? I'd like to see about how far they come out of the valence
Quote:
Originally Posted by 01RangerEdge View Post
About how far does everyone's hitch stick out? Just for reference, I'd like to be able to put the clevis on without it hitting the bumper
Like Grant said, it really does matter how you fab it up. Test fits of the bumper with the hitch mocked up is pretty much essencial. And taking measurements, etc. Another variable is your hitch insert you'll be using. Some are long with the hole for the pin drilled way towards the back, yet others are in the middle. It depends. I suggest getting your insert you wanna use, THEN build your hitch to fit.

My shackle doesn't hit the valence. Only if I force it to it will...like pushing it towards the valence. The shackle insert I use is from etrailer.com and cost $30. Solid milled steel with a 7/8" shackle. I find it perfect for my application because it doesn't stick out too far, yet it's not so sucked in that it hits the valence at 'idle'.

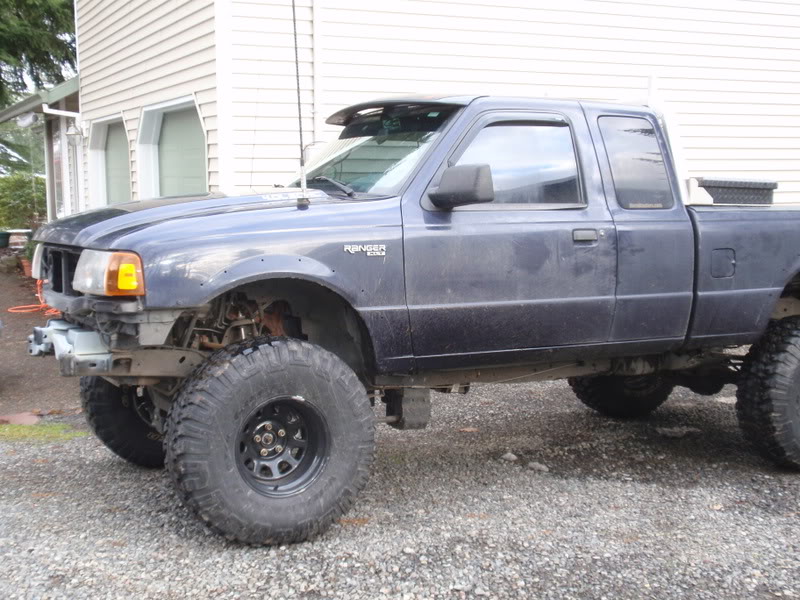

Here's a profile of mine. I'll get one with valence and shackle installed here later today and post it up for ya.

Name:  P1030044.jpg
Views: 102
Size:  119.9 KB

Name:  DSC01212.jpg
Views: 103
Size:  162.5 KB

Reply With Quote
  #19
Old 02-25-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
sweet, that's about where I want mine to sit
Reply With Quote
  #20
Old 03-29-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I was looking at the front end to see where I'm gonna mount it and I see that the trans cooler lines are pretty much directly in the way.

Anyone who did this have the same issue?
Reply With Quote
  #21
Old 03-29-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
you can move it
Reply With Quote
  #22
Old 03-29-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Do you mean move the trans cooler, or just the trans cooler lines?

The hoses look pretty flexible so I suppose they can sit on top of the hitch
Reply With Quote
  #23
Old 03-29-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
Quote:
Originally Posted by 01RangerEdge View Post
Do you mean move the trans cooler, or just the trans cooler lines?

The hoses look pretty flexible so I suppose they can sit on top of the hitch
I just got mine welded on...tranny lines weren't an issue...
Reply With Quote
  #24
Old 03-29-2010
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Maybe I need to actually get the hitch and mock it into place. Then I can see what I'm dealing with
Reply With Quote
  #25
Old 03-29-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
yeah thats the best way to do it. I had to trim my valence a little bit but you can't tell really since its all black lol
hell, ill ***** a bit haha
Name:  IMG_0142-1.jpg
Views: 97
Size:  133.5 KB
Reply With Quote
