My Bumper Build

Well i have been wanting a bumper for quite a while, i have had many other things come up and get in the way. This is going to be a slowish build, but i will document it as well as possible, and update as i go.

As of now i am building a Plate style bumper, similar to winch bumbers or somthing like Road Armour, Buckstop, Iron Bull, ect. but with less blingyness to it, beacuse i frankly dont like the look of them. just trying to paint the picture.

i plan on using 3/16" steel. i do not need the extra stregnth of 1/4" or the weight... i dont plan on knocking down trees or running down a moose.
i also do not plan on running a winch. i do plan on taking the lights i have behind my grill (6" piaa's) and adding them into the bumper, and possibly putting some other lights on the bumper and converting to hid. not sure at this point. i do plan on putting on some D rings for shackles as well.


here is my motivation, both were from C4x4 and have been seen before, these however ARE PHOTOSHOPED.
Name:  Bumper1.jpg
Views: 13
Size:  85.4 KB this has the winch removed and cleaned up slightly
Name:  Bumper2.jpg
Views: 45
Size:  107.0 KBthis has the winch removed and the lip brought in a bit as well as cleaned up.

here is what i have done starting today, cardboard prelimanary. why mess up steel that you have to pay for.

Name:  mybumper1.jpg
Views: 12
Size:  149.8 KB
Name:  mybumper2.jpg
Views: 12
Size:  126.7 KB
Name:  mybumper3.jpg
Views: 12
Size:  116.1 KB

as of now, im thinking of bringing up the lower line up an inch or inch and a half.


more updates soon. as i said it will probly take a while to get this done, but i will be working on the pre lim a bit
Reply With Quote
  #2
Old 11-03-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
off to a good start...gonna look killer when its done
Reply With Quote
  #3
Old 11-03-2010
fourliter dan's Avatar
Member
Thread Starter

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
thanks man. i hope it does turn out well, there are still things that i need to get out of my head and on paper....well cardboard i guess lol, and get with it.
Reply With Quote
  #4
Old 11-03-2010
djfllmn's Avatar
Moderator

Join Date: Mar 2009
Location: York, PA
Posts: 5,796
yea and put a decal on it that says...go ahead,pull out see if i care lol
Reply With Quote
  #5
Old 11-03-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Good start, but I agree with you... bring up the bottom a bit!
Reply With Quote
  #6
Old 11-03-2010
nicky919's Avatar
Member

Join Date: Aug 2010
Location: Sunny FLA
Posts: 347
That is going to look like total ****. Go ahead and build it and then send it to me so you never have that eye sore on your truck. Or just build 2 and send me the extra. Kthxby.
Reply With Quote
  #7
Old 11-04-2010
fourliter dan's Avatar
Member
Thread Starter

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
well, had a night to relax and do nothing so i kept working on the cardboard prelim. got it assembled, and done right were i want it. i DID cut the lower bit down 1 1/4" and its prefect. i also cut holes for my 6" piaa's and it looks goofy now, but i think with the lights in they will look great. any way test look, not so much fit will be tomorrow. i think i may really like it. we shall see.

on too pics

finished initial shape.
Name:  bumper.jpg
Views: 13
Size:  86.5 KB

cut down and liceance plate on


holes for lights cut out
Name:  bumper4.jpg
Views: 12
Size:  65.4 KB

all done and painted for effect
Name:  bumper5.jpg
Views: 11
Size:  78.0 KB
Name:  bumper6.jpg
Views: 10
Size:  99.9 KB

all for now, if i get time i will get a pic on the pick up tomorrow.
Reply With Quote
  #8
Old 11-04-2010
Sonic04Edge's Avatar
RF Veteran

iTrader: (6)

Join Date: Jun 2004
Location: Madison. AL
Posts: 5,715
Hell just rock that LOL j/k. Gonna look good man.
Reply With Quote
  #9
Old 11-04-2010
joshtank's Avatar
Member

Join Date: Jun 2009
Location: Winston GA
Posts: 1,240
dang dude, i wish i had some metal skills.
going to look good , and indestructible
Reply With Quote
  #10
Old 11-04-2010
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Dan when do you plan on being done with this man? Im building one here in a few weekends. You plan on just a front bumper or a rear also?

Edit: who's the jerk that drank all the bud light?
Reply With Quote
  #11
Old 11-04-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Looks good, should be rugged…
I for one think the 6” Lights are too much but that is just me.
I think the lights take up too much of the bumper and are too close together to give a good light pattern. You can get just as much light out of 4” light and spaced out a little more.
Reply With Quote
  #12
Old 11-04-2010
fourliter dan's Avatar
Member
Thread Starter

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
i sliped the card board over my bumper today, it looks good and i got pics on my phone, i will have them up after a while.

i see were ur coming from with the lights, but i like it, plus why be cookie cutter, the lights i have are amazing in fog and heavy rain and snow. plus as i said it will probly get some more( gonna be over kill but man will i be bright!!!!!)

and andrew i drank the BL, i made nachos and it just seemed right. as for an eta, i dont know, i sent a few pics to my buddy and he kinda wants me to build one on his SD, even tho he is a millwright by trade... so who know. hopefully soon if time and life permits
Reply With Quote
  #13
Old 11-04-2010
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Well im envious of your bud light drinkage. Ya idk man that's the way alot of millwrights are out at the plant I work at, but the millwrights here don't do any fabricating/ welding there more along the lines of pipe fitter/ boilermaker. Lazy son of a guns
Reply With Quote
  #14
Old 11-04-2010
Taylor's Avatar
Ive been dubbed....an old volk
iTrader: (18)

Join Date: Mar 2010
Location: Nashville, NC
Posts: 7,110
Yes. Your thread resulting from motivation will motivate me to make my own bumper.

I think ill write "motivated by Dan" on it lol
Reply With Quote
  #15
Old 11-04-2010
zak873's Avatar
Member
iTrader: (1)

Join Date: Jul 2010
Location: southcarolina
Posts: 1,108
cardboard? so you're saying you cut up your house, just to see what a custom bumper would look like on your truck?
Reply With Quote
  #16
Old 11-04-2010
fourliter dan's Avatar
Member
Thread Starter

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229

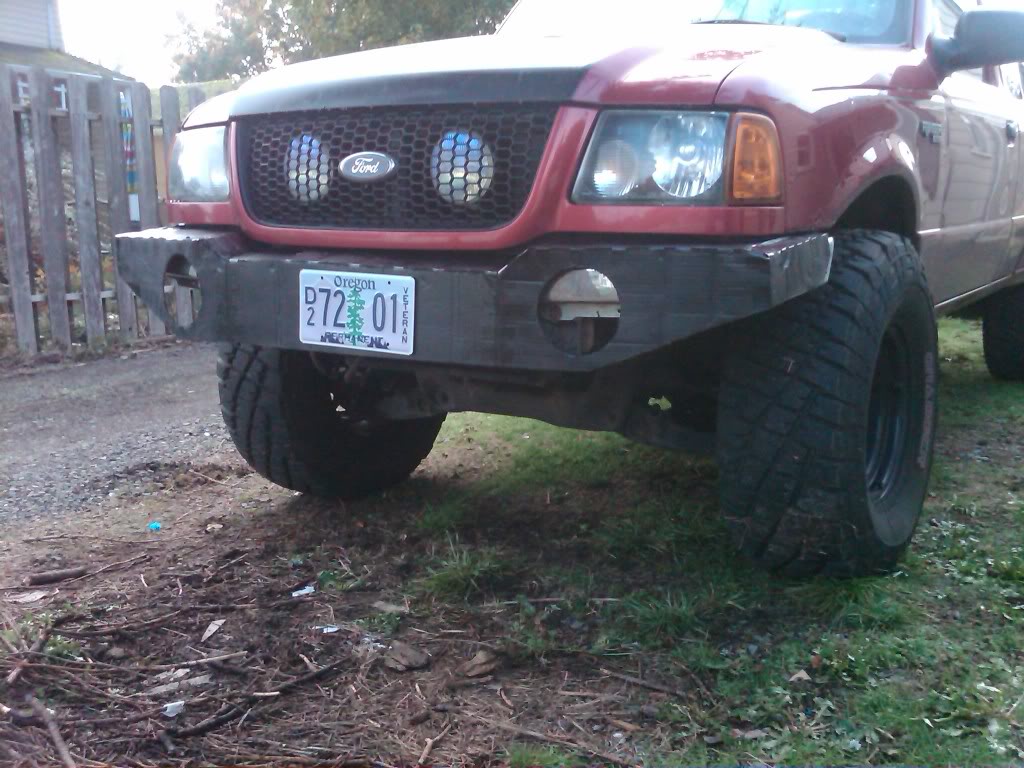

here it is slipped over my original bumpr, basically done but i want to change one thing, the corner transitions. otherwise i like it a ton. im also going to add some metal around the bottom as skid or sorts....kinda... dont know how to word it...


any how
Name:  bumper7.jpg
Views: 60
Size:  138.2 KB
Reply With Quote
  #17
Old 11-04-2010
benjamwhit51's Avatar
Member

Join Date: Oct 2009
Location: Mebane N.C.
Posts: 170
I like.
Reply With Quote
  #18
Old 11-05-2010
logan03CO's Avatar
Member

iTrader: (3)

Join Date: Mar 2005
Location: Colorado
Posts: 1,235
Wow Looks good!

You should keep track of the dimensions on each piece once you start cutting the separate metal pieces....I bet it would be a hot commidity around here!
Reply With Quote
  #19
Old 11-05-2010
Scrambler82's Avatar
Old Guy Userů ltr
iTrader: (12)

Join Date: Jul 2009
Location: SoCal
Posts: 6,773
Quote:
Originally Posted by zak873 View Post
cardboard? so you're saying you cut up your house, just to see what a custom bumper would look like on your truck?
I liked your method, I mock up everything in cardboard first.

Looks OK on the truck, nice work.
Reply With Quote
  #20
Old 11-05-2010
bigandrw's Avatar
Member
iTrader: (7)

Join Date: Jun 2010
Location: Houston, Texas
Posts: 1,407
Looks good dan. Word of advise, don't dish out your measurements for the bumper. I personally wouldn't because I don't see why it should be easier for others when we have to take all the measurements and time and stuff and junk lol
Reply With Quote
  #21
Old 11-05-2010
fourliter dan's Avatar
Member
Thread Starter

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
Quote:
Originally Posted by logan03CO View Post
Wow Looks good!

You should keep track of the dimensions on each piece once you start cutting the separate metal pieces....I bet it would be a hot commidity around here!
i do plan on demoing the card baord and either tracing or replicating them to trace. we shall see. i think it will depend on the finished product it its desired

Quote:
Originally Posted by bigandrw View Post
Looks good dan. Word of advise, don't dish out your measurements for the bumper. I personally wouldn't because I don't see why it should be easier for others when we have to take all the measurements and time and stuff and junk lol
i wouldnt give out my mesurements, i dont oppose any one making there own, but they can do the work... tho i dont mind giving advise
Reply With Quote
  #22
Old 11-05-2010
04blackedge's Avatar
RF Veteran
iTrader: (13)

Join Date: Jan 2007
Location: Durham, NC
Posts: 23,426
Quote:
Originally Posted by bigandrw View Post
Looks good dan. Word of advise, don't dish out your measurements for the bumper. I personally wouldn't because I don't see why it should be easier for others when we have to take all the measurements and time and stuff and junk lol
Thats what this whole site is about, helping out other members.

I'll remember that next time you ask for advice.
Reply With Quote
  #23
Old 11-05-2010
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
Quote:
Originally Posted by bigandrw View Post
Looks good dan. Word of advise, don't dish out your measurements for the bumper. I personally wouldn't because I don't see why it should be easier for others when we have to take all the measurements and time and stuff and junk lol
stuff like this is why there are a lot of unique mods that never get reproduced. if you build a sweet bumper and people like it you should be giving out the design! take it as a compliment!!!!
Reply With Quote
  #24
Old 11-05-2010
03crewcabranger's Avatar
Member

Join Date: Feb 2010
Location: Mty, Mx
Posts: 1,031
Looks really good, man.
Reply With Quote
  #25
Old 11-05-2010
fourliter dan's Avatar
Member
Thread Starter

Join Date: Dec 2007
Location: Lebanon, OR
Posts: 2,229
Quote:
Originally Posted by ranger4.0 View Post
stuff like this is why there are a lot of unique mods that never get reproduced. if you build a sweet bumper and people like it you should be giving out the design! take it as a compliment!!!!
thats why im building my own, well that and i dont want to spend 700-900 bucks for somthing i can make. i dont have issues guiding people or helping them out at all. i want people to learn as they go some what. any fool can make sparks with a torch or welder and slap it all together, it become more of a personal thing when u hash out some of details rather than print out a schematic and do a paint by numbers bumper. not to say i wont give out some mesurements, or collaberate. i will for sure all you have to do is ask. but like i said, we need to see my final product first.
Reply With Quote
