My welding projects

One of the classes I'm taking this semester is Welding Fabrication and we get to make whatever we want. These are the two projects I have completed so far.

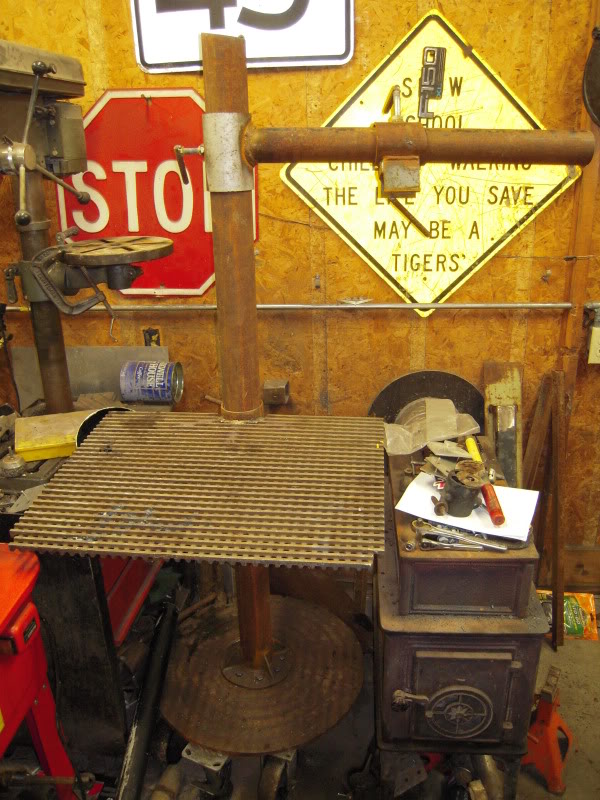

The first is a mobile welding table with a cast-iron grate that is fully adjustable.
Name:  DSCN1121.jpg
Views: 6
Size:  119.7 KB

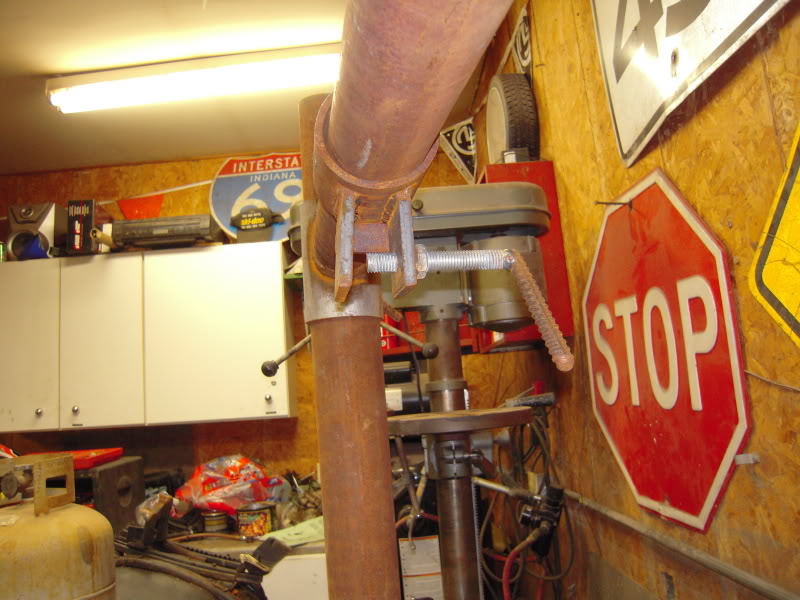

The arm has a clamp on it to hold just about anything in any position.
Name:  DSCN1122.jpg
Views: 8
Size:  118.6 KB

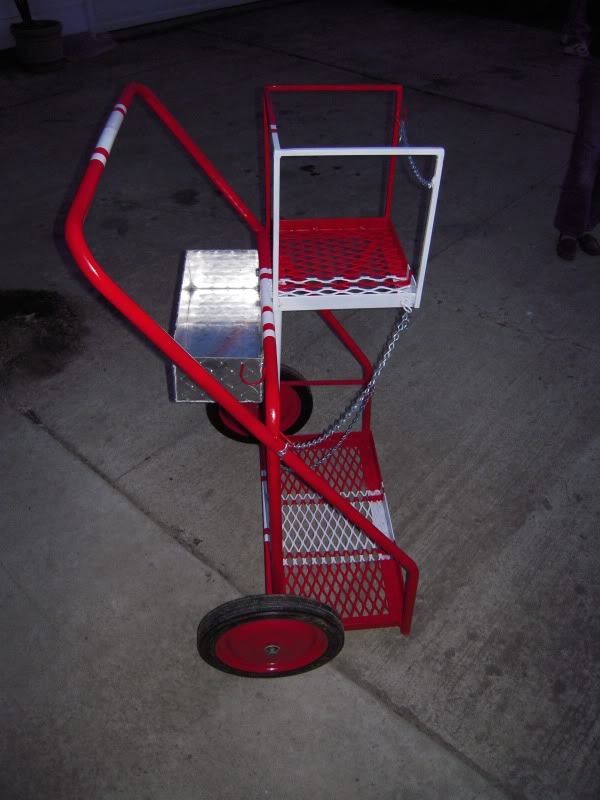

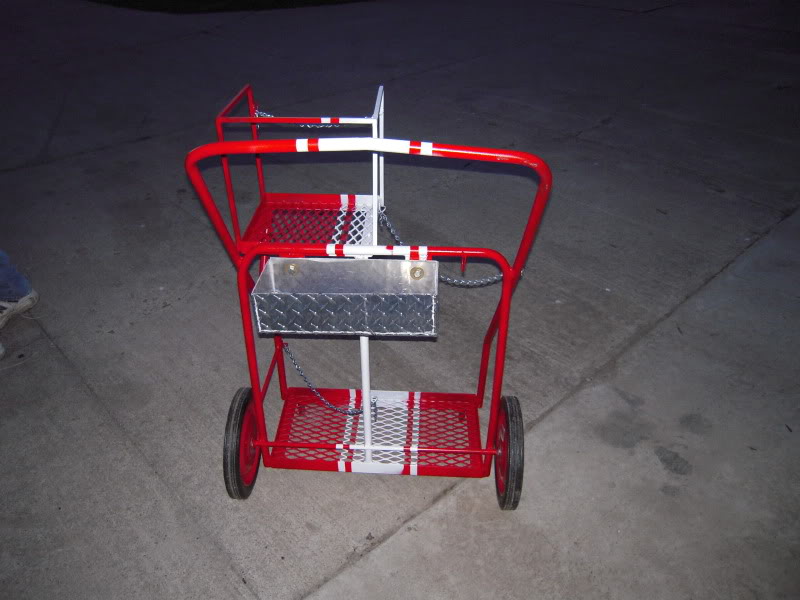

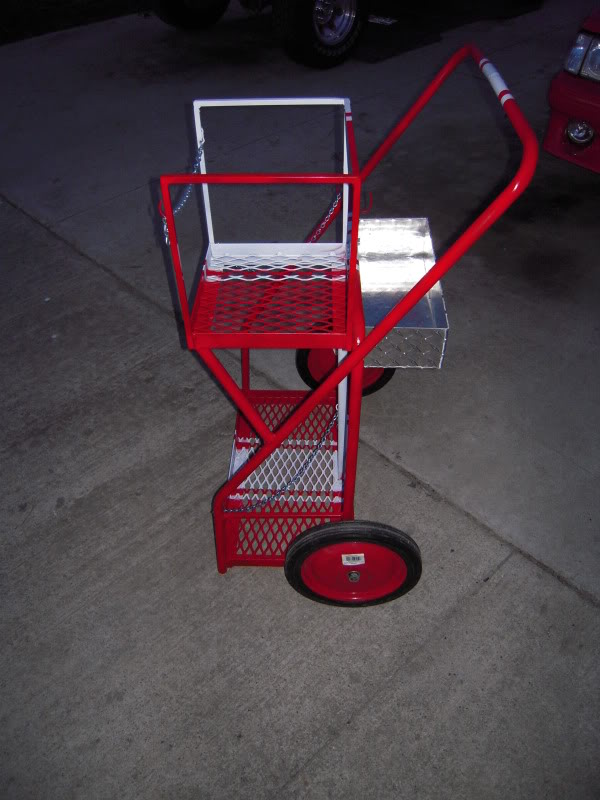

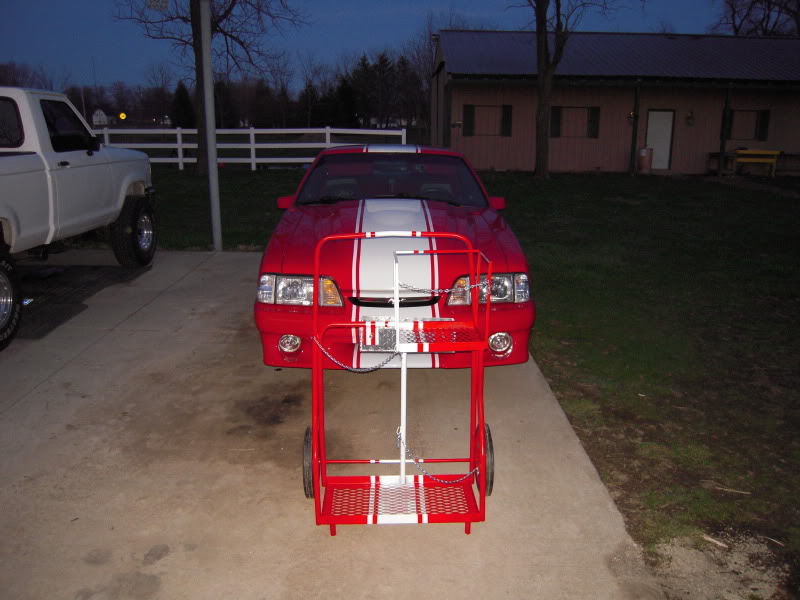

The second is an Oxy-Propane torch cart.
Name:  DSCN1111.jpg
Views: 6
Size:  104.0 KB

Name:  DSCN1112.jpg
Views: 7
Size:  106.5 KB

Name:  DSCN1113.jpg
Views: 6
Size:  98.4 KB

Name:  DSCN1114.jpg
Views: 6
Size:  66.1 KB

Name:  DSCN1115.jpg
Views: 8
Size:  73.8 KB

Name:  DSCN1116.jpg
Views: 9
Size:  86.8 KB

Name:  DSCN1118.jpg
Views: 7
Size:  94.1 KB
Reply With Quote
  #2
Old 03-30-2010
stangdroptop351's Avatar
Member

Join Date: Feb 2010
Location: Scottdale,PA
Posts: 511
nice, and sweet fox
Reply With Quote
  #3
Old 03-30-2010
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
that cart is sweet.
Reply With Quote
  #4
Old 03-30-2010
lumpy4000's Avatar
Member

Join Date: Aug 2009
Location: Orillia, Ontario
Posts: 379
nice. what is it you are taking at school exactly??. our welding program is crap.

like the color theme.
Reply With Quote
  #5
Old 03-30-2010
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
I love the paint on the cart!
Reply With Quote
  #6
Old 03-30-2010
Ngabr1's Avatar
Member

Join Date: Oct 2008
Location: CT
Posts: 483
nice! your stang and truck are sick too!
Reply With Quote
  #7
Old 03-30-2010
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732
Quote:
Originally Posted by lumpy4000 View Post
nice. what is it you are taking at school exactly??. our welding program is crap.

like the color theme.
This semester I'm taking Welding Fabrication, TIG welding, Welding Processes, and Advanced Electronics at Ivy Tech. I actually was an automotive student, but I got my associates degree last semester so now I'm just taking more welding classes to stay full time.
Reply With Quote
  #8
Old 03-30-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Thats awesome man. I need to take welding classes this summer. I have thought about it.
Reply With Quote
  #9
Old 03-30-2010
ClemsonRanger03's Avatar
Member
iTrader: (1)

Join Date: Mar 2009
Location: Clemson, SC
Posts: 804
I learned to weld in my sculpture class this semester, and actually just did a ton of welding for a sculpture project for my architecture studio. Its a lot of fun, and makes me want a welder of my own. So many fun projects to do.

Thos look great. The bends and symmetry of that cart, and the ability to had wheels and stuff are tricky things, and look great.
Reply With Quote
  #10
Old 03-30-2010
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732

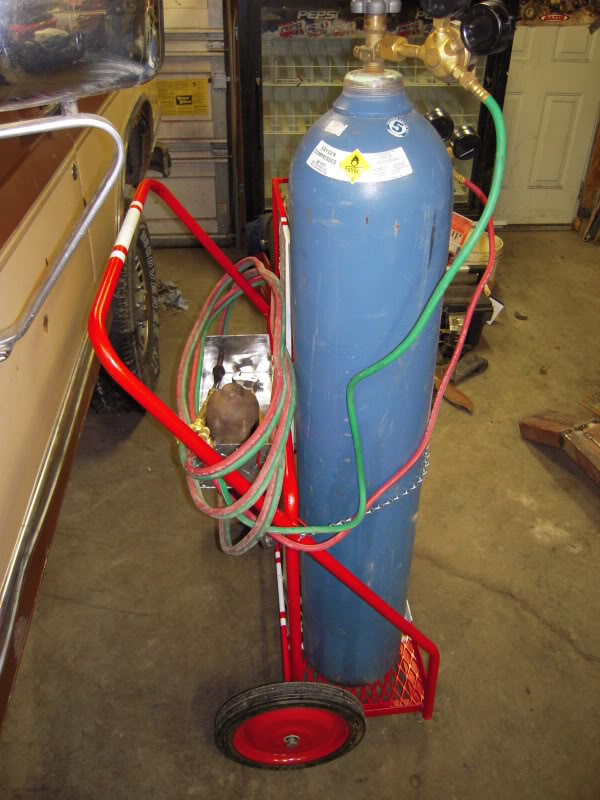

Pics of it all hooked up.
Name:  DSCN1123.jpg
Views: 5
Size:  115.4 KB

Name:  DSCN1126.jpg
Views: 7
Size:  87.8 KB
Reply With Quote
  #11
Old 03-30-2010
btm757's Avatar
Member
iTrader: (5)

Join Date: Jun 2009
Location: Norfolk / Chesapeake, VA
Posts: 3,980
Wait... Is that a Oxy Propane setup cause i have never seen that... Ive only used oxy Acetylene for burning
Reply With Quote
  #12
Old 03-30-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^ i was thinking the same thing explain plz
Reply With Quote
  #13
Old 03-30-2010
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732
Yes, it's an oxy-propane torch. I use it because it's a lot cheaper and it cuts thicker metal (with the right tip).
Reply With Quote
  #14
Old 03-31-2010
buckgnarly's Avatar
Member
iTrader: (11)

Join Date: Jan 2005
Location: West Topsham, VT
Posts: 1,709
Is that also a TSC tank? That is the greatest thing ever, no more stupid lease/rental fees!

I've been pondering switching to propane myself, already have the tips just never tried it.
Reply With Quote
  #15
Old 03-31-2010
bjohnson238's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: Muncie, IN
Posts: 732
Yup, it's a Rural King tank. It's so much cheaper exchanging them there. I think it was only like $55 for both propane and oxygen.
Reply With Quote
  #16
Old 07-22-2010
Member

Join Date: Jul 2010
Location: San Bernardino
Posts: 2
Quote:
Originally Posted by bjohnson238 View Post
Yes, it's an oxy-propane torch. I use it because it's a lot cheaper and it cuts thicker metal (with the right tip).
Are you comparing it to Acetylene? Just curious on why you think oxy-propane cuts thicker metal? Acetylene flame is Approx 5589F and propane is Approx 4579F. Acetylene burns the hotter than all the other oxyfuels that why it's used the most.
Reply With Quote
  #17
Old 07-23-2010
KLC's Avatar
KLC KLC is offline
RF Veteran
iTrader: (29)

Join Date: Nov 2007
Location: New Mexico
Posts: 13,115
Nice cart, love the paint.
Reply With Quote
  #18
Old 08-05-2010
Member

Join Date: Aug 2010
Location: boston ky
Posts: 2
although it is sloppy compared to oxy Acetylene
Reply With Quote
  #19
Old 08-05-2010
DannyO's Avatar
Member
iTrader: (2)

Join Date: Jul 2010
Location: Kiln, MS
Posts: 151
Thats alot of red and white bro....... dont git me wrong ur rides are cool as hell. Any reason for the red and white or is it just something you have a big stock of?
Reply With Quote
  #20
Old 08-06-2010
HighRollerII's Avatar
RF Veteran
iTrader: (4)

Join Date: Jun 2004
Location: Charleston, SC
Posts: 10,066
we use propane and oxy at work for heating up alum profile to bend it..gets it much hotter quicker
Reply With Quote
  #21
Old 03-06-2011
Member

Join Date: Mar 2011
Location: Canada
Posts: 2
Quote:
Originally Posted by FabChild View Post
Are you comparing it to Acetylene? Just curious on why you think oxy-propane cuts thicker metal? Acetylene flame is Approx 5589F and propane is Approx 4579F. Acetylene burns the hotter than all the other oxyfuels that why it's used the most.
Acetylene burns hotter which makes it better for welding, Propane puts out more BTU's which allows it to heat ticker metal faster, makes it better for cutting.
Reply With Quote
