rear bumper

well i got bored yesterday so i started to find what i could on my yard to build the rear bumper for my truck.. hope i can have this one done for the weekend... though im not sure bout the paint.. o well

started it today here what ive done...

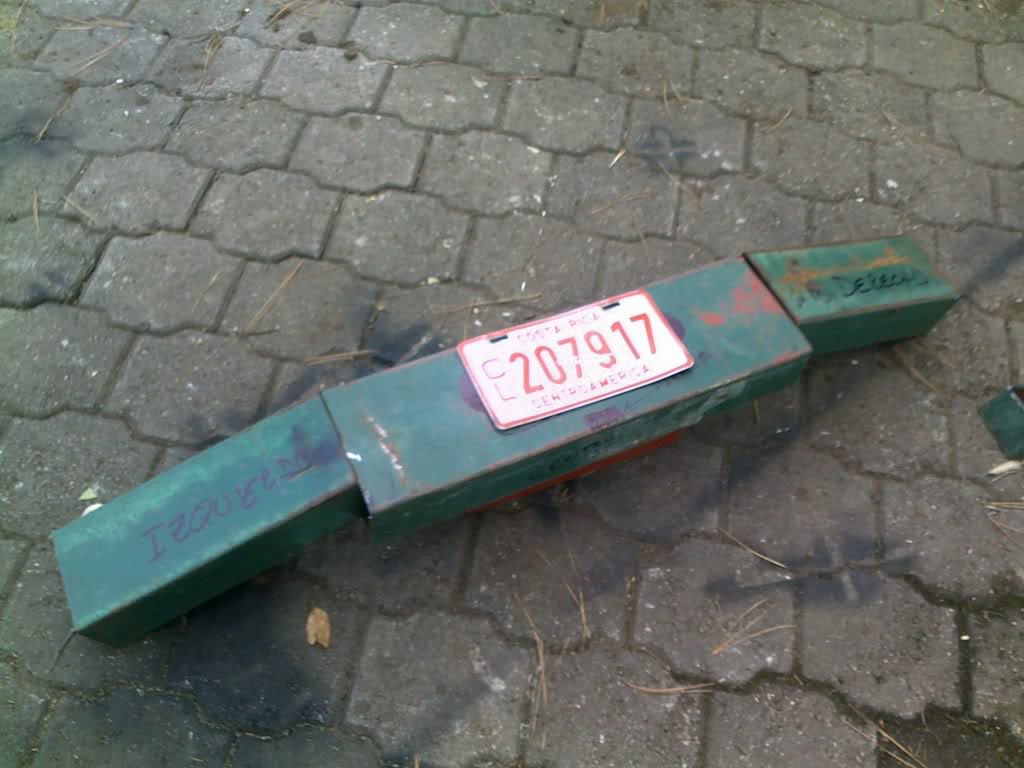

initial idea
Name:  25012010074.jpg
Views: 3
Size:  107.3 KB

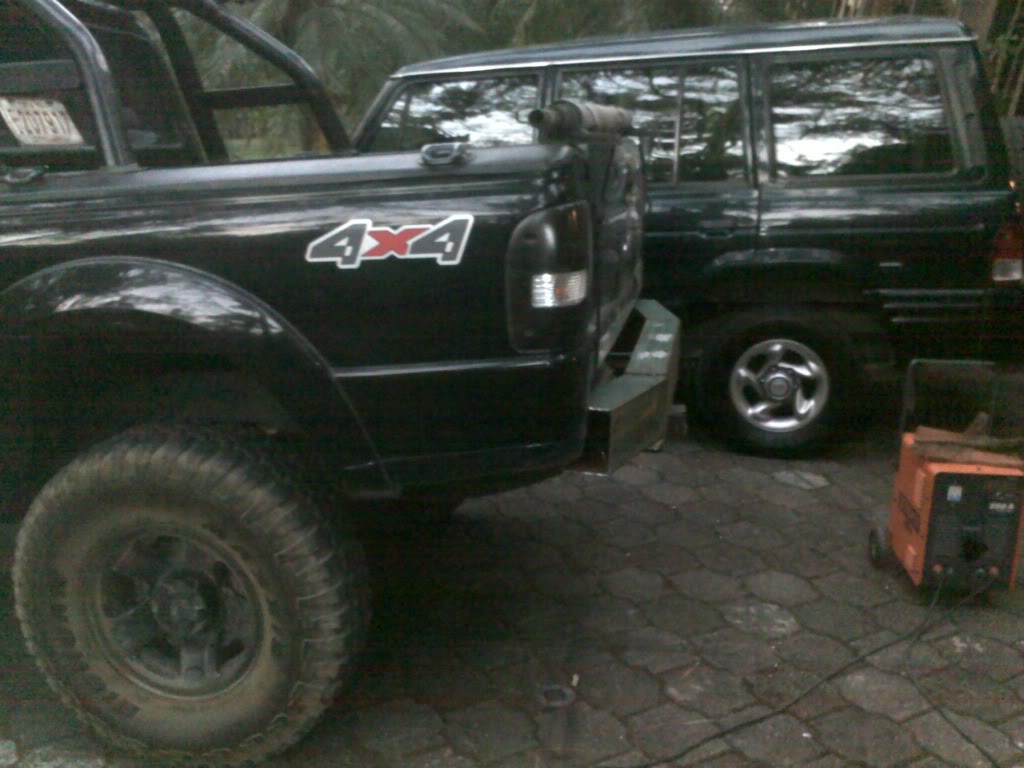

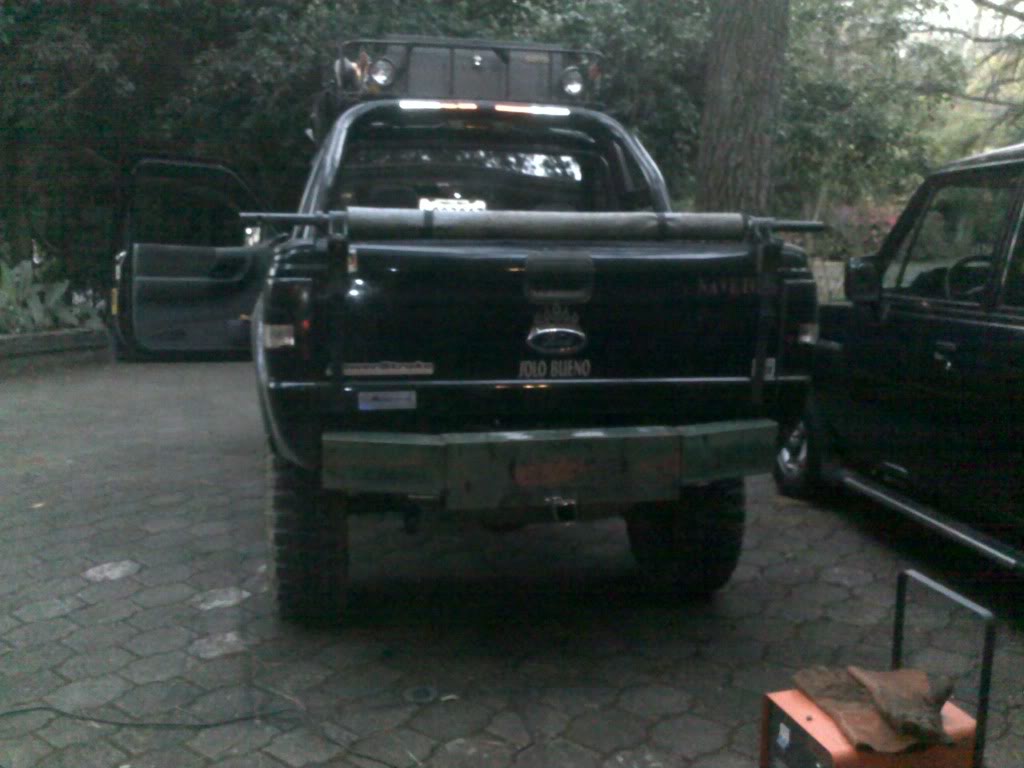

Name:  26012010079.jpg
Views: 2
Size:  83.6 KB
Name:  26012010080.jpg
Views: 3
Size:  89.0 KB

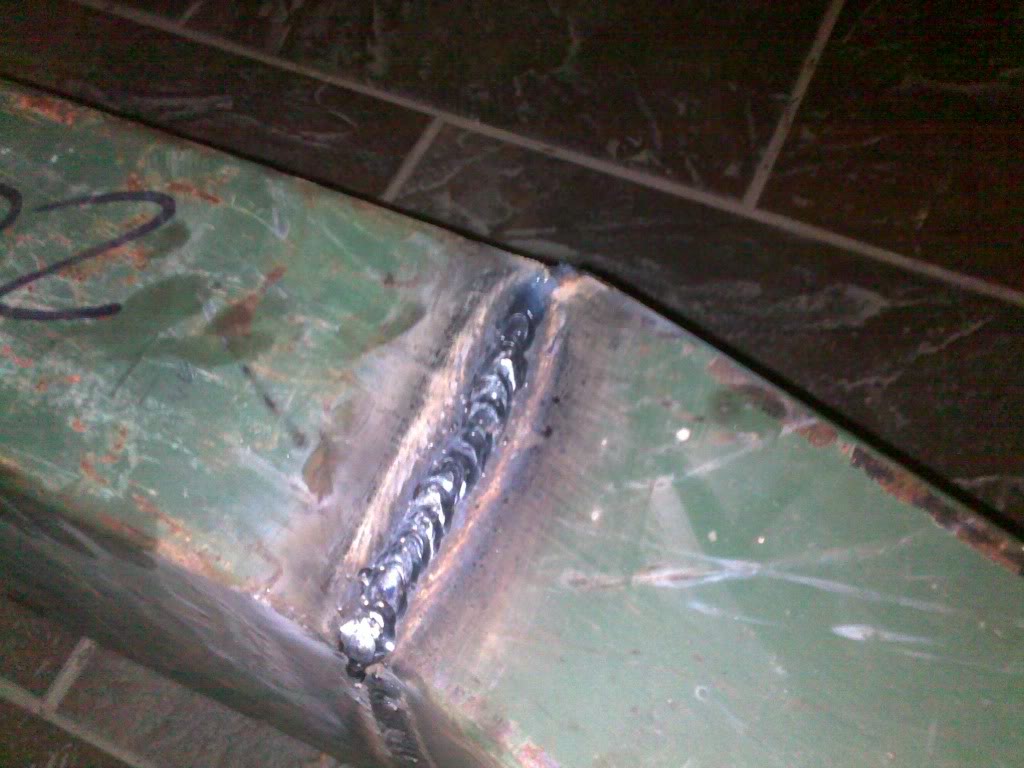

finally im doing nicer beads....
Name:  26012010083.jpg
Views: 1
Size:  102.3 KB
n ot usre if its to hot or to cold....

the bumper gona have a hitch reciver on the bottom, and not sure if ill add a pair of tabs to put some d-rings.... yet.... gota see if i can find a nice plate to do them. its gona be bolted on an angle plate to the frame and from there some reiforment direcly to the hitch so secure it and be strong enough to yank someone out of a mud hole or w/e...

ah and the sides im still gona do some more cutting to make them more... atractive... and im case of someone rearending me give some more gap wo it doesent hit the body
Reply With Quote
  #2
Old 01-26-2010
rangercrazy07's Avatar
Member
iTrader: (2)

Join Date: Oct 2005
Location: Marietta, GA
Posts: 758
looks good so far
Reply With Quote
  #3
Old 01-26-2010
steveo1271's Avatar
Member

Join Date: Oct 2009
Location: lexington,sc
Posts: 780
looks beefy, good job man
Reply With Quote
  #4
Old 01-26-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
i like it keep up the work
Reply With Quote
  #5
Old 01-26-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
thanks and forget.. theres 3 red leds going on top of the bumper at the middle.... :P

still gona try and push it to have it ready for the weekend for a wheeling trip im having...
Reply With Quote
  #6
Old 01-27-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
^^^^ make sure you take tons of pics of that trip...
Reply With Quote
  #7
Old 01-27-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
sure :) always do.. just hope my truck works for the weekend... its having a hard time turning on and is overheating on highway........
Reply With Quote
  #8
Old 01-27-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
that **** isnt good man. you dont have mud build up in the rad do you?
Reply With Quote
  #9
Old 01-27-2010
MudSlanger's Avatar
Member
iTrader: (4)

Join Date: Jun 2007
Location: Phoenix, AZ
Posts: 1,462
Downey is always a Downer...
Reply With Quote
  #10
Old 01-27-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
not sure.. yesterday i was cleaning and blowint the intercooler and what i could on the rad..... prolly im gona have to take it out and give it a good clean up.. what is also worrying me is that is having a hard time to start.. i give it key and it does nothing... until like the 5th or 6 time i try its starts and does a rattling sound.... o ****...taking it to the shop on monday i guess...
Reply With Quote
  #11
Old 01-27-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
Quote:
Originally Posted by MudSlanger View Post
Downey is always a Downer...
lol not trying to be

Quote:
Originally Posted by comunistico View Post
not sure.. yesterday i was cleaning and blowint the intercooler and what i could on the rad..... prolly im gona have to take it out and give it a good clean up.. what is also worrying me is that is having a hard time to start.. i give it key and it does nothing... until like the 5th or 6 time i try its starts and does a rattling sound.... o ****...taking it to the shop on monday i guess...
good deal man
Reply With Quote
  #12
Old 01-27-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Looking good!

Are you gonna make it wrap around the sides any?
Reply With Quote
  #13
Old 01-27-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
no. The idea is to tuck it in. Already cut a little from the inside to get it 2" further in.


If i can go home early and work on it i hope to finish the brackets and wled the hitch reciver

The whole point of it is to give better clearence because the hitch just droped very low... And i didnt like the stock bumper anyway.
Reply With Quote
  #14
Old 01-28-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
Name:  28012010084.jpg
Views: 1
Size:  103.9 KB
Som progress had to stop fir today hope to finish tomarow. I know 1 tab is tilted but that was the gf fault...

Name:  28012010085.jpg
Views: 2
Size:  116.6 KB
Reply With Quote
  #15
Old 01-28-2010
seed60's Avatar
RF Veteran
iTrader: (15)

Join Date: Jun 2008
Location: Mooresville, NC
Posts: 5,584
Nice progress.
Reply With Quote
  #16
Old 01-28-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
already got the licence plate welded and the led lights tab on top. Hopefully tomarrow with some 3-4 hours of work and ill be done
Reply With Quote
  #17
Old 01-28-2010
Downey's Avatar
RF Veteran
iTrader: (1)

Join Date: Oct 2007
Location: Muncy, PA
Posts: 8,470
cool man did you figure out why its over heating
Reply With Quote
  #18
Old 01-28-2010
blueranger789's Avatar
Member

Join Date: Mar 2009
Location: Boiling Springs, SC
Posts: 619
looks awsome and beefy, why did you draw your license plate on the bumper though?
Reply With Quote
  #19
Old 01-28-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
to get the idea of looks and to make the template of how high i could put the hitch.. And i was bored with the pen on the hand.

No not sure bout the overheating. Hoping its just a dirty rad.....
Reply With Quote
  #20
Old 01-28-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
thabks. No idea on the heating prob. Sure hope its jusr mud on the rad.

Was bored with a pen on hand so i draw it were it should go to have ann idea of size and were to mountt the hitch and lights etc.

Onle 4 little pieces missing to cut and weld and then some grinding, little body filler for the front rough edges, and a can or 2 of black paint. Then its up on the truck.
Reply With Quote
  #21
Old 01-29-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319

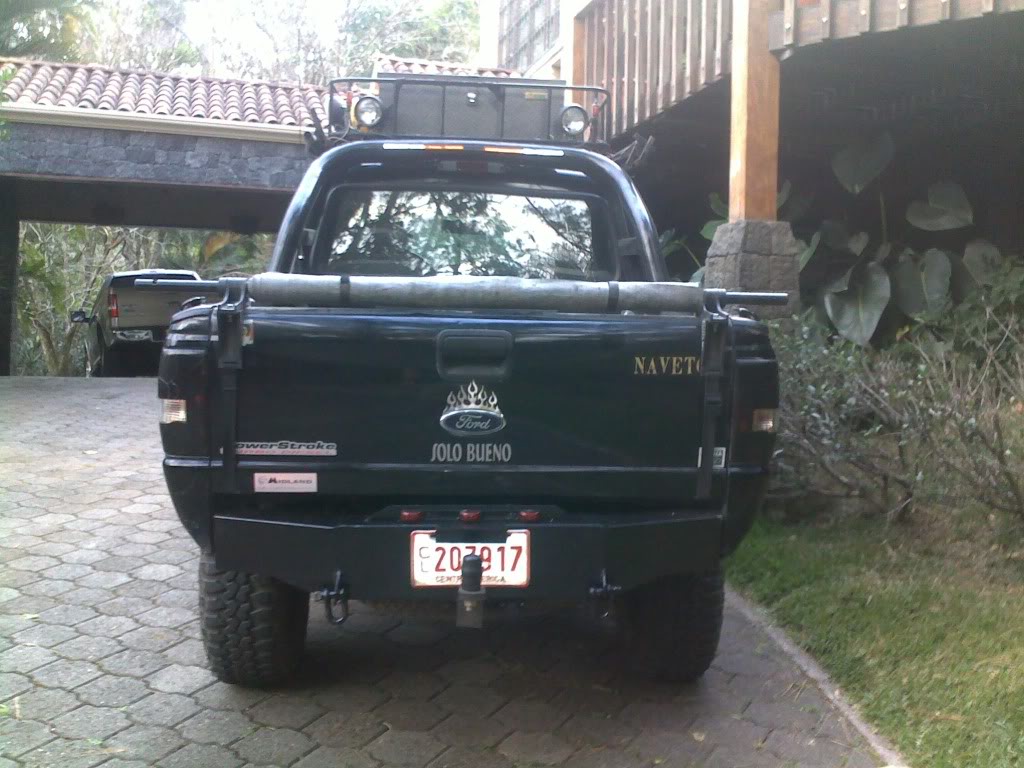

finally done.. just cant get the leds to work.. not sure what it is.. worked fine for a min then turned om off and when i light em up again it blew the fuse... and cant figure it out... th was a ground cablle so i guess its not that :S i dunno..

well some pics

Name:  29012010087.jpg
Views: 0
Size:  135.6 KB
Name:  29012010088.jpg
Views: 1
Size:  132.9 KB

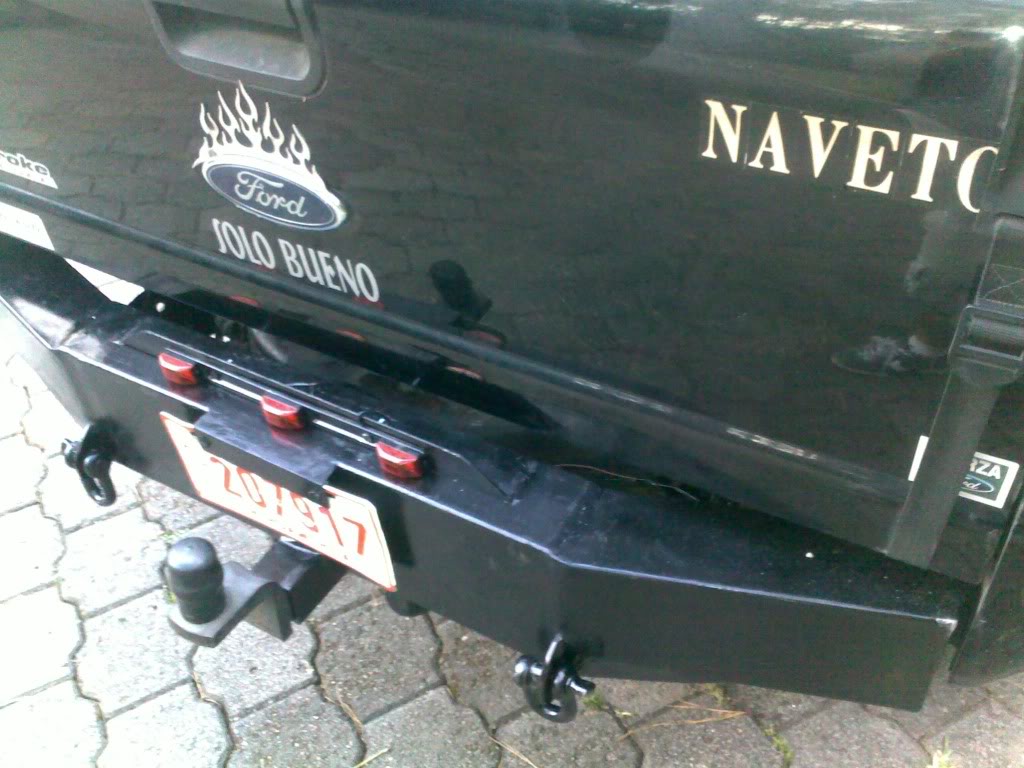

how i bolted it>
Name:  29012010089.jpg
Views: 1
Size:  63.6 KB
Name:  29012010090.jpg
Views: 2
Size:  112.4 KB
Name:  29012010091.jpg
Views: 1
Size:  115.2 KB
Reply With Quote
  #22
Old 01-29-2010
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
pretty sweet. your getting good at the custom fab stuff.
Reply With Quote
  #23
Old 01-29-2010
comunistico's Avatar
Member
Thread Starter

Join Date: Nov 2008
Location: san jose, Costa Rica
Posts: 1,319
thanks.. still got alot to practice though... but getting there :)
Reply With Quote
  #24
Old 01-29-2010
robert99ranger's Avatar
RF Veteran
iTrader: (4)

Join Date: Aug 2007
Location: Indiana/Mississippi
Posts: 5,807
Looking good man. I like it
Reply With Quote
  #25
Old 01-29-2010
reader585's Avatar
Member

Join Date: Nov 2008
Location: Oromocto New brunswick
Posts: 791
Nice job man
Reply With Quote
