Have a problem

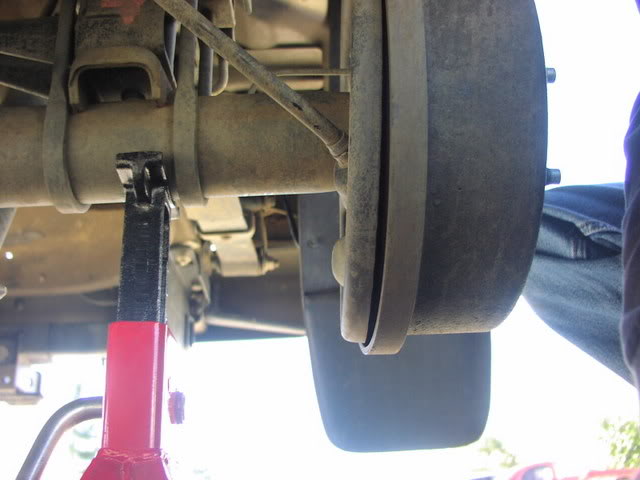

I didn't know where to put this topic at. I was driving from workthe other day while it was raining hard and I hydroplaned. I did a 180 and slammed my back tire into a curb. My tire was wobbly so i thought i bent the rim but when i took the tire off i looked at my drum andthis is what i found. I was wondering if i could just replace it myself or if i should take it to a shop?
Name:  P1010206.jpg
Views: 1
Size:  39.6 KB
Name:  P1010208.jpg
Views: 1
Size:  40.0 KB
Reply With Quote
  #2
Old 12-28-2006
ranger's Avatar
Member

Join Date: Jun 2006
Location: Imperial Beach, CA
Posts: 4,502
holy crap looks like the whole axel is bent at and angle it looks like this /

and i dont know how that could be fixed hopefully some one will chime in
Reply With Quote
  #3
Old 12-28-2006
Member

Join Date: Oct 2006
Location: tonawanda NY
Posts: 109
jeeeeeez man thats bad news right there. Maybe you'll get lucky and it will just be the backing plate. Good luck man!!
Reply With Quote
  #4
Old 12-28-2006
DangaRanger99's Avatar
Member

Join Date: Mar 2006
Location: Farmington, NH
Posts: 1,209
it just looks like the backing plate is bent and maybe your drum and rim is warped thats what might be causing the vibrations
Reply With Quote
  #5
Old 12-28-2006
elmo_4_vt's Avatar
Member

Join Date: Jun 2005
Location: Wilmington DE
Posts: 377
90% sure your axle is bent... I did that in my old Monte Carlo, drifting a corner, and my old van, playing in snow. Good news is you can do it yourself. You'll need new axle (~$150) and a cover gasket (~15).

To take out your axle:
-Remove your rear drum
-Remove the break shoes and all the hardware
-Unbolt the back plate
-Take off the gear cover (make sure to scrape the old gasket off completely)
-Take out the pin set bolt
-Remove the pin
-push the axle in and remove the C clip
-pull the axle

To install, do the reverse. Then add your new fluid, I think 2.5 quarts.

There's actually a pretty good write-up in the Hayes manual

-
Reply With Quote
  #6
Old 12-28-2006
NastyNate's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Vacaville, CA
Posts: 92
should i just get an explore axle so i have disc brakes?
Reply With Quote
  #7
Old 12-28-2006
Member

Join Date: Feb 2005
Location: Edmonton, Alberta
Posts: 1,027
thats an owy!! yea axle does look toast..and if you want rear disc and can splurge on a new diff do it just make sure it has the right gears in it! cause im sure you dont wanna do a swap
Reply With Quote
  #8
Old 12-28-2006
jasonsfx4's Avatar
Member

Join Date: Nov 2006
Location: weston,wv
Posts: 274
dude thats exactly what my truck looked like after a nissan hit my back passenger tire and i have 35's. and my truck didnt move too far so it ended up bending the axle and also the backing plate so best bet is buy a rear end for like 150 bc a axle is like i think i found one for 130-140 and backing plate is 30-35 and a whole axle would give you xtra gears and parts.
Reply With Quote
  #9
Old 12-28-2006
NastyNate's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Vacaville, CA
Posts: 92
Is a rear axle easy or hard to fix? Can i get rear disc with 4x4? I have heard that you have to weld some stuff to your axle if you do get rear disc. If it is my axel for sure i will know tomarrow. I am taking it to a shop to see what the damage is. I found a how to on an axel swap so if i do have to get a new axle then i might be in good shape to do it myself. Thanks for the input guys and i will keep you posted.
Reply With Quote
  #10
Old 12-28-2006
Member

Join Date: Feb 2005
Location: Edmonton, Alberta
Posts: 1,027
i talked with Bill he put on rear disc and no you dont need to weld anything on..and it doesnt matter if it comes out of a 2x4 or a 4x4 for the rear end just make sure if you have a 31spline 8.8 you get the same thing and make sure the gears are the same i jsut had lots of ppl tell me its a pain the *** to switch gears so buy an axle with the sme gears your good to go..its a direct bolt on from what i know rear ends are identical
Reply With Quote
  #11
Old 12-28-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
go to the JY get a explorer 8.8 LSD..... clean it up, take out the old one, bolt in the new one and call it a day
Reply With Quote
  #12
Old 12-28-2006
telemaster1952's Avatar
Member

Join Date: Dec 2005
Location: Dover, Deleware
Posts: 3,481
...........sorry, did i forget to say, that sucks man
Reply With Quote
  #13
Old 12-28-2006
NastyNate's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Vacaville, CA
Posts: 92
Thanks a ton for all the info, you guys are great. I have a 2000 4x4 xlt. i think i have an 8.8, 4.10 gears and i don't think i have 31spline. so i will need a 8.8, 4.10 gear LSD explore axle. which i think is a D2. If i have got any of this mixed up please let me know. I found a axel swap how to in the How To section of the site.
Reply With Quote
  #14
Old 12-29-2006
jasonsfx4's Avatar
Member

Join Date: Nov 2006
Location: weston,wv
Posts: 274
http://cgi.ebay.com/OEM-Ford-Ranger-...QQcmdZViewItem
you might be able to get a new axle pretty cheap.
Reply With Quote
  #15
Old 12-29-2006
LILBLUE04FX4L2's Avatar
Member

Join Date: Jun 2004
Location: Exit 105 New Jersey
Posts: 2,409
just replacing the axle is cheaper and not too hard
thing is the force that bend it went straight to the pumkin and you may have some damage there
a broken tooth or bad ring will mess you up down the road
Reply With Quote
  #16
Old 12-31-2006
NastyNate's Avatar
Member
Thread Starter

Join Date: Oct 2006
Location: Vacaville, CA
Posts: 92
Hey guys i didn't have any luck at my local junk yard and i though i could get an axle online pretty cheap. this is what i found tell me what you think. http://www.ewebcart.com/~4369/cgi-bi.../?la=a&ac=view
Reply With Quote
  #17
Old 12-31-2006
04lvl2's Avatar
RF Veteran

Join Date: Jun 2004
Location: Palm Bay, FL
Posts: 5,600
That is not the axle, that is the ring and pinion.
Reply With Quote
  #18
Old 12-31-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by Blurple
i talked with Bill he put on rear disc and no you dont need to weld anything on..and it doesnt matter if it comes out of a 2x4 or a 4x4 for the rear end just make sure if you have a 31spline 8.8 you get the same thing and make sure the gears are the same i jsut had lots of ppl tell me its a pain the *** to switch gears so buy an axle with the sme gears your good to go..its a direct bolt on from what i know rear ends are identical
Explorer rotors, calipers and backing plates are a direct bolt-on ONLY to the unique 31-spline rear axle flanges as used on Level II's. They will NOT fit the common 28-spline Ranger flanges without modification.

Even on LII's, installing Ex discs requires that both axle shafts be removed, flex hose stays fabricated and the steel lines shortened. The parking brake cables must also be reworked.

A complete Explorer axle assembly is not a bolt-on to any Ranger. The spring perches are on the bottom of the axle tubes for the Explorer's "spring under" design. Installing an Explorer axle that will maintain a Ranger's ride height requires perches above the axle tubes and new welded-on shock mounts.

Simply replacing your bent 28-spline axle shaft is cheaper/easier than either of those options.
Reply With Quote
  #19
Old 12-31-2006
zabeard's Avatar
who?
iTrader: (8)

Join Date: Nov 2004
Location: IN
Posts: 26,045
talk to Jason Rngprerunner he is a mod on here, he has several axles and is selling one of his 31 spline explorer axles... even lives in Cali..
Reply With Quote
  #20
Old 12-31-2006
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
Quote:
Originally Posted by zabeard
... even lives in Cali..
Good thought but they're still about 400 miles apart.

Reply With Quote
  #21
Old 01-01-2007
reelfishin's Avatar
Member

Join Date: Oct 2006
Location: Right here!
Posts: 157
Looks like a the hit bent the axle flange at the very least. I would also take a close look at the axle housing, tire and rim after a shot like that. If it's just the axle shaft, I'd probably just swap the shaft, if the housing is bent or if you've been looking for an excuse to upgrade, go for the whole assembly.

Disc brakes would be an upgrade, but I would also look into whether or not they use the same master cylinder, equalizing valves, etc. They may or may not be the same.
Some 8.8 axles will require new u bolts and saddle plates due to the larger tube diameter.

If you go for a complete axle, you will either have to find the same ratio axle, or change change the front differential gears too, along with recalibrating the speedo.
