How safe would this be?

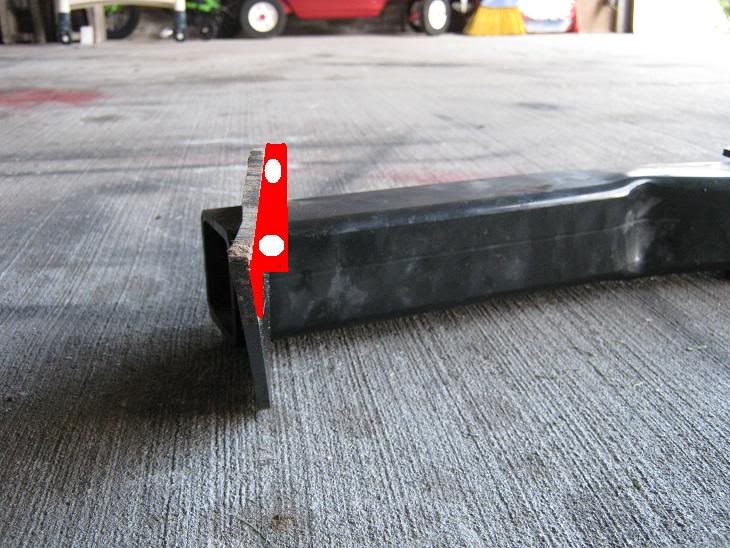

Okay so someone cut my trailer hitch a little to short by about 2-3" so I cant just drill holes and bolt it on and weld it back

How safe would it be to weld 3" angle iron to the side and drill 2 holes in it then use the existing mounting holes?

Angle iron is the red I made in the picture

Would I need 3 holes on each side instead of 2?

Got to get this done soon I need the trailer next weekend

Name:  e32b9d33.jpg
Views: 1
Size:  80.1 KB
Reply With Quote
  #2
Old 09-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
how thick of angle iron are we talkin?
Reply With Quote
  #3
Old 09-06-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Possibly the thickest I can get
Reply With Quote
  #4
Old 09-06-2009
Woods-Rider's Avatar
Member
iTrader: (2)

Join Date: Apr 2008
Location: Hillsboro, OR
Posts: 1,108
And that is???
Reply With Quote
  #5
Old 09-06-2009
rangerboy101's Avatar
RF Veteran
iTrader: (5)

Join Date: Aug 2007
Location: Winchester, Va
Posts: 8,187
If its the thickness of the existing plate then I dont see why not.
Reply With Quote
  #6
Old 09-06-2009
99ranger4x4's Avatar
RF Veteran
iTrader: (3)

Join Date: Jun 2006
Location: Austin, TX
Posts: 12,198
i would put some bolts in it too.

maybe lik 3x3 3/8" thick?
Reply With Quote
  #7
Old 09-06-2009
WowMike2001's Avatar
Member

Join Date: Oct 2007
Location: Stevenson, WA
Posts: 2,583
Quote:
Originally Posted by 99ranger4x4 View Post
i would put some bolts in it too.

maybe lik 3x3 3/8" thick?
3/8" might do the trick - but I dunno - can 2 small plates of 3/8's take care of about 4 tons worth of suden jerking power if someone was to yank you out of a pit?

Seems have iffy to me.. but heck, enough steel and enough welding can do just about anything good :-D

As mentioned - it woudl probably be good to put some bolts in as well, good ol fashioned 3/4" bolts just in case anythign decides not to work well when pulling something =)
Reply With Quote
  #8
Old 09-06-2009
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
It'll be fine as long as you use the same grade and thinkness steel. I had a reese class III hitch on my other ranger and that's how it bolted up.
Reply With Quote
  #9
Old 09-06-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
That's basically how my hitch mounts up. I would try to limit it to a 5000lb tongue weight though.
Reply With Quote
  #10
Old 09-07-2009
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Quote:
Originally Posted by Johnbaum13 View Post
That's basically how my hitch mounts up. I would try to limit it to a 5000lb tongue weight though.

HAHAHA!!! hopefully you meant 500lbs!!
Reply With Quote
  #11
Old 09-07-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
yeah, that.
Reply With Quote
  #12
Old 09-07-2009
TheBearJeweler's Avatar
Member
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by STL View Post
Possibly the thickest I can get
hang on ill get some pics for you of mine. its super easy to do it the way i did. except use bolts.
Reply With Quote
  #13
Old 09-07-2009
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
I will post pics of mine. I did this mod yesterday.
Reply With Quote
  #14
Old 09-07-2009
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Actually do you still have the pieces that were cut off?
Reply With Quote
  #15
Old 09-07-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Ya somewhere in the garage

I may do like u did Brendon cause the pictures u texted me yesterday looked like Ben Drinkins
Reply With Quote
  #16
Old 09-07-2009
bugz1racing's Avatar
Member

Join Date: Apr 2008
Location: Illinois
Posts: 1,280
Overlap the cut off piece on the outside and weld together on both sides. Then take a piece of plate and weld over on the inside. All I need to do now is switch out the bolts before I try to pull something.

Reply With Quote
  #17
Old 09-09-2009
TheBearJeweler's Avatar
Member
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by bugz1racing View Post
Overlap the cut off piece on the outside and weld together on both sides. Then take a piece of plate and weld over on the inside. All I need to do now is switch out the bolts before I try to pull something.

I cut yours in the same place as mine. I just put two grade 8 1/2 inch bolts in it yesterday.


Quote:
Originally Posted by jeweler54 View Post
Well on Friday I went to my local salvage yard and finally got a hitch for the Ranger. I lucked out, A mid-late 90s ranger had the bed off of it and had a beautifully exposed Ford factory hitch. As everyone knows i have the P.A. 3 inch Body Lift on my truck and hitches that are made for factory set up trucks hang down very low. Well heres what i did...

Step One:
Mount the hitch you purchased or currently have. Measure from the bottom of the hitch to the ground. Make sure your on level ground and tire pressure is equal.




Step Two:
Cut the hitch off half way in between the botton bar and frame with a reciprocating saw with a FRESH blade.

Step Three:
Bend tabs out with a large hammer on the bottom piece with the hitch on it. Then make sure the hitch can go around the existing mounts left on the truck with no force. Leave the mounts tight on the truck and make sure bumper is PERFECTLY aligned with the bed..

Step Four:
Using welder's clamps, align hitch with the bumper, measure on level ground from the bottom of the hitch to the ground. Check to make sure you have equal distance on each side. Make sure to get all angles in alignment. Use Clamps to hold the hitch into place. Take your time doing this, try to get it straight as possible. I moved my hitch up exactly 3.5 inches. CLAMP IT TIGHT!



Step Five:
Using A Welder, tack weld the hitch into place.




Step 6:
After you have secured your hitch with small welds, un-bolt it and finish your welds up all the way around the top if necessary and add any other support you feel necessary. Then re-install.





Step 7:
Go back and check all bolts, brackets and welds then give that thing a fresh sanding and painting. Here is the end result:



Reply With Quote
  #18
Old 09-09-2009
TheBearJeweler's Avatar
Member
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
Quote:
Originally Posted by STL View Post
Ben Drinkins
OMG I LOVE IT! ROFL!
Reply With Quote
  #19
Old 09-09-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Im having major issues with my exhaust it wont allow anything to go up where it need to go

The bracket part of the hitch wont line up with the original holes either unless I am just dumb and have them wrong which is a good possibility. I never saw how they were before it was pulled off.

The 2 upper ones line up but the bottom one will not match the original hole
Reply With Quote
  #20
Old 09-09-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
the arrow in cardinal red is the one bolt that wont line up

Reply With Quote
  #21
Old 09-09-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
drill a new hole then... all the older ranger hitches you had to drill your own 2nd hole...
Reply With Quote
  #22
Old 09-09-2009
TheBearJeweler's Avatar
Member
iTrader: (18)

Join Date: Oct 2007
Location: Arkansas
Posts: 3,179
hmmm. So the mounts that we took off and didn't mod wont line up now? That's weird. maybe we need to mod those bumper brackets more. they may be throwing your hitch off. hmmmm. make sure to put your hitch mounting tabs on the inside of your bumper brackets (closest to the frame). Otherwise it wont line up.
Reply With Quote
  #23
Old 09-10-2009
Mykhael's Avatar
Member
Thread Starter
iTrader: (3)

Join Date: Sep 2004
Location: .
Posts: 4,197
Quote:
Originally Posted by jeweler54 View Post
make sure to put your hitch mounting tabs on the inside of your bumper brackets (closest to the frame). Otherwise it wont line up.
That may be one reason why Brendon told me to go on the outside

Reply With Quote
  #24
Old 09-10-2009
Jazz921's Avatar
Member
iTrader: (2)

Join Date: Sep 2007
Location: Evansville, IN
Posts: 997
Reply With Quote
  #25
Old 09-10-2009
hozII's Avatar
Member
iTrader: (5)

Join Date: Sep 2008
Location: athens, Al
Posts: 2,245
Mykheal? is your hitch a factory hitch...If it is your makein alot harder than it needs to be or there's something im not understanding. I see that its already been cut and was cut too short. When i did mine we cut 2 3/4 outta the hitch and just rewelded it back together. It all bolted right back where it was supposed to go. I'll get some pics for ya tomm of the hitch, this is all i got for right now though....

before..
Name:  DSCF1640.jpg
Views: 0
Size:  107.2 KB

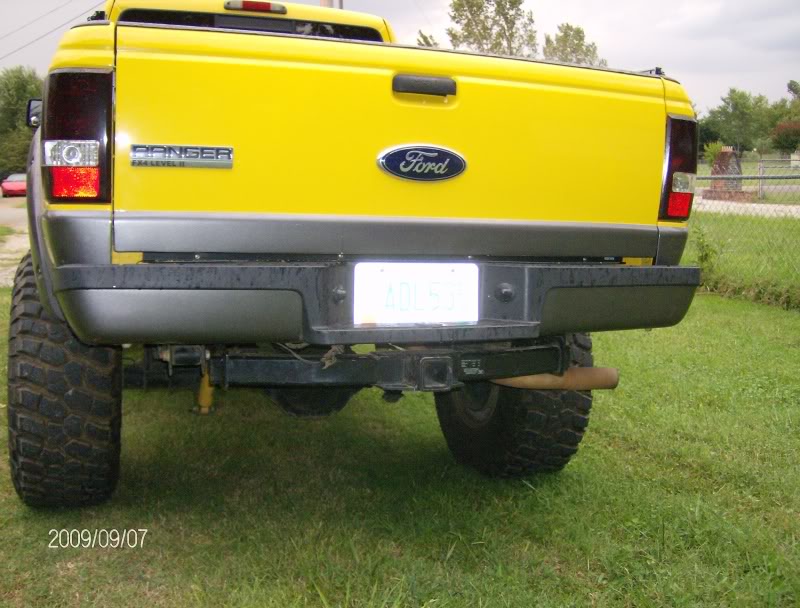

after...
Name:  HPIM0662.jpg
Views: 0
Size:  104.1 KB
