Issues after replacing valve head gasket - Ranger-Forums - The Ultimate Ford Ranger Resource

General Ford Ranger Discussion General discussion of the Ford Ranger that does not fit in any other sub-forum.

Issues after replacing valve head gasket

Reply




  #1
Old 1 Week Ago
Kharon's Avatar
Member
Thread Starter
Join Date: Oct 2018
Location: San Antonio
Posts: 15
Issues after replacing valve cover gasket




I took everything apart and reassembled everythig according the Haynes repair manual, the vehicle started up rough..here the list of problems that are occurring none of which occurred before doing the replacement;
1) Wet and dripping exhaust pipe
2) Shakes while stopped at a ligh, reversing and when Iím around 50mph.
3) Acceleration takes awhile by the time I know the pedal is almost all the way down.
ive checked everything now Iím debating weather to disassemble everything again.
help would be nice lol

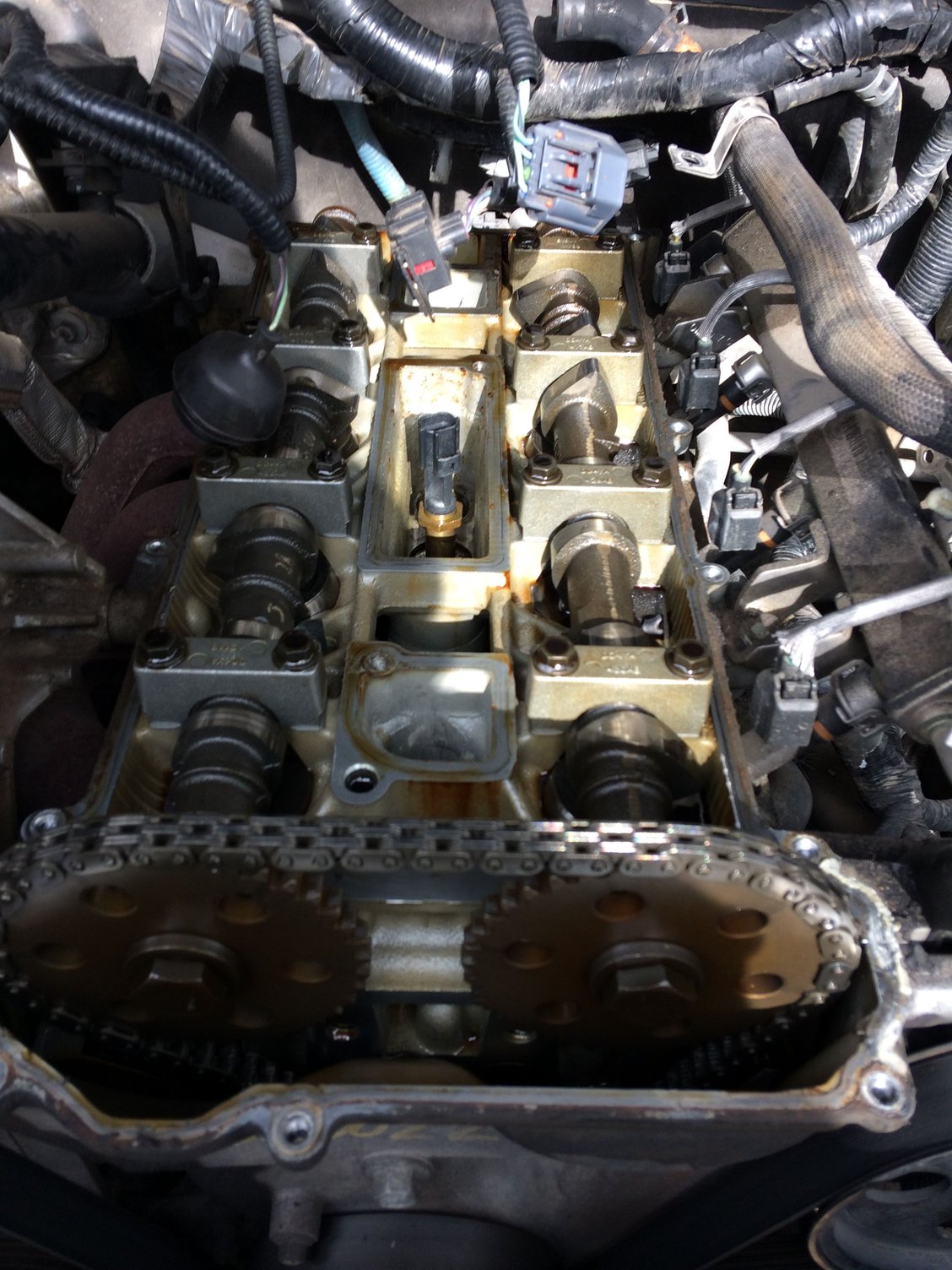

The pictures were taken when I took it off the valve cover..


Last edited by Kharon; 1 Week Ago at 09:22 PM. Reason: Typo
Reply With Quote
  #2
Old 1 Week Ago
Member
Join Date: Sep 2018
Location: plano
Posts: 23
Title is a bit confusing.Did you replace the head gasket or valve cover gasket?

Reply With Quote
  #3
Old 1 Week Ago
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 10,498
2.3l DOHC Duratec, a Mazda L engine

What year?
The early models in Rangers had IMRC which was vacuum operated, this would effect operation if it wasn't working

Lack of power can be valve timing, do compression test with all spark plugs are out
Compression ratio is 9.7:1 so expected compression would be 170-175psi cold engine
This would be timing chain tensioner issue

Reply With Quote
  #4
Old 1 Week Ago
Kharon's Avatar
Member
Thread Starter
Join Date: Oct 2018
Location: San Antonio
Posts: 15
misfire in cylinder three

Originally Posted by RonD View Post
2.3l DOHC Duratec, a Mazda L engine

What year?
The early models in Rangers had IMRC which was vacuum operated, this would effect operation if it wasn't working

Lack of power can be valve timing, do compression test with all spark plugs are out
Compression ratio is 9.7:1 so expected compression would be 170-175psi cold engine
This would be timing chain tensioner issue
The code PO303 popped up on my scanner and while I was waiting at the light my door ajar light came on and turned off then my dash light went out...Iíve checked the plugs and boots but still running rough.

Reply With Quote
  #5
Old 1 Week Ago
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 10,498
What year Ranger?

Reply With Quote
  #6
Old 1 Week Ago
Kharon's Avatar
Member
Thread Starter
Join Date: Oct 2018
Location: San Antonio
Posts: 15
Originally Posted by RonD View Post
What year Ranger?
2008 2.3 Ranger, it was orginlly leaking oil out and getting in two and three and when I took off the valve cover turns out the previous owner replaced the outer gasket but not the middle ones lol...

Reply With Quote
  #7
Old 1 Week Ago
RF Veteran
iTrader: (1)
Join Date: Jan 2014
Location: Vancouver, BC
Posts: 10,498
Swap spark plugs 2 and 3 and see if P0303 changes to P0302
Replace #2 spark plug if it does

You may have cracked a spark plug on removal and install, not uncommon

Reply With Quote
  #8
Old 1 Week Ago
Kharon's Avatar
Member
Thread Starter
Join Date: Oct 2018
Location: San Antonio
Posts: 15
Originally Posted by RonD View Post
Swap spark plugs 2 and 3 and see if P0303 changes to P0302
Replace #2 spark plug if it does

You may have cracked a spark plug on removal and install, not uncommon
ive swapped spark plug one and three including the boots but itís still running rough and the lights keep turning off, Iíll take off the intake manifold and see if I missed something

Reply With Quote
  #9
Old 1 Week Ago
2011Supercab's Avatar
Member
Join Date: Jun 2018
Location: Everett, WA
Posts: 124
Originally Posted by Kharon View Post


ive swapped spark plug one and three including the boots but itís still running rough and the lights keep turning off, Iíll take off the intake manifold and see if I missed something
The way the ignition works on that engine, for the test you needed to switch 2&3 not 1&3.

RonD is trying to help you and you don't follow his instructions.

Reply With Quote
