Load Limits ??

I need to haul a one ton load several miles on residential streets. I can keep the speed down to 20-25 mph. Does anyone have experience overloading a Ranger like this? What is the REAL limit ? Mine is a stock '97 extended cab with good tires.

/Zac
Reply With Quote
  #2
Old 12-30-2010
ccernst's Avatar
Member

Join Date: May 2009
Location: Kansas City, MO
Posts: 380
I have officially hauled 1800 pounds without problems, which was one inch from the bump stops. I have also hauled a cubic yard of topsoil, which was firmly sitting on the axle...couldn't get a weight on it though. I'm so far so good. YMMV
Reply With Quote
  #3
Old 12-30-2010
Member

Join Date: Jun 2005
Location: Havertown,PA
Posts: 467
Oe Ton!?Don't do it!!
Reply With Quote
  #4
Old 12-30-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
one ton should be fine. i've hauled cement bags and we figured the weight to be around 1500. just go slow and be prepared to stop earlier on for lights and signs.
Reply With Quote
  #5
Old 12-30-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
you'll be fine
Reply With Quote
  #6
Old 12-31-2010
Member

Join Date: Jun 2005
Location: Havertown,PA
Posts: 467
One Ton is 2000lbs.Ranger cant do it.And the age of his truck something is going to break.
Reply With Quote
  #7
Old 12-31-2010
Member

Join Date: Jun 2005
Location: Havertown,PA
Posts: 467
Just looked up payload capacity. 1260lbs.
Reply With Quote
  #8
Old 12-31-2010
morris's Avatar
RF Veteran
iTrader: (5)

Join Date: Feb 2008
Location: South Detroit.
Posts: 7,833
you both need be more specific. OP and big edge. OP you didn't say what trim level your truck was or what engine.
manual or auto trans also comes into play on the payload or towing arguement.

in 2008, for a supercab 4x2 w/a 3.0L yes it's 1260 for the sport and 1520 for xlt w/o seats and 1660 w/ seats.
same year, supercab 4x4 w/a 4.0L it's 1440 w/o jump seats and 1580 w/.
same year, reg cab 4x2s are 1260 for the 4 banger and 1620 for the 3.0L
his is a 1997 and i don't see those numbers changing too much since the ranger itself hasn't.

if he really wants to be safe, he can get a trailer with a class 3 hitch.

for arguments sake there are others on this site that use their trucks for towing and have towed whether it's towing another vehicle or having the springs sitting on the bumpstops. heck one guy even used a 5th wheel.
Reply With Quote
  #9
Old 12-31-2010
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
as long as hes not using downeys truck to tow im sure it will be ok if its towed and auto trans
Reply With Quote
  #10
Old 01-03-2011
Member

Join Date: Jan 2011
Location: Willard Missouri
Posts: 7
about an inch more flex and that back right was off the ground lol
Attached Thumbnails
Load Limits ??-truckk.jpg
Reply With Quote
  #11
Old 01-03-2011
Member

Join Date: Jan 2011
Location: Willard Missouri
Posts: 7

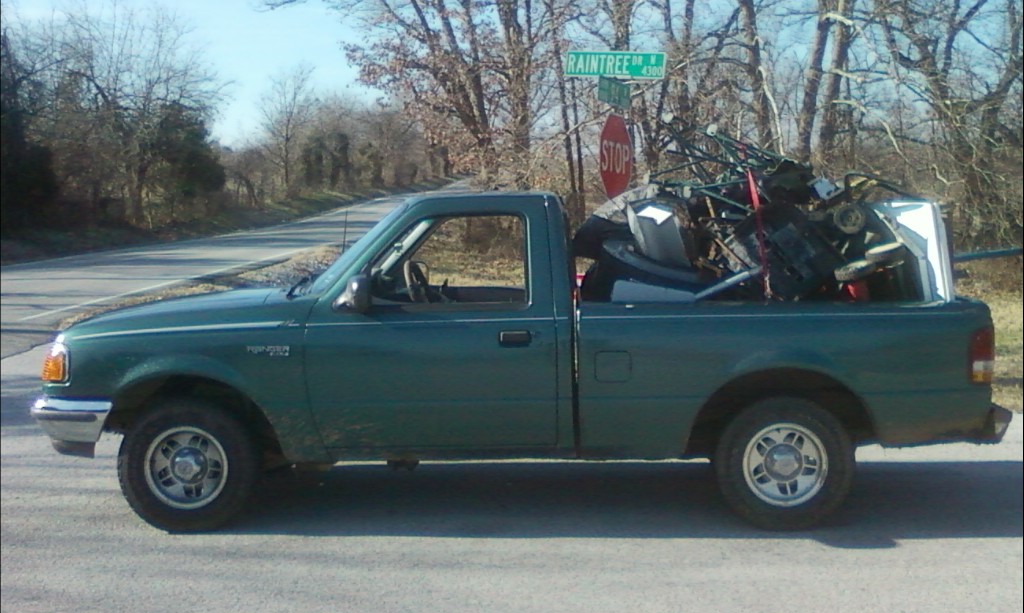

i took this load of scrap and this was 700 pounds in the back...i know that my wood load was more because i was squatin more in that picture than this one...RANGER POWER!
Attached Thumbnails
Load Limits ??-scrap-load.jpg
Reply With Quote
  #12
Old 01-03-2011
Member

Join Date: Jan 2011
Location: Willard Missouri
Posts: 7
wood
Attached Thumbnails
Load Limits ??-truck.jpg
Reply With Quote
