Looking into a tow hitch....

Brothers friend said he can probably get me one, and just curious on what years are the same and whatnot. i have a 99 ranger xlt 2wd, and im wondering what years and other vehicles have the same style and all?

thanks for reading
Reply With Quote
  #2
Old 10-28-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
rangers. all years will work. some might need holes drilled in frame to attach but thats normal..

I have a hitch on my truck from a 1987 ranger.
Reply With Quote
  #3
Old 10-28-2009
Machine090767's Avatar
RF Veteran

Join Date: May 2006
Location: Minnesota
Posts: 6,410
remember: not to think if you put a hitch on your truck it can tow anything. meaning, a class III hitch will not tow 5000lbs using your truck. with your 3.0 4x2, your towing maximum is 3,965Lbs UNLESS you have manual transmission. then your maximunm towig weight is: 2,498Lbs.
Reply With Quote
  #4
Old 10-28-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
^^^ what he said is right by the factory recommendations. That said, you *can* pull more for short distances, but a long pull can potentially cause problems. I've pulled 7000lbs with my 2.3 reg cab 5-spd, but I wouldn't recommend making a habit out of it.
Reply With Quote
  #5
Old 10-28-2009
LancerRevo's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: El Paso, TX
Posts: 262
ill keep that in mind. thanks, and im not planning on using it alot, or even now tbh. i just want it to have just in case, never know. with the recent body lift i have on, is that going to effect anything? and i have an automatic transmission.

so i would get a class 2 or 3?
http://hitches4less.com/trailer-hitch-classes.html

Last edited by LancerRevo; 10-28-2009 at 07:04 PM.
Reply With Quote
  #6
Old 10-28-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Get a class 3, that way you'll have enough for whatever you pull.
Reply With Quote
  #7
Old 10-29-2009
Member

Join Date: Jun 2004
Location: Fayetteville, NC
Posts: 1,966
With the bodylift, the hitch will just hang down in the stock location. It will just be below where the body is now, but the lift will not affect anything.
Reply With Quote
  #8
Old 10-31-2009
LancerRevo's Avatar
Member
Thread Starter

Join Date: Jun 2009
Location: El Paso, TX
Posts: 262
can someone upload a pic of their truck with a class 3 hitch and a lifted truck? i want to see how low it hangs and all since i got a body lift
Reply With Quote
  #9
Old 10-31-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
here is my Draw tite Hidden hitch.. normally the cross bar his hidden before the lift behind the bumper so you dont see it unlike the stock style hitch. this hitch is unmodded with the body lift. I have modded a stock style hitch before and still like this one better one day I will mod it who knows it doesnt bother me much.


Name:  Hitchforsale001.jpg
Views: 70
Size:  82.4 KB
Name:  Hitchforsale002.jpg
Views: 51
Size:  109.2 KB
Name:  Allcleanspring015.jpg
Views: 57
Size:  215.6 KB
Name:  Allcleanspring016.jpg
Views: 96
Size:  230.1 KB
Reply With Quote
  #10
Old 11-23-2009
cmc474's Avatar
Member

Join Date: Nov 2008
Location: Winnipeg
Posts: 471
Sorry for bringing back an older thread but is the complete cross bar hidden behind the bumper if you don't have a BL for that hitch or does some of it still stick out?
Reply With Quote
  #11
Old 11-24-2009
jason_ee's Avatar
Member

Join Date: Sep 2008
Location: Cincinnati, OH
Posts: 42
I am looking into getting a hitch, too, and was checking out different models online over the weekend. How much of the cross tube you see depends on the hitch design.

Here's some video links to various hitches being installed on Rangers:
Trailer Hitch Installation - 1998 Ford Ranger
Trailer Hitch Installation - 2002 Ford Ranger
Trailer Hitch Installation - 2003 Ford Ranger
Trailer Hitch Installation - 2007 Ford Ranger
Trailer Hitch Installation - 2006 Ford Ranger

I really like the design of the last one (Hidden Hitch model 70181). I consider not messing with the bumper and six bolts instead of four an improvement. It wouldn't work with Redneckstone's body lift, the bumper brackets are using those upper holes.
Reply With Quote
  #12
Old 11-24-2009
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
Quote:
Originally Posted by Machine090767 View Post
remember: not to think if you put a hitch on your truck it can tow anything. meaning, a class III hitch will not tow 5000lbs using your truck. with your 3.0 4x2, your towing maximum is 3,965Lbs UNLESS you have manual transmission. then your maximunm towig weight is: 2,498Lbs.

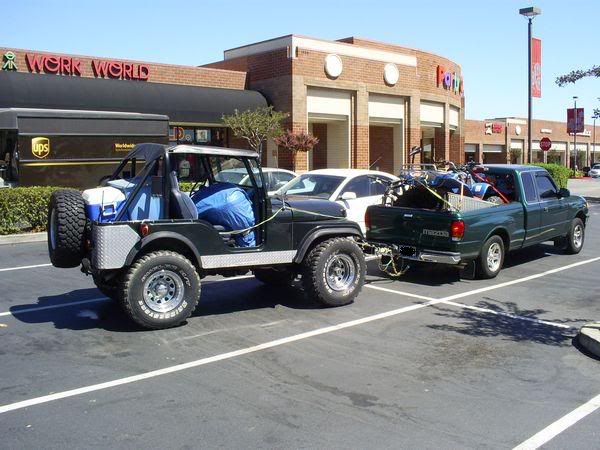

whoops

Name:  tn_S5032990.jpg
Views: 51
Size:  56.1 KB
Reply With Quote
  #13
Old 11-25-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
^^^^^Yeah, Whoops!

Reply With Quote
  #14
Old 11-25-2009
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
your pic is better cause the trucks dropped on low pro's and unless you tell people its got bags it looks like its doing fine
Reply With Quote
  #15
Old 11-25-2009
TXRanger09's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: El Paso, Tx
Posts: 1,206
do three goats counts as whoops? lol
Name:  p_00047.jpg
Views: 45
Size:  193.0 KB
Reply With Quote
  #16
Old 11-25-2009
korey89's Avatar
Member
iTrader: (2)

Join Date: Mar 2008
Location: South, FL
Posts: 4,672
Quote:
Originally Posted by Melt View Post
your pic is better cause the trucks dropped on low pro's and unless you tell people its got bags it looks like its doing fine
too bad the jack is on the ground
Reply With Quote
  #17
Old 11-25-2009
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
nah its legit heres the thread when he got it

https://www.ranger-forums.com/forum2...check-out.html
Reply With Quote
  #18
Old 11-25-2009
Melt's Avatar
Member
iTrader: (1)

Join Date: Apr 2008
Location: Denver, CO
Posts: 3,392
Quote:
Originally Posted by Spc_Austin View Post
do three goats counts as whoops? lol
]
i think the 4cyl capacity is like 1500 or so .... depends on if what your trailer weighs if youre in the "we tow whatever we need to with our 4 banger" club
Reply With Quote
  #19
Old 11-26-2009
Johnbaum13's Avatar
Member
iTrader: (1)

Join Date: Jan 2008
Location: Dallas, TX
Posts: 2,343
Quote:
Originally Posted by korey89 View Post
too bad the jack is on the ground
What looks like a jack in that pic is actually a bicycle pump. No jack on the trailer holding it up, but I do have bags, thats why the pump is there.

BTW, that combo was just under 7000 lbs.
Reply With Quote
  #20
Old 11-26-2009
Level III Supporter
iTrader: (2)

Join Date: Jun 2004
Location: usa
Posts: 24,936
Quote:
Originally Posted by cmc474 View Post
Sorry for bringing back an older thread but is the complete cross bar hidden behind the bumper if you don't have a BL for that hitch or does some of it still stick out?
only thing you will see is the receiver tube thats it. everything else is hidden.

Quote:
Originally Posted by jason_ee View Post
I am looking into getting a hitch, too, and was checking out different models online over the weekend. How much of the cross tube you see depends on the hitch design.

Here's some video links to various hitches being installed on Rangers:
Trailer Hitch Installation - 1998 Ford Ranger
Trailer Hitch Installation - 2002 Ford Ranger
Trailer Hitch Installation - 2003 Ford Ranger
Trailer Hitch Installation - 2007 Ford Ranger
Trailer Hitch Installation - 2006 Ford Ranger

I really like the design of the last one (Hidden Hitch model 70181). I consider not messing with the bumper and six bolts instead of four an improvement. It wouldn't work with Redneckstone's body lift, the bumper brackets are using those upper holes.
all stock ford hitches are designed to use the upper holes and it WILL work with a hitch and body lift that style I have installed many with body lift brackets get your info straight before making comments you havent dealt with.
Reply With Quote
  #21
Old 11-30-2009
jason_ee's Avatar
Member

Join Date: Sep 2008
Location: Cincinnati, OH
Posts: 42
Quote:
Originally Posted by Redneckstone View Post
all stock ford hitches are designed to use the upper holes and it WILL work with a hitch and body lift that style I have installed many with body lift brackets get your info straight before making comments you havent dealt with.
No need to get upset over this, I'm happy to be proven wrong. What I should have said was, "I can't visualize how this would work...".

So, how would the 6-bolt hitch and bumper brackets work together? From your pictures, it looks like the bumper brackets go straight out to the bumper. Do they then have a bend and slot at the bumper end to allow for aligning the bumper with the bed/body?
Reply With Quote
  #22
Old 11-30-2009
99offroadrngr's Avatar
TOYOTA
iTrader: (37)

Join Date: Jul 2007
Location: Massachusetts
Posts: 11,728
You'll need to bend out the bumper brackets a bit to wedge the hitch plate in there. if u bend it too much you can use washers or something to fill the gap. Just get one that uses the bottom holes its less of a hassle lol.
