Mods from yesterday

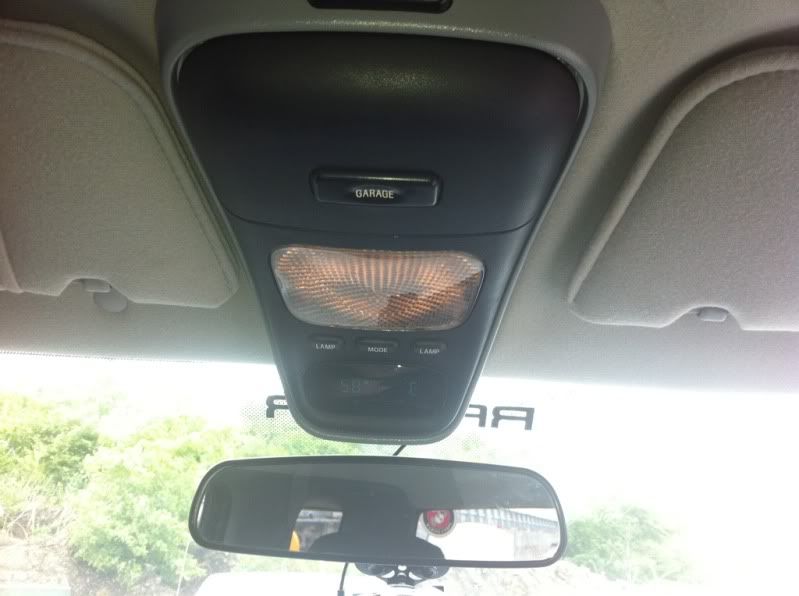

Finished wiring up OHC. Also hardwired my radar detector. Only one small issue with ohc. I checked out several different how to's on the ohc. I have an 06 XLT, I lokked everywhere for the VSS wire. I do not have GEM box, 06 is in the pass kick panel at brown plug. it says look for grey w/black stripe wire. I checked every wire but nadda. But my temp gauge is spot on anyway so im gonna leave it. [IMG][/IMG]
Reply With Quote
  #2
Old 06-23-2011
sullys_ranger's Avatar
Member

Join Date: Mar 2006
Location: NewLexington, Ohio
Posts: 3,615
looks good
Reply With Quote
  #3
Old 06-23-2011
04RangerDave's Avatar
JDM> RANGER

iTrader: (3)

Join Date: Jul 2010
Location: RI
Posts: 5,030
YOU HAVE A GEM
Reply With Quote
  #4
Old 06-23-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Good job. You should talk to Buggman and get an led panel for it.
Reply With Quote
  #5
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
Thanks guys, yea the led thing sounds really cool. I will have to contact buggman. Lol.

Last edited by Jlfordranger44; 06-23-2011 at 07:43 PM.
Reply With Quote
  #6
Old 06-23-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
The led panel is super bright. Look up "the ohc thread", the first post has a picture of an led ohc.
Reply With Quote
  #7
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
Thanks, I will look it up in a bit. I'm painting my ranger grill at the moment.
Reply With Quote
  #8
Old 06-23-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
nice. post pics when your done.
Reply With Quote
  #9
Old 06-23-2011
FULLSCALE's Avatar
Level III Supporter

iTrader: (12)

Join Date: Mar 2009
Location: Clinton, Ontario
Posts: 8,181
Not sure what year they changed... but on my '07 I had to pick up the VSS wire under the hood. Looks good!
Reply With Quote
  #10
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
I'll post pics in a bit. And yes I guess I'm going to have to catch it under the hood. Where did you find the VSS wire? If you don't mind me asking??
Reply With Quote
  #11
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98

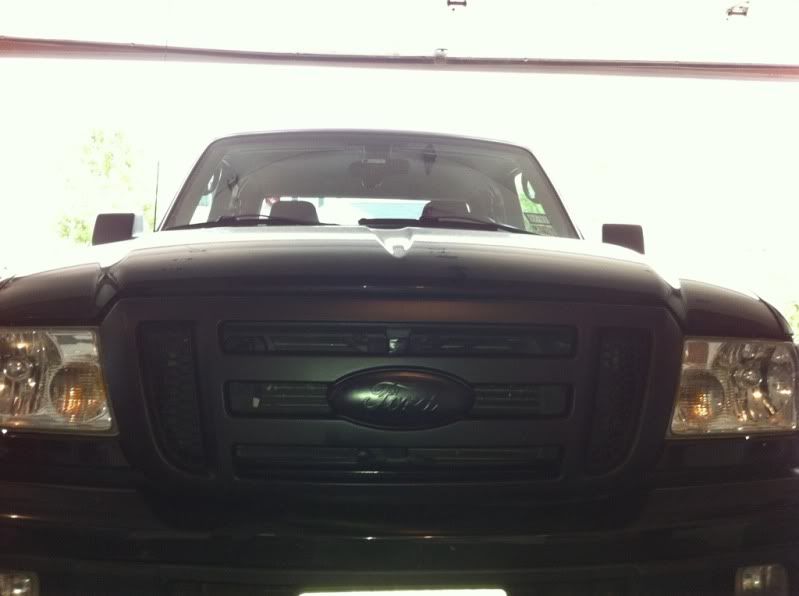

Ok its done. I only painted the emblem black because it was in bad shape. The blue color was coming off. I might buy a new one just for contrast. I dont know if this will be the final product. I used satin finish (krylon Fusion) I thought flat would not be good and gloss would be too shiny. But this still looks a little dull. I might get used to it. Maybe after i black out the headlights it will look better to me? I do think it looks better than it did. What do you guys think??[IMG][/IMG]
Reply With Quote
  #12
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
God thats a bad picture. This one prolly sux too. I also painted my bed rail covers while I was at it.[IMG][/IMG]
Reply With Quote
  #13
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
Ok maybe this one will be better.[IMG][/IMG]
Reply With Quote
  #14
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
During painting[IMG][/IMG]
Reply With Quote
  #15
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
Grill off[IMG][/IMG]
Reply With Quote
  #16
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
Fresh paint on the bedrail caps[IMG][/IMG]
Reply With Quote
  #17
Old 06-23-2011
hurley's Avatar
Member
iTrader: (3)

Join Date: Dec 2010
Location: West Belmar NJ
Posts: 1,488
Looks good. Buggman paints custom emblems. He has a thread in the classifieds.
Reply With Quote
  #18
Old 06-23-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
I guess I need to contact him. Thanks man!
Reply With Quote
  #19
Old 06-23-2011
RANGER1416's Avatar
Member

Join Date: Jan 2010
Location: waynesville,nc
Posts: 94
not to thread jack but does buggman do the 06+ emblems?
Reply With Quote
  #20
Old 06-28-2011
smcasey88's Avatar
Level II Supporter

Join Date: Sep 2009
Location: Reno, Nv
Posts: 317
I have an 06 and I picked up the vss wire behind the radio.
Reply With Quote
  #21
Old 06-28-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
What color was it?
Reply With Quote
  #22
Old 06-29-2011
smcasey88's Avatar
Level II Supporter

Join Date: Sep 2009
Location: Reno, Nv
Posts: 317
it was gray/black, funny thing was that all of the write ups that I had read mentioned that
the smart junction box was down by the kick panel or e-brake or something like that, but I found mine behind the radio.
Reply With Quote
  #23
Old 06-29-2011
Member
Thread Starter

Join Date: Apr 2010
Location: Plainfield Illinois
Posts: 98
I'm gonna have to look again. Thanks for the info. I have an 06 with a build date in 05. So hopefully I can find it near the radio harness.
