Shackle Angle

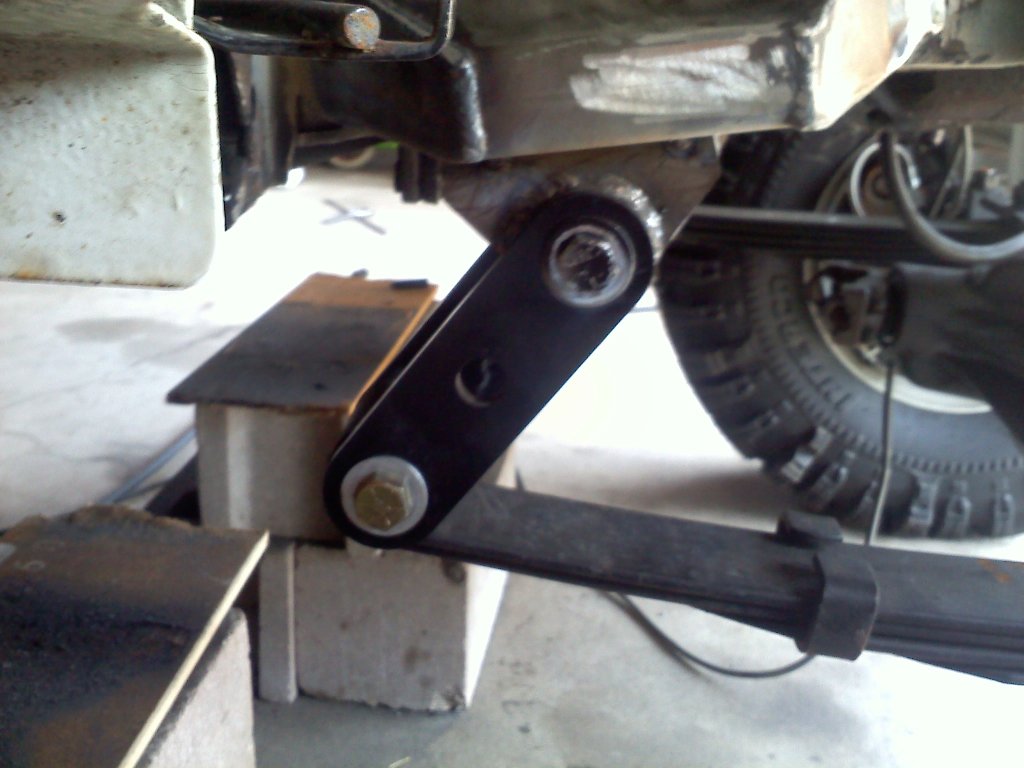

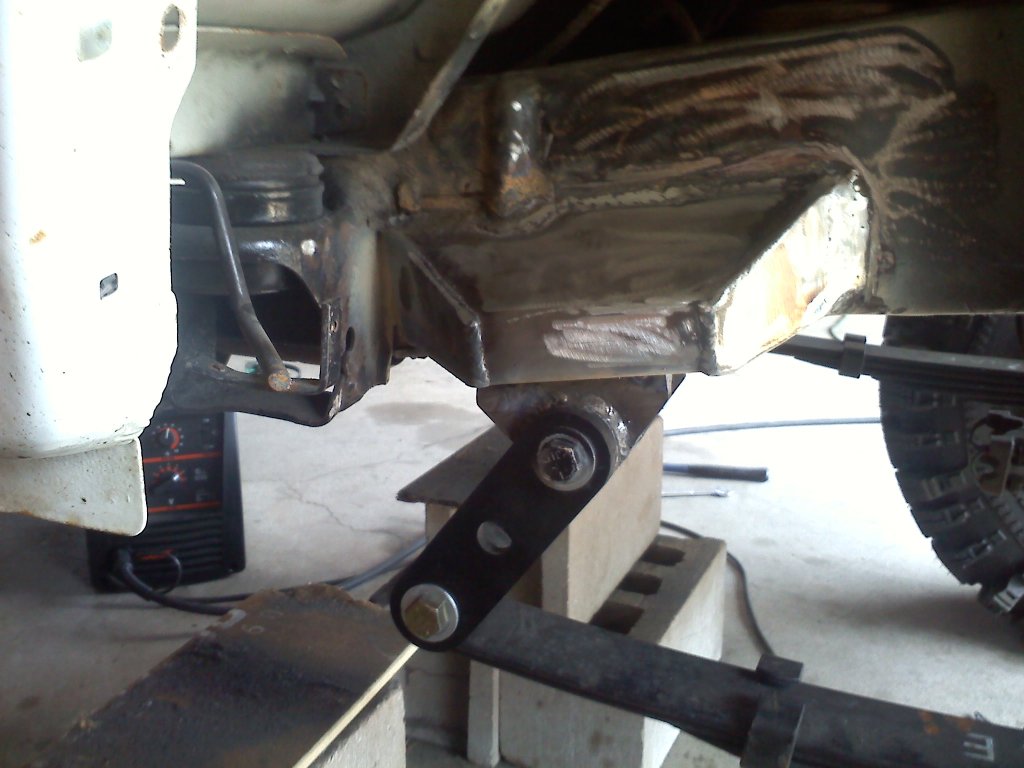

Just redid my front rear shackle mount, Added alot more beef and increased my shackle angle. My last mount i made i had my shackle almost straight up and down and wasnt to impressed with the mount. You think i have enough angle on the shackles or should i redo them? tell me what u guys think.

Attached Thumbnails
Shackle Angle-20120628142522.jpg   Shackle Angle-20120628142529.jpg
Reply With Quote
  #2
Old 06-28-2012
Ford78's Avatar
Member
Thread Starter

Join Date: Dec 2010
Location: Iowa
Posts: 124
Hers a pic of the way i had it before, to get a idea what i did. you can see that my shackle was almost straight with all the weight on it.
Attached Thumbnails
Shackle Angle-20120228115006.jpg
