4 wheel disc brakes

Has anyone here put disc brakes on the rear? I would like to change over how hard was it to do?
Thanks
Reply With Quote
  #2
Old 09-15-2013
littlered's Avatar
Member
iTrader: (2)

Join Date: Sep 2008
Location: Lewistown, Mo
Posts: 1,542
Most guys that do it just swap in an explorer 8.8 rear axle with disc brakes already on it. It gives you a stronger axle and disk brakes.
Reply With Quote
  #3
Old 09-15-2013
Member
Thread Starter

Join Date: Sep 2013
Location: Vermilion Oh
Posts: 7
Thanks I'll check that out.
Reply With Quote
  #4
Old 09-15-2013
Member

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
they make a mustang swap real easy and works great. just do a little searching on here
Reply With Quote
  #5
Old 09-15-2013
V8 Level II's Avatar
RF Veteran
iTrader: (4)

Join Date: Nov 2004
Location: Michigan
Posts: 7,831
There are many ways to swap Ranger rear drum brakes to discs if one is so inclined. Here is the conversion that I did on my 2003 several years ago. This combination works very well but it's not a simple bolt-on swap.


Before: factory 10" drums



After: SVO 11 1/4" vented rear discs







Conversion Parts:
79~85 Eldorado/Riviera/Toronado rear caliper w/parking brake
84~86 Mustang SVO 11 1/4" vented rear rotor
94~04 Mustang GT front brake hose
Custom fabbed caliper bracket, splash shield and p-brake cable adapter.







Attached Thumbnails

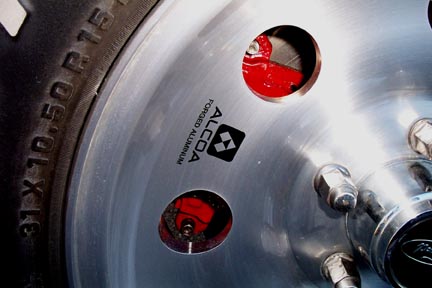

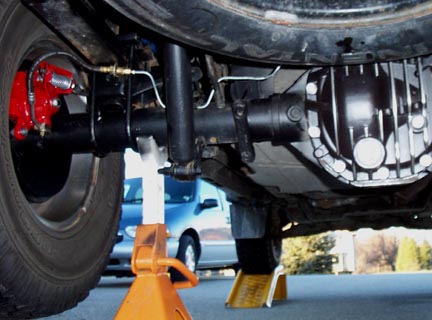

4 wheel disc brakes-rear_disc_ds1_drum.jpg   4 wheel disc brakes-rear_disc_ds1.jpg   4 wheel disc brakes-rear_disc_ds1_with_cover.jpg   4 wheel disc brakes-rear_disc_ps1.jpg   4 wheel disc brakes-kit_sm.jpg

4 wheel disc brakes-bracket_014.jpg   4 wheel disc brakes-splash_shield.jpg   4 wheel disc brakes-rear_disc_alcoa.jpg
Reply With Quote
  #6
Old 09-15-2013
vista4.0's Avatar
Member
iTrader: (3)

Join Date: Jan 2009
Location: Beaver Falls, PA
Posts: 2,824
I did the mustang swap. Did it for $150. Pretty simple to do
