hella grill install

before anyone says it i used the search button a lot to find this but no dice. ok with that being said i received a set of hella 500ff's for christmas and im just wondering where you guys hooked them up behind the grill i.e. top bottom all that and also how you guys wired them up and put your switches. thanks guys
Reply With Quote
  #2
Old 12-31-2012
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
there are tons of threads on this very subject, SEARCH. there are several pictures on this site, several of how mine are set up as well.
Reply With Quote
  #3
Old 12-31-2012
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
ok i have searched through maybe 20 pages of threads and to no avil maybe you could give me some key words to use
Reply With Quote
  #4
Old 01-01-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922

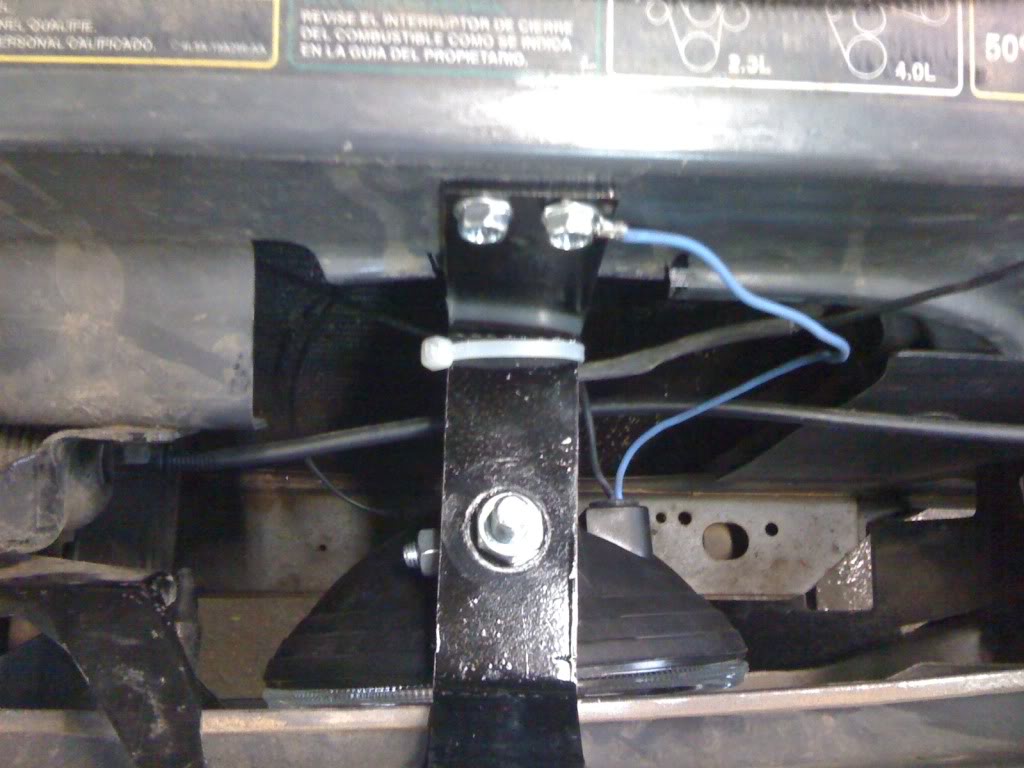

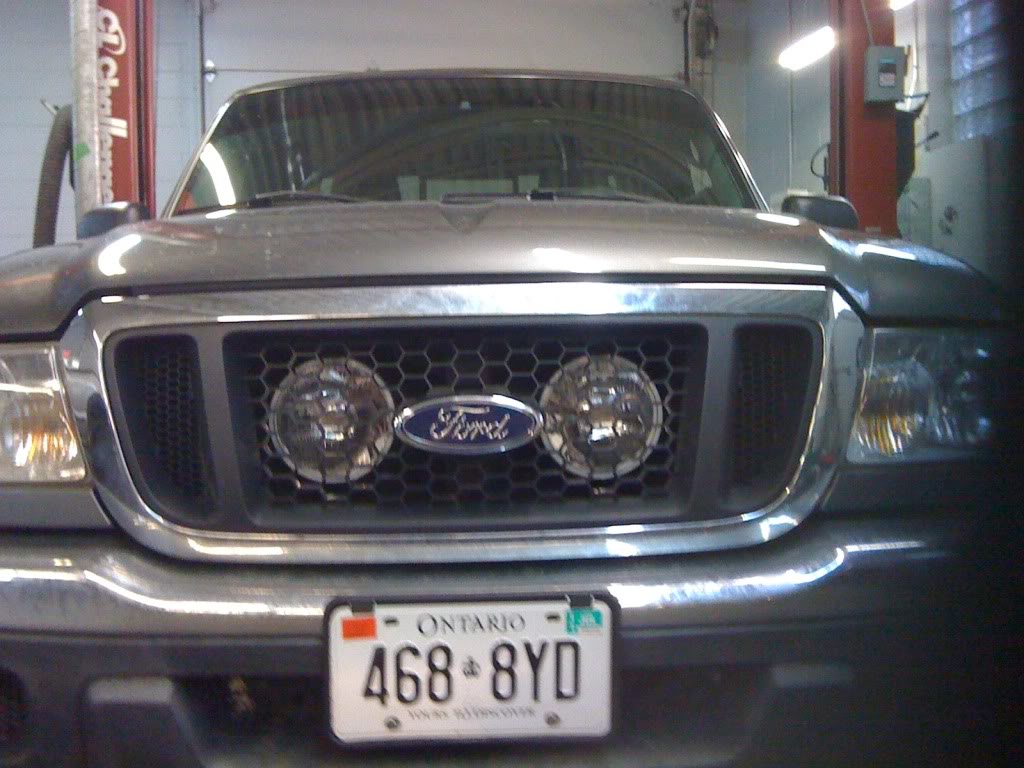

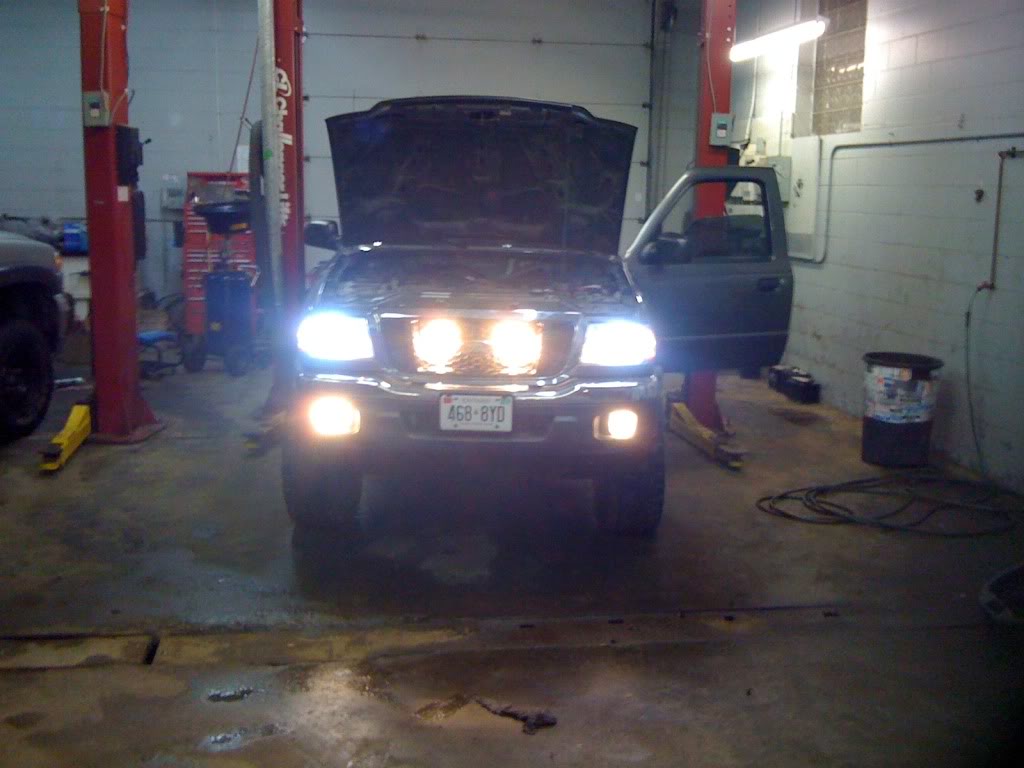

mine are mounted with brackets from the core support. i found having them hang like this makes for very easy adjustments and ease of access. couple screws to take off the grille and the lights are right there. follow the wiring diagram from hella, it is very easy, although i have found the wires on the back of the light housing need to be reversed from the drawing sometimes for them to work, other times they do not. i do not know why this is, i have wired up 7 sets now and had to do three sets this way.

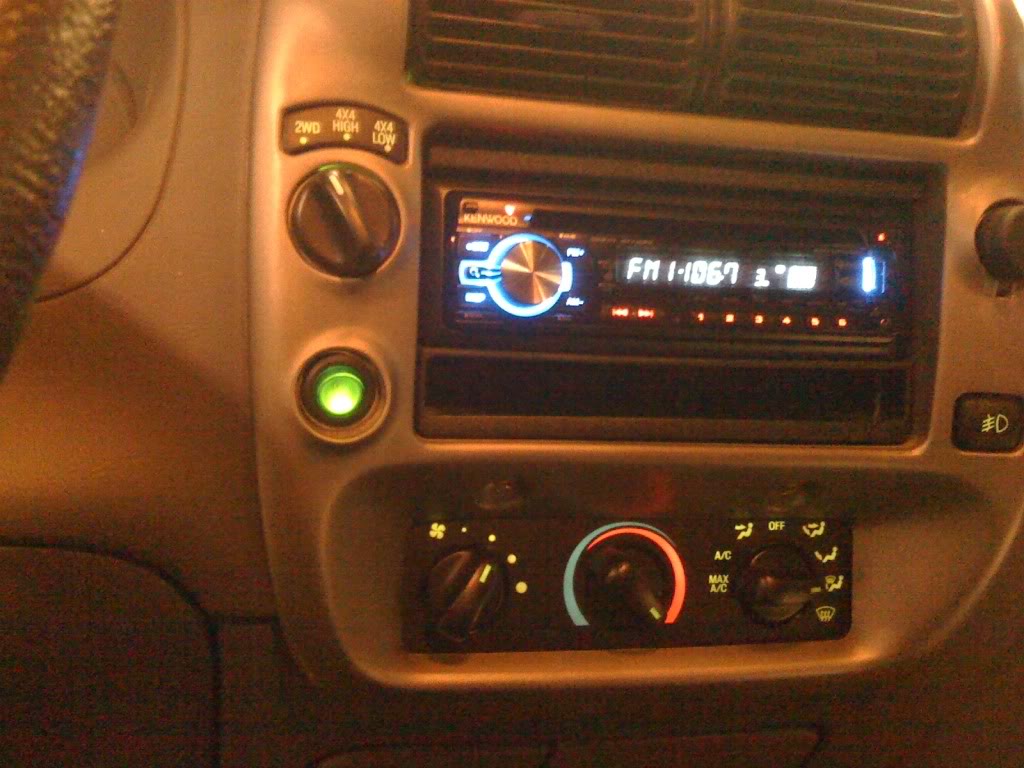

i also had a 12V socket in the dash i never used so i put the switch in it
Attached Thumbnails
hella grill install-81af8c7c.jpg   hella grill install-463f20b3.jpg   hella grill install-4738235c.jpg   hella grill install-6d69d1dd.jpg   hella grill install-1321b7cf.jpg

hella grill install-5cc25653.jpg   hella grill install-cb842f49.jpg   hella grill install-04839246.jpg   hella grill install-bf618584.jpg
Reply With Quote
  #5
Old 01-01-2013
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
ok thanks man thats gunna help me out
Reply With Quote
  #6
Old 01-01-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598


Attached Thumbnails
hella grill install-img_0259.jpg   hella grill install-photo-0132.jpg   hella grill install-photo-0131.jpg
Reply With Quote
  #7
Old 01-01-2013
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
any of you guys run into the problem of having the trans cooler up there
Reply With Quote
  #8
Old 01-01-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
Nope
Reply With Quote
  #9
Old 01-01-2013
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
ok i think i just have to mount them upside down
Reply With Quote
  #10
Old 01-02-2013
ranger4.0's Avatar
Member
iTrader: (1)

Join Date: Jul 2009
Location: cambridge, ontario
Posts: 3,922
my truck is a stick so no, but on the autos there is a thread here somewhere that explains how to mount them. the trans cooler needs to be moved i believe and the horn rotated up out of the way
Reply With Quote
  #11
Old 01-02-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598
I didn't move anything
Reply With Quote
  #12
Old 01-02-2013
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
yeah i think i saw something where intalling them upside down works for the trans cooler
Reply With Quote
  #13
Old 01-02-2013
01RangerEdge's Avatar
Scrambles the DeathDealer
iTrader: (11)

Join Date: Jul 2009
Location: Jackson, MO
Posts: 7,598

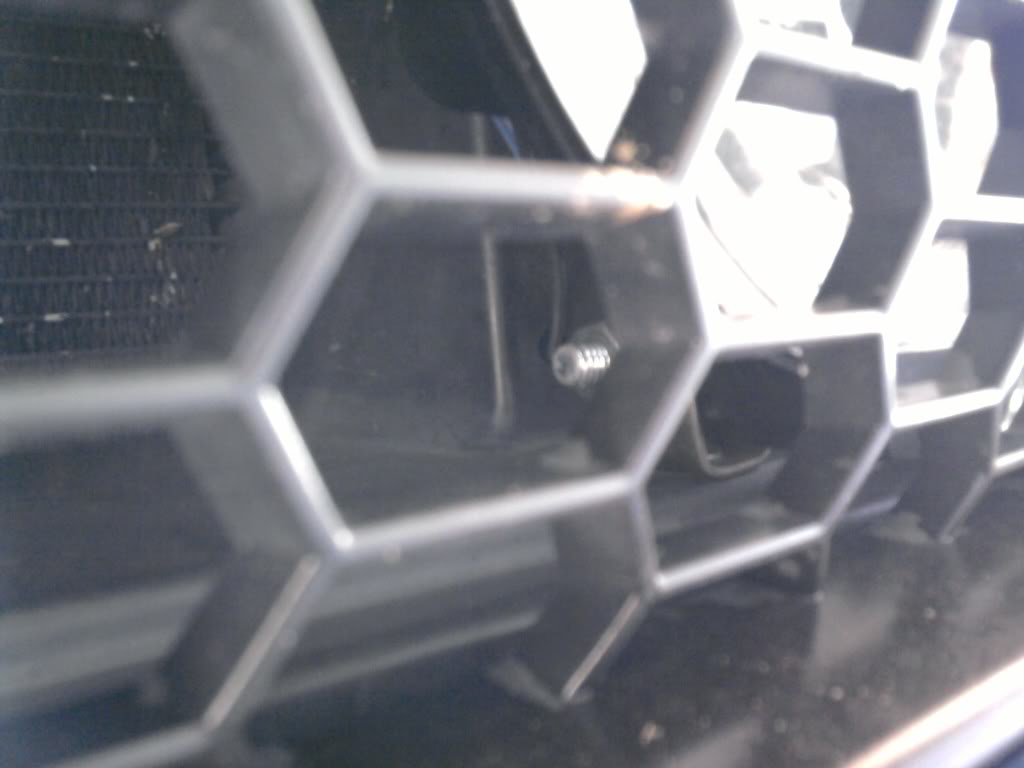

Mine were close enough to the grill that it wasn't an issue
Reply With Quote
  #14
Old 01-02-2013
Member
Thread Starter

Join Date: Dec 2009
Location: port crane, new york
Posts: 218
i guess im just gunna have to take some time and get dirty
Reply With Quote
  #15
Old 01-03-2013
evilclown312's Avatar
Member
iTrader: (3)

Join Date: Dec 2008
Location: Logan ohio
Posts: 2,772
Ill take pics of mine soon, i still need to wire them up, i mounted them and then got busy. I like how that Switch is mounted in the Cig lighter.
